Summary of Contents for Asus VB171 Series
-

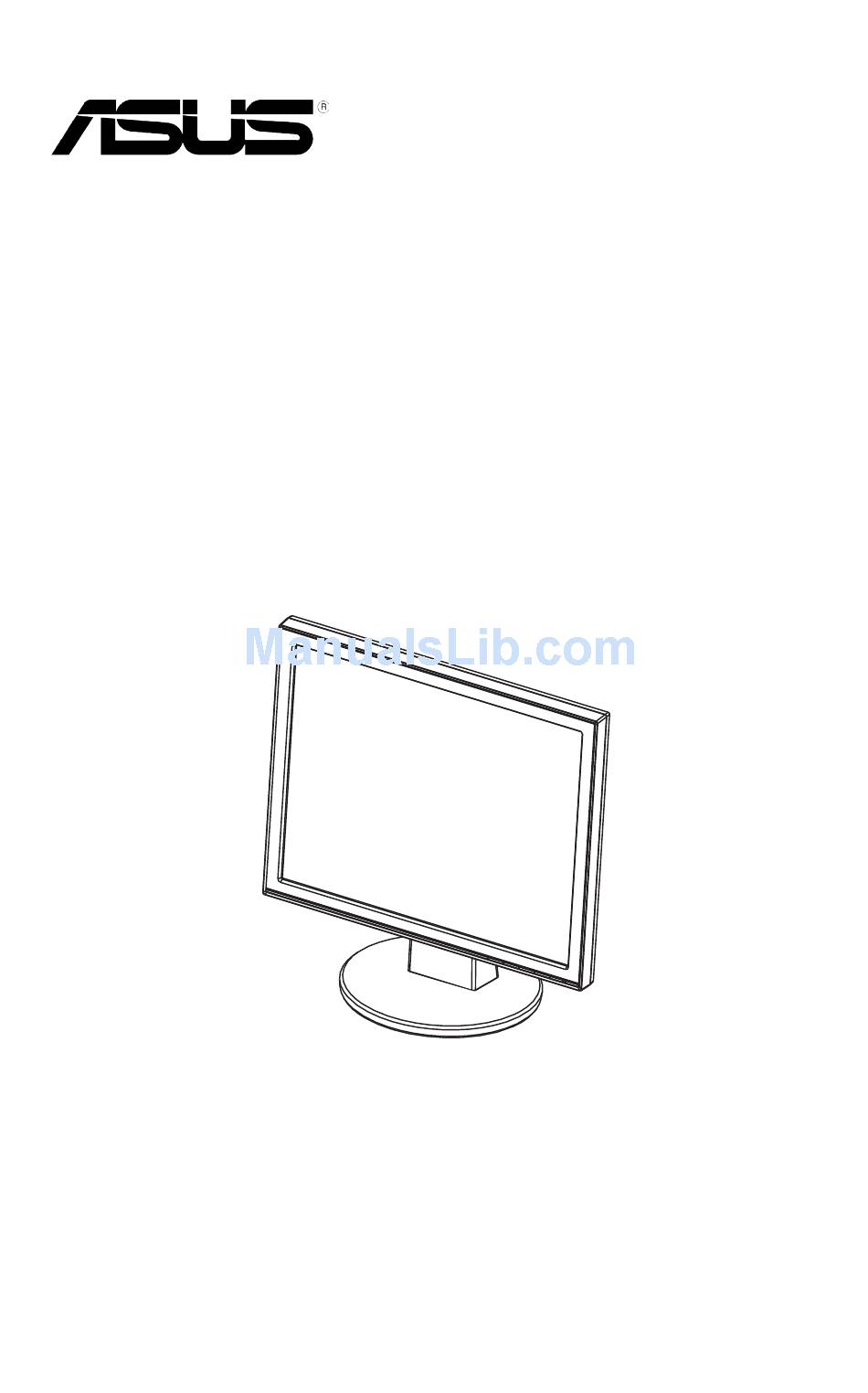

Page 1: Lcd Monitor
Q3156 V1 April 2007 VB171/VB191 Series LCD Monitor User Guide... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 5: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. - Page 6 Refer to the following sources for additional information and for product and software updates. ASUS.websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional.documentation Your product package may include optional documentation, such as warranty card, that may have been added by your dealer.
-
Page 7: Welcome
Welcome! Thank you for purchasing the ASUS The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VB171/VB191 Series brings you! 1.2... -
Page 8: Assembling.the.monitor.base
1.3 Assembling the monitor base To assemble the monitor base: Connect the base with the monitor. A click indicates that the base has been connected successfully. Adjust the monitor to the angle that is most comfortable for you. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. -
Page 9: Monitor.introduction
Press this button to enter/select the icon (function) highlighted while the OSD menu is activated. Button: • Press this button to increase the value of the function selected or move to the next fuction. • This is also a hotkey for Brightness adjustment. ASUS LCD Monitor VB171/VB191 Series... -
Page 10: Rear Of The Lcd Monitor
Power button • Press this button to turn the monitor on/off. Power indicator • The color definition of the power indicator is as the below table. Status Blue Amber 1.4.2 Rear of the LCD monitor Rear connectors (from left to right) AC-IN port. This port connects the power connector from the bundled power cord. Audio-in port. This port connects PC audio source by the bundled audio cable. -
Page 11: Adjusting.the.monitor
• Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from -5º to 20º. ASUS LCD Monitor VB171/VB191 Series -5º~20º... -
Page 12: Detaching.the.arm/Stand.(For.vesa.wall.mount)
2.2 Detaching the arm/stand (for VESA wall mount) The detachable stand of the VB171/VB91 Series LCD monitor is specially designed for VESA wall mount. To detach the arm/stand: Remove the arm cover. Have the front of the monitor face down on a table. Use a screwdriver to remove the three screws on the stand of the monitor as the below drawing shows. -
Page 13: Osd.(On-Screen.display).Menu
In the other modes, the sRGB function is not user-configurable. • ASUS LCD Monitor VB171/VB191 Series to navigate through the functions. Highlight and activate to change the settings of the selected function. button. Repeat step 2 and step 3 to... - Page 14 Image You can adjust brightness, contrast, sharpness, saturation,position (VGA only), and focus (VGA only) from this main function. • Brightness: the adjusting range is from 0 to 00. activate this function. • Contrast: the adjusting range is from 0 to 00. •...
- Page 15 English, German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, Japanese, and Korean. • Information: shows the monitor information. • Reset: “Yes” allows you to revert to the preset mode. ASUS LCD Monitor VB171/VB191 Series is a hotkey to activate...
-
Page 16: Specifications Summary
Specifications summary Model Name VB191T Panel Size SXGA Max. Resolution 1280x1024 Brightness (Typ.) Contrast Ratio (Typ.) 1000:1 Viewing Angle (H/V), 170/160 CR≧10 Display Colors 16.7M Response Time 5ms (Tr+Tf) D-Sub input DVI Input Satellite Speakers 1W x 2 (built-in) Tilt +20°... -
Page 17: Troubleshooting.(Faq)
Screen image has color defects (white does not look white) Screen image is blurry or fuzzy No sound or sound is low ASUS LCD Monitor VB171/VB191 Series Possible Solution • Press the button to check if the monitor is in the ON mode. -
Page 18: Supported.operating.modes
Standard SVGA SXGA IBM MODES Standard Resolution Frequency DOS* MAC MODES Standard Resolution Frequency SVGA * Modes not listed in the above tables may not be supported. F or optimal resolution, we recommend that you choose a mode listed in the above tables Resolution Frequency Horizontal Frequency (KHz) 640x480@60Hz 31.469 640x480@72Hz 37.861 640x480@75Hz 37.5 800x600@56Hz 35.156 800x600@60Hz 37.879 800x600@72Hz 48.077 800x600@75Hz 46.875 1024x768@60Hz 48.363 1024x768@70Hz 56.476 1024x768@72Hz 57.7...
