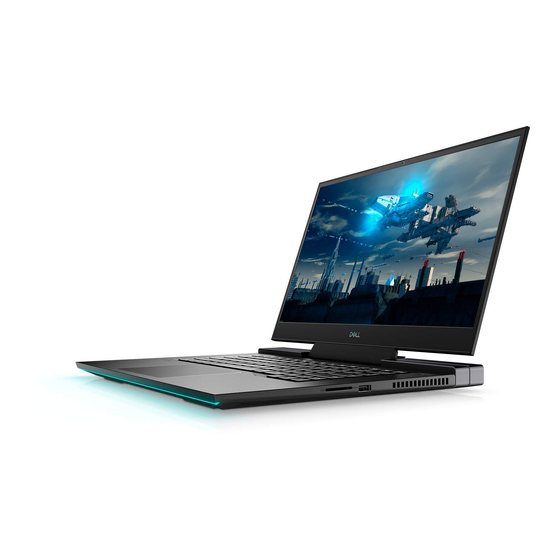

Dell Inspiron 7500 Setup And Specifications
Hide thumbs
Also See for Inspiron 7500:
- System reference manual (166 pages) ,
- Reference and troubleshooting manual (162 pages) ,
- Service manual (75 pages)
Related Manuals for Dell Inspiron 7500
Summary of Contents for Dell Inspiron 7500
- Page 1 Inspiron 7500 Setup and Specifications Regulatory Model: P102F Regulatory Type: P102F003 June 2021 Rev. A03...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020-2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Inspiron 7500.....................4 Chapter 2: Views of Inspiron 7500....................6 Right....................................... 6 Left......................................6 Computers shipped with NVIDIA GeForce GTX 1650 Ti only................7 Top......................................8 Front....................................... 9 Bottom....................................10 Chapter 3: Specifications of Inspiron 7500................... 11 Dimensions and weight..............................11 Processor..................................... -
Page 4: Chapter 1: Set Up Your Inspiron 7500
2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates. - Page 5 For more information about using Dell Update, see the knowledge base article SLN305843 www.dell.com/support. Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 www.dell.com/support. Set up your Inspiron 7500...
-
Page 6: Chapter 2: Views Of Inspiron 7500
Views of Inspiron 7500 Topics: • Right • Left • • Front • Bottom Right 1. microSD-card slot Reads from and writes to the microSD-card. The computer supports the following card types: ● micro-Secure Digital (mSD) ● micro-Secure Digital High Capacity (mSDHC) ●... -
Page 7: Computers Shipped With Nvidia Geforce Gtx 1650 Ti Only
Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. Views of Inspiron 7500... -
Page 8: Top
10 seconds to force shut-down the computer. Place your finger on the power button to log in with the fingerprint reader. NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals. 2. Right-click area Press to right-click. -
Page 9: Front
3. Camera Enables you to video chat, capture photos, and record videos. 4. Camera-status light Turns on when the camera is in use. 5. Right microphone Provides digital sound input for audio recording and voice calls. Views of Inspiron 7500... -
Page 10: Bottom
1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output. -
Page 11: Chapter 3: Specifications Of Inspiron 7500
Fingerprint reader • GPU—Discrete • Operating and storage environment Dimensions and weight The following table lists the height, width, depth, and weight of your Inspiron 7500. Table 2. Dimensions and weight Description Values Height: Front height 17.50 mm (0.68 in.) Rear height 18.90 mm (0.74 in.) -
Page 12: Processor
Processor The following table lists the details of the processors supported by your Inspiron 7500. Table 3. Processor Description Option one Option two Processor type 10th Generation Intel Core i5-10300H 10th Generation Intel Core i7-10750H Processor wattage 45 W 45 W... -
Page 13: External Ports
● 16 GB, 8 GB Onboard memory + 1 x 8 GB, DDR4, 2933 ● 24 GB, 8 GB Onboard memory + 1 x 16 GB, DDR4, 2933 External ports The following table lists the external ports on your Inspiron 7500. Table 6. External ports Description... -
Page 14: Wireless Module
M.2 cards, see the knowledge base article 000144170 at www.dell.com/support. Wireless module The following table lists the Wireless Local Area Network (WLAN) modules supported on your Inspiron 7500. Table 8. Wireless module specifications Description Option one Option two... -
Page 15: Storage
Microphone Dual-array microphones Storage This section lists the storage options on your Inspiron 7500. Your Inspiron 7501 supports one of the following storage configurations: ● One M.2 2230/2280 solid-state drive ● One M.2 2230 solid-state drive and one M.2 2280 solid-state drive The primary drive of your Inspiron 7501 varies with the storage configuration. -
Page 16: Media-Card Reader
● Windows 10 64-bit version or higher (Anniversary Update) ● Intel Rapid Storage Technology driver version 15.9.1.1018 or higher Media-card reader The following table lists the media cards supported by your Inspiron 7500. Table 12. Media-card reader specifications Description Values... -
Page 17: Camera
For more information about touchpad gestures available on Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Inspiron 7500. Table 16. Power adapter specifications Description Values Type... -
Page 18: Battery
Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. Battery The following table lists the battery specifications of your Inspiron 7500. Table 17. Battery specifications Description... -
Page 19: Display
My Dell on www.dell.com/ My Dell on www.dell.com/. Coin-cell battery CR2032 CR2032 Display The following table lists the display specifications of your Inspiron 7500. Table 18. Display specifications Description Option one Option two Display type Full High Definition (FHD) Ultra High Definition (UHD) -
Page 20: Fingerprint Reader
Fingerprint-reader sensor resolution 500 dpi Fingerprint-reader sensor pixel size 108 x 88 GPU—Discrete The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Inspiron 7500. Table 20. GPU—Discrete Controller External display support Memory size... -
Page 21: Chapter 4: Keyboard Shortcuts
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 22 Table 22. List of keyboard shortcuts (continued) Function key Redefined key (for multimedia control) Behavior Decrease brightness Increase brightness Switch to external display Print screen Home The Fn key is also used with selected keys on the keyboard to invoke other secondary functions. Table 23.
-
Page 23: Chapter 5: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 24. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
