Summary of Contents for Asko D3230

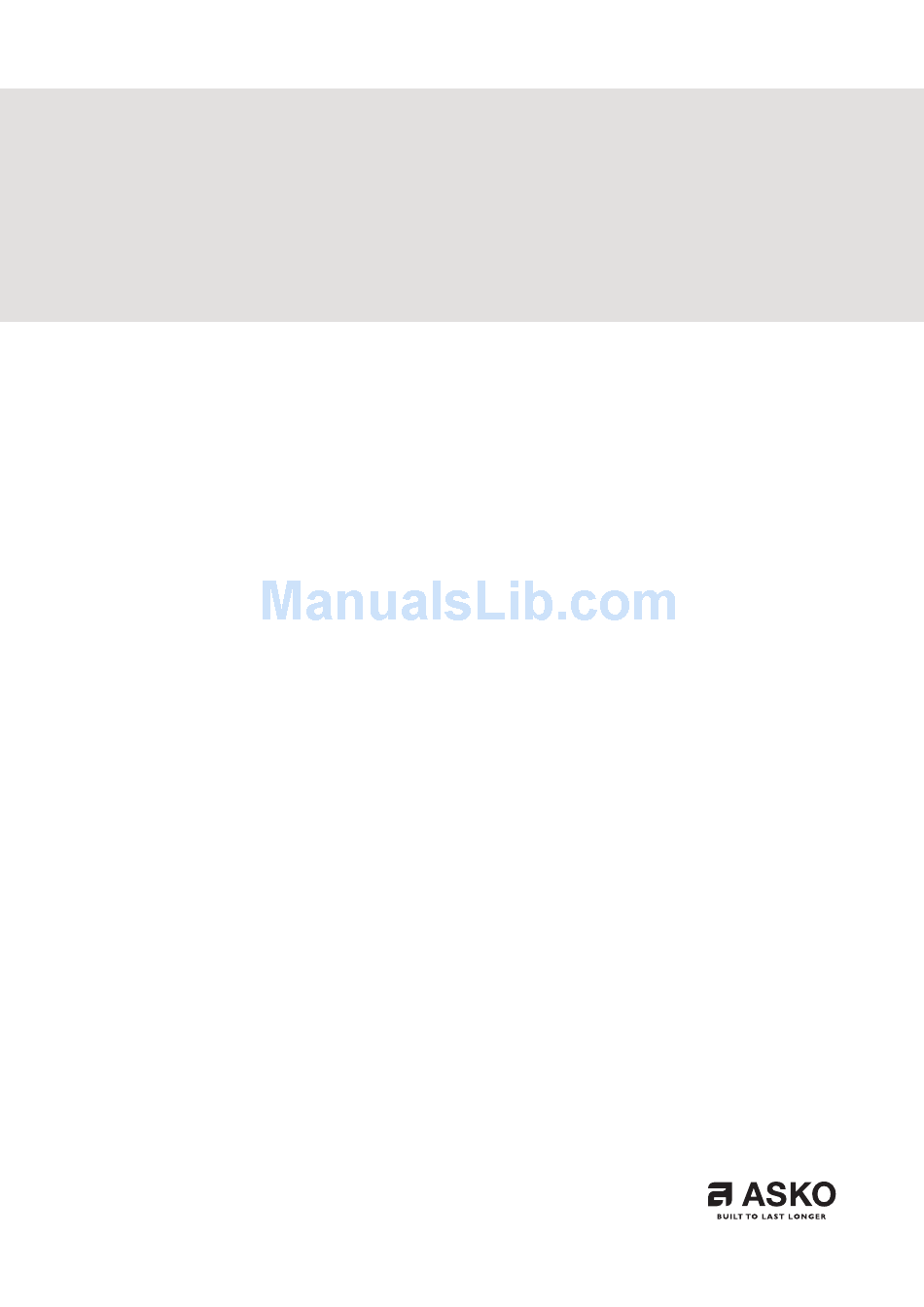

- Page 1 Use & Care Guide Dishwasher ASKO D3230...
- Page 2 And this is what we try to give you. When you buy an ASKO product, we want you to feel assured that the inside is as good as the outside and that the ethics and morals on which we built this machine are just as high as the quality and performance you get from it.
-
Page 3: Table Of Contents
Contents Contents Before doing your first wash Read the directions of use Take care with certain materials Check the door Check water hardness level Machines with water softener Safety General Winter storage/Transport Overfill protection Cleaning Packaging materials Scrapping Child safety Child-safe button lock Child-safe dishwashing Protect your children! Dishwasher detergent... - Page 4 Salt Pour in salt Settings Reprogramming Child-safe button lock Setting water hardness Setting a signal Fault indications Troubleshooting The dishes are not clean Stains or a film on the china The china has a whitish-blue sticky film Stains on stainless steel or silver Stains which remain after dishwashing.
-
Page 5: Before Doing Your First Wash
Before doing your first wash Read through the directions for use Read the directions of use before starting to use your machine, especially the Safety, Child Safety and Basic Course sections. Take care with certain materials Read the section ‘Fragile Dishes’ before washing china with unglazed decoration or other household goods made of plastic, wood or crystal requiring careful treatment. -
Page 6: Safety
Safety General Winter storage/Transport • Read and keep the directions for use! • Installation of water, drainage and elec- tricity must be carried out by a qualified professional. • Do not use the dishwasher for any pur- poses other than those stated in these directions for use. -
Page 7: Child Safety
Child Safety! Child-safe button lock To prevent children starting the machine, you can activate a button lock. Proceed as follows: 1. Switch off the dishwasher with the main switch. 2. Hold in the High temperature and Extra dry buttons, and at the same time switch on the main switch. -
Page 8: Parts Of The Dishwasher
Parts of the dishwasher* 1. Knife basket 2. Upper basket 3. Lamp 4. Spray arms 5. Lower basket 6. Cutlery basket 7. Rinse Aid Filling 8. Dishwasher detergent compartment 9. Main switch 10. Program panel 11. Filter 12. Type plate * Details may differ depending on model and market! Technical information... -
Page 9: Baskets
Baskets* Upper basket Lower basket Cutlery basket 1. Wine glass shelf 2. Cup rack 3. Knife stop 4. Cutlery basket with folding door and handle *Details may differ depending on the model and market! -
Page 10: Control Panel
Control panel P R O G P R O G P R O G 1. Program selector 2. Pots & Pans 3. Heavy wash 4. Normal wash 5. Delicate wash 6. Quick wash Dispenser 7. Rinse & Hold 8. High temperature 9. -
Page 11: Basic Course
Basic Course Below are step by step instructions to help you achieve the best possible dishwashing results. Load the baskets correctly! Your dishwasher is equipped with Super Cleaning System™. It is therefore not nec- essary to rinse the dishes before washing. Simply remove large food particles and de- bris. - Page 12 Only use dishwasher detergent Detergent for washing by hand cannot be used as the build-up of foam impedes the machine’s performance. Press the main power switch Select program Select a program by pressing the program selector one or more times until the required program is displayed.
-
Page 13: Options
Options Select options To select an option, press one of the option buttons High temperature With the temperature option button you can select the wash temperature. Program Default °C Pots & pans: Heavy wash Normal wash: Delicate wash: Quick wash: The temperature symbol will light up if you have chosen the high temperature. -
Page 14: Eco-Dishwashing
Eco-dishwashing Only wash with a full load Waiting to run the wash until the machine is full saves energy. Wash at a lower temperature If the load is only lightly soiled, you can lower the temperature: in Delicate Wash to 40°C and Quick Wash to 30°C. -
Page 15: Fragile Dishes
Fragile dishes A number of household goods are not suit- able for machine washing. There can be many reasons for this. Certain materials cannot withstand intense heat, others can be damaged by the dishwasher detergent. Fragile decoration China with decoration on top of the glaze (the article has a rough feel) should not be machine washed. -
Page 16: Standard Program
Standard program Options Program Temp Drying °C Pots & pans High Long Heavy wash Normal Normal wash* Normal Normal wash High Long Upper basket Lower basket Delicate wash High Normal Quick wash Normal Rinse & dry Rinse & hold * Tested program for Standard AS/NZS 2007.1:2003 Program procedure Main Final... - Page 17 This page is empty for printing reasons...
-
Page 18: Cleaning
Cleaning Cleaning The dishwasher’s inner container is made of stainless steel and is kept clean through normal use. However, if you have calciferous (hard) water, lime deposits can form in the dishwasher. In this case, run a normal wash program with two tablespoons of citric acid in the dishwasher detergent compartment. -
Page 19: Spray Arms
If you still cannot start the machine and a humming noise can be heard, then the overfilling protection has been activated. • Shutoff the water • Remove the plug from the wall socket • Call Service CAUTION! Do not forget to replace thepump plug. Spray arms The holes and bearings can occasionally become clogged. -
Page 20: Rinse Aid
Rinse aid Pour in rinse aid Rinse aid, helps quicker the drying process. When the rinse aid runs out, the rinse aid symbol lights up on the panel. * Certain machines do not have this func- tion. There is a refill indicator in the middle of the dispenser (see picture). -
Page 21: Salt
Salt Pour in salt Before using a dishwasher with a water softening filter, you must fill the salt com- partment with salt. Use coarse salt or spe- cial salt for dishwashers. It is best to fill with salt when you are about to do a wash, as the dishwasher needs to be rinsed out immediately after filling. -
Page 22: Settings
Settings Reprogramming Some of the machine’s functions can be reprogrammed. Please reade below. The selection will be retained until the next time you reset this function. Even if the machine is turned off at the main switch or loses power for any other reason, all selections registered before the interruption of power will be retained. -
Page 23: Setting Water Hardness
Setting water hardness If you have a dishwasher with a water softener, you may need to change the setting, de- pending on the degree of hardness of the water. Phone your local Water Board to check the water hardness in your area. The dishwasher is set for low water hardness on delivery. Switch off the dishwasher at the main switch. -
Page 24: Setting A Signal
Setting a signal If you want the machine to signal when the wash is complete, you can program it to do this. The machine is set without a signal by default. Switch off the dishwasher with the main switch. Hold in the Delayed start button at the same time as you press the main switch. -
Page 25: Fault Indications
Fault indications Display flashes flashes flashes flashes flashes To remove the fault indications from the display, turn the main switch off and then on again. Type of fault Action Too much water Phone service in the dishwasher Fault with water inlet Check that the water is on Valve leakage Switch off the water tap and con-... -
Page 26: Troubleshooting
Troubleshooting Problems The dishes are not clean. Stains or a film on the china. Possible causes • The spray arms are not rotating. • Old dishwasher detergent. NB! Detergent is a perishable. • Incorrect dosage of detergent. • Insufficiently powerful dishwashing program. -
Page 27: The China Has A Whitish-Blue Sticky Film
Problems The china has a whitish- blue sticky film. Stains on stainless steel or silver. Stains which remain after dishwashing. Rattling sound during dishwashing. The machine will not start. To restart the machine, press Start/stop for 3 seconds. Now select a new programme and press Start/stop. -
Page 28: Water Remains In The Machine
Problems Water remains in the machine. Bad odour in the machine Possible causes pump) can be heard from the machine, this does not stop when the power is switched off using the main power switch. • Obstruction in the drain hose. -
Page 29: Performance Information
Performance information Test dosage Heavy wash/Normal wash Main wash 25 gram Standard detergent. Rinse aid dosage 3. Energy labelling Australia: Dishwasher program: Normal wash 50°C Program time: Connection: Test method noise measurement: Example of dishwasher loading AS/NZS 2007.1:2003 Technical information Height: Width: Weight:... -
Page 30: Installation
Installation Suggestions on positioning the dishwasher The dishwasher can be built in, fully free- standing or semi-freestanding. CAUTION! Connection to electricity, water and drain- age must be carried out by a suitably quali- fied person. A. Built-in The dishwasher can be built in under a worktop with a working height of 820 - 870 mm. -
Page 31: Connection To Electricity
Connection to water There must be a shut-off tap on the water supply pipe. The shut-off tap should be positioned above the work surface or at the front of the sink unit. The water supply pipe has a connection with a 1/2” or 3/4” internal thread depending on country. -
Page 32: Positioning The Machine
Positioning the machine A. Adjusting machines with six feet (freestanding dishwasher) 1. Adjust the height of the dishwasher with the four steel feet. 2. Lock the feet with the nuts. NB! The dishwasher must not be allowed to lean more than 5 mm. 3. -
Page 33: Adjusting The Plinth
To prevent kinks, pull the drain hose and the connecting pipe. Adjusting the plinth (Only if you have kick-plate as accessory) The dishwasher has two kick-plates (certain models). The taller one should be used if the machine is to be 850 - 870 mm high and the plinth depth can be varied between 45 - 105 mm. -
Page 34: Setting Water Hardness
Setting water hardness If you have a dishwasher with a water softener, you may need to change the setting, de- pending on the hardness level of the water. Phone your local Water Board to check the water hardness in your area. The dishwasher is set for low water hardness on delivery. Switch off the dishwasher with the main switch. -
Page 35: Service & Guarantee
Service & guarantee Service Before calling for service, check to see whether the faults is due to something that you can rectify yourself. See Trouble shooting pages 26-28. Guarantee For guarantee details, see the guarantee card. -
Page 36: Own Comments
Own comments... - Page 37 Own comments...
- Page 38 Own comments...
-
Page 39: Search Words
Search words Advice! 7, 13 After dishwashing 13 Child safe 7, 22 Child-safe button lock 7 Citric acid 18, 20 Cleaning 6, 18 Connection 8, 17, 29, 31 Control panel 10, 20 Crystal 3, 5, 15, 26 Cutlery basket 8, 9, 11 Delicate wash 10, 12, 14 Dishwasher detergent 3, 6, 7, 11, 21 Display 21... -
Page 40: Quick Guide
Quick Guide 1. Loading baskets Remove large food particles and debris. There is no need to rinse thanks to the Super Cleaning System ™ 2. Dispensing dishwasher detergent The detergent compartment has a small compartment for pre-wash and one for main wash.
