Summary of Contents for Art SyncGen

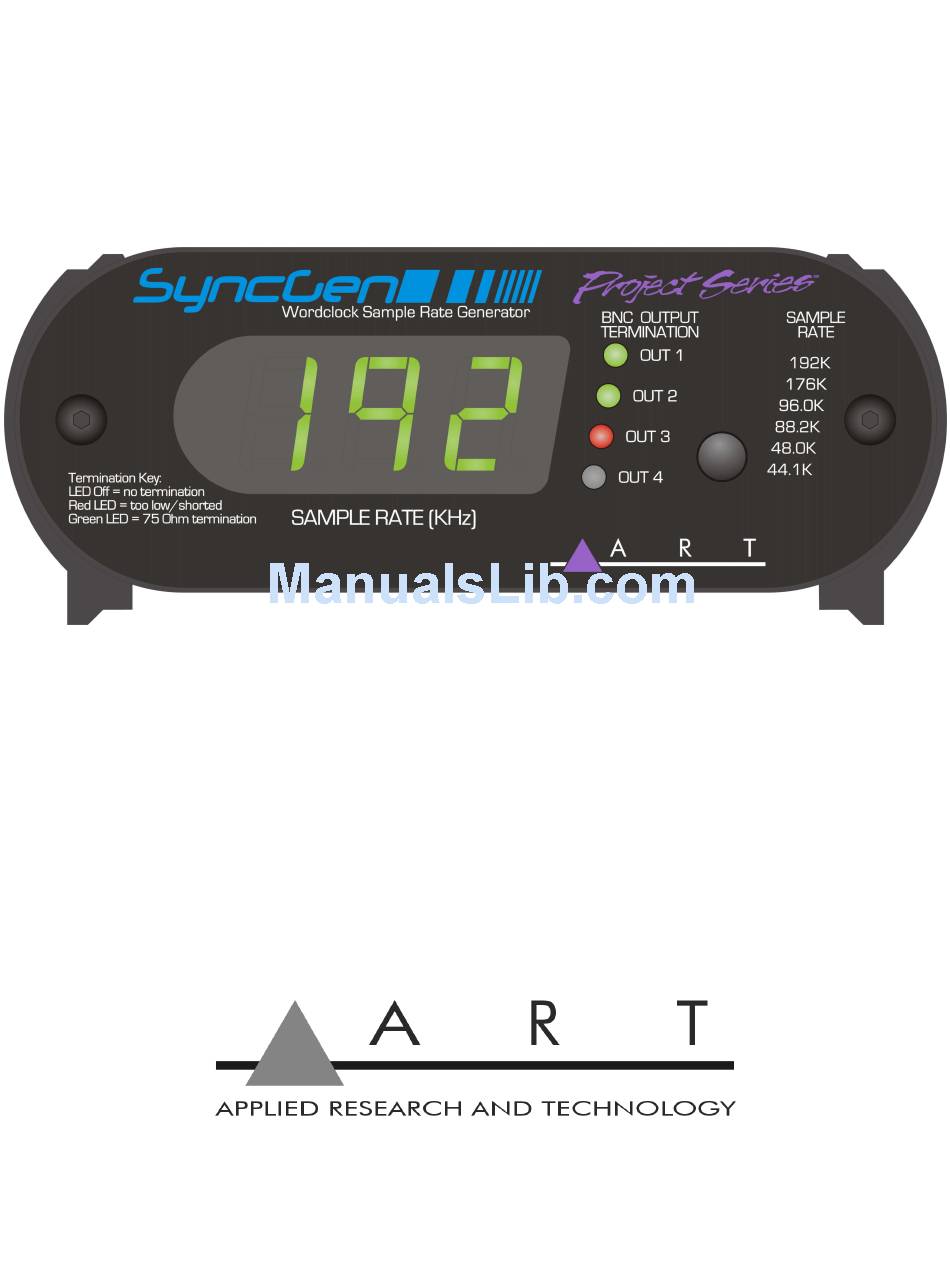

- Page 1 SyncGen User’s Manual...
- Page 3 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. Read instructions: Retain these safety and operating instructions for future reference. Heed all warnings printed here and on the equipment.
- Page 4 INTRODUCTION: Thank you for purchasing the ART SyncGen. This product will allow you to improve the sound of your digital recording system by providing a solid time-base reference. We hope that you enjoy the flexibil- ity and reliability the SyncGen has to offer.
- Page 5 Use this input with the ART SyncGen to tie the timing of this device in with the rest of your system. The SyncGen’s S/PDIF output has all audio bits set to zero “digital black”, providing a locking source for these applications.
- Page 6 Diagram 1.
- Page 7 ART products with Wordclock Thru jacks are NOT terminated internally, thereby allowing easy con- nection of more than one device to a single SyncGen wordclock output. A 75 Ohm terminator will be required on the last unit in the chain (furthest from the SyncGen).
-
Page 8: Warranty Information
2) If you believe the ART unit is at fault, go to www.artproaudio.com. You may contact Customer Service for more assistance, or directly request a Return Authorization for service in the “resources” area of the website. - Page 9 Notes:...
-
Page 10: Specifications
Weight...1.89 lbs. (0.86 kg) w/power supply and packaging. ART maintains a policy of constant product improvement. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install same on products previously manufactured. - Page 12 E-mail: cserve@artproaudio.com SyncGen SG-5004-101...
