Summary of Contents for Briggs & Stratton 030252, 030297
Page 1

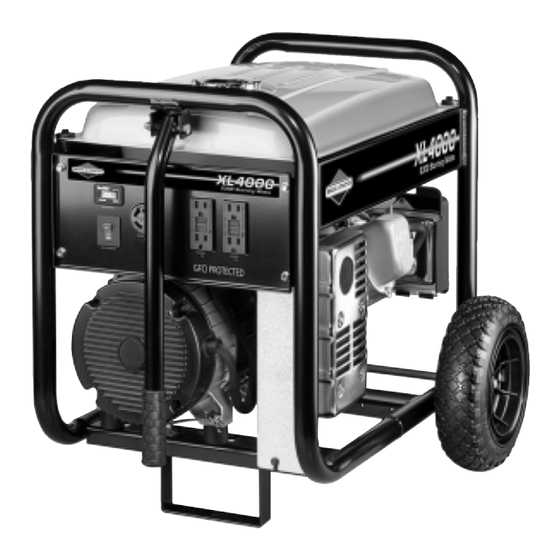

XL4000 5300 STARTING WATTS Questions? Help is just a moment away! Preguntas? La ayuda es justa un momento lejos! Call: Generator Helpline Llame: Línea Directa del Generador 1-800-743-4115 M-F 8-5 CT web: www.briggsandstratton.com CAUTION Before using this product, read this manual and follow all Safety Rules and Operating Instructions.
SAFETY RULES WARNING Running generator gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death. • Operate generator ONLY outdoors. • Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes or other openings. •...
Page 4
WARNING Unintentional sparking can result in fire or electric shock. WHEN ADJUSTING OR MAKING REPAIRS TO YOUR GENERATOR • Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug. WHEN TESTING FOR ENGINE SPARK •...
KNOW YOUR GENERATOR KNOW YOUR GENERATOR Read this operator’s manual and safety rules before operating your generator. Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Fuel Tank Hour Meter Double Pole...
ASSEMBLY Your generator requires some assembly and is ready for use after it has been properly serviced with the recommended oil and fuel. If you have any problems with the assembly of your generator, please call the generator helpline at 1-800-743-4115.
Page 7
OPERATION USING THE GENERATOR System Ground The generator has a system ground that connects the generator frame components to the ground terminals on the AC output receptacles.The system ground is connected to the AC neutral wire (see “Equipment Description”, earlier in this manual). Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or...
OPERATING THE GENERATOR Starting the Engine Disconnect all electrical loads from the generator. Use the following start instruction steps in numerical order: Make sure unit is on a level surface. IMPORTANT: Failure to start and operate unit on a level surface will cause the unit not to start or shut down during operation.
OPERATION Stopping the Engine Turn OFF and unplug ALL electrical loads from generator panel receptacles. NEVER start or stop engine with electrical devices plugged in and turned ON. Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator. Move fuel valve to “Off”...
Page 10
Start generator as described in the section “Starting the Engine”, then place carton over generator. Keep at least 5 ft. (152 cm) clearance on all sides of generator including overhead with shelter in place. WARNING Running engines produce heat.Temperature of muffler and nearby areas can reach or exceed 150°F (65°C).
OPERATION Figure 6 — 120 Volt, 15 Amp GFCI Duplex Receptacle Ground Fault Protection The duplex receptacles are equipped with Ground Fault Circuit Interrupter (GFCI) protection.This device meets applicable federal, state and local codes.The generator’s locking receptacle is not protected by a GFCI. The GFCI protects against electrical shock that may be caused if your body becomes a path which electricity travels to reach the ground.This could happen if you touch...
Page 12
DON'T OVERLOAD GENERATOR Capacity You must make sure your generator can supply enough rated (running) and surge (starting) watts for the items you will power at the same time. Follow these simple steps: Select the items you will power at the same time. Total the rated (running) watts of these items.This is the amount of power your generator must produce to keep your items running.
STORAGE The generator should be started at least once every seven days and allowed to run at least 30 minutes. If this cannot be done and you must store the unit for more than 30 days, use the following guidelines to prepare it for storage. Generator Storage •...
TROUBLESHOOTING TROUBLESHOOTING Problem No AC output is available, but generator is running. Generator runs good at no-load but "bogs" down" when loads are connected. Generator will not start; or starts and runs rough. Generator shuts down during operation. Generator lacks power. Cause One of the circuit breakers is open.
The engine and starting batteries are warranted solely by the manufacturers of those products. 2 years for all consumer products in the European Union. Parts only on 2nd year for consumer use of Portable Generator and Home Standby Generator System - Less than 10 KW, outside of European Union.
REGLAS DE SEGURIDAD ADVERTENCIA Al generador funcionar, se produce monóxido de carbono, un gas inodoro y venenoso. El respirar el monóxido de carbono, producirá náusea, desmayo o la muerte. • Opere el generador SOLAMENTE al aire libre. • Asegúrese de que los gases de escape no puedan entrar por ventanas, puertas, tomas de aire de ventilación u otras aberturas en un espacio cerrado en el que puedan acumularse.
Page 20
ADVERTENCIA Chispear involuntario puede tener como resultado el fuego o el golpe eléctrico. CUANDO AJUSTE O HAGA REPARACIONES A SU GENERADOR • Siempre desconecte el alambre de la bujía y colóquelo donde no pueda entrar en contacto con la bujía. CUANDO PRUEBE LA BUJÍA DEL MOTOR •...
CONOZCA SU GENERADOR CONOZCA SU GENERADOR LEA ESTE MANUAL DEL OPERARIO Y LAS REGLAS DE SEGURIDAD ANTES DE OPERAR SU GENERADOR. Compare las ilustraciones con su Generador para familiarizarse con las ubicaciones de los diferentes controles y ajustes. Conserve este manual para referencias futuras. Tanque del Combustible Contador de la Hora Disyuntor...
MONTAJE Su generador requiere de ciertos procedimientos de montaje y solo estará listo para ser utilizado después de haberle suministrado servicio con el combustible y aceite recomendados. Si usted tiene problemas con el montaje de su generador, por favor llame a la línea de ayuda para generadores al 1-800-743-4115.
OPERACIÓN USO DEL GENERADOR Tierra del Sistema El generador dispone de una conexión a tierra del sistema que conecta los componentes del bastidor a los terminales de tierra de los enchufes hembra de salida de CA. La tierra del sistema está...
OPERANDO EL GENERADOR Encienda el Motor Desconecte todas las cargas eléctricas del generador. Use las siguientes instrucciones para encender, paso por paso, en orden numérico. Asegúrese de que la unidad está en una superficie plana. IMPORTANTE: Si la unidad no se arranca y utiliza en una superficie plana, se pueden producir problemas de arranque y de parada durante el funcionamiento.
OPERACIÓN Parado Del Motor Desconecte TODAS las cargas eléctricas de los tomaco- rrientes del panel del generador. NUNCA de arranque o detenga el motor con los dispositivos eléctricos conectados y ENCENDIDOS. Deje que el motor funcione sin cargas por algunos minutos para estabilizar las temperaturas internas del motor y el generador.
Page 26
ADVERTENCIA Los motores al funcionar producen calor. La temperatura del silenciador y de las áreas cercanas puede alcanzar o pasar los 150ºF (65ºC). Quemaduras severas pueden ocurrir al hacer contacto. Los gases y el calor de escape pueden inflamar los materiales combustibles y las estructuras o dañar el depósito de combustible y provocar un incendio.
Page 27
OPERACIÓN NOTA: Si el disyuntor bipolar salta, las tomas dobles se desconectan. Use cada receptáculo para operar 120 Voltios AC, de fase sencilla, de cargas de 60Hz que requieren hasta 1,800 vatios (1.8 kW) a corrientes de 15 Amperios. Use los juegos de cables que son calificados para cargas de 125 Voltios AC, a 15 Amperios (o mayores).
Page 28
NO SOBRECARGUE GENERADOR Capacidad Usted debe asegurarse que su generador puede proveer el suficiente vataje calificado (cuando esté funcionando) y de carga (al encender) para los aparatos a los cuales va a proveer la energía, al mismo tiempo. Siga estos pasos: Seleccione los aparatos que recibirán la energía, al mismo tiempo.
ESPECIFICACIONES Y MANTENIMIENTO ESPECIFICACIONES Vataje que empieza .....5,300 Vatios (5.3 kW) Vataje .......4,000 Vatios (4.0 kW) Corriente de Carga de C.A.: a 240 Voltios .
ALMACENAMIENTO El generador deberá ser encendido al menos una vez cada siete días y deberá dejarlo funcionar al menos durante 30 minutos. Si no puede hacer esto y debe almacenar la unidad por más de 30 días, siga las siguientes instrucciones para preparar su unidad para almacenamiento.
DIAGNOSITICOS DE AVERÍAS DIAGNOSITICOS DE AVERÍAS Problemo El motor está funcionando pero no existe salida de AC disponsible. El motor funciona bien sin carga pero "funciona mal" cuando se le contectan cargas. El motor no se enciende; o se enciende y funciona mal. El motor se apaga en pleno funcionamiento.
POLÍTICA DE GARANTÍA PARA EL PROPIETARIO DE EQUIPOS BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC Fecha de entrada en vigor: 1 de Septiembre de 2004. Sustituye a todas las garantías sin fecha y a las de fecha anterior al 1 de Septiembre de 2004 Briggs &...
