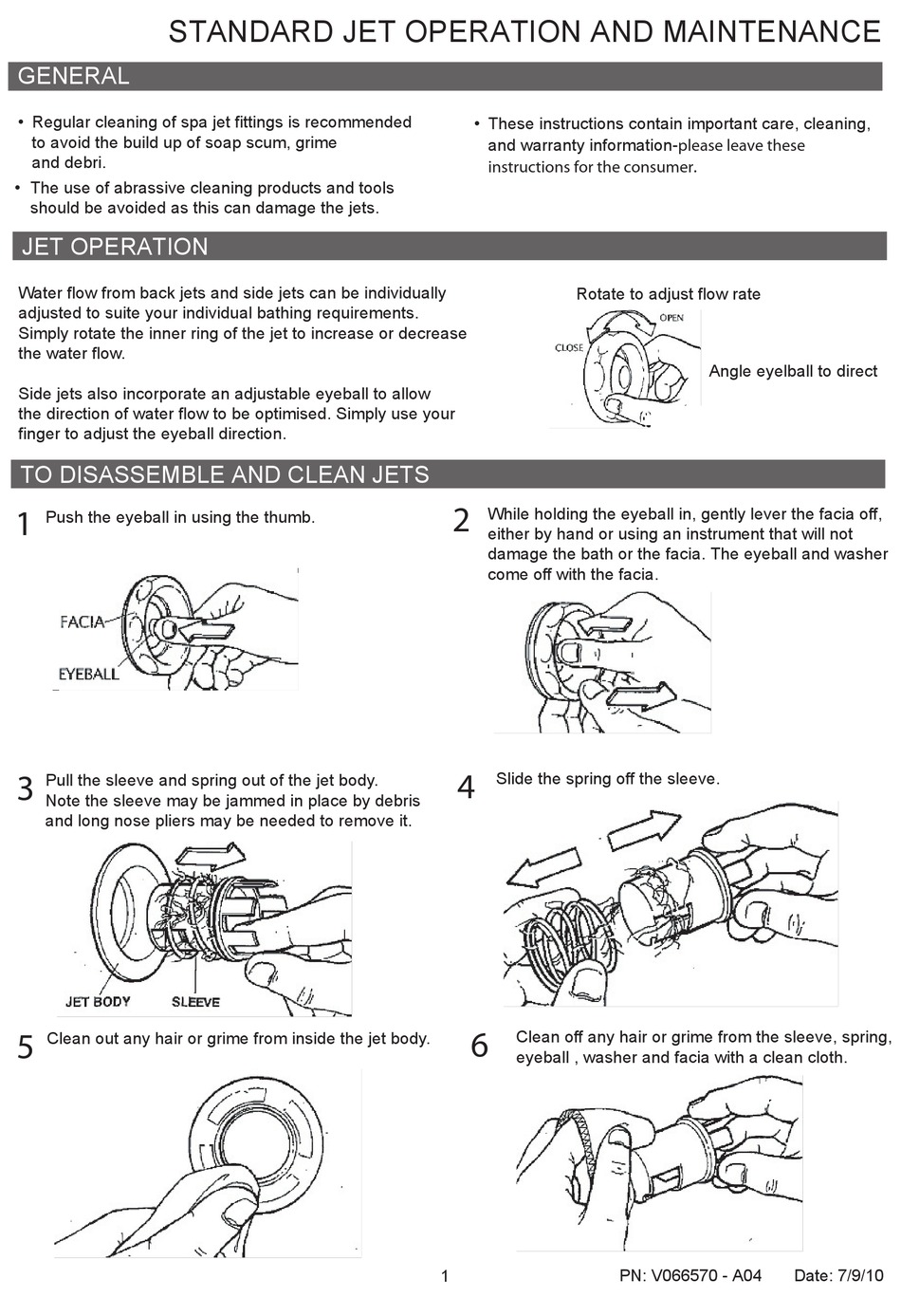

STANDARD JET OPERATION AND MAINTENANCE
GENERAL
• Regular cleaning of spa jet fittings is recommended
to avoid the build up of soap scum, grime
and debri.
• The use of abrassive cleaning products and tools
should be avoided as this can damage the jets.

JET OPERATION

Water flow from back jets and side jets can be individually
adjusted to suite your individual bathing requirements.
Simply rotate the inner ring of the jet to increase or decrease
the water flow.
Side jets also incorporate an adjustable eyeball to allow
the direction of water flow to be optimised. Simply use your
finger to adjust the eyeball direction.

TO DISASSEMBLE AND CLEAN JETS

� Push the eyeball in using the thumb.
Pull the sleeve and spring out of the jet body.
�
Note the sleeve may be jammed in place by debris
and long nose pliers may be needed to remove it.
Clean out any hair or grime from inside the jet body.
�
• These instructions contain important care, cleaning,
and warranty information-������ ����� �����
������������ ��� ��� ���������
Rotate to adjust flow rate
� While holding the eyeball in, gently lever the facia off,
either by hand or using an instrument that will not
damage the bath or the facia. The eyeball and washer
come off with the facia.
Slide the spring off the sleeve.
�
Clean off any hair or grime from the sleeve, spring,
�
eyeball , washer and facia with a clean cloth.
1
Angle eyelball to direct
PN: V066570 - A04 Date: 7/9/10
