Sealey AK5063 Quick User Manual

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear protective
instructions gloves
1. Safety
Warning! ensure Health & Safety, local authority and general workshop practice requirements are adhered to when using this
‰
equipment. Familiarise yourself with the application and limitations, as well as the potential hazards of the kit.
This kit is suitable for flaring copper, brass or thin walled aluminium pipe. DO nOt use for flaring steel pipe.
9
maintain the kit in good condition.
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
locate the flaring tools in a suitable work area, keep the area clean and tidy and ensure there is adequate lighting.
9
Warning! Always wear approved eye or face protection when using the flaring tools.
‰
Keep children and unauthorised persons away from the working area.
9
DO nOt use the kit for any purpose other than for which it is designed.
8
DO nOt use the kit if any parts are damaged or missing as this may cause failure and/or personal injury.
8
DO nOt allow untrained persons to use the kit.
8
DO nOt attempt to flare piping when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
When not in use clean kit components, replace in case and store in a safe, dry, childproof area.
9
remember! The safe operation of a vehicle, or other equipment, may well depend on the quality of the flare produced. discard any
9
flare which is mis-formed.
Warning! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations that
‰
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
2. intrODuctiOn
Suitable for producing single and double flares on copper tubing. Compact design with integral flare press and locking-grip plier style
pipe clamp make this tool particularly suitable for on-vehicle use.
3. SPecificatiOn
model no .......................................................... AK5063
AK5063.01 Flare dies (5 piece) ........... 3/16", 1/4", 5/16"
.........................................................................
AK5063.02 ..................................................Pipe Clamp.
AK5063.03 ............................................ Flare Press-45°
4. OPeratiOn
Warning! Before using the flaring kit, ensure that you
‰
have read and understood the Safety Instructions in
Section 1.
4.1. The pipe end to be flared must be cut clean and square and
be de-burred. Use a pipe or tube cutter (available from
your Sealey stockist).
4.2. open the clamp and select the appropriate matching
semi-cylindrical indentations on the two rotating dies.
Insert the prepared end of the pipe between the rotating
dies and grip the handles of the tool, bringing them together
forcefully. Adjust the protrusion of the pipe so that 'X' (fig.2)
is at least 1/8" to 3/16" depending on pipe size - the larger
the pipe - the greater 'X' should be.
4.3. Grip the clamp firmly to ensure that the pipe does not slip.
Should the hold appear insufficient, turn the cam pivot
adjustment (fig.3.A), thereby repositioning the clamp handles
allowing more pressure to be exerted.
© Jack Sealey limited
PiPe flaring kit
ak5063
model no:
3/8", 1/2" SAe.
Original Language Version

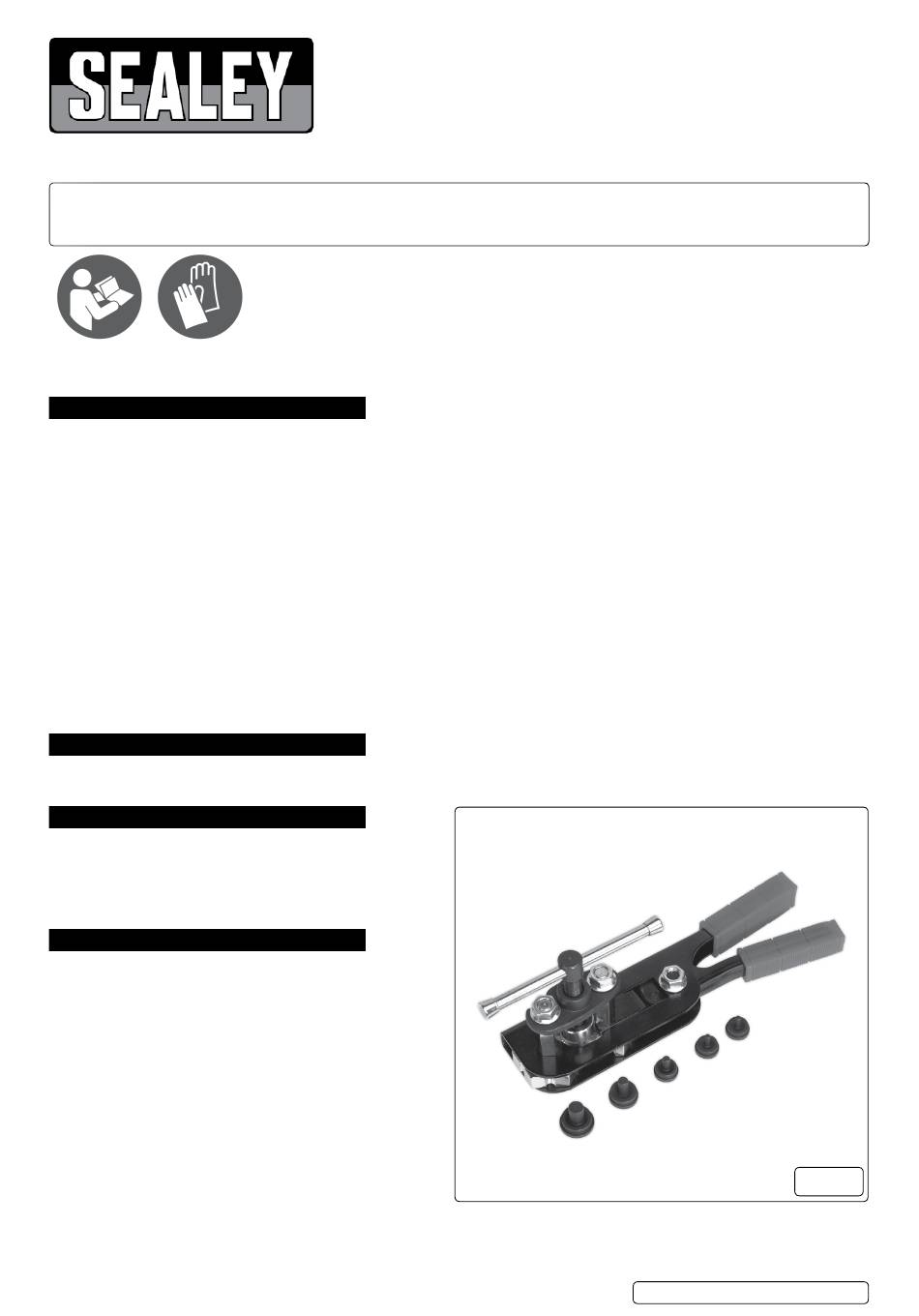

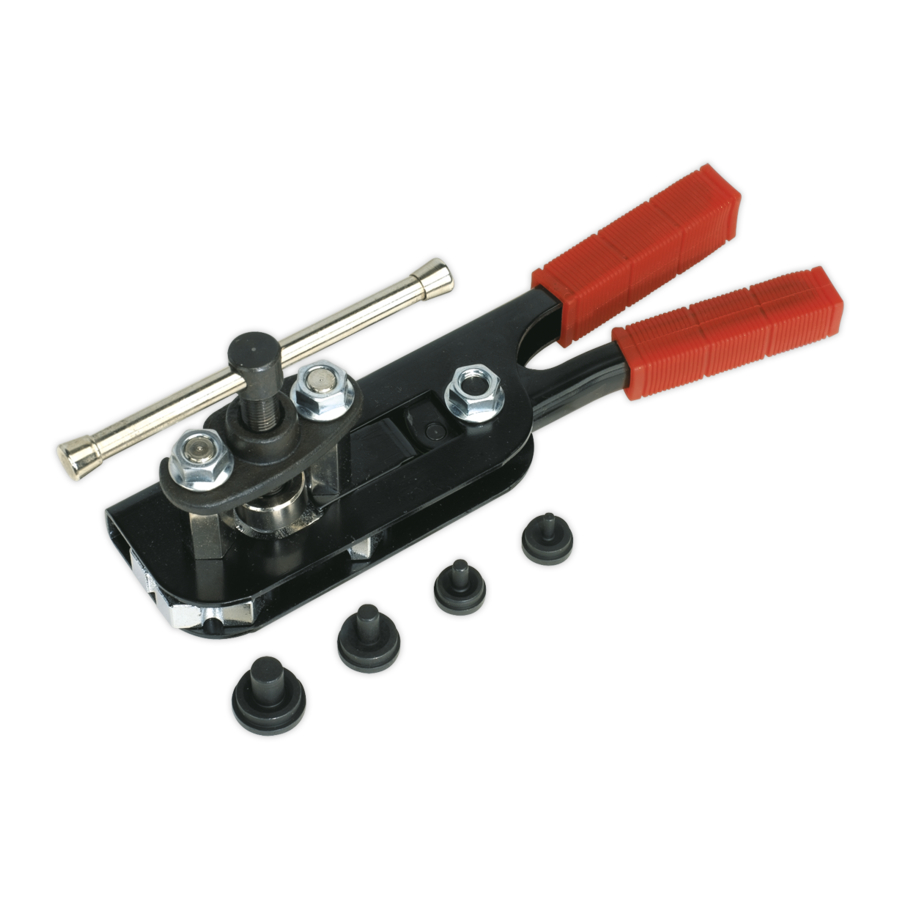

fig.1
AK5063 | Issue 7(lF) 27/02/18
