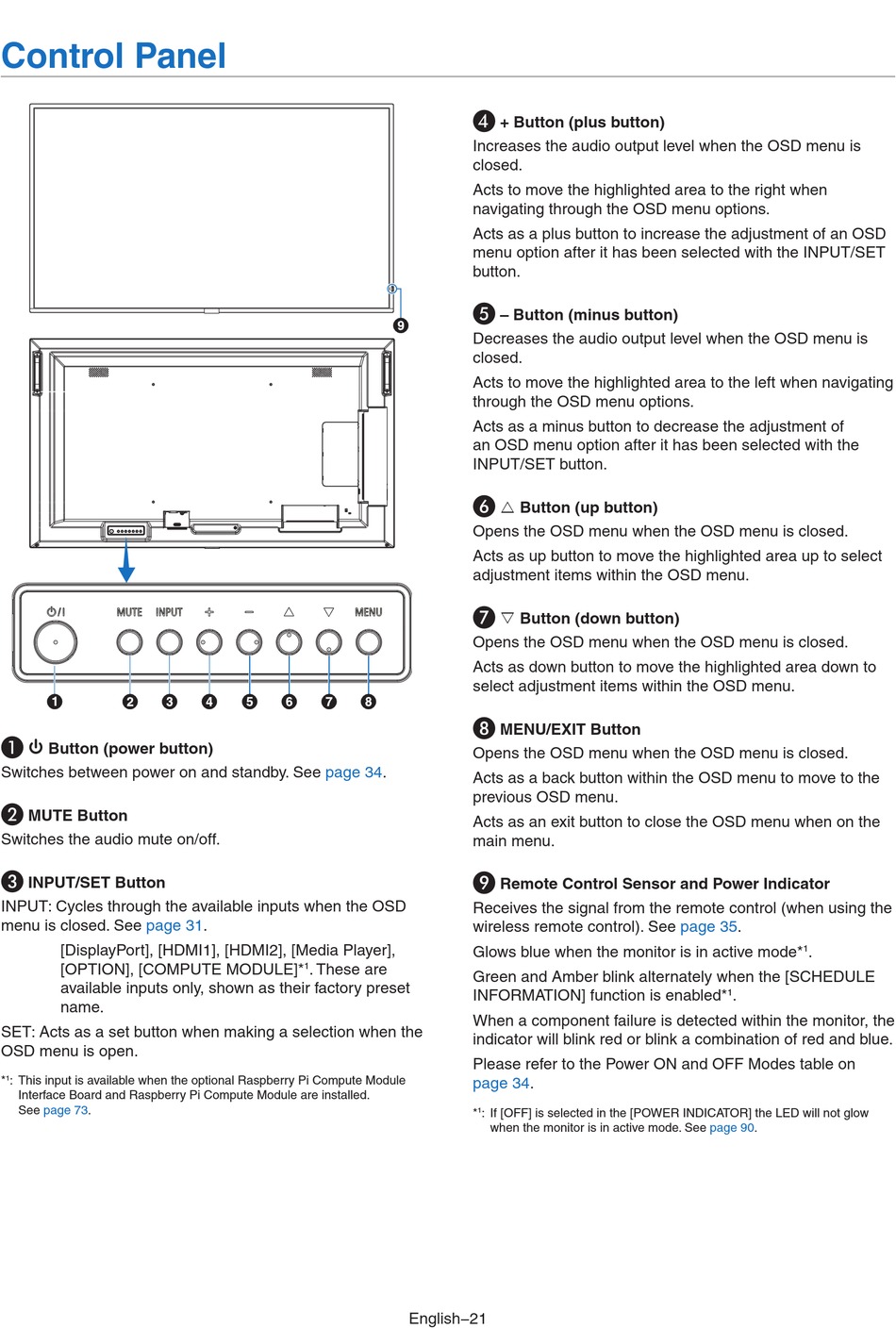

Control Panel

A
⏻ Button (power button)
Switches between power on and standby. See
B
MUTE Button
Switches the audio mute on/off.
C
INPUT/SET Button
INPUT: Cycles through the available inputs when the OSD
menu is closed. See page
[DisplayPort], [HDMI1], [HDMI2], [Media Player],
[OPTION], [COMPUTE MODULE]*
available inputs only, shown as their factory preset
name.
SET: Acts as a set button when making a selection when the
OSD menu is open.
* : This input is available when the optional Raspberry Pi Compute Module
1
Interface Board and Raspberry Pi Compute Module are installed.
See page 73.
page
31.
. These are
1
D
+ Button (plus button)
Increases the audio output level when the OSD menu is
closed.
Acts to move the highlighted area to the right when
navigating through the OSD menu options.
Acts as a plus button to increase the adjustment of an OSD
menu option after it has been selected with the INPUT/SET
button.
E
– Button (minus button)
Decreases the audio output level when the OSD menu is
closed.
Acts to move the highlighted area to the left when navigating
through the OSD menu options.
Acts as a minus button to decrease the adjustment of
an OSD menu option after it has been selected with the
INPUT/SET button.
F
r Button (up button)
Opens the OSD menu when the OSD menu is closed.
Acts as up button to move the highlighted area up to select
adjustment items within the OSD menu.
G
s Button (down button)
Opens the OSD menu when the OSD menu is closed.
Acts as down button to move the highlighted area down to
select adjustment items within the OSD menu.
H
MENU/EXIT Button
Opens the OSD menu when the OSD menu is closed.
34.
Acts as a back button within the OSD menu to move to the
previous OSD menu.
Acts as an exit button to close the OSD menu when on the
main menu.
I
Remote Control Sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See
Glows blue when the monitor is in active mode*
Green and Amber blink alternately when the [SCHEDULE
INFORMATION] function is enabled*
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
Please refer to the Power ON and OFF Modes table on
page 34.
* : If [OFF] is selected in the [POWER INDICATOR] the LED will not glow
1
when the monitor is in active mode. See
English−21
page 35.
1 .
.
1
page 90.
