Broan LOSONE SELECT L100 Series Quick Start Quide

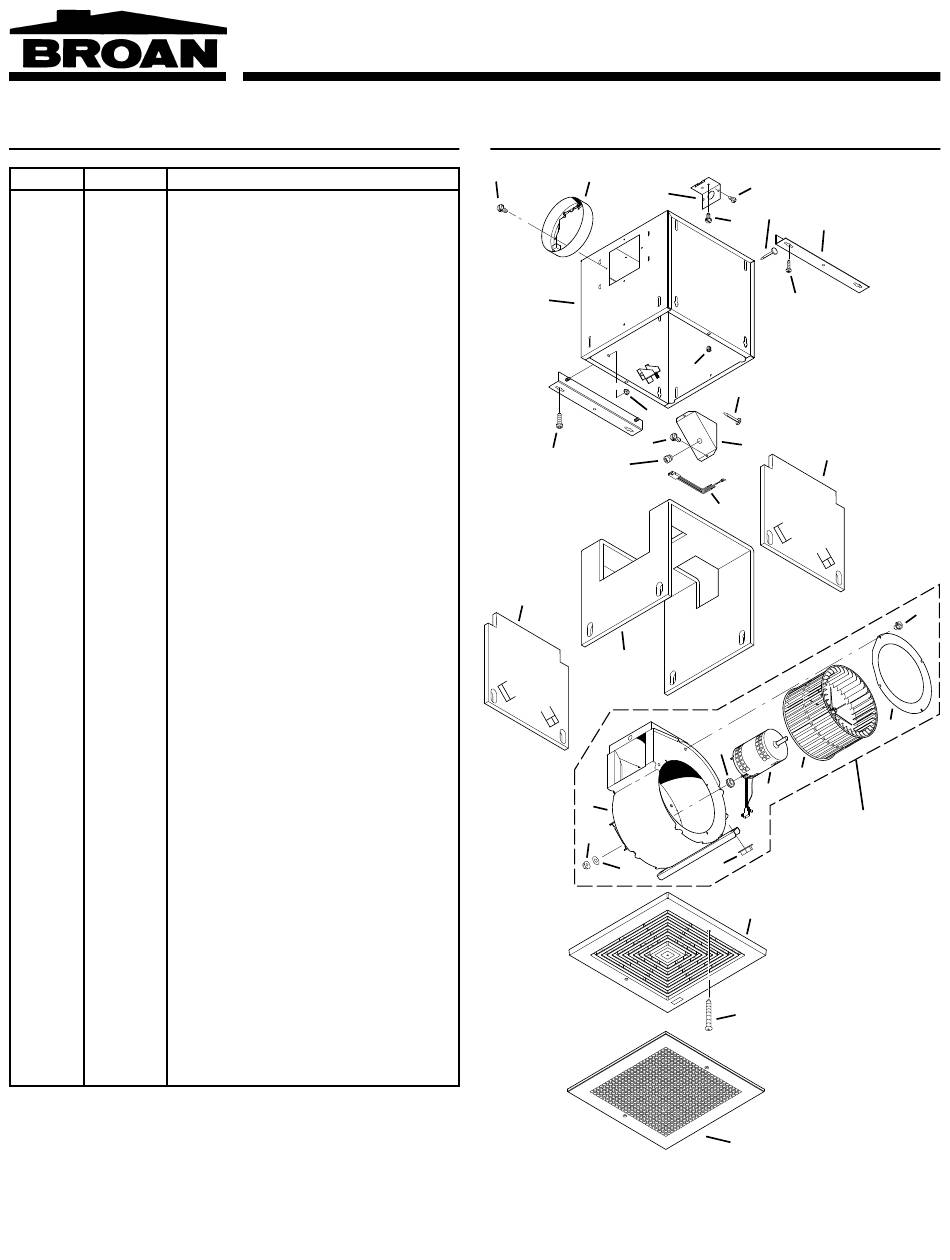

SERVICE PARTS
KEY NO. PART NO.
1 97014725 Housing Assembly (L100's & L150's)
97014726 Housing Assembly (L200's thru L300's)
2 97014728 Mounting Bracket (2 req.)
3 97014760 Damper Assembly (6" dia.)
97014761 Damper Assembly (8" dia.)
4 99150415 Screw, 8-18 x ¼ (12 req.)*
5 98005513 Wire Box Cover
6 99400035 Strain Relief Bushing
7 98005512 Wiring Plate
8 99150471 Ground Screw, 10-32 x ½ (2 req.)
9 97014774 Scroll Assembly (L100's & L150's)
97014775 Scroll Assembly (L200's thru L300's)
10 98009399 Inlet Ring
11 99110805 Blower Wheel
12 99080481 Motor (L100 & L100MG)
99080482 Motor (L150 & L150MG)
99080483 Motor (L200 & L200MG)
99080484 Motor (L250 & L250MG)
99080485 Motor (L300 & L300MG)
99080493 Motor (L100C)
99080494 Motor (L150C)
99080495 Motor (L200C)
99080496 Motor (L250C)
99080497 Motor (L300C)
99080503 Motor (L100EX)
99080504 Motor (L150EX)
99080505 Motor (L200EX)
99080506 Motor (L250EX)
99080507 Motor (L300EX)
13 99260558 Lock Nut, 8-32 (4 req.)*
14 99250959 Washer (4 req.)*
15 99100491 Grommet (4 req.)
9-15 Blower Assembly, Complete
(Includes Key Nos. 9-15)
97014800 (L100 & L100MG)
97014801 (L150 & L150MG)
97014802 (L200 & L200MG)
97014803 (L250 & L250MG)
97014804 (L300 & L300MG)
97014878 (L100C)
97014879 (L150C)
97014880 (L200C)
97014881 (L250C)
97014882 (L300C)
97014888 (L100EX)
97014889 (L150EX)
97014890 (L200EX)
97014891 (L250EX)
97014892 (L300EX)
16 99260477 Nut, ¼-20 (6 req.)*
17 97006039 Wire Harness
18 99500390 Wrapper Insulation
19 99500391 Side Insulation (2 req.)
20 99420466 Insulation Mounting Clip
21 99110807 Polymeric Grille
22 98009416 Metal Grille ("MG" suffix Models)
23 99420470 Grille Nut (2 req.)
24 99150472 Grille Mounting Screw (2 req.)
25 99150591 Screw, 10-16 x 7/8 (4 req.)*
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
®
DESCRIPTION
LOSONE SELECT ®
L200 SERIES • L250 SERIES • L300 SERIES
SERVICE PARTS
4
3
1
16
4
25
6
19
18
9
13
14
L100 SERIES • L150 SERIES
4
7
20
2
8
25
23
20
5
19
17
15
11
12
ASSEMBLY
16
21
24
22
Page 4
4
10
BLOWER
99042810A
