American Dynamics 1024 Specifications

FEATURES
•
Monitor displays which user
or keyboard is in control of
the current-displayed video
input
•
Modular microprocessor-
based, high-density matrix
architecture
•
Single CPU systems of up to
1024 video inputs by 128
video outputs
•
Full cross-point satellite-
based systems of up to 8192
video inputs by 128 video
outputs
•
Looping video inputs
available via optional loop
panels
•
External CPU with optional
dual CPU/hot switch
capability
•
Optional internal video loss
detection
•
User defined macros
•
Recorder control (VCRs and
digital recorders)
•
Provides fixed and variable-
speed pan/tilt and dome
control
•
Integral menu-driven setup
•
Ten flexible RS-232 inputs,
expandable to 40
•
Windows ® 98 and NT ® 4.0-
based system setup software
•
Individual monitor tours
•
64 universal tours, 35 event
timers, 64 salvos
•
Automatic alarm call-up of
up to 1024 alarm inputs
•
25 alarm display/clearance
modes
•
Four alarm contact tables
•
System partitioning of
inputs, outputs, and
keyboards
•
System priority levels and
user passwords
MegaPower
MATRIX SWITCHER/CONTROLLER SYSTEM

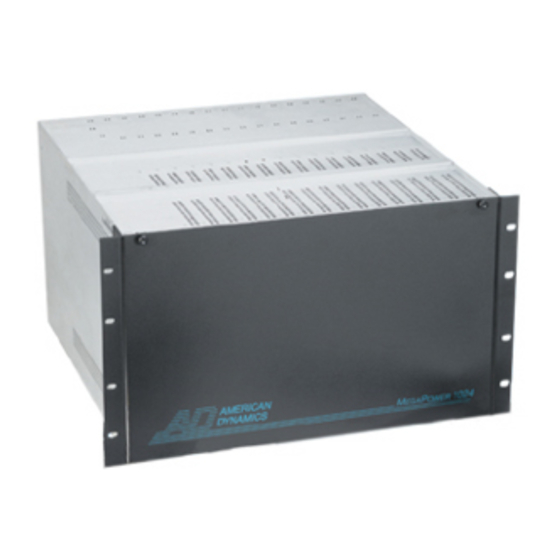

The MegaPower 1024 is the ultimate high-density
video matrix switcher/controller system. This full-
featured, pre-packaged, modular system is designed
for the largest and most sophisticated users of CCTV,
such as airports, corporate or government complexes,
casinos, and large medical centers.
The microprocessor based switcher/controller allows
you to automate your entire electronic security
infrastructure. This permits a single operator (or
multiple operators) to easily manage a highly
complex CCTV system.
The MegaPower 1024 system's powerful macro
programming feature allows for unsurpassed ease of
use, even with the most complex and demanding
installations. Each operator can customize his or her
own keyboard to perform a multitude of system tasks
via simple, easy to remember keystrokes intuitive to
that operator.
The system supports a variety of recorder control
devices, allowing for control of VCRs and digital
recorders directly from any suitably equipped system
keyboard.
A single CPU controls an entire system of up to 1024
video inputs and 128 video outputs. Pre-packaged
systems are available in any combination of modular
increments of 16 video inputs and four video
outputs.
Satellite programming of multiple systems allows for
full cross-point switching and control of up to 8192
video inputs, satisfying the demands of today's
largest systems.
The Windows-based system setup software, provided
with the system, greatly simplifies the process of
customizing and archiving operational parameters.
In addition to camera, site and alarm monitor text,
operators can also see which user or keyboard with
equal or higher priority has control of or has locked a
PTZ/dome.
Optional Hot-Switch capability provides backup
protection to insure uninterrupted system operation.
www.americandynamics.net
