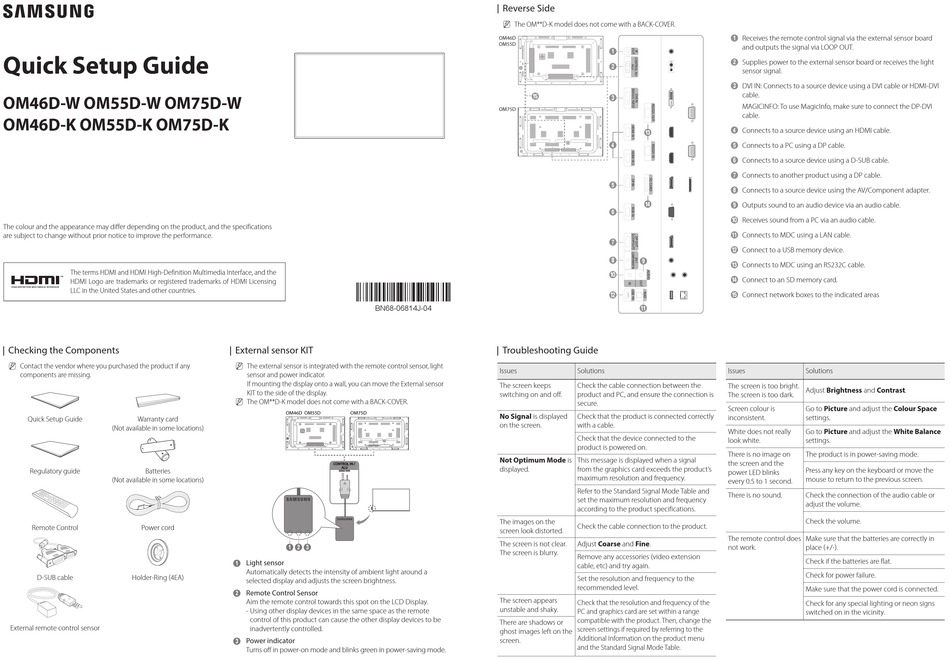

Samsung OMD Series Quick Setup Manual

Quick Setup Guide
OM46D-W OM55D-W OM75D-W
OM46D-K OM55D-K OM75D-K
The colour and the appearance may differ depending on the product, and the specifications
are subject to change without prior notice to improve the performance.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
Checking the Components
N Contact the vendor where you purchased the product if any
components are missing.
Quick Setup Guide Warranty card
(Not available in some locations)
Regulatory guide Batteries
(Not available in some locations)
Remote Control Power cord
D-SUB cable Holder-Ring (4EA)
External remote control sensor
BN68-06814J-04
External sensor KIT
N The external sensor is integrated with the remote control sensor, light
sensor and power indicator.
If mounting the display onto a wall, you can move the External sensor
KIT to the side of the display.
N The OM**D-K model does not come with a BACK-COVER.
OM46D OM55D OM75D
1 2 3
Light sensor
1
Automatically detects the intensity of ambient light around a
selected display and adjusts the screen brightness.
Remote Control Sensor
2
Aim the remote control towards this spot on the LCD Display.
- Using other display devices in the same space as the remote
control of this product can cause the other display devices to be
inadvertently controlled.
Power indicator
3
Turns off in power-on mode and blinks green in power-saving mode.
Reverse Side
N The OM**D-K model does not come with a BACK-COVER.
OM46D
OM55D
1
2
%
3
OM75D
#
4
5
$
6
7
8
9
0
@
!
Troubleshooting Guide
Issues Solutions
The screen keeps Check the cable connection between the
switching on and off. product and PC, and ensure the connection is
secure.
No Signal is displayed
Check that the product is connected correctly
on the screen. with a cable.
Check that the device connected to the
product is powered on.
Not Optimum Mode is This message is displayed when a signal
displayed. from the graphics card exceeds the product's
maximum resolution and frequency.
Refer to the Standard Signal Mode Table and
set the maximum resolution and frequency
according to the product specifications.
The images on the
Check the cable connection to the product.
screen look distorted.
The screen is not clear. Adjust Coarse and Fine.
The screen is blurry.
Remove any accessories (video extension
cable, etc) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears
Check that the resolution and frequency of the
unstable and shaky.
PC and graphics card are set within a range
compatible with the product. Then, change the
There are shadows or
screen settings if required by referring to the
ghost images left on the
Additional Information on the product menu
screen.
and the Standard Signal Mode Table.
Receives the remote control signal via the external sensor board
1
and outputs the signal via LOOP OUT.
Supplies power to the external sensor board or receives the light
2
sensor signal.
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI
3
cable.
MAGICINFO: To use MagicInfo, make sure to connect the DP-DVI
cable.
4 Connects to a source device using an HDMI cable.
Connects to a PC using a DP cable.
5
Connects to a source device using a D-SUB cable.
6
Connects to another product using a DP cable.
7
Connects to a source device using the AV/Component adapter.
8
Outputs sound to an audio device via an audio cable.
9
Receives sound from a PC via an audio cable.
0
Connects to MDC using a LAN cable.
!
Connect to a USB memory device.
@
Connects to MDC using an RS232C cable.
#
Connect to an SD memory card.
$
Connect network boxes to the indicated areas
%
Issues Solutions
The screen is too bright.
Adjust Brightness and Contrast.
The screen is too dark.
Go to Picture and adjust the Colour Space
Screen colour is
inconsistent. settings.
Go to Picture and adjust the White Balance
White does not really
look white. settings.
There is no image on The product is in power-saving mode.
the screen and the
Press any key on the keyboard or move the
power LED blinks
mouse to return to the previous screen.
every 0.5 to 1 second.
There is no sound. Check the connection of the audio cable or
adjust the volume.
Check the volume.
The remote control does Make sure that the batteries are correctly in
not work. place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is connected.
Check for any special lighting or neon signs
switched on in the vicinity.
