ADTRAN 850 DSX-1 Quick Start Manual

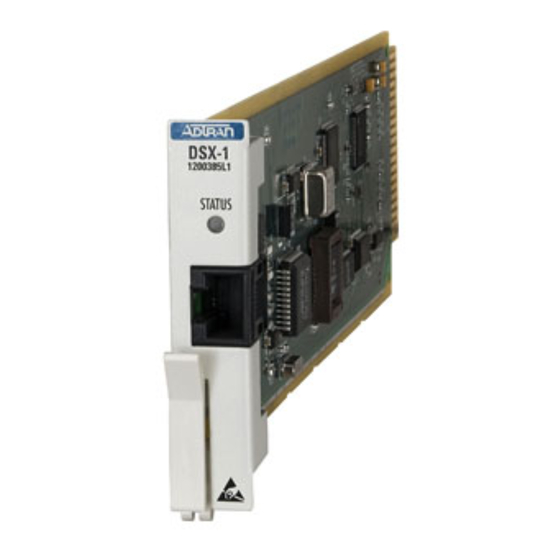

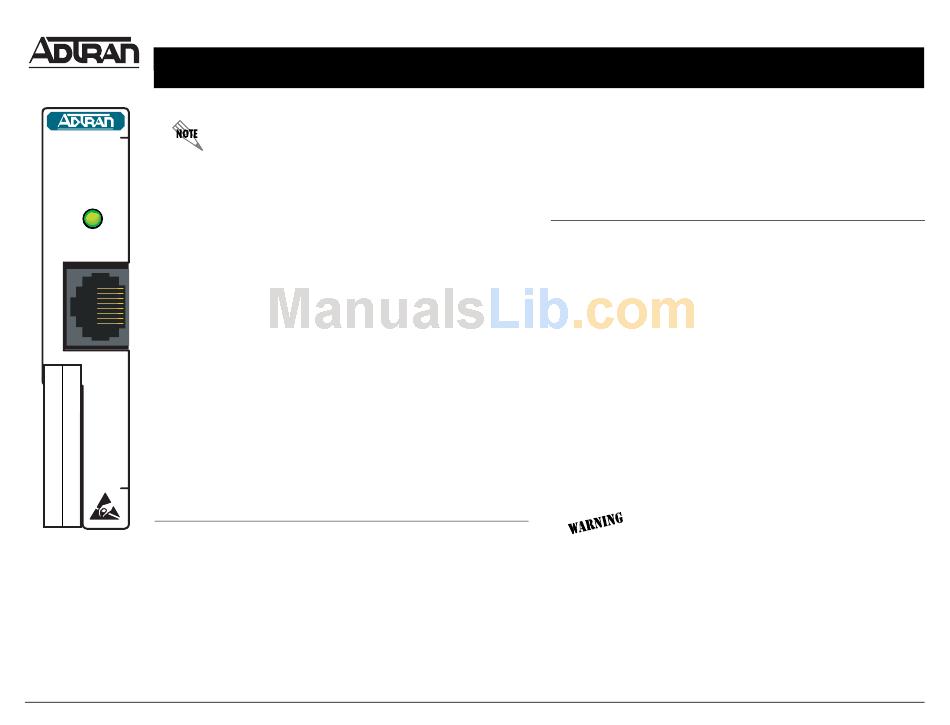

Total Access 850 DSX-1 Module
Quick Start Guide
DSX-1
1200385L1
S
PECIFICATIONS
STATUS
Capacity
Framing
Line Build Out
Line Coding
Line Rate
Terminating
Impedance
Tests
Environmental
LED D
ESCRIPTIONS
Color
OFF
GREEN
RED
Solid AMBER
Blinking AMBER
Quick Start Guide, 61200385L1-13A, September 2004
The Total Access 850 DSX-1 Module is for use with the Router Controller Unit (RCU) only. This module provides data support (no
RBS for voice applications) for Customer Premises Equipment (CPE) and CANNOT be connected to network resources; this
module is for connection to CPE only.
T1: 1 to 24 DS0s
ESF and SF (D4)
DSX-1: 0 to 655 feet in 133-ft increments
AMI (alternate mark inversion) or B8ZS (bipolar 8
zero substitution)
1.544 Mbps ± 75 bps
100 Ω ± 5%
Self-test, local line, local payload, remote line,
and remote payload
Operating Temperature: 0° C to 50° C
Storage Temperature: -40° C to +70° C
Relative Humidity: Up to 95% noncondensing
Description
No power to the system
DSX-1 signal is present and synchronized; the
DSX-1 channels are configured for use
Active channel alarm on the DSX-1 interface
Channel test in progress
Module is initializing (during startup)
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
DSX-1 C P
ONNECTION INOUT
Pin Name
1 R1 | RXDATA-RING
2 T1 | RXDATA-TIP
3 UNUSED
4 R | TXDATA-RING
5 T | TXDATA-TIP
6-8 UNUSED
I I
NSTALLATION NSTRUCTIONS
1. Remove the cover plate from the appropriate slot of the
Total Access 850 chassis.
Dangerous voltage is exposed when the
cover plate is removed.
2. Position the module to fit in the lower and upper grooves.
3. Slide the module into the option slot, pressing equally on the
top and bottom of the faceplate until the module is firmly
positioned against the back of the chassis.
4. Push in the ejector on the lower left-hand side of the module
to finish seating the module.
www.adtran.com
P/N 1200385L1
Description
Receive data from the network
(RING)
Receive data from the network (TIP)
–––
Transmit data towards the network
(RING)
Transmit data towards the network
(TIP)
–––
© 2004 ADTRAN, All Rights Reserved
