Biometra TSC ThermoShaker
Please read these instructions carefully
Rudolf-Wissell-Str. 30
D-37079 Göttingen
Germany
Phone: +49 5 51 / 50 68 6-0
Fax:
+49 5 51 / 50 68 6-66
E-mail: info@analytik-jena.com
Internet: http://www.analytik-jena.com
Order No. 846-051-600 (230 V)
Order No. 846-051-690 (115 V)
Manual
846-9-990-031
before using this apparatus!
Biometra
GmbH
Service Department
Rudolf-Wissell-Str. 14-16
D-37079 Göttingen
Germany
Phone: +49 5 51/50 88 1-10, -12, -14
Fax.:
+49 5 51 / 50 88 1-11
e-mail: service@analytik-jena.com
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Analytik Jena Biometra TSC ThermoShaker
Summary of Contents for Endress+Hauser Analytik Jena Biometra TSC ThermoShaker
- Page 1 Biometra TSC ThermoShaker Order No. 846-051-600 (230 V) Order No. 846-051-690 (115 V) Manual 846-9-990-031 Please read these instructions carefully before using this apparatus! Biometra GmbH Service Department Rudolf-Wissell-Str. 30 Rudolf-Wissell-Str. 14-16 D-37079 Göttingen D-37079 Göttingen Germany Germany Phone: +49 5 51 / 50 68 6-0 Phone: +49 5 51/50 88 1-10, -12, -14 Fax: +49 5 51 / 50 68 6-66...
-
Page 2: Table Of Contents
1 Contents CONTENTS ....................... 1 SAFETY ......................2 : .................. 2 EFINITION OF YMBOLS ..................2 AFETY RECAUTIONS SCOPE OF DELIVERY ..................4 ACCESSORIES ....................5 GENERAL INFORMATION ................6 INSTALLATION ....................7 ..................7 NPACK AND HECK ....................7 NSTALLATION .............. -
Page 3: Safety
2 Safety Definition of Symbols: Caution: Read these operating instructions fully before use and pay particular attention to sections containing this symbol. Caution: Surfaces can become hot during use. Danger! High voltage! Caution: Caution: Fragile! Safety Precautions General Safety: Use only as specified by the operating instructions, or the intrinsic protection may be impaired. - Page 4 Electrical Safety: Connect only to a power supply with a voltage corresponding to that on the serial number label at the rear of the unit. The TSC Thermoshaker has to be used only with a power supply compatible with the connection port and with similar electrical parameters like the included power supply.
-
Page 5: Scope Of Delivery

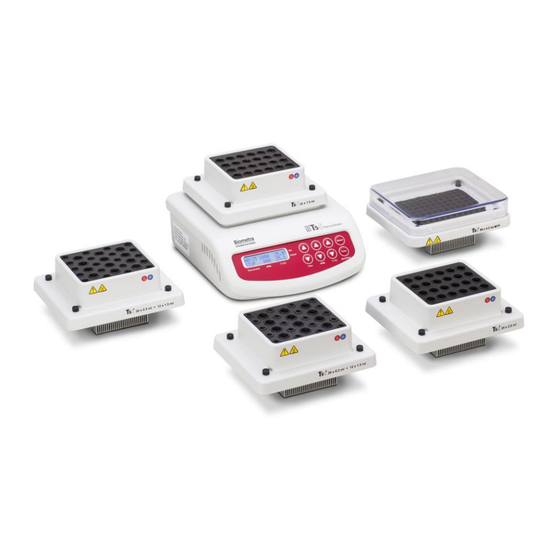

3 Scope of Delivery The Biometra TSC ThermoShaker (Order No. 846-051-600/690) is delivered with Fig. 1: Delivered parts 1 x ThermoShaker apparatus (Fig. 1/1) 1 x External power supply unit + cable (Fig. 1/2) 2 x Spare rubber belt (Fig. 1/3) 4 x Rubber spacers for block screws 1 x Manual Interchangeable block modules (Fig. -
Page 6: Accessories
4 Accessories Interchangeable block-modules Order No. Description 846-051-615 Interchangeable block module for TSC, 24 x 1.5 ml tubes 846-051-616 Interchangeable block module for TSC, 24 x 2.0 ml tubes 846-051-612 Interchangeable block module for TSC, 20 x 0.2 ml + 12 x 1.5 ml tubes 846-051-613 Interchangeable block module for TSC, 20 x 0.5 ml + 12 x 1.5 ml tubes 846-051-614 Interchangeable block module for 96 well microtiter plates or 96 x 0.2 ml tubes ... -
Page 7: General Information
5 General Information The TSC ThermoShaker is a compact bench top shaking incubator, ideal for all applications requiring heating, cooling and shaking in microtubes up to 2.0 ml, within the temperature range of -15 °C below room temperature (RT) to +100 °C. The intensive mixing operation and the incubation/heating/cooling... -
Page 8: Installation
6 Installation Unpack and Check Unpack and carefully examine the TSC ThermoShaker. Report any damage to Analytik Jena. Save all packing material if damage is found. Attention! Automatic balancing system in this product produces light metal-like noise when moving the unit which is likely to be heard during unpacking. It is normal occurrence and does not indicate to a fault! Do not attempt to operate this device if physical damage is present. -
Page 9: Changing Block Modules
Changing Block Modules Turn the power switch to off and disconnect the external power supply from the mains outlet. Remove the four knurled screws (Fig. 4/1) and disconnect the 10 way plug (Fig. 4/2). 10 way plug Fig. 4: Changing block modules Select the new block module. -
Page 10: Operation Of Tsc Thermoshaker
7 Operation of TSC ThermoShaker Before starting, please check the tubes / microtiter plates before using. be sure that tubes / microtiter plates are thermo-resistant. don't heat the tubes / microtiter plates over the melting point of the material they are made of (use thermo-resisting polypropylene tubes). -
Page 11: Parameter Setting
The time of temperature stabilisation depends on the initial temperature but does not exceed 15-20 min if the set temperature is 37.0 °C. Parameter Setting Use the readings in the upper line of the display (set point), while setting the necessary parameters. - Page 12 At the end of the program (after the set time elapses) the platform motion stops and the timer shows the flashing reading STOP accompanied by the repetitive sound signal until the “Shaker”-Start/Stop button is pressed. If the working time is not set (or deleted) and the timer indicator in the upper line shows 00:00, pressing the “Shaker”-Start/Stop button causes the apparatus to operate continuously until the “Shaker”-Start/Stop button is pressed again.
-
Page 13: Calibration
8 Calibration The instrument is pre-calibrated at the factory (calibrating coefficient - 1.00) for operation with measured temperature from sensor installed in the thermoblock. To enter the calibration coefficient, hold TIMER-START/STOP key (Fig. 6/5) pressed for more than 8 sec to activate calibration mode. Display will show the calibration coefficient as shown on fig.8/1. - Page 14 set temperature sct. 40.0 40.0 00:00 1000 40.0 STOP 000 0 39.0 0.974 39.0 40.0 calibrated temperature calibrating temp. with coefficient multiplier - coeff. Fig.9 Control panel in calibration and operation mode To set the new temperature value, use the Temperature with multiplier - coefficient readings (Fig.8/3).
-
Page 15: Maintenance
9 Maintenance All products covered in this manual are designed to comply with IEC61010-1 and can be flash tested. As they are fitted with radio frequency interference suppressers it is recommended that only a D.C. test is performed. No other routine service is required. Cleaning The case can be cleaned with a damp cloth after disconnection. -
Page 16: Specifications
10 Specifications Temperature setting range +4 ºC to +100 °C RT –15 °C to +100 °C Temperature control range Temperature setting resolution 0.1 °C Temperature stability ±0.1 ºC Temperature accuracy at +37°C ±0.5 ºC Temperature uniformity over the block at +4 °C ±0.6 °C at +37 °C ±0.1 ºC... - Page 17 Input current 12 V, 5 A Power consumption 60 W input AC 100 – 240 V, 50/60 Hz External power supply output DC 12 V Dimensions (W x D x H) 205 x 230 x 130 mm Weight (with power supply) 4.1 kg (at max.) The TS1 ThermoShaker is designed for operation in closed laboratory rooms, cold rooms or incubators at ambient temperature from +4 ºC to +40 ºC and maximum relative humidity of...
-
Page 18: Service
11 Service Should you have any problems with this unit, please contact our service department or your local Biometra dealer: Analytik Jena/Biometra GmbH Service Department Rudolf-Wissell-Straße 14 - 16 D-37079 Göttingen Germany Phone: +49 5 51 / 50 88 1 - 10 -12 or -14 Fax: +49 5 51 / 50 88 1 - 11 E-mail:... -
Page 19: Note For Disposal Of Electric/Electronic Waste
12 Note for Disposal of Electric/Electronic Waste This symbol (the crossed-out wheelie bin) means, that this product should be brought to the return systems and/or separate systems available to end-users according to yours country regulations, when this product has reached the end of its lifetime! For details, please contact your local distributor! This symbol applies only to the countries within the EEA*. -
Page 20: Declaration Of Conformity
13 Declaration of Conformity Biometra GmbH Rudolf-Wissell-Str. 30 37079 Göttingen Telefon +49 551 50686 0 Telefax +49 551 50686 66 E-Mail info@analytik-jena.de Göttingen, den 22.11.2018 Biometra erklärt als Hersteller in alleiniger Verantwortung, dass die Produkte Biometra declares as manufacturer under sole responsibility that the products Typen Biometra TSC ThermoShaker Biometra TS1 ThermoShaker...
