Aiphone RX-JA Instructions

Flush Mounted Door Station for the RAX/RCX Systems
The RX-JA is a weather resistant door station for use with the RAX or RCX Microprocessor-
based intercom system.

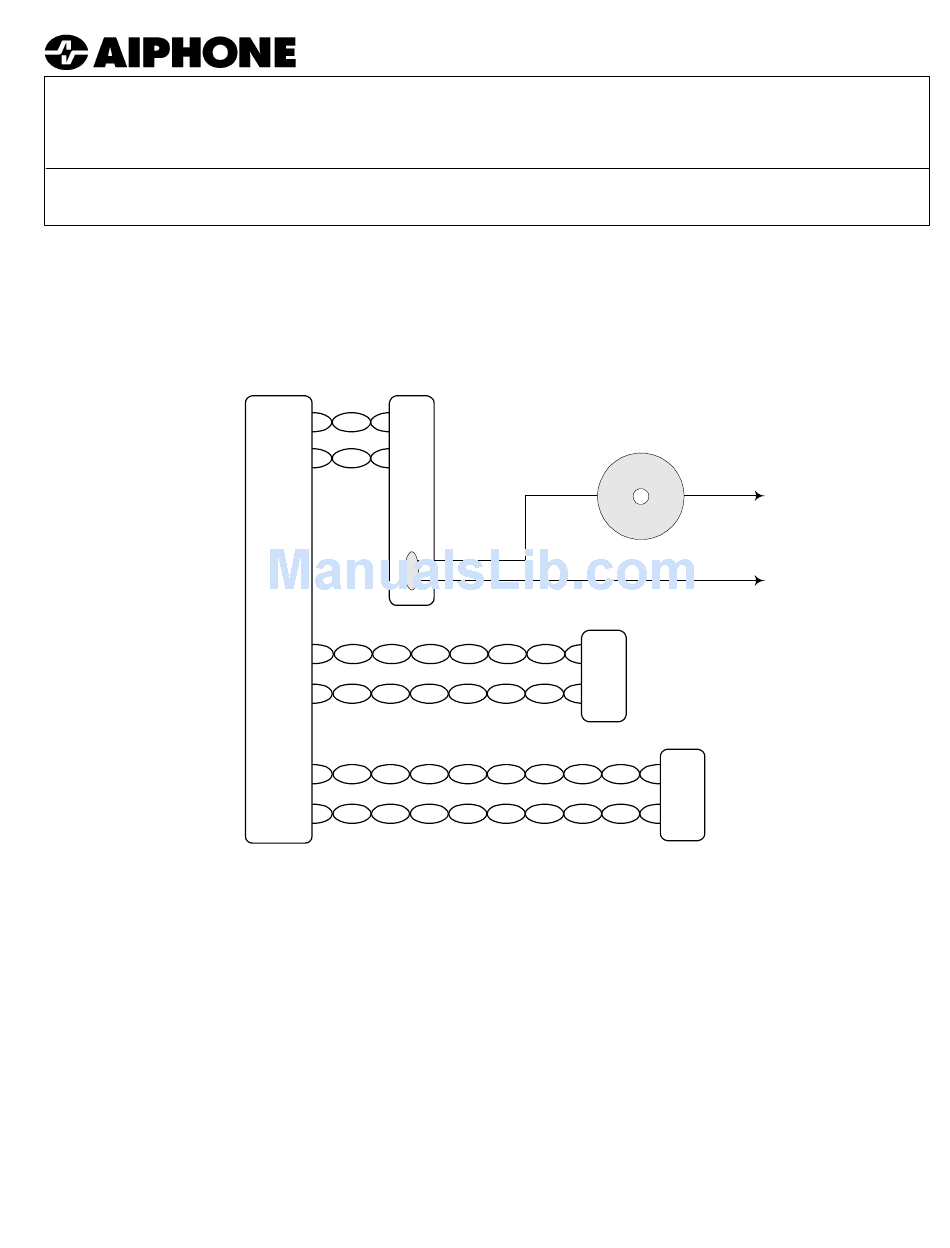

WIRING DIAGRAM:

RAX or RCX
SPECIFICATIONS:
Power Source:
Call Button:
Call Annunciation:
Call Button Contacts:
Mounting:
Wiring:
Wiring Distance:
Dimensions (H x W x D): 4-1/2" x 4-9/16" x 3/8" (outer depth)
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
- INSTRUCTIONS -
RX-JA
CEU
1 1
2 2
#10
3 3
4 4
1
2
#11
3
4
1
2
#12
3
4
Supplied by master station
Single pole, single throw, normally open
Pressing call button at sub activates external device
24V DC, 1A (Max.)
2-gang electrical box
2 twisted pair homerun to RAX/RCX CEU,
plus 2 wires to external signaling device.
Use Aiphone #832204 for homerun wiring,
#812202 for bell connection.
RAX: 2,000' with 22AWG
RCX: 6,500' with 22AWG
TOLL FREE TECHNICAL SUPPORT:
E-MAIL: tech-serv@aiphone.com
RX-JA
BLACK
RA-D
1
2
3
4
(800) 692-0200
TOLL FREE FAX LINE:
(800) 832-3765
NOTE:
Call-in signal from RX-JA will
BELL not be heard at the master
stations. An external doorbell or
sounding device must be used.
To Power
for Bell
RA-B
1
2
3
4
NOTES:
1.In this example the RX-JA is shown connected
to station 10. Any open station number can be
used.
2. When the call button is pressed on the RX-JA
the external bell will activate, alerting internal
master stations that there is a call from the
door.
3. Any master station can call the RX-JA.
4.Only wiring concerning the RX-JA is shown
here. For complete installation and wiring
information, please refer to the standard RAX/
RCX instructions.
Special
Order
Products
RX-JA Instr.
1198bkjd
