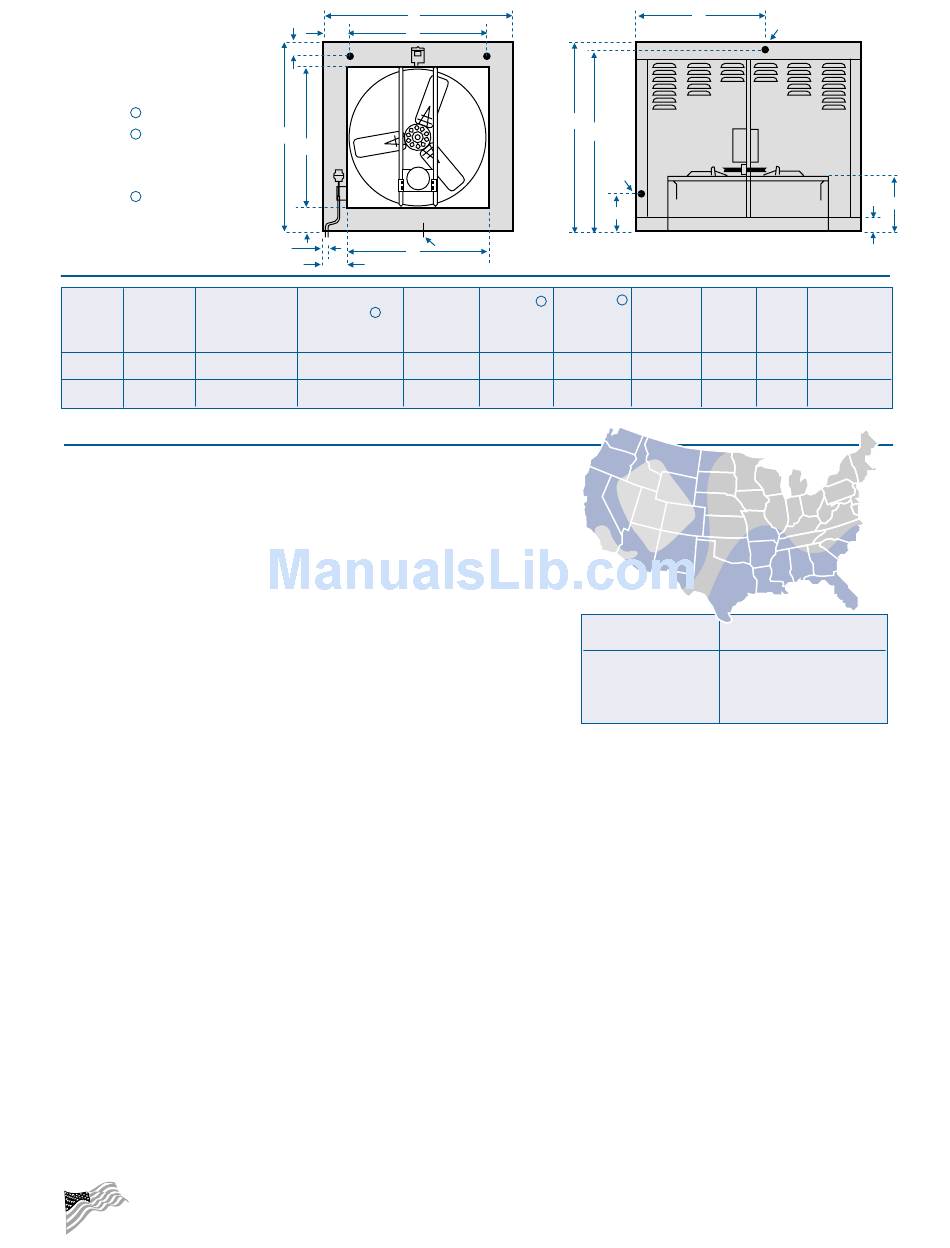

Plan View
Drain is 3/4" male thread.
1
Water connection is to
2
factory supplied 3/8" O. D.
copper tubing stub from
internal float valve.
Electric service
3
entrance is 7/8" I. D.
Dimensional Data
Model
Cabinet
Duct Location
Series
Opening Location
H W D
A
B
AFD 4242 41 62 62
46 46
AFD 4262 61 62 62
46 46
Sizing Instructions
The most accurate sizing is accomplished by the use of KoolKalk, our software
program, when you have already calculated the sensible cooling load of the
building. KoolKalk combines ASHRAE design day conditions, the principles of
psychrometrics, and hourly weather data of typical meteorological years for key
cities around the world. Contact your AdobeAir sales representative for a free
copy of KoolKalk, or see our website at www.AdobeAir.com.
Although not the preferred method, alternate sizing by considering only air
changes in the building may be adequate for some warehouse and other
industrial applications. To select a cooler or coolers based on air changes only,
follow these simple steps:
1) Determine the size (in cubic feet) of the space to be cooled (length x width
x height). Remember that in most cases a height of from 10-12 feet is all
that needs to be considered since that is typically only the height to which
cooling is required.
2) Determine how frequently the air needs to be changed in the building (minutes per air change) by referring to the chart and
map above. As an example, a warehouse in El Paso, Texas (zone 2) with an average interior heat load and exposed exterior
heat load needs an air change at least every 3 minutes as a rule of thumb.
3) Determine the total CFM required for the building by dividing the cubic feet of the space to be cooled by the number of
minutes for each air change.
Example:
Building size = 200' long x 100' wide x 12' height to be cooled = 240,000 cubic feet to be cooled.
Air needs to be changed every 3 minutes (El Paso, Texas example from #2 above)
240,000 / 3 = 80,000 cfm total delivered air required from coolers.
Select coolers delivering a combined total of 80,000 cfm.
Arctic Circle evaporative coolers and components are designed and tested in accordance with one or more of the following standards or agencies:
Air Delivery: Data published derived from tests conducted in accordance with A.M.C.A. (Air Movement and Control Assoc.) Standard 210.
Aspen Pads: Built to Federal Specification PP-E-911 for Type 1, Class A, Grade 4.
Sealant: Water Immersion: per ASTM D870. Flexibility: per ASTM D756. Corrosion Resistance: per ASTM B117. Cycle Freeze/Thaw: per ASTM C117.
POLYBOND
®
: Corrosion Resistance: per ASTM B117. Pencil Hardness: per ASTM D3363. Adhesion: per ASTM D3359. Impact Resistance: per ASTM D2794.
Flexibility: per ASTM D522. Specular Gloss: per ASTM D523. Surface Burning Characteristics of Building Materials (best rating) per U/L 723 and ASTM E-84.
Pumps: Recognized under the U/L component recognition program for the application – construction, thermal overload, running overload, and locked rotor
protection.
Fan Motors: U/L recognized general purpose drip-proof.
Polymeric Materials: Tested in accordance with U/L 94 and 746C. Covered by City of Los Angeles Research Reports (C.O.L.A.) RR930224 (for all single
phase applications), or RR930190 (for 3 phase applications) Electrical, and RR8141 Mechanical.
Since AdobeAir, Inc. follows a policy of continuous product improvement, we reserve the right to change specifications and design without notice.
© 2002 All rights reserved, AdobeAir, Inc.
Designed and manufactured in the United States by: Adobe Air, Inc., 500 S. 15th Street, Phoenix, Arizona 85034 www.AdobeAir.com
