Summary of Contents for VTech PMX-S5410

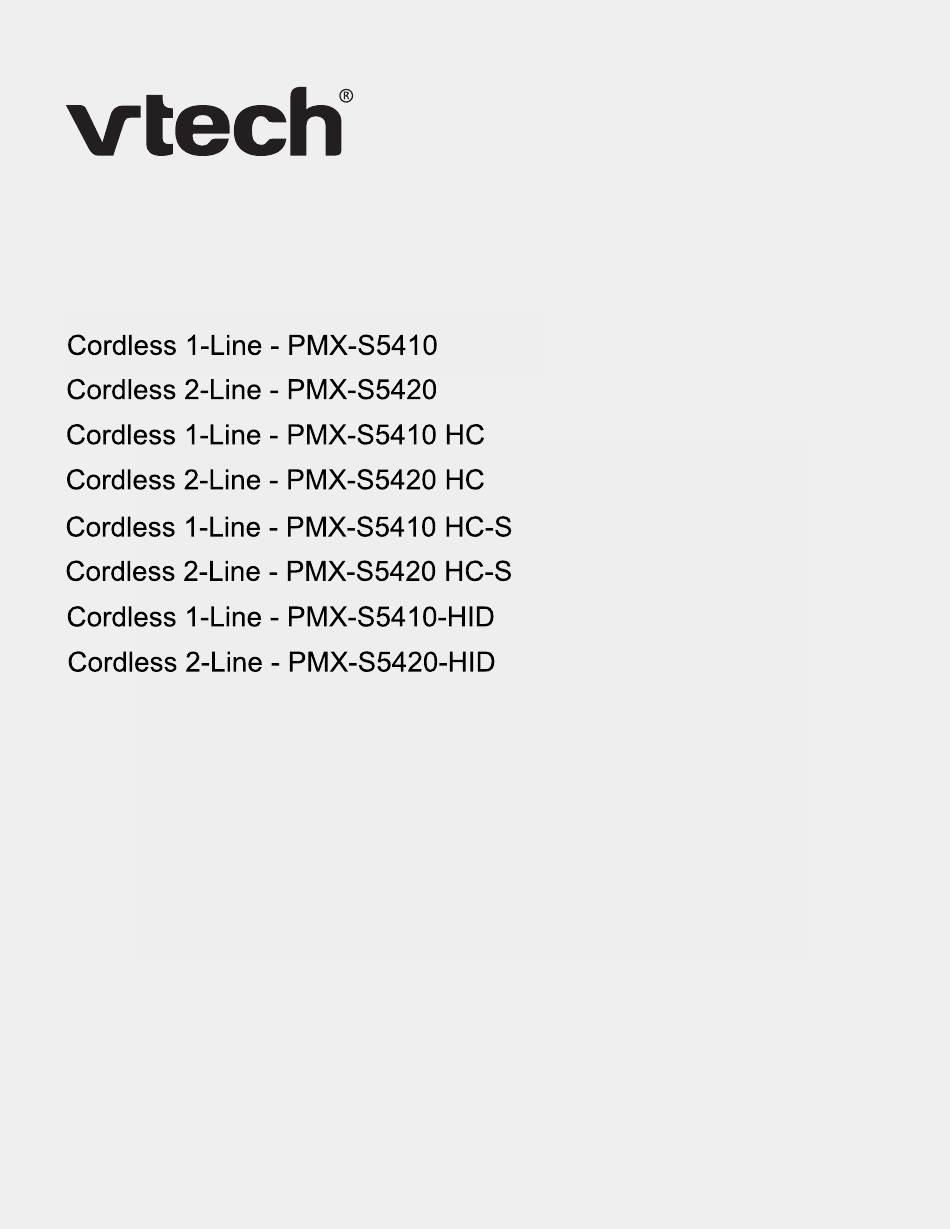

- Page 1 User Guide Colour Cordless 1-Line - PMX-S5410...
- Page 2 Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. This product should be installed by a qualified technician. 2. This product should only be connected to the host equipment and never directly to the network such as Public Switch Telephone Network (PSTN) or Plain Old Telephone Services (POTS).
-
Page 3: Table Of Contents
Table of contents Parts checklist ......................1 Cordless handset overview ..................2 Install handset battery ....................2 Cordless handset operation ..................3 Set LCD language ....................3 Screen auto on/off ....................3 Answer a call ......................3 Hold a call ......................3 End a call ...................... -
Page 4: Parts Checklist
Parts checklist Items contained in the telephone package: Model number Parts included CTM-S3410 Cordless Handset, Battery, Telephone base, Adaptor, Lan cable... -
Page 5: Cordless Handset Overview
Cordless handset overview Status bar RM 1888 23:59 Volume keys Soft keys (Options are dependent on the current page/ display) Function keys (Options are dependent on the current page/ display) Key pad Speaker Message Microphone Hold Install handset battery 1. Insert the tip of a pen into the hole on the battery compartment cover, then slide open the battery compartment cover. -
Page 6: Cordless Handset Operation
Cordless handset operation Set LCD language 1. When the phone is first connected and powered on, you will see the welcome screen. Tap Language on the screen. 2. Tap and hold to choose your desired LCD language. It will then open the main menu in the chosen language. -
Page 7: End A Call
Cordless handset operation End a call • When there is an incoming call, press to end the call. Adjust ring and speaker volume • When ringing or during a call, press on the handset to adjust the speaker volume. -OR- •... -
Page 8: Hotel Service / Concierge
Cordless handset operation Telephone calls / Local Call 1. While in the home page, tap and hold Telephone call on the screen. 2. Tap and hold to choose Local Call. 3. Using the dialing keys to enter the local call number. 4. -
Page 9: Telephone Base Overview
Telephone base overview MESSAGE WAITING indicator Charging contacts IN USE / CHARGE LIGHT Connect the telephone base Power adapter Electrical outlet not controlled by a wall switch Power cord... -
Page 10: Troubleshooting
Troubleshooting If you have difficulty with your telephone, please try the suggestions below. My telephone doesn’t work at all. • Make sure you plug the telephone line cord securely and firmly into the telephone base and the telephone wall jack. •... - Page 11 Troubleshooting There is interference during a telephone conversation. • If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack. The filter prevents noise and caller ID problems caused by DSL interference. Contact your DSL service provider for more information about DSL filters.
-
Page 12: Maintenance
Maintenance Taking care of your telephone Your telephone contains sophisticated electronic parts, so it must be treated with care. Avoid rough treatment Place the telephone and handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it. Avoid water Your telephone can be damaged if it gets wet. -
Page 13: Technical Specifications Fcc Regulations
FCC regulations 'LVSRVDO RI EDWWHULHV DQG SURGXFW 7KHVH V\PEROV RQ WKH SURGXFWV SDFNDJLQJ DQGRU DFFRPSDQ\LQJ GRFXPHQWV PHDQ FCC Part 15 WKDW XVHG HOHFWULFDO DQG HOHFWURQLF SURGXFWV DQG EDWWHULHV PXVW QRW EH PL[HG ZLWK JHQHUDO This equipment has been tested and found to comply with the requirements for a Class B digital KRXVHKROG ZDVWH device under Part 15 of the Federal Communications Commission (FCC) rules. -
Page 14: Technical Specifications
Technical specifications Power requirement Cordless handset Li-ion battery (3.7V, 950mAH) Power requirement Battery model: SCD530-1; Supplied by Shenzhen BYD Lithium Battery Company Limited. CAUTION: Risk of explosion if battery is replaced by incorrect type disposed of used batteries according to the instruction. Telephone base 5V DC @ 2100mA Adaptor model: SSA-18W-05 UK 050210F... - Page 15 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. VTech is the registered trademark of VTech Holdings Limited. Copyright © 2019 for VTECH TELECOMMUNICATIONS LTD. 2021 All rights reserved. Version 1 01/21 All rights reserved. Version 1 06/19...
