Installing and Removing a DIMM
Installing a DIMM

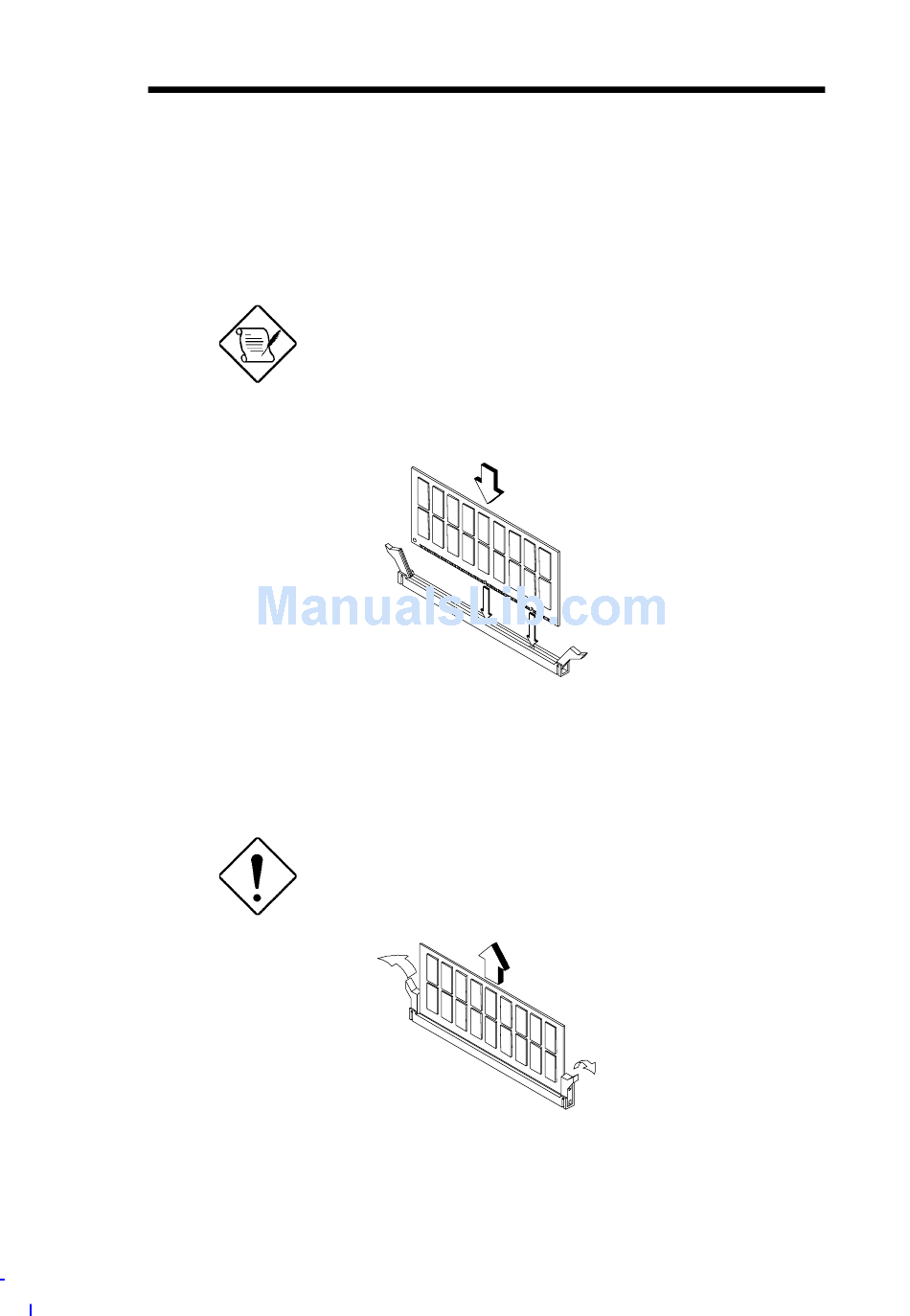

To install a DIMM, align it with the socket and press it down until the
holding clips secure the DIMM in place.
Removing a DIMM
To remove a DIMM, press the holding clips on both sides of the
socket outward to release the DIMM.
System Boards
The DIMM socket is slotted to ensure proper
installation. If you slip in a DIMM but does not
completely fit, you may have inserted it the
wrong way.
Reverse the orientation of the
DIMM.
Place your forefingers on the top of the DIMM
before you press the holding clips to gently
disengage the DIMM from the socket.
