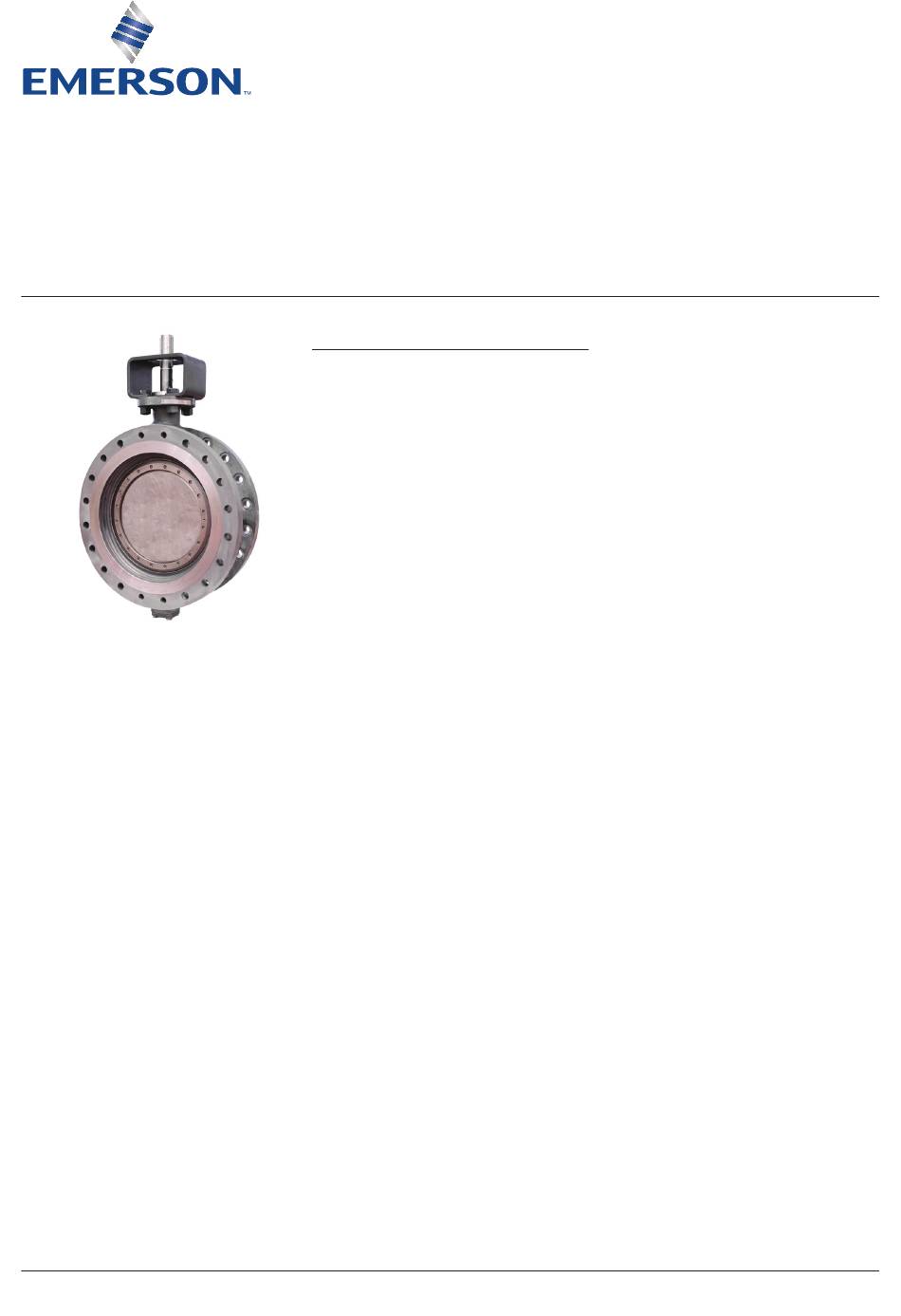

VANESSA SERIES 30,000 TRIPLE OFFSET VALVE (TOV)
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
Basic configuration - Body style double flanged, wafer, lug and buttweld
Applicable product range
• Series 30,000 basic configuration, double
flanged body style, which can be installed by
connecting each valve flange to each pipe
flange with the applicable bolting.
• Series 30,000 basic configuration, lug body
style with threaded holes, which shall be
bolted to both pipe flanges.
• Series 30,000 basic configuration, wafer body
style, which can be installed between two pipe
flanges with the applicable studs or bolts.
• Series 30,000 basic configuration, buttweld
ends, which must be welded to the line.
Safety information
• This document provides all the necessary
safety information related to Handling and
Storage, Installation, Use and Maintenance of
Vanessa Series 30.000 Triple Offset Valves.
• Safety statements have been purposely
placed throughout this manual whenever
operating or maintenance procedures,
practices or conditions are considered critical
to the protection of personnel (WARNING)
or to prevent valve damage (NOTICE and
CAUTION).
Emerson.com/FinalControl
SECTION 1 - VALVE STORAGE
1.1 Preparation for shipment and preservation
The valve is properly packed in order to protect
the parts that could be subject to deterioration
during transportation and storage on site.
Whenever applicable the valve shall be stored
within the original packaging.
In case either the unpacking or the replacing
of the original packaging become necessary
(should for example an inspection be
prescribed upon the arrival on site), the original
protection conditions of the valve shall be
preserved.
Moreover the following precautions shall
be taken:
1. The valve must be packed with the disc
in the closed position. The flange sealing
surfaces (raised faces) or the buttweld
ends are protected with suitable protective
grease (where applicable according to the
valve material selection). The end faces of
the valve must be protected with plastic or
wooden discs fixed with straps.
2. In case of bare shaft valves the ends of
the shaft must be protected with dedicated
packaging.
3. An appropriate packaging shall be
considered in case of a valve with "fail open"
pneumatic or hydraulic actuator, where
the valve disc is in the open position and
protrudes beyond the face to face.
An actuated valve must be securely and
safely palleted or crated with special
attention to ensure that parts of actuator
(especially tubing and fittings or accessories)
do not extend beyond the skid/crate.
4. The type of packaging must be defined
in the customer's order and will be
appropriate to ensure safe transportation
to final destination and conservation before
installation.
The operators shall be specifically trained to
avoid contamination.
© 2020 Emerson. All Rights Reserved.
1.2 Handling requirements
A - Packaged valves
Crates: The lifting and the handling of valves
packed in crates shall be carried out by
a forklift truck, by means of appropriate
fork hitches.
Cases: The lifting of valves packed in cases
shall be carried out from the lifting
points and the center of gravity
position which have been marked.
The transportation of all packed
material must be carried out safely and
following local safety regulations.
B - Non-packaged valves
The lifting and the handling of these valves shall
be carried out by using appropriate means and
by respecting the carrying limits. The handling
must be carried out on pallets, protecting the
machined surfaces to avoid any damage.
