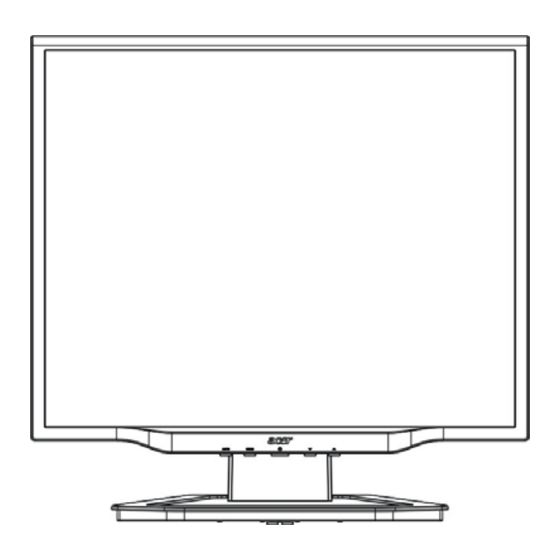

Summary of Contents for Acer AL1723
-
Page 1: Table Of Contents
Precautions ... 2 Special notes on LCD monitors... 2 Package contents ... 3 Installation instructions ... 3 ... 3 Assembling the monitor ... 4 Adjusting the viewing angle ... 6 Connecting the devices ... 6 Switching the power Adjusting display settings... 7 ... -
Page 2: Precautions
Recycling information Acer cares very much about protecting the environment, and firmly believes that the environment will be healthier if appropriate measures are taken to treat and recycle industrial technology products. Such products contain hazardous, poisonous substances that can seriously harm the environment. -
Page 3: Package Contents
LCD monitor DVI cable User's Guide (CD) Assembling the monitor Position the monitor on top of the base. Detaching the monitor If you need to detach the monitor for repackaging, the monitor and base must be separated in order to fit in the carton. -
Page 4: Adjusting The Viewing Angle
Adjusting the viewing angle The viewing angle of the monitor ranges from -5 – 20°. Adjusting the viewing angle (Only AL1723 h/AL1723 r) Your monitor features a multi-adjustable stand that will enable it move 100mm up/down (height adjustment), 25 degree forward/backward (tilt adjustment), 60 degree side/side (swivel adjustment). To make an adjustment, grasp the monitor with both hands on the right and left edge of the casing and move it to the desired position. - Page 5 Rotate Adjustment (Only AL1723 r): 1. Before adjusting the height, be sure to pull out the pin indicated in the figure. as per Fig. 1. 2. To rotate the screen, set the screen position to the highest height, as per Fig. 2.
-
Page 6: Connecting The Devices
Connecting the devices Caution: Make sure that the computer and the monitor are both disconnected from the power supply. Power cord Attach the monitor to the power cord, and then insert the power cord into a properly grounded electrical socket. VGA cable Connect the signal cable to the VGA input socket of the monitor, and connect the signal cable to the VGA output socket of the graphics card on the computer. -
Page 7: Adjusting Display Settings
External controls If the OSD is active, press Auto to exit a selection in the OSD. If the OSD is Auto inactive, press Auto and the monitor will automatically optimize the position, focus, and clock of your display. If the OSD is active, press Minus or Plus to toggle between the OSD Minus / Plus </>... -
Page 8: Osd Options
Please refer to "External controls" on Page 7. To adjust the OSD settings: Press the Menu button to open the OSD menu. Use Plus/Minus buttons to toggle between the 10 OSD functions (and also to adjust the controls to desired levels once a function has been selected). Press Menu again to select one of the 10 OSD functions. - Page 9 Color adjustment: There are three ways to adjust color: Warm (reddish white) Cool (bluish white) User (you can adjust the colors red, green and blue to the intensity you desire) Language for Asia: Select the OSD menu language. Select from English, German, Spanish, Simplified Chinese, Traditional Chinese, French, Italian, and Japanese.
- Page 10 Input signal: Select either Analog Input or Digital Input video. Information: This shows information about the screen. Reset: Resets all settings to default levels. Exit: Exit from OSD.
-
Page 11: Troubleshooting
Problem Power LED is not ON Check to see if the power switch is in the ON position. Ensure that the Power Cord is connected. No picture Check to see if the power switch is in the ON position. Ensure that the power cord is connected. Ensure the video cable is securely connected to the back of the monitor and the computer. -
Page 12: General Specifications
100 – 240 V AC, 50/60 Hz < 40 W < 2W 375.5 x 382 x 190 mm (with stand) 4.0kg / 5.5 kg 375.5 x 413.5x 231.3 mm(with stand)(only AL1723 h/AL1723 r) 4.2 kg / 5.7 kg (only AL1723 h/AL1723 r)
