BC-800
6986071 (STD)
01-10

Advertisement

Table of Contents
loading

Related Manuals for Ryobi BC-800

Summary of Contents for Ryobi BC-800

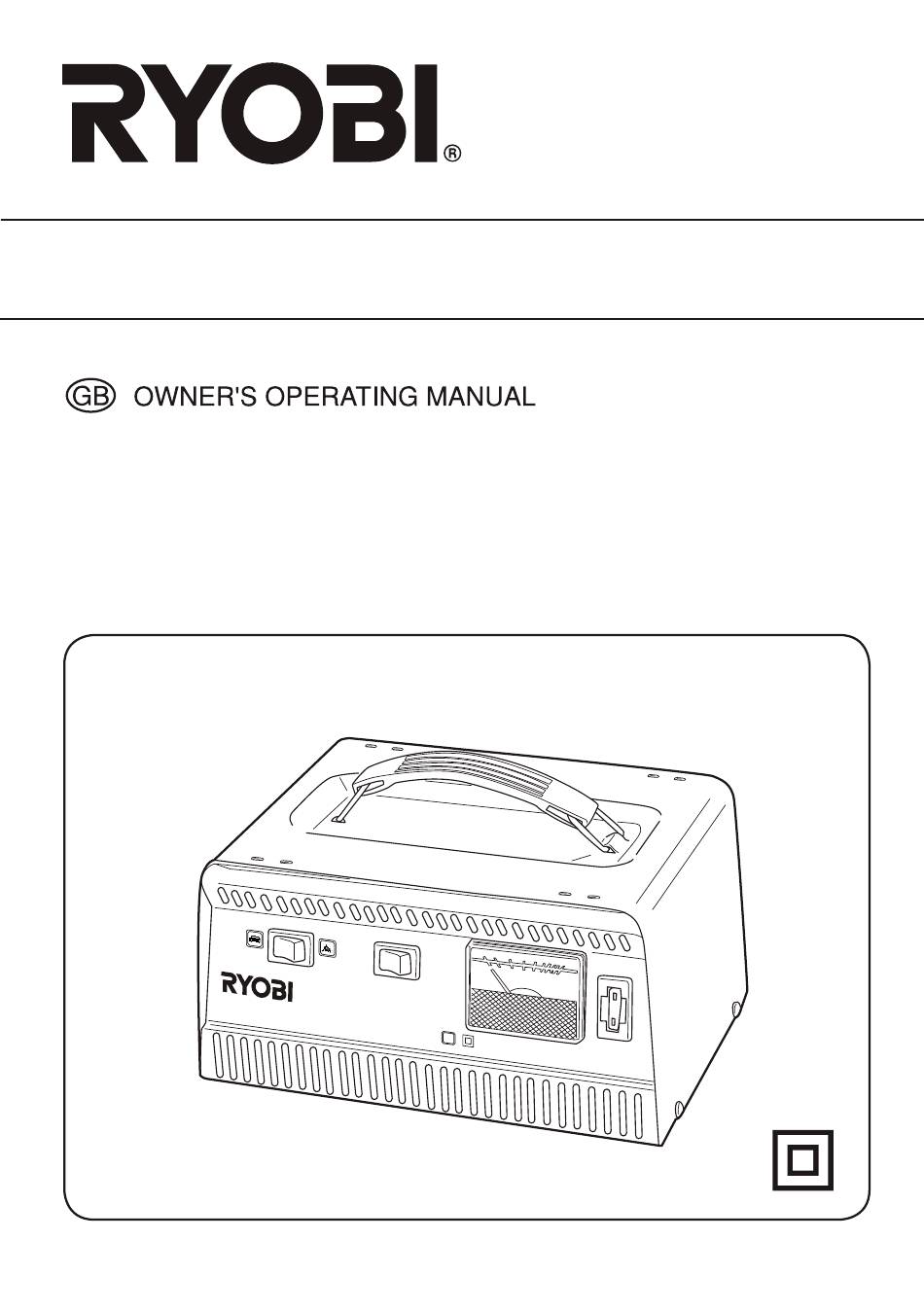

  • Page 1 BC-800 6986071 (STD) 01-10...

  • Page 2: General Battery Safety

    THANK YOU FOR BUYING A RYOBI PRODUCT. IMPORTANT: Working in vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal battery operation. For this reason, it is of utmost importance that each time before using your charger, you read this manual and follow the instructions exactly.

  • Page 3: Technical Specifications

    DESCRIPTION KNOW YOUR BATTERY CHARGER (Fig. 1) Fig. 1 1. Charging voltage selector - Make sure you have either a 12 volt or a 6 volt lead-acid battery and switch charging voltage accordingly. 2. Charging current selector - You select may either quick charging or sparing charging. ]:Quick charging ]:Sparing charging The smaller the battery the greater the risk of harming it by using the quick charging.

  • Page 4: Preparing To Charge

    PREPARING TO CHARGE 1. Most motor vehicle manufacturers recommend that the battery should be disconnected from the vehicle’s electrical system before being charged. Any voltage peaks that occur may cause defects in these electronic modules. Therefore the battery should be disconnected from the electrical system before being charged.

  • Page 5: Maintenance

    2. Connect red clip (3) to POSITIVE (POS, P, +) battery post. Rock clip back and forth to make good connection. (Fig. 2) 3. Connect black clip (4) to NEGATIVE (NEG, N, -) battery post. Rock clip back and forth to make a good connection. (Fig. 3) WARNING: Do not face battery when making final connection.

  • Page 6: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE SOLUTION Charger is not plugged in Plug in No meter reading. With charger unplugged, reverse clips Connections are reversed and reconnect (rock back and forth to bite C l e a n c l i p s a n d b a t t e r y p o l e s a n d Poor electrical connection reconnect (roll back and forth to bite in) Plug in a lamp or other appliance to check...
