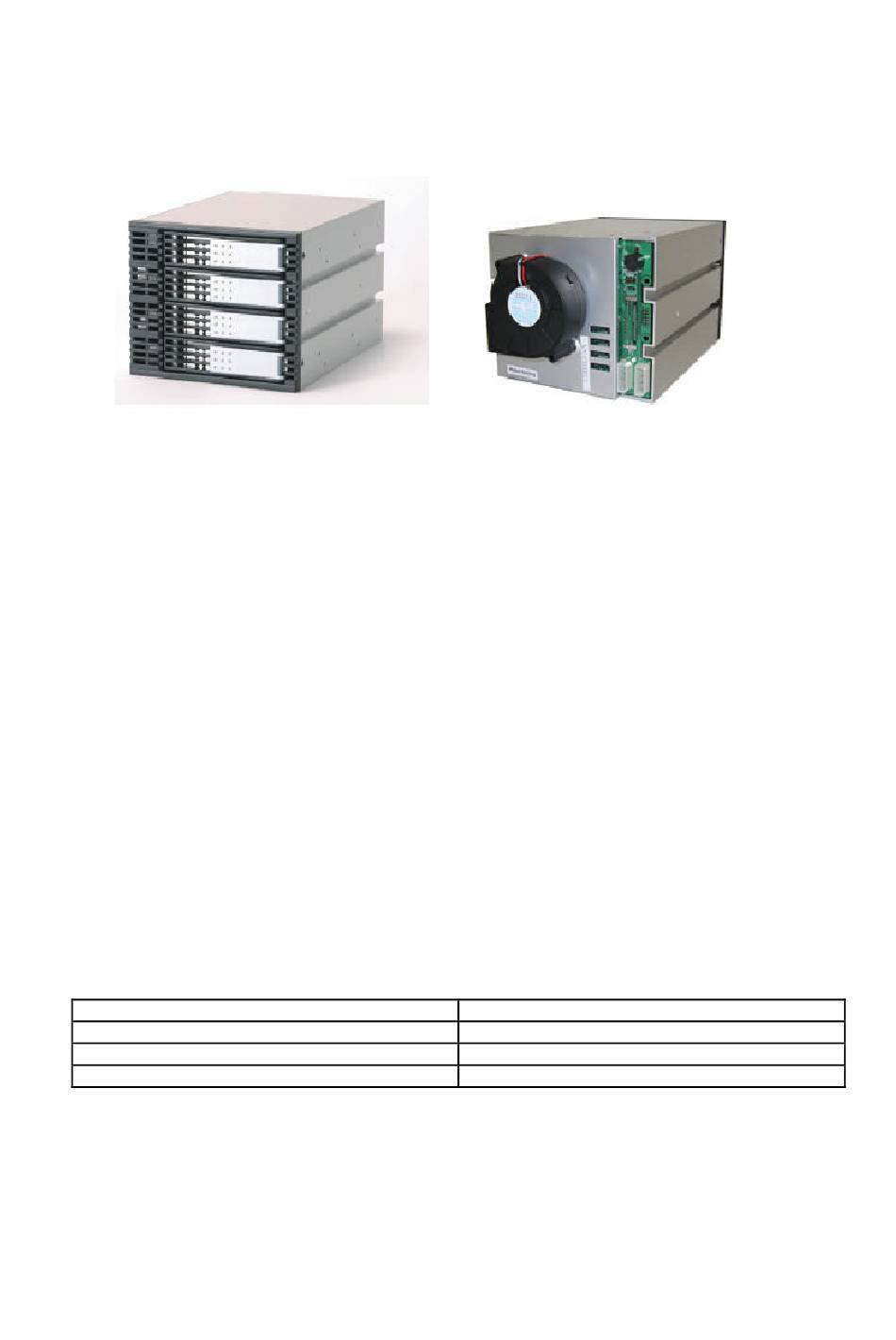

20775 ~ Serial ATA Back Plane
Short Manual (provisional)
Introduction
The Serial ATA Back Plane is an internal drive housing that supports four (4) hot swap Serial ATA
hard drives in a three (3) 5.25" drive space. The Serial ATA Back Plane can be installed into any
PC Case, External Enclosure, or Disk Array Chassis that has available three 5.25" half-height
drive bays. It extends the storage capacity of your system and provides hot swap capability to the
Serial ATA hard drive installed. The Serial ATA Back Plane has been tested in typical desktop
system configuration with various host bus adapters and hard drives to ensure highest
compatibility. The configuration included current 7,200 rpm and 10,000 rpm drives from the
leading suppliers of disk drives.
Features

Multi-layer backplane for high signal integrity

Cableless drive tray design for Serial ATA

Install (4) 3.5" LP hard drives into (3) standard 5.25" HH drive bays

Meet Hot Swap specification for Serial ATA

High quality aluminum housing

Temperature controlled four-speed turbo blower for 10K/15K rpm HDDs (SATA)

Microprocessor controlled sequential drive power-up (SATA)

Visual and audible indicators for fan fail and overheat situations

Auxiliary 3.3V power source for additional SATA devices
Specifications
Dimensions:
Weight:
Operating Temperature:
Non-Operating Temperature:
239 mm x 148 mm x 128 mm (D x W x H)
Approximately 2.2 kg (without drives)
0°C ~ 55°C
Non-Operating Temperature:

Advertisement

loading

Summary of Contents for Lindy 20775

  • Page 1 20775 ~ Serial ATA Back Plane Short Manual (provisional) Introduction The Serial ATA Back Plane is an internal drive housing that supports four (4) hot swap Serial ATA hard drives in a three (3) 5.25” drive space. The Serial ATA Back Plane can be installed into any PC Case, External Enclosure, or Disk Array Chassis that has available three 5.25”...
  • Page 2 Installation Installation of HDD in PC-Case Installation of HDD in Carrier Setup and Operation LED Indicators There are four HDD status LED’s and one Fan / Temperature status LED on ASWAP as shown in Figure 2. The functions of these LED are described in the table below: * LED indicators *Attention: HDD ACCESS LED Function is now reserved LED Messages...
  • Page 3 Overheat temperature setting *** Jumper CN3 sets the overheating threshold temperature. There are three settings: 45°, 55° (default) or 65°C. Once the sensor on the backplane detects the operating temperature is over the setting. Audio alarm buzzer will sound and Fan / Temperature LED will turn red. You can turn off the alarm buzzer by press the mute bottom with a pointed object.
