- Page 1 Premier Hot Cupboard & Bain-Marie/Hot Cupboard Operating & Service Manual Please take the time to read and follow all safety, installation and maintenance guidelines Manual 003 Issue 002 March 2021...
- Page 2 These appliances are marked in compliance with the relevant regulations, Voltage stated on unit data plate. Warning! Please pay attention to sections of the manual displaying this symbol. Warning! Do not attempt to use a hose or water jet to clean this unit. For cleaning instructions, refer to section 6.
-
Page 3: Table Of Contents
Contents page Electrical Specifications & Dimensions Operation: Hotcupboard Door Installation & Removal Sahara Fan Installation & Removal Operation: Bain marie 9 / 10 Cleaning... -
Page 4: Electrical
1: Electrical Before commencing, ensure that all regulations for fire are complied with. This appliance must be earthed and damaged cables must be replaced by a suitably qualified person! 1 Phase Cable 3 Phase Cable Live (L1) Brown Brown Black Grey Neutral Blue... -
Page 5: Specifications & Dimensions
2: Specifications & Dimensions Electrical Power Rating Model Weight Length Width Height Supply (Kw) (kg) HC2E 13amp HC3E 1212 13amp HC4E 1540 13amp HC5E 1865 13amp HC6E 2196 13amp Hot-Cupboard & Bain-Marie (Wet Heat) Gastronorm Electrical Container Cutouts Model Weight... -
Page 6: Operation: Hotcupboard

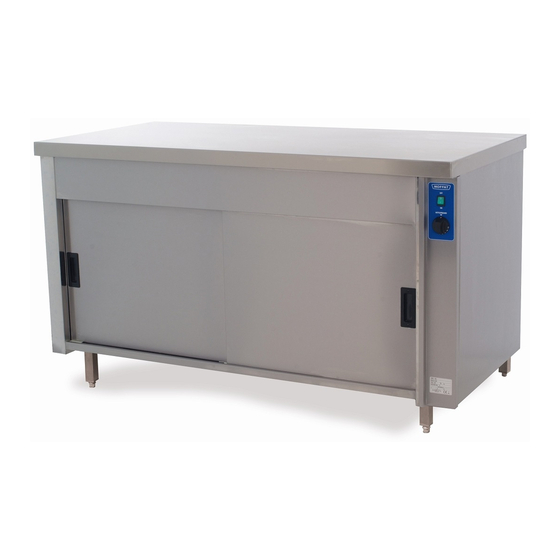

3: Operation: Hotcupboard Hot storage cupboard with removable assisted ‘Sahara’ fan heating unit (Refer to page 6 for details on how to remove Sahara fan). Unit is fitted with removable sliding doors & removable rodded shelves, which are split into manageable sections to ease cleaning and maintenance. -
Page 7: Door Installation & Removal
3: Operation: Hotcupboard 4: Door Installation & Removal 1. Hold the door at a slight angle (Fig 3) & locate the door fully into the top track. 2. Holding the door in the top track, swing the bottom of the door inwards until it comes in contact with the rear of the bottom track. -
Page 8: Sahara Fan Installation & Removal
5: Sahara Fan Installation & Removal The Sahara-Fan heater fitted provides excellent balanced heating coupled with energy savings. The unit can be easily removed & replaced for cleaning or maintenance as it has a simple bayonet & clip fastening system. The diagrams below demonstrate the removal of the hot cupboard Sahara fan. -
Page 9: Operation: Bain Marie
These units are not designed to cook raw food or to heat up cold food. E&R Moffat Ltd. were the originators of a Bain-Marie that could be either wet or dry heat. This type of system was designed to offer flexibility and was developed to eliminate the need to fit a low water level warning system or the expense of replacing burned out elements. - Page 10 6: Operation: Bain-Marie Wet Heat: Operation Draining well: 1. Switch off & disconnect unit from mains power, then wait until water cools down to room temperature. 2. Open to the hot cupboard left hand door fully & securely place a suitable size container under the flexible drain hose.
-
Page 11: Cleaning
7: Cleaning Before attempting to clean the unit, please ensure that the unit is isolated from the electric supply and allowed to cool down, with all food plates and other Dishes removed from the unit. Do not use a water jet or pressure spray to clean this appliance. Disconnect trolley from mains and wait until appliance has cooled. - Page 12 Thank you for choosing E&R Moffat! Scan the QR code below to visit the website for further information: E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...
