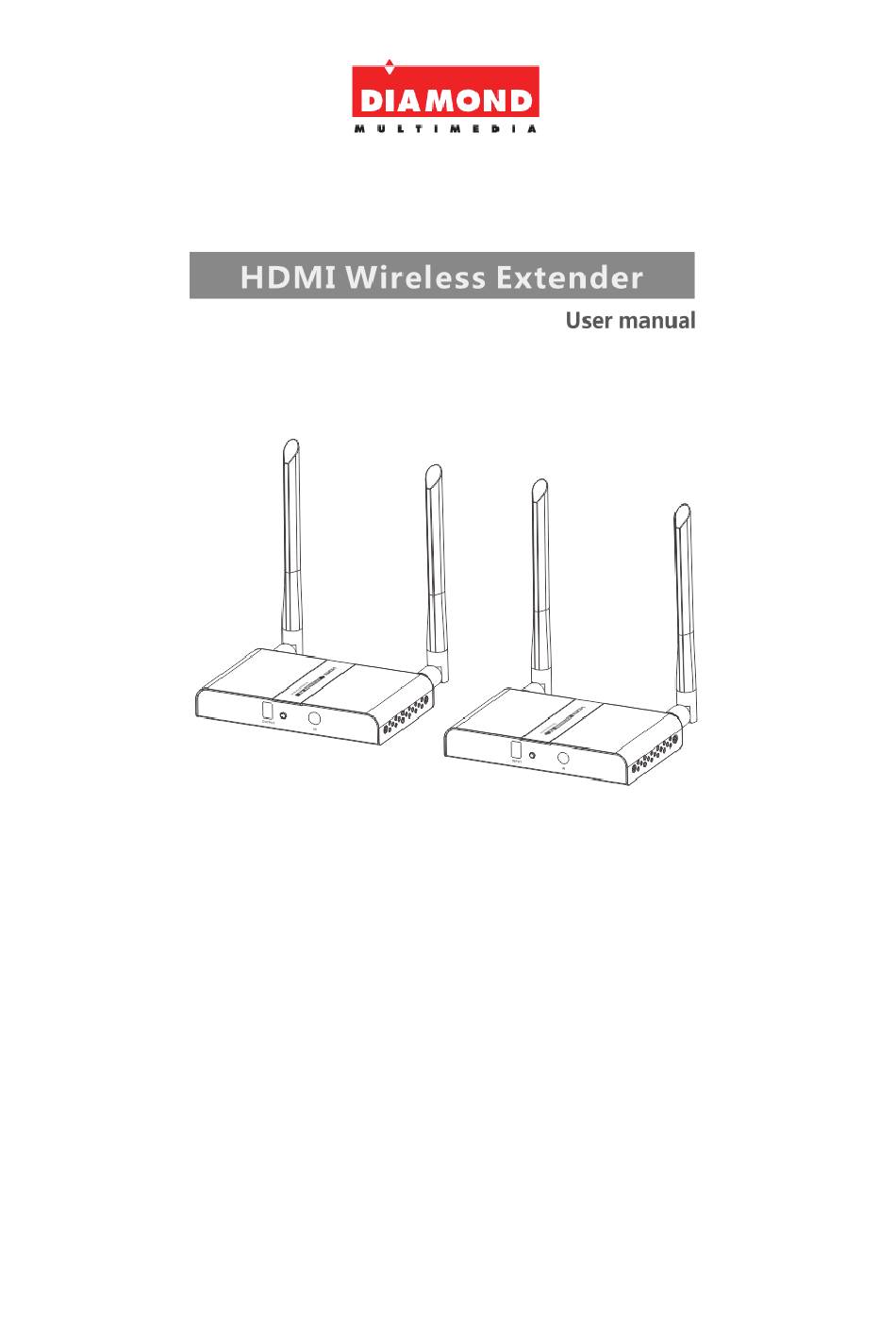

Summary of Contents for Diamond Multimedia VS600
- Page 2 The VS600 wireless extender includes a transmitter and a receiver, allows to transmit and extend HDMI signal up to 100 meters/328ft (outdoor space without interference), it has strong anti-interference ability by running at 5GHz operation frequency. It supports one to one connection, one to two connection and two to two connection (Second receiver sold separately) With both remote control and button control, makes channel setting easily.
- Page 3 FEATURES 1. Metal housing, stable and durable. 2. Transmitter support one HDMI loop-through 3. Support resolution up to 1080p@60Hz. 4. 300ft long range transmission line of sight. (1 to 1:300ft, 1 to 2:150ft) 5. Support IR passthrough with 20-60KHz frequency. 6.
- Page 7 Connection Instruction 1）Connect HDMI input with HDMI source device and connect IR blaster extension cable with IR OUT interface of the transmitter. Align the infrared blaster with the source device. (IR is optional) 2）Connect HDMI output with HDMI display device and connect IR receiver extension cable with IR IN interface of the receiver.
- Page 8 to 0~4; set the channel number of the second group of devices to 5~9. 3) The environment wireless signal will affect transmission, such as microwave, wireless mouse and wireless keyboard etc. Q: Transmitter and receiver can't be connected with each other? A: 1) Please check and make sure both transmitter and receiver have been powered on and are set for the same channel Q: The Wi-Fi LED indicator of the transmitter keeps on, but no signal output on display/monitor?
- Page 10 Support Options: Phone: 800 503 2378 Online: Live Chat and ticket submission www.diamondmm.com...
