INSTRUCTIONS FOR ASSEMBLY AND USE

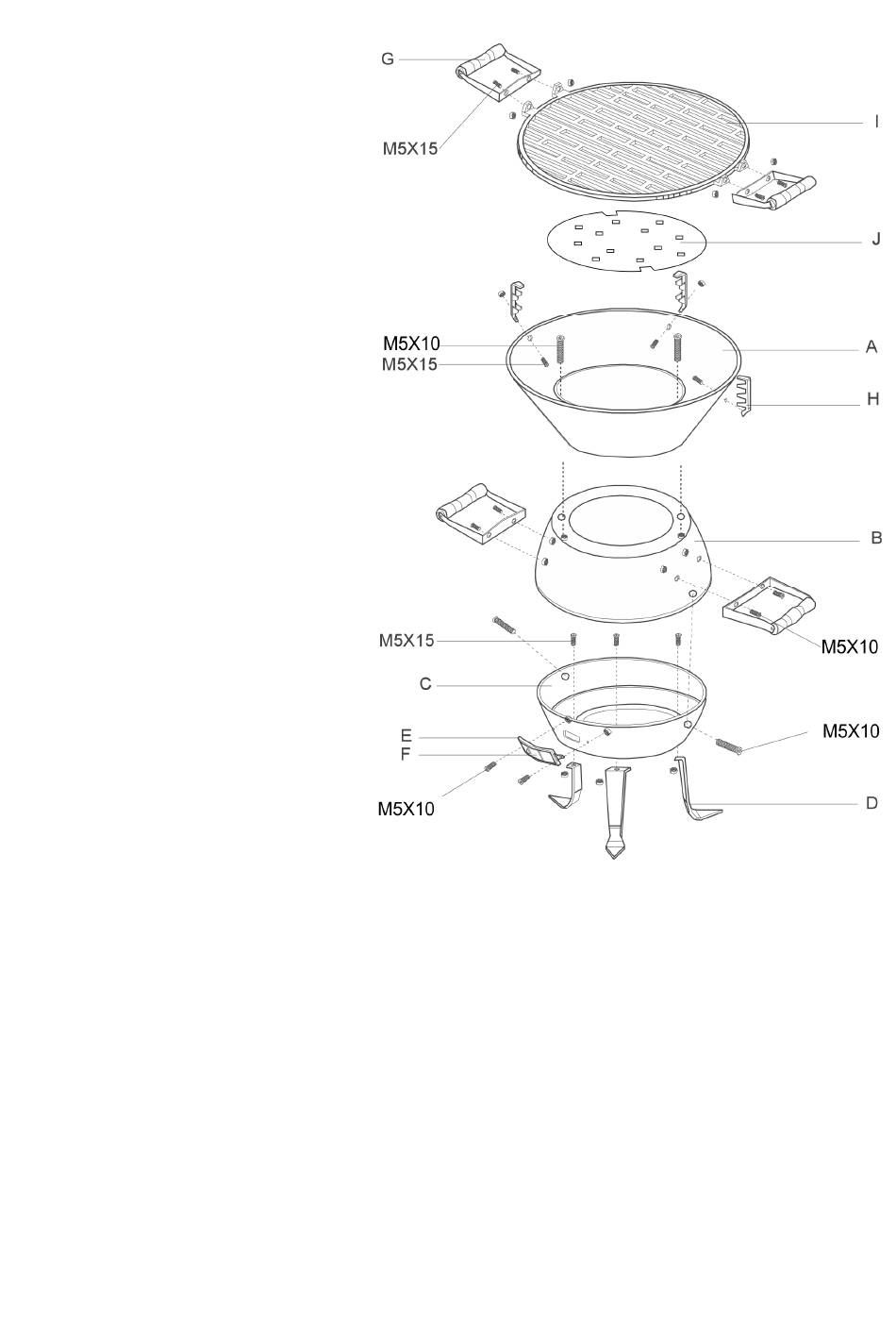

I. Device construction diagram
and list of components and
assembly parts.
List of construction elements:
A bowl - 1 piece
B upper body - 1 piece
C lower body - 1 piece
D legs - 3pcs
E bezel frame, glass - 1 pc
F fitting latch -1szt
G handles - 4 pcs
H grid hanger - 3 pcs
I grid for cast iron dishes - 1 pc
J carbon steel grate - 1 pc
Fitting elements:
M5x10 screw -11pcs
M5x15 screw - 10pcs
M5 nut
II. Assembly
Please unpack components of the
device from the packaging and
identify individual parts. Assemble in
compliance with the diagram. We
recommend to perform the
assembly on dry and firm ground in
order to avoid losing components.
For the assembly, the appropriate
tools should be used: a screwdriver
and wrenches (not included). After
finishing the assembly, please make sure whether all screws and nuts are properly
tightened! After the first use it is recommended to verify again and potentially re-tighten
mounting components.
ATTENTION: During assembly, be careful and do not use excessive force, as cast iron
is a brittle material prone to cracks!
The assembly sequence:
1. Fasten the latch (F) together with the bolt frame (E) to the lower body (C) with bolts and
nuts.
2. Then, tighten the three legs (D) to the underside of the lower body (C) using bolts and
nuts.
3. Position the central body (B) on the lower body (C) and fix it with the screws in such a
way that the front leg is located in the middle of the front part, which ensures greater
stability of the grill! Tighten the nuts.
4. Fix the body brackets with bolts to the upper body (B) in such a way that they are
horizontal in relation to the ground. Tighten the nuts.
5. Then place the bowl (A) on the central body (B) and screw the dish rack (H) on the
outside from the outside. Tighten the nuts.
