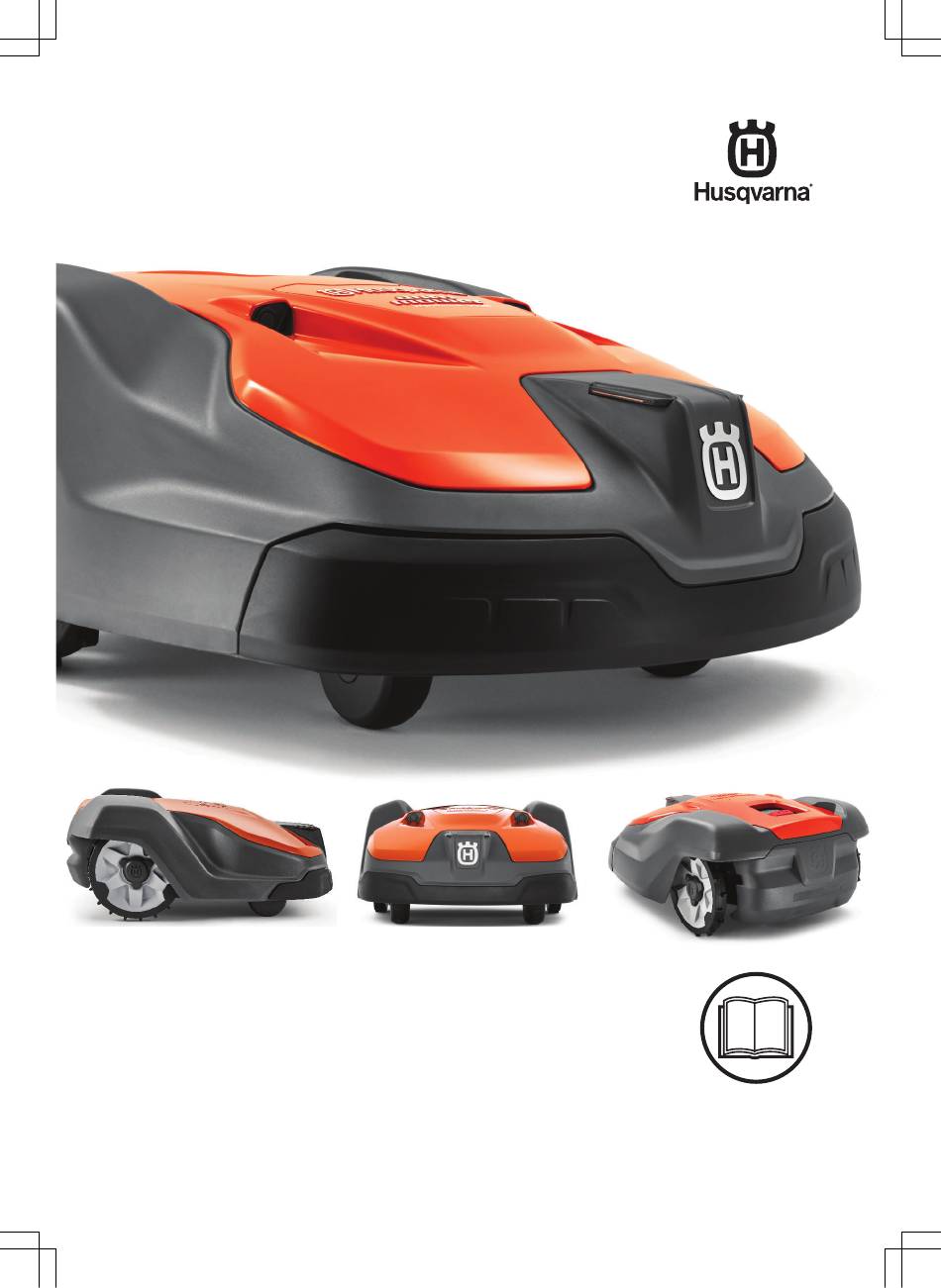

Operator's manual
®
HUSQVARNA AUTOMOWER
520H/550H
EN, English
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.

Advertisement

Table of Contents
loading

Related Manuals for Husqvarna AUTOMOWER 520H

Summary of Contents for Husqvarna AUTOMOWER 520H

  • Page 1 Operator's manual ® HUSQVARNA AUTOMOWER 520H/550H EN, English Read the operator's manual carefully and make sure that you understand the instructions before you use the product.

  • Page 2: Table Of Contents

    Contents 5.3 Replace the blades..........35 1 Introduction 5.4 Battery..............35 1.1 Support..............3 5.5 Winter service............. 35 1.2 Product description..........3 6 Troubleshooting 1.3 Product overview...........4 1.4 Symbols on the product........5 6.1 Introduction - troubleshooting......36 ® 1.5 Symbols in Automower Connect......5 6.2 Fault messages...........36 1.6 Symbols on the battery.........

  • Page 3: Introduction

    Serial number: PIN code: The serial number is on the product rating plate and on the product carton. • Use the serial number to register your product on www.husqvarna.com. 1.1 Support The operator selects the operation settings in the ®...

  • Page 4: Product Overview

    1.3 Product overview Automower® 520H Automower® 550H The numbers in the illustration represent: 13. Handle 14. Main switch Body 15. Rating plate (including product identification code) LED indicator lamp of the product 16. Blade disc STOP/START button 17. Skid plate Ultrasonic sensors 18.

  • Page 5: Symbols On The Product

    27. Loop wire for boundary loop and guide wire The chassis contains components which 28. Stakes are sensitive to electrostatic discharge 29. Connector for the loop wire (ESD). The chassis must also be resealed in a professional manner. For these 1.4 Symbols on the product reasons the chassis shall only be opened by authorized service technicians.

  • Page 6: Symbols On The Battery

    ® Automower Connect is where the operator enables and disables the ® Automower Connect module on the Do not immerse the battery into water. ® product. (Only available for Bluetooth short-range connectivity) 1.7 General safety instructions 1.6 Symbols on the battery The following system is used in the Operator’s Manual to make it easier to use: italics is a text that is in the...
  • Page 7 ® 1.8 Overview of the settings structure in Automower Connect (1) Schedule Overview Schedule settings Edit Change current Add new Schedule settings Schedule settings Cutting height Operation ECO mode Spiral cutting Weather timer Intensity Cutting time Medium Very low High Very high Medium High...

  • Page 8: Overview Of The Settings Structure Automower ® Connect (2)

    ® 1.9 Overview of the settings structure Automower Connect (2) Installation Lawn coverage Corridor width Exit angles Reversing Drive Find distance past wire charging station Charging Guide Follow guide Boundary corridor 1/2/3 corridor station signal Follow 1/2/3 boundary wire Sector 1 Sector 2 GPS assisted How often...

  • Page 9: Automower ® Connect (1)

    ® ® 1.10 Overview of the settings structure in Automower Connect (3) (Bluetooth short-range connectivity only) General Time & date Reset to factory settings Mower time Mower date Time & date from phone Security Change PIN code Theft protection GeoFence New loop signal Create new loop signal...

  • Page 10: Safety

    2 Safety 2.1 Safety information 2.1.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE The operator is responsible for accidents or hazards occurring to other people or property. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person...

  • Page 11: Safety Definitions

    The appliance must be disconnected from the supply mains when removing the battery. WARNING: The product CAUTION: Used if there is a risk of damage to the product, other materials or can be dangerous if used the adjacent area if the instructions in the manual are not obeyed.
  • Page 12 Refer to Schedule on page 24 . can potentially be harmed by the product. Refer to • Husqvarna does not guarantee full compatibility Schedule on page 24 . between the product and other types of wireless • Check that there are no foreign objects such as systems such as remote controls, radio stones, branches, tools or toys on the lawn.
  • Page 13 Set the main switch in position Inspect the product each week and replace any damaged or worn parts. Refer to Maintenance on page 34 . 2.3.5 In the event of a thunderstorm Carry the product by the handle with the blade disc away from the body.

  • Page 14: Installation

    When the product has cut the grass for some time, the perceived sound level is much lower. Note: Refer to www.husqvarna.com for more information about installation. 3.4 Before the installation of the wires You can select to attach the wires with stakes or bury 3.2 Main components for installation...
  • Page 15 precipices or public roads. This will prevent • Put the charging station in an area with protection from the sun. damage to the product. • If the charging station is installed on an island, make sure to connect the guide wire to the island. To make an island on page 17 .
  • Page 16 " 10 cm / 4 " max 1 cm / 0.4 • If you have a paving stone path that is in level with the lawn, put the boundary wire below the paving stone. Note: If the paving stone is minimum 30 cm / 12 Drive Past in.
  • Page 17 Note: If a passage is less than 2 m / 6.5 ft. wide, install a guide wire through the passage. The recommended minimum distance between the guide wire and the boundary wire is 30 cm / 12 in. The product always runs to the left of the guide wire as seen facing the charging station.
  • Page 18 3.4.5 Work area examples • If the charging station is put in a small area (A), make sure that the distance to the boundary wire is at a minimum 3 m / 10 ft. in front of the charging station. •...

  • Page 19: Installation Of The Product

    To use ® Automower Club Solution, speak to your local 3.5.2 To install the charging station Husqvarna representative. WARNING: Obey national regulations about electrical safety. WARNING: The product is only to be used with the power supply unit supplied by Husqvarna.
  • Page 20 and guide wires are being laid. Switch on the WARNING: Risk of Electric Shock. Main switch on page 31 . Do not product. Refer to Install only to an residual-current device continue with any product settings before the (RCD) when connecting the power supply to installation is complete.

  • Page 21: To Put The Wire Into Position With Stakes

    3.5.4 To install the guide wire CAUTION: Twinned cables, or a screw terminal block that is insulated with insulation tape are not satisfactory splices. Soil moisture will cause the wire to oxidize and after a time result in a broken circuit. Open the connector and put the wire in the connector.

  • Page 22: To Extend The Boundary Wire Or The Guide Wire

    Add wire where it is necessary to install the extension. Enter the factory PIN code. Put the boundary wire or the guide wire into Log in to your Husqvarna account in the position. ® Automower Connect app.
  • Page 23 ® through Bluetooth if you are in short-range of the ® product. You can use Automower Direct without a Husqvarna account as long as you have the product PIN code. 1457 - 005 - 16.10.2020 Installation - 23...

  • Page 24: Settings In Automower ® Connect

    The default schedule setting allows the product to Note: ® The Automower Direct connection is only valid operate around the clock 7 days a week. This is ® as long as you are within Bluetooth range. If you move normally a suitable setting for a work area ®...
  • Page 25 3.11.2 Operation Weather timer selects if the product will and then continue to operate or not. Note: Weather timer is reset if the product does not Reset of all user operate for more than 50 hours, or if a settings is done. Weather timer is not changed if a Reset In the Operation's menu it is possible to change the of schedule settings is done.
  • Page 26 have been made. Only when GPS service is not The factory setting is set to use the 3 search methods at the same time. Use the factory setting to find the available, the manual settings are used. charging station as fast as possible and to keep the risk of tracks on the lawn to a minimum.
  • Page 27 The percentage is equal to the percentage of the area in relation to the complete work area. Measure the area. Divide the measured area with the total work area. Convert the result to percentage. Move the horizontal bar to set the distance from the charging station.
  • Page 28 ® 3.11.5 General (Bluetooth only) To set the reversing distance Select Settings > Installation > Reversing distance in the app. Move the horizontal bar to set the distance. Save . Select This function is used to set time and date, or to reset to 3.11.3.6 Drive Past Wire default settings.
  • Page 29 Husqvarna Fleet Services ™ refer to www.husqvarna.com. Move the horizontal bar to select the duration of the alarm. 3.11.9.1 To connect to the product with Husqvarna Fleet ™ Services 3.11.6.4 GeoFence ™ Download the Husqvarna Fleet Services...
  • Page 30 3 minutes. If pairing has not been successful within this time period, switch off the product. Wait until the LED status indicator is not lit, and then switch on the product again. Select the plus sign (+) in the Husqvarna Fleet ™ Services app.

  • Page 31: Operation

    4 Operation 4.1 Main switch WARNING: Read the safety instructions carefully before you start the product. WARNING: Keep your hands and feet away from the rotating blades. Do not put your hands or feet near to or below the product when the blade motor is on. WARNING: Do not use the product when persons, especially children, or...

  • Page 32: Operating Mode - Park

    moves out of the charging station and stops. The product is now prepared to start operation, but needs Secondary confirmation from the operator first. In the area mode, the product operates for a selected period of time or until the battery is empty. Note: If you want to cut the main area after the battery Main area mode before...

  • Page 33: To Adjust The Cutting Height With Automower Connect

    4.7 To adjust the cutting height with ® Automower Connect The cutting height can be varied from MIN (5 cm / 2 in.) to MAX (9 cm / 3.6 in.). Note: During the first weeks after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire.

  • Page 34: Maintenance

    It is recommended to clean using a brush. Husqvarna recommends to use a special cleaning and maintenance kit, available as an accessory. Contact your Husqvarna representative for more information.

  • Page 35: Replace The Blades

    5.5 Winter service Turn the product upside down. Put the product on a soft and clean surface to avoid scratching the Take your product to your Husqvarna central service for product. service prior to winter storage. Regular winter service Rotate the skid plate so that its holes align with the will maintain the product in good condition and create screws for the blade.

  • Page 36: Troubleshooting

    Messages menu in Automower ® All messages can be found in the Connect. More suggestions for steps to take in the event of malfunction or symptoms can be found on www.husqvarna.com. Note: Messages menu is only available for short-range connectivity (Bluetooth ®...
  • Page 37 An incorrect PIN code has been entered. 5 Enter the correct PIN code. Speak to your lo- tries are permitted, and the product is then cal Husqvarna representative if you forget blocked for a period of time. the PIN code.
  • Page 38 Message Cause Action Outside work area The boundary wire connections to the charg- Make sure that the boundary wire is connec- ing station are crossed. ted correctly to the charging station. Refer to To install the boundary wire on page 20 . The boundary wire is too close to the edge of Make sure that the boundary wire is put To examine where...
  • Page 39 Message Cause Action Charging station The contact between the charging strips and Put the product in the charging station and blocked contact strips may be poor and the product check that the charging plates and contact has made a number of attempts to charge. plates make good contact.
  • Page 40 Message Cause Action Electronic problem Temporary electronic or firmware related is- Restart the product. sue in the product. Loop sensor prob- If the problem stays, speak to your approved lem, front/rear servicing dealer. Charging system problem Tilt sensor problem Temporary problem Wheel drive problem, right/left Invalid device combi-...

  • Page 41: Information Messages

    6.3 Information messages Messages menu in the Automower ® The list below shows a number of information messages that may be found in the Connect app. Contact your local Husqvarna representative if the same message appears often. Message Cause Action Low battery The product cannot find the charging station.
  • Page 42 Restart the product. If there still is a connec- tion problem, try to unpair the product mowers) and then pair it again. If the prob- lem remains, contact your local Husqvarna representative. Connection settings Settings for wireless connectivity have been Check and revise settings if necessary.

  • Page 43: Led Indicator Lamp On The Charging Station

    For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing green light. If any other color than green is visible, follow the troubleshooting guide below. There is more help on www.husqvarna.com. If you still need help, please contact your local Husqvarna representative.

  • Page 44: Symptoms

    If your product does not work as expected, follow the symptoms guide below. There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed answers to a number of standard questions. Contact your local Husqvarna representative if you still cannot find the reason for the fault.

  • Page 45: Finding Breaks In The Loop Wire

    Symptoms Cause Action The product turns This is completely normal for the product. No action. round and stays on a The product have GPS assisted navigation small area for several that contributes to an even result. minutes. Schedule Uneven mowing re- The product works too few hours per day.
  • Page 46 Check that the boundary wire connections to the charging station are properly connected and not damaged. Check that the indicator lamp in the charging station is still flashing blue. Guide POWER To rectify the fault you will need boundary wire, connector(s) and coupler(s): a) If the suspected boundary wire is short then it is easiest to exchange all of the boundary wire...
  • Page 47 Continue until only a very short section of the wire remains which is the difference between a solid green light and a flashing blue light. Then follow instruction in step 5 below. If indicator lamp still flashes blue in step 3 above: Put AL and G1 back in their original positions.

  • Page 48: Transportation, Storage And Disposal

    Remove the 3 screws that holds the battery with a • Keep the product with all wheels on level ground Torx 20. during storage, or use a Husqvarna wall hanger. • If you keep the charging station indoors, disconnect and remove the power supply and all the connectors from the charging station.

  • Page 49: Technical Data

    8 Technical data 8.1 Technical data ® ® Dimensions Automower 520H Automower 550H Length, cm / in. 75 / 29.5 75 / 29.5 Width, cm / in. 63 / 24.8 63 / 24.8 Height, cm / in. 33 / 13 33 / 13 Weight, kg / lbs 14.7 / 32.4...
  • Page 50 ® ® Noise emissions measured in the environment as Automower 520H Automower 550H sound power Measured sound power noise level, dB (A) Noise emissions uncertainties K , dB (A) Guaranteed sound power noise level, dB (A) Sound pressure noise level at the operator’s ear , dB ®...

  • Page 51: Registered Trademarks

    4 . 8.2 Registered trademarks ® Bluetooth Bluetooth SIG, inc. and any use of such word mark and logos are registered trademarks owned by marks by Husqvarna is under license. 1457 - 005 - 16.10.2020 Technical data - 51...

  • Page 52: Warranty

    The blades and wheels are seen as disposable and are not covered by the warranty. If an error occurs with your Husqvarna product, please contact Husqvarna customer service for further instructions. Please have the receipt and the product’s serial number at hand when contacting Husqvarna customer service.

  • Page 53: Applicable To Us/Ca Market

    Conformity • Reorient or relocate the receiving antenna. Issuer: Husqvarna AB, Drottninggatan 2, S-561 82 • Increase the separation between the equipment Huskvarna, Sweden www.husqvarnagroup.com. and receiver.
  • Page 54 54 - Applicable to US/CA market 1457 - 005 - 16.10.2020...
  • Page 55 1457 - 005 - 16.10.2020 Applicable to US/CA market - 55...
  • Page 56 AUTOMOWER ® is a trademark owned by Husqvarna AB. © Copyright 2020 HUSQVARNA. All rights reserved. www.husqvarna.com Original instructions 1142338-95 2020-10-16...
