HITEC MINIMA 6S Instruction

MINIMA 6S
HITEC 2.4GHz
Receiver Instruction
version 2.0
• Risk of explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the instructions.
European CE notice to users and product statements
- Frequency Range : 2409.2 MHz ~ 2474.0 MHz
- Hereby, HITEC RCD INC, declares that our (RE type : MINIMA 6S) is in
compliance with RED 2014/53/EU.
The full text of the EU DoC is available at the following internet address:
www.multiplex-rc.de
FCC notice to users and product statements
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
Operation is subject to the following two conditions;
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
• FRANCE Frequency Range : 2.4056GHz~ 2.4482GHz
Thank you for your purchase of the Hitec Adaptive Frequency Hopping Spread Spectrum
(AFHSS) 2.4GHz module and receiver system. This manual contains the complete
directions on how to use the Minima 6S receiver. We encourage you to review the entire
manual before using these products.
Service & Support
Hitec Customer Service
Help is available from the Hitec office through phone support and e-mail inquiries.
Our US office is generally open Monday thru Friday, 8:00AM to 4:30PM PST. These
hours and days may vary by season. Every attempt is made to answer every incoming
service call. Should you reach our voicemail, leave your name and number and a staff
member will return your call.
Hitec Web Site
Make plans to visit the Hitec website, www.hitecrcd.com, on a regular basis. Not only is it
full of specs and other information about the entire Hitec product line, our website's FAQ
pages will eventually hold valuable information and program updates about the Spectra
2.4 module and Optima series of receivers.
The On-Line Community
One of the benefits of the extensive R/C online community is the vast wealth of archived
knowledge available. Hitec sponsors forums on most of the popular R/C websites where
a Hitec staff member or representative tries to answer all manner of product related
questions. Bringing together strangers with common interests is proving to be one of the
greatest gifts of the internet. If past history is any guide to the future, we are certain
forums will be started about the Hitec 2.4 system and several are certain to stand out as
valuable archives of information.
Warranty and Non-Warranty Service
All Hitec products carry a two year from date-of-purchase warranty against
manufacturer's defects. Our trained and professional service representatives will
determine if the item will be repaired or replaced. To provide all the necessary information
we need to administrate your repair, visit our website at www.hitecrcd.com and download
the repair form, fill it out and send in your item for repair.
Hitec Service
12115 Paine St. Poway CA 92064
1-858-748-6948
E-mail: service@hitecrcd.com
Introduction
1. For maximum performance, it is recommended to position the antenna at a
90 degree angle as shown in the picture shown below.
Recommended Position
2. The receiver antenna should not be placed near the engine, metal parts,
or high current batteries.
3. When using a large number of high-power digital servos in a model, it is highly
recommended to use the SPC feature to insure the receiver always gets the
power it needs in high load conditions. If not, use the system with enough
receiver battery capacity.
4. There could be a possible time-delay in receiving telemetry data from
HTS-SS(sensor-station) depending on the conditions in the area you fly.
5. It is strongly recommended to use Hitec 's genuine Heavy Duty High Channel
Switch Harness with Receiver Charger Cord (Stock#. 54407S) for all
Optima series receivers.
Park plane AFHSS 2.4GHz Receivers
Size : 1.19 X 0.81 X 0.27in (30.4 X 20.8 X 7.11mm)
Weight : 0.19oz (5.25g)
Stock Number: #26615
Operating Voltage : 3.7~8.4V From receiver battery power or
speed control (ESC) power
Max Current Consumption : 50mA

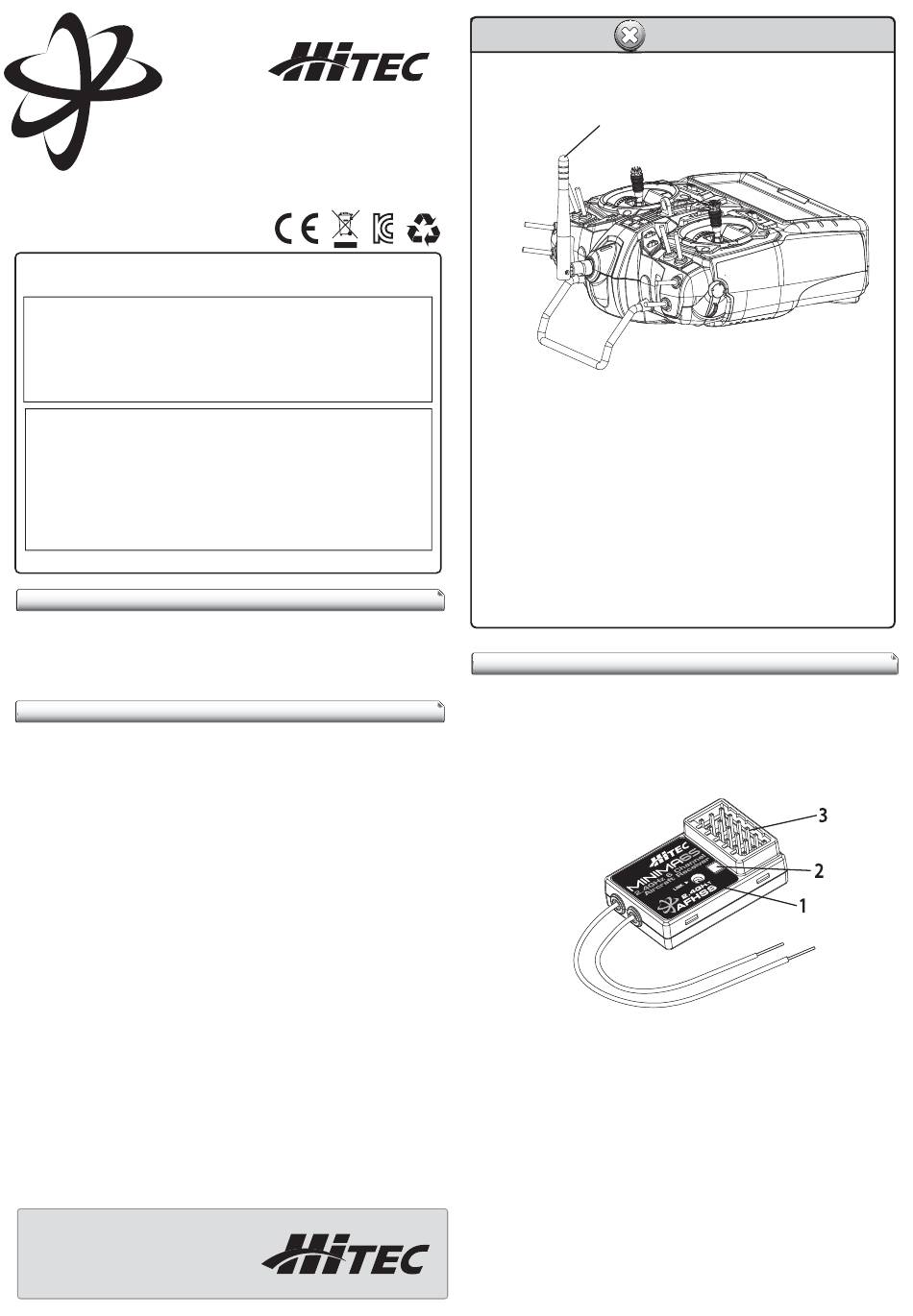

MINIMA 6S
1. Function Button
- Used for binding the receiver to a module or Hitec 2.4 built-in transmitters,
2. Single LED Status Indicator
- Indicates the set-up process codes and single status of the receiver.
3. Channel Output and Battery Input Ports
- The ports for battery power input and servos, gyros and other accessories output port
are located at the side end of the Minima 6S receiver
Compatibility
- The Minima 6S Receiver is compatible with transmitters using Hitec's AFHSS
2.4 GHz system such as Spectra 2.4 module or dedicated built-in module AFHSS 2.4
Hitec transmitters.
Warning!
Minima 6S Features
