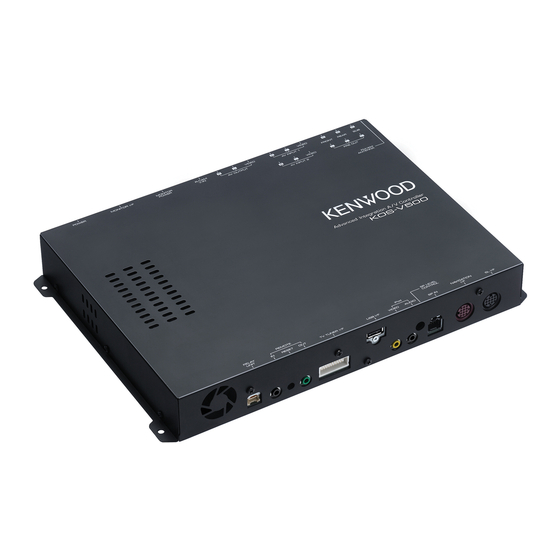

ADVANCED INTEGRATION A/V CONTROLLER
KOS-V500

INSTRUCTION MANUAL

© B64-3483-00/00 (EV)

Advertisement

Table of Contents
loading

Related Manuals for Kenwood KOS-V500

Summary of Contents for Kenwood KOS-V500

  • Page 1: Instruction Manual

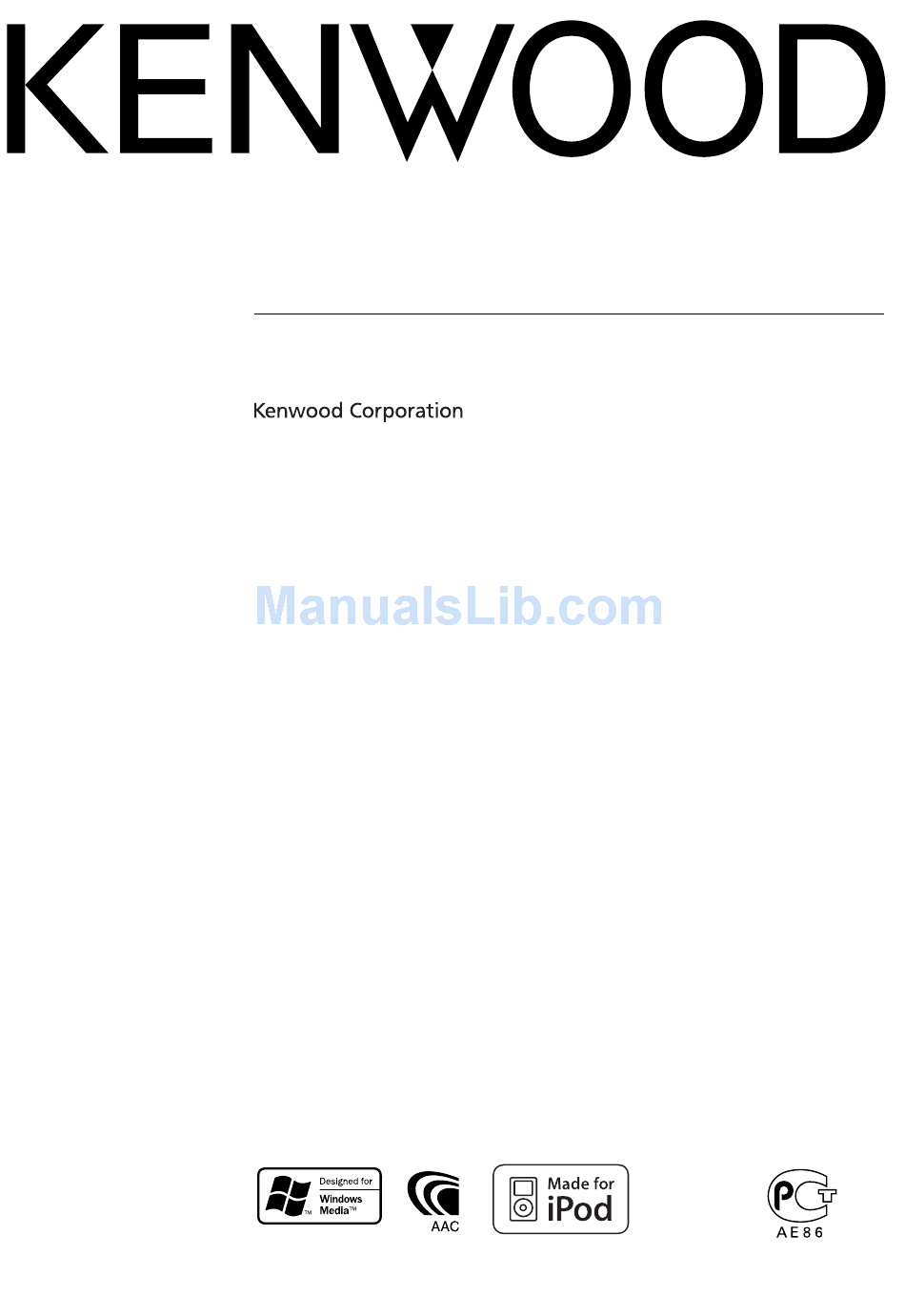

    ADVANCED INTEGRATION A/V CONTROLLER KOS-V500 INSTRUCTION MANUAL © B64-3483-00/00 (EV)

  • Page 2: Table Of Contents

    Control Connecting an iPod Functions when Displaying the Easy Control Panel Functions while Displaying the Control Screen iPod List KOS-V500 Basic Operations TV Watching Functions During TV Screen Functions When Displaying the Easy Control Panel Functions While Displaying the Control...
  • Page 3 Muting Audio Volume upon Reception of Phone call Muting Audio Volume upon Reception of Phone Call Character Entry How To Use the Character Entry screen Screen Control Screen Control Setup Menu Setup Menu Audio Setup Crossover Network Setup iPod Setup Software Information System Setup AV Interface Setup...

  • Page 4: How To Read This Manual

    For this reason, they may be different from the actual displays or panels used, or some display patterns may be different. KOS-V500 Seek mode Sets a station selection. TUNER 98.1...
  • Page 5 If the optional monitor, KOS-L702 is connected to this unit, you can operate this unit by simply touching the buttons on the screen. English...

  • Page 6: Safety Precautions

    KOS-V500 About disc changers connected to this unit Kenwood disc changers released in 1998 or later can be connected to this unit. Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers.

  • Page 7: Notes

    • If you experience problems during installation, consult your Kenwood dealer. • When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. • The characters conforming to ISO 8859-1 character set can be displayed.
  • Page 8 KOS-V500 • Playing order of the Audio file In the example of folder/file tree shown below, the files are played in the order from ① to ⑩.
  • Page 9 About Picture files Acceptable picture files • Format: JPEG • Baseline format: Up to a maximum of 8192(W) × 7680(H) pixels • Progressive format: Up to a maximum of 1600(W) × 1200(H) pixels ⁄ • Enlarges and reduces images up to the size shown above to fit to the screen.
  • Page 10 Enters options. Adjusts the volume Attenuates the volume Press it again to cancel muting. Switches AV OUT source Switches the source that is output at the AV OUTPUT terminal when it is pressed. KOS-V500 DISP V.SEL ZOOM MENU POSITION •...

  • Page 11: Battery Installation

    ¤ • Put the Remote Controller in a place where it will not move during braking or other operations. A dangerous situation could result, if the Remote Controller falls down and gets wedged under the pedals while driving. • Do not place the battery near an open flame or heat source. This may cause the battery to explode. •...

  • Page 12: Playing A Usb Device

    Even if the USB is removed and connected again, the playback will start from the last stopped point unless the contents in the USB device is changed. • Make sure that the USB device is connected firmly. KOS-V500 DISP V.SEL...
  • Page 13 Switches the video source The video source switches in the following order each time you press the button. Video iPod Rear Camera Navigation When you press the button again, the previous video display comes back on. ⁄ • The Rear view camera video is displayed when the vehicle's gear is in "Reverse". •...
  • Page 14 The function control screen switches in the following order each time you press the button. Picture & Easy Control Panel Source Control Screen Picture Panel (OFF) The following buttons are always displayed on the source control screen. KOS-V500 DISP V.SEL ZOOM MENU POSITION •...
  • Page 15 Audio files (AUD mode) Folder search Selects the folder to be played. Radio (AUD mode) Band switching Switches to bands received by the unit. Direct tuning After pressing this key, use the numeric keypad to specify the broadcast station you wish to receive.
  • Page 16 Basic Operations NAVI (NAVI mode) Joystick Scrolls the map, or moves the cursor. ENTER Performs the selected function. ZOOM Zooms in or out the navigation map. MENU Displays Main menu. KOS-V500 DISP V.SEL ZOOM MENU POSITION • • ENTER •...
  • Page 17 CANCEL Displays previous screen. POSITION Displays the current position. Hands-free communication Enters the dialing method selection mode. When a call comes in, it answers the call. English...

  • Page 18: Usb Device Control

    See <External Device Power Supply Control> (page 45). ⁄ • The Easy Control Panel display is hidden when you touch a central area of the monitor. KOS-V500 Functions while displaying the Control Screen Switches to control screen to use various playback functions.

  • Page 19: Usb List

    3 Selects a folder. (Only in Folder Select Mode)* 4 Selects a file. 5 Plays or pauses. 6 Switches the button display. 7 Starts or stops Scan Play (that plays the beginning of each music one after the other). 8 Repeats to play (the present music). 9 Starts or stops Random Play (to play music in random order).

  • Page 20: Folder Select

    2 Lists folders and Audio files Folder opens when touched, and the Audio file is played. 3 Moves to the top hierarchy level. 4 Moves up a hierarchy level. 5 Displays the currently playing file. 6 Returns to the original screen. KOS-V500...

  • Page 21: Music Disc Listening

    Music Disc Listening You can recall various control screens during Disc Changer playback. Functions When Displaying the Easy Control Panel Displays a floating control panel in the screen. AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE...

  • Page 22: Functions While Displaying The Control Screen

    Starts or stops Magazine Random Play (to play songs of the disc changer in random order). KOS-V500 y Sets a name to the disc being played. u Displays a list of discs in the Disc changer i Displays the external device control ⁄...

  • Page 23: Disc Select

    End Name set Disc Select Displays a list of discs in the Disc changer and allows you to select the disc to listen. Start Direct Select Select a Disc 1 Scrolls the list. 2 Lists the discs. Plays when touched. 3 Switches the list name to Disc name or Disc Text.

  • Page 24: Radio Listening

    See <External Device Power Supply Control> (page 45). ⁄ • The Easy Control Panel is hidden when you touch a central part of the monitor. KOS-V500 Functions While Displaying the Control Screen Switch to control screen to use various functions. NAVI...

  • Page 25: Seek Mode

    6 Switches the button display. 7 Selects the Monaural reception mode. (Only when receiving the FM broadcast) 8 Selects the Auto Memory mode. (Refer to page 26 for the <Auto Memory>) 9 Switches the Seek Mode. (Refer to page 25 for the <Seek Mode>) p Switches the number of lines displayed in the Information Display.

  • Page 26: Auto Memory

    ⁄ • The operation ends automatically if you do not operate within 10 seconds. KOS-V500 Manual Memory Stores the current receiving station in memory. Select a station you wish to store in...

  • Page 27: Preset Select

    Preset Select Lists and selects memorized station. Start Preset Select Selects a station 1 Scrolls the list. 2 Memorized stations are displayed. Touch to tune in. 3 Returns to the original screen. Radio Text You can display the radio text. (Only when receiving the FM broadcast) Select a station Display the radio text...

  • Page 28: Direct Search

    Example: When you receive AM 810 kHz ⁄ • The operation ends automatically if you do not operate within 10 seconds. KOS-V500 Traffic Information When a traffic bulletin starts, any source is switched to the traffic information and it is displayed automatically.

  • Page 29: Search For Program Type

    Search for Program Type A program is tuned when you set its program type. (Only when receiving the FM broadcast) Enter Program Type mode Select a Program Type 1 Program Type is displayed. Touch to select a Program Type. 2 Scrolls the Program Type list. 3 Search for the program type.

  • Page 30: Ipod Control

    (Resume Function). • If the played song is not a video content, "No iPod Video Signal" is displayed on the video screen. • While connecting an iPod, "KENWOOD" appears on the iPod and the iPod's control is disabled. KOS-V500 Functions when Displaying the Easy Control Panel Displays a floating control panel in the screen.

  • Page 31: Functions While Displaying The Control Screen

    Functions while displaying the Control Screen Switches to control screen to use various playback functions. NAVI MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE FM + NAVI AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE CANCEL...

  • Page 32: Ipod List

    If music title is displayed, the music is played by touching it. is touched, all the music in its category is played. 3 Returns to previous category. 4 Moves to the top category. 5 Displays the currently playing category. KOS-V500 0:00:05...
  • Page 33 English...

  • Page 34: Basic Operations

    <Basic operations> (page 10). • The information display is cleared automatically after approximately 5 seconds. Also, the information can be displayed automatically when it is updated. KOS-V500 Functions When Displaying the Easy Control Panel Displays a floating control panel in the screen.

  • Page 35: Functions While Displaying The Control Screen

    Functions While Displaying the Control Screen Switches to control screen to use various playback functions. NAVI MODE/TOP MENU FNC/MENU/PBC AUDIO RETURN ROUTEM VOICE CANCEL AV OUT OPEN SUBTITLE VIEW MAP DIR ANGLE FM + NAVI AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE CANCEL...

  • Page 36: Auto Memory

    ⁄ • The operation ends automatically if you do not operate within 10 seconds. KOS-V500 Manual memory Stores the current receiving channel in memory. Select a station you wish to store in...

  • Page 37: Preset Select

    Preset Select Lists and selects memorized station. Start Preset Select Selects a station 1 Memorized stations are displayed. Touch to tune in. 2 Returns to the original screen. Set Station Name Assigns a name to a station. Select a station you wish to name Start Name set Enter the name See <Character Entry>...

  • Page 38: Video Watching

    (page 48 for the <Screen Control>) 5 Switches to Video1. 6 Switches to Video2. ⁄ • The Easy Control Panel display is hidden when you touch a central area of the monitor. KOS-V500 Functions While Displaying the Control Screen NAVI RETURN CANCEL 1 Switches to Video1.

  • Page 39: Dab Tuner Control

    DAB Tuner Control Various control screens appear in the DAB Tuner source mode. (with the optional accessory DAB tuner connected only) Functions When Displaying the Easy Control Panel Displays a floating control panel in the screen. AUDIO RETURN MODE/TOP MENU FNC/MENU/PBC ROUTEM VOICE...

  • Page 40: Seek Mode

    Displays DAB information. y Displays the external device control screen. See <External Device Power Supply Control> (page 45). KOS-V500 Seek Mode Sets a station selection mode. The mode is switched in following order each time you touch the button.

  • Page 41: Auto Ensemble Memory

    Auto Ensemble Memory An ensemble with good reception is stored in memory automatically. Select a band you wish to store in memory Select the Auto Memory mode Start Auto Memory Touch Auto Memory terminates when 6 stations are stored or when all stations are tuned in. : Press for # seconds.

  • Page 42: Service Select

    1 Selects a service. Tunes in the touched service. 2 Scrolls the service list. 3 Returns to the original screen. Search the serveice KOS-V500 Language Filter Setting Setting the menu language. Start Language Filter Setting Select a language 1 Language display 2 Switches language list.

  • Page 43: Search For Program Type

    Search for Program Type Specifying program type and searching service. Start Program Type mode Select Program Type 1 Program Type display 2 Switches Program Type. 3 4 5 are displayed and you can switch the language. Touching once more erases 4 5 and then you can switch the program type.

  • Page 44: Source Select

    5 Displays the Hands-Free Control screen. See <Hands Free Unit Control> (page 49). ⁄ • The displayed source depends on the type of device connected. In addition, you cannot press the button of currently unavailable source. KOS-V500 NAVI RETURN CANCEL...

  • Page 45: External Device Power Supply Control

    External Device Power Supply Control Controlling the external device power supply. External Device Power Supply Control Controlling the external device power supply. Displays the EXT SW Control screen [EXT SW] appears when the control screen of each source or Easy control panel is displayed. Controls the external device power supply 1 You can turn on or off the external device power supply.

  • Page 46: Muting Audio Volume Upon Reception Of Phone Call

    Hang up the phone. The system resumes playing automatically. ⁄ • To use the TEL Mute feature, you need to hook up the MUTE wire to your telephone using a commercial telephone accessory. Refer to <Connection> (page82). KOS-V500 DISP V.SEL POSITION •...

  • Page 47: Character Entry

    Character Entry How To Use the Character Entry Screen When you select the Set Disc Name mode or others, the following screen appears for character entry. Character Entry screen 1 Shifts the cursor. 2 Enters a space. If you erase a character, locate the cursor on it and touch this button.

  • Page 48: Screen Control

    When turned "On", the display is dimmed automatically when the ambient becomes dark. 7 Returns to the previous screen. KOS-V500 ⁄ • The Screen Control screen is displayed only when you have applied the parking brake. • The picture quality can be set for each source.

  • Page 49: Hands Free Unit Control

    Hands Free Unit Control • You need to register your cell-phone to your Bluetooth Hands Free Box beforehand. Make sure to read the instruction manual of the Bluetooth Hands Free Box as well. Control Screen Function Displaying the control screen and using various functions.

  • Page 50: When Called

    Respond to a call When a call arrives, the Hands-Free Control screen appears automatically. End the call The previous screen reappears. KOS-V500 When Dialing Make a call by entering a phone number. Enter a phone number Make a call You can start talking when the destination responds.

  • Page 51: Quick Dialing

    Quick Dialing You can register up to 3 phone numbers for quick dialing. To register a phone number: Display a phone number you wish to register See the <Calling by Phone Book> (page 51), <Redialing> (page 53) and <When Dialing> (page 50).
  • Page 52 Kenwood 0426465116 Kenwood name name name name The Hands-Free Control screen appears again. The selected destination data is displayed. KOS-V500 Make a call AUTO Cancel You can start talking when the destination responds. End the call AUTO Cancel The previous screen reappears.

  • Page 53: Redialing

    0123456789 Mother 0123456789 Brother 0123456789 Sister 0123456789 Kenwood 0123456789 1 Scrolls the list. 2 Enters the destination name. 3 Switches the Redial List between 5 numbers display and single number display. 4 Enters the destination data and returns to the Hands-Free Control screen.

  • Page 54: Setting Up The Hands-Free Phone

    • Select the speaker which is further from the microphone in order to prevent howling or echoes. KOS-V500 Selecting a Hands-Free Phone You can choose the Hands-Free phone from the list.

  • Page 55: Deleting The Hands-Free Phone

    Deleting the Hands-Free Phone You can cancel a registration of Hands-Free phone. Display the Hands-Free Set Up screen Display the Phone Delete list Hands Free SETUP Auto Response Phone Voice Front L Beep Select Remove Phone Delete screen Remove Father Mother Brother1 Brother2...

  • Page 56: Setup Menu

    Display the setup Menu Select the setup item 1 The selected setup screen appears. 2 Scrolls the setup menu. KOS-V500 Audio Setup You can setup a speaker network, etc. Display the Audio SETUP screen Touch [Audio SETUP] in the SETUP Menu...

  • Page 57: Crossover Network Setup

    Crossover Network Setup You can set a crossover frequency of speakers. Select the speaker to set the crossover 1 Sets the High Pass Filter of the front speaker. 2 Sets the High Pass Filter of the rear speaker. 3 Sets the Low Pass Filter of the sub woofer. 4 Switches to the crossover setup screen.

  • Page 58: System Setup

    "Off": Uses the tuner of your vehicle to receive a radio station. 7 Returns to the original screen. KOS-V500 ⁄ • * In order to receive a radio station with the built-in tuner, you need to connect an antenna cord. Refer to <Connection>...
  • Page 59 4 Selects a navigation system connection. RGB) "RGB": Allows the Kenwood’s Navigation System to connect via its interface cable. "AV-IN": Allows a third-party navigation system to connect via the AV INPUT1 port. "Off": Must be used if no navigation system is connected. (The navigation display is cancelled when the AV source is switched.)

  • Page 60: User Interface

    4 Sets the display method of the unrecognized characters. "On": Displays in the Russian character. "Off": Displays in the European character. 5 Returns to the original screen. KOS-V500 6 Sets an on-screen display of the iPod Playback screen. ( "Auto": "Manual": Information is displayed when 7 Sets an on-screen display of the navigation screen.
  • Page 61 q Sets an on-screen display of the TV screen. Auto) (with the optional accessory TV tuner connected only) "Auto": Information is displayed for 5 seconds when updated. "Manual": Information is displayed when you touch on the screen. w Returns to the original screen. e Sets whether to display animation when switching screens.

  • Page 62: Entering Background

    • Up to 3 images can be loaded. • This operation is not possible when USB is selected as the source. KOS-V500 Background Delete Deletes the background image. Display Delete Image Select screen Select the image to be deleted...

  • Page 63: Background Select

    Background Select Selects a image for background. Select Background Select screen Select a image for background Background Change 1 Returns to the initial background. 2 Returns to the original screen. Set the image as the background Background Change Touch panel Adjustment You can adjust the touch panel operations.

  • Page 64: Clock Setup

    6 Returns to the original screen. Adjust the clock time KOS-V500 Monitor Setup You can adjust the position, picture quality and the screen mode of the monitor. Displaying the Monitor SETUP screen Touch [Monitor SETUP] in the SETUP Menu (page 56).
  • Page 65 8 Selects a screen mode of the VIDEO2 playback screen. You can select any of the following screen mode. "Full", "Just", "Zoom", "Normal" 9 Returns to the original screen. p Selects a screen mode of the rear view camera (R-CAM) screen. You can select any of the following screen mode.

  • Page 66: Security Code Setup

    2 Returns to the original screen. Start Security Code setup ⁄ • If you have already completed the code registration, cannot touch KOS-V500 Enter a security Code Input four-digit number. Register your security code Reenter the security code Reenter the same security code as that you have entered in Step 3 for confirmation.

  • Page 67: Tv Setup

    If you have pressed the Reset button or if you have disconnected the Receiver from battery... Enter the correct security code You must enter the same security code as that you have entered in Step 3. Enter the security code Now, you can use your Receiver.

  • Page 68: Rds Setup

    5 Returns to the original screen. 6 Selects a display language for the PTY function. 7 Returns to the original screen. KOS-V500 DAB Setup You can set the DAB reception. (only with the optional accessory DAB Tuner connected) Display the DAB Setup screen Touch [DAB Set Up] in the SETUP Menu (page 56).

  • Page 69: Announcement Select

    Announcement Select You can set various announcement reception parameters. Display the Announcement screen See <DAB Setup> (page 68). Set the announcement parameters 1 Turns the Announcement Reception function On or Off. 2 Returns to the original screen. AMP Control Sets the power amp connected via the LX bus. (with the optional accessory LX Power Amp connected only) Displaying the Amp Control screen...

  • Page 70: Setup Memory

    2 Memorizes or recalls the settings. To cancel the function, touch memorization, touch The Setup Menu screen appears again. 3 Returns to the original screen. KOS-V500 Start Set Up Memory 4 Recalls the memorized settings. 5 Memorizes the current Audio Set Up and AV is selected, you 6 Clears the currently memorized settings.
  • Page 71 When recalling the memorized settings: Touching the screen displays a confirmation message. Touch . To cancel recalling, touch When clearing the currently memorized settings: Touching the screen displays a confirmation message. Touch . To cancel clearing, touch Quit memorization/recalling of settings English...

  • Page 72: Ext Sw Setup

    Outputs 500ms when "1" is set. Increases by 200ms with each step. Up to 100 steps can be set. 4 Returns to the original screen. KOS-V500 Setting EXT SW Control 2 (EXT SW2) The setup method is the same as "EXT SW1".
  • Page 73 English...

  • Page 74: Audio Control

    Press several times until the control screen appears. Display the Audio Control menu Select the Audio Control item 1 Switches to the selected Audio Control screen. KOS-V500 Audio Control You can adjust the front/rear and right/left audio balance. Display Audio Control NAVI...

  • Page 75: Equalizer Control

    6 Adjusts the bass boost of the B.M.S power amplifier (optional accessory). 7 Sets the center frequency of bass boost you have set for "AMP Bass". If you set the center frequency to "Low", it will be dropped approximately 20% to 30%. 8 Adjusts the subwoofer volume.

  • Page 76: Tone Setup

    7 Sets the level. 8 Sets the Q factor. (Only Bass and Middle can be set) 9 Returns to the original screen. KOS-V500 Zone Control You can set the front and rear audio source. Display Zone Control Touch [Zone Control] in the Audio Control Menu (page 74).
  • Page 77 ⁄ • When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source. However, if you have set the "Area" to "Reverse", the audio source that is output at the AV OUTPUT terminal is switched depending on the front sound source.

  • Page 78: Help? Troubleshooting

    • Cannot set up the crossover network. The Dual zone function is enabled. Control> (page 76) KOS-V500 What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

  • Page 79: Help? Error

    ➡ Push the unit's Reset button. If the "Error 07−67" message does not disappear, see your nearest Kenwood dealer. No Device (USB device)/Disconnected (iPod): The USB device/iPod is selected as a source although no USB device/iPod is connected.

  • Page 80: Accessories

    Accessories Accessories KOS-V500 ...1 ...1 ...1 ...1 ...1 ...1 ...4 ...1 ...1 ...1 ...1 ...1...

  • Page 81: Installation Procedure

    Therefore, the speaker wire should be checked. • If your car is not prepared for this special connection- system, consult your Kenwood dealer. • Only use antenna conversion adapters (ISO-JASO) when the antenna cord has an ISO plug.

  • Page 82: Connection

    To "EXT.AMP.CONT. " terminal of the amplifier having the external amp control function. If no connections are made, do not let the cable come out from the tab. KOS-V500 Accessory 4 FM/AM antenna input Wiring harness...
  • Page 83 Accessory 8 USB device (commercially available) ILLUMI REVERSE REMO.CONT MUTE ANT CONT P. CONT EXT. CONT To Relay Box Accessory 9 Accessory 0 Accessory 3 Wiring harness (Accessory 1) Ground wire (Black) - (To car chassis) If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire.

  • Page 84: Connecting Wires To Terminals

    A-4 pin (yellow) is linked to the ignition. Ignition cable (Red) Unit Battery cable (Yellow) KOS-V500 3 The A-4 pin (yellow) of the vehicle’s ISO connector is not connected to anything, while Functions the A-7 pin (red) is connected to the constant...

  • Page 85: System Connection

    System Connection ■ Rear View Camera Input • Visual input (Yellow) ■ Audio/Visual Output • Visual output (Yellow) • Audio left output (White) • Audio right output (Red) ■ Audio/Visual input 2 • Visual input (Yellow) • Audio left input (White) •...

  • Page 86: Optional Accessory Connection

    (Optional Accessory) Audio Output (Black) Visual Output (Yellow) USB terminal TV Tuner (Optional Accessory) UNIT MONITOR KOS-V500 Accessory 6 Accessory 3 INPUT ANTENNA Connection cable (Included in the TV tuner) Connection cable (Included in the Disc changer) Disc Changer etc.
  • Page 87 KOS-L702 (Optional Accessory) Accessory 5 DVD Player etc.(Optional Accessory) Connection cable (Included in KOS-L702) English...

  • Page 88: Installation

    Install the Remote control sensor temporarily and verify that the handle, shift knob, and side brake can be operated smoothly. KOS-V500 Installation for A/V controller Unit Use Tapping screws (Accessory7) to fix A/V controller Unit onto an audio board or another.
  • Page 89 English...

  • Page 90: Specifications

    Maximum Supply current : 500 mA D/A Converter : 24 bit Decoder : MP3/ WMA/AAC KOS-V500 FM tuner section Frequency range (50 kHz space) : 87.5 MHz – 108.0 MHz Usable sensitivity (S/N = 26dB) : 0.7 μV /75 Ω...
  • Page 91 Video section Color system of external video input : NTSC/PAL External video input level (RCA jacks) : 1Vp-p/75Ω External audio max input level (RCA jacks) : 2V/25kΩ Analog RGB input (NAVI)(TV-SECAM) : 0.7Vp-p/75Ω Video output level (RCA jacks) : 1Vp-p/75Ω Audio output level (RCA jacks) : 1.2V/10kΩ...
  • Page 92 This Product is not installed by the manufacturer of a vehicle on the production line, nor by the professional importer of a vehicle into an EU Member State. Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems) Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.
