RCA WPBT1 Installation And Operation Manual

Bluetooth
Wallplate
Speaker
Model WPBT1
Installation and Operation Manual
Important Information
CAUTION
Caution:
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifi ers) that produce heat.
8. Protect the power cord from being walked on
or pinched particularly at plugs, con ve nience
For PLUGGABLE EQUIPMENT, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
Care and Maintenance
• Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or
other solvents as they may damage the surface.
• Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock.
• Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC).
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and
record the serial and model numbers in case you need them. These num bers are located on the product.
Model No.: _______________________________________________________________________________________
Purchase Date: ___________________________________________________________________________________
Dealer/Address/Phone: ____________________________________________________________________________
Introduction

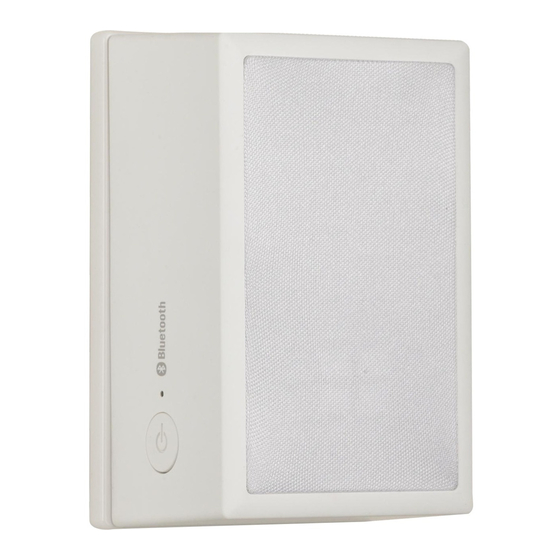

The RCA WPBT1 Bluetooth Wallplate Speaker makes it easy to turn any outlet into a
wireless speaker. It's compact and simple to use.
This manual covers various connection options and detailed operating instructions for
making the RCA Bluetooth Wallplate Speaker a valued part of your lifestyle. If, after
having reviewed the instructions, you have any questions, please call toll-free 1-800-
732-6866 or visit www.rcaaudiovideo.com.
To reduce the risk of electric shock - Use Only Indoors
re cep ta cles, and the point where they exit from the
apparatus.
9. Unplug this apparatus during lightning storms or
when unused for long periods of time.
10. Refer all servicing to qualifi ed service personnel.
Servicing is required when the apparatus has been
dam aged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the ap pa ra tus has
been exposed to rain or moisture, does not op er ate
normally, or has been dropped.
The apparatus shall not be exposed to dripping or
splashing or placed near objects fi lled with liquids.
Tour of the Speaker
Powering the Speaker System
Powering the Speaker
Setting Up Bluetooth Wireless
Pairing
Before you stream audio to your wallplate speaker, it must fi rst be paired with your
Bluetooth enabled device. The process is simple, and in most cases the pairing process
needs to be done only once.
To pair your Bluetooth-enabled device with the speaker:
1. Make sure your device's Bluetooth is turned on. See the wireless and/or network
settings menu on your device to check.
2. The fi rst time you plug in your wallplate speaker, the Pairing indicator will begin
blinking rapidly and it will be ready to pair. If the indicator is off, press and hold the
button for 3 seconds to initiate pairing.
3. Open the Bluetooth settings menu on your device. Select "RCA Wallplate" from the
list of devices available (you might have to scan for devices). If your device asks for
a password, enter "0000".
4. The Pairing indicator turns solid blue to indicate successful connection. The speaker
is now ready for you to stream audio from your device.
5. Turn the volume on your device to at least 3/4 max, then start playing something on
the device. Control the volume using the volume buttons on your device.
Note:
If you notice the sound from the speaker is distorted, turn down your device's volume.
•
Side panel
Pairing indicator
shows the status of the
speaker.
Blue, fast blinking: The speaker is in Bluetooth
pairing mode. See the Bluetooth Setup section for
more information.
Blue, slow blinking: The speaker is reconnecting
with the last paired device.
Solid blue: The speaker is paired with a
Bluetooth-enabled device and ready to play audio.
Off: The speaker is in standby. Press and hold the
button to initiate pairing.
Press and hold (3 seconds)
–
puts the speaker in pairing mode for Bluetooth
setup. See the Bluetooth setup section for more
information.
Plug the speaker into any standard
120V AC wall outlet.
Once the speaker is plugged in, it will
automatically initiate pairing and be
ready to receive a connection from
your phone or other Bluetooth device.
Note: The speaker should be plugged
in so that it stays vertical or lies fl at.
