Upgrading the MTA128ST-USB with FlashWizard

The MTA128ST-USB has a flash PROM, which contains firmware code for the hardware.
At various times, Multi-Tech may add enhancements and/or fixes to the firmware. The
flash technology used in the MTA128ST-USB lets you load these upgrades into the
PROM through the MTA128ST-USB's USB port.

Using FlashWizard to Upgrade Firmware

1. Download the Flash Wizard utility and the new .HEX file from the Multi-Tech BBS,
2. Launch the Flash Wizard utility (e.g. double-click on the FlashWiz.exe file from
3. The Firmware Update Wizard dialog box is displayed indicating that it is identifying

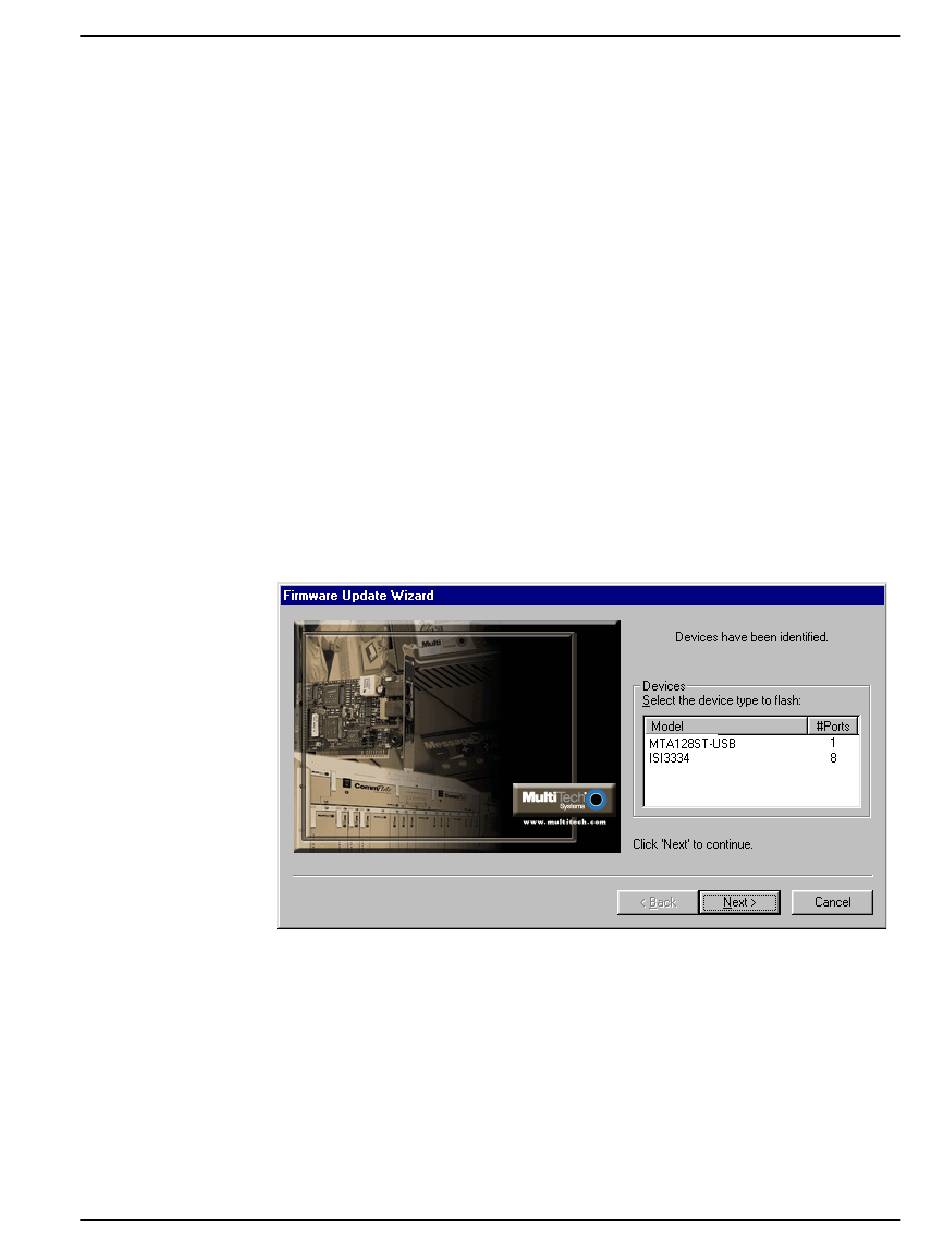

4. Once devices have been identified the Firmware Update Wizard dialog box
5. The Firmware Update Wizard dialog box is displayed asking you to select the ports
6. The Firmware Update Wizard dialog box is displayed indicating that your devices
7. The Firmware Update Wizard dialog box is displayed indicating the results of the
MTA128ST-USB
FTP site, or Multi-Tech's web site.
Note: You must run the .HEX file in the same directory where the Flash Wizard
executable is located. The utility automatically senses the devices on the ports of
your PC and automatically finds the .Hex file which is compatible with it. The
MTA128ST-USB .Hex files on the FTP site are named according to the Flash Wizard
naming convention and will work with the Flash Wizard. If no .Hex files are found in
the directory where Flash Wizard is running, the utility exits with an error.
Explorer, enter the file name at the DOS prompt, etc.)
devices (may take up to 20 seconds).
indicating that devices have been identified is displayed.
Select the device(s) you want to flash and then click Next >.
and hex file to update. Once you have made the appropriate selections, click Next>.
are being upgraded. This is a three step process including Handshaking,
Programming, and Programming Complete. Once finished, click Next >.
update (e.g., 8 of 8 devices were updated successfully). Click Finish.
The Update Hardware Wizard completes the update process and disappears from
your screen.
