Page 1 Satellite User’s Guide If you need assistance: ❖ Toshiba’s Support Web site pcsupport.toshiba.com ❖ Toshiba Customer Support Center Calling within the United States (800) 457-7777 Calling from outside the United States (949) 859-4273 For more information, see page 162 in this guide.
Page 2 TOSHIBA AMERICA INFORMATION SYSTEMS, INC. (“TOSHIBA”), ITS AFFILIATES AND SUPPLIERS DO NOT WARRANT THAT OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR ERROR FREE. YOU AGREE THAT TOSHIBA,...
Page 3 Only Peripherals complying with the FCC Class B limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Toshiba is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer's ports.
Page 4: Industry Canada Requirement
Contact either: ❖ Toshiba’s Support Web site at pcsupport.toshiba.com. ❖ Or call the Toshiba Customer Support Center: Within the United States at (800) 457-7777 Outside the United States at (949) 859-4273 Industry Canada Requirement This Class B digital apparatus complies with Canadian ICES-003.
Page 5: Telephone Company Procedures
Toshiba Corporation, Toshiba America Information Systems, Inc. or an authorized representative of Toshiba, or the Toshiba Customer Support Center within the United States at (800) 457-7777 or Outside the United States at (949) 859-4273. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Page 6 In order to program this information into your fax transmission, refer to the fax software instructions installed on this computer. Alarm Equipment If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this equipment does not disable your alarm equipment.
Page 7: Wireless Interoperability
USOC RJ11C. Wireless Interoperability The TOSHIBA Wireless LAN Mini PCI Card products are designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS) radio technology, and is compliant to: ❖...
Page 8: Wireless Lan And Your Health
The radiated output power of the TOSHIBA Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits. Nevertheless, the TOSHIBA Wireless LAN Mini PCI Card shall be used in such a manner that the potential for human contact during normal operation is minimized. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 9 Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population;...
Page 10 This Directive applies to EU member countries only and does not apply to end users in other countries such as the United States. Although the initial emphasis is in Europe, Toshiba is already working with design engineers, suppliers, and other partners to determine appropriate worldwide product life cycle planning and end-of-life strategies for our products.
Page 11 VCCI Class B Information Modem Warning Notice This information is only applicable if your computer has a modem. Conformity Statement The equipment has been approved to [Commission Decision “CTR21”] for pan- European single terminal connection to the Public Switched Telephone Network (PSTN).
Page 12 2. If this equipment causes RF interference to other radio stations, promptly change the frequency being used, change the location of use, or turn off the source of emissions. 3. Contact TOSHIBA Direct PC if you have problems with interference caused by this product to Other Radio Stations. 2. Indication The indication shown below appears on this equipment.
Page 13: Device Authorization
FH: This equipment uses FH-SS modulation. The interference range of this equipment is less than 10m. This equipment uses a frequency bandwidth from 2,400 MHz to 2,483.5 MHz. 3. TOSHIBA Direct PC Monday – Friday: 10:00 – 17:00 Toll Free Tel: 0120-15-1048 Direct Dial: 03-3457-4850...
Page 14: Radio Approvals For Wireless Devices
Radio Approvals for Wireless Devices NOTE The following information is dependent on what type of wireless device is in your computer. Not all devices are available on all models. Approved Countries/Regions for the Intel Link 5100/5300 Series This equipment is approved to the radio standard by the countries/regions in the following table.
Page 15 Malawi Martinique Monaco Morocco New Zealand Oman Paraguay Poland Qatar Russia San Marino Singapore South Africa Sri Lanka Tahiti Turk Islands United Kingdom Vatican Virgin Islands Approved Countries/Regions for the Intel Link 622ANHMW and 633ANHMW Series This equipment is approved to the radio standard by the countries/regions in the following table.
Page 16 Approved Countries/Regions for the Atheros Link AR5B95 Series This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Albania Austria Bangladesh Bosnia Bulgaria Chile Croatia...
Page 17 Ukraine Yemen Europe - Restrictions for use of 2.4 GHz Frequencies in European Community Countries België/ For private usage outside buildings across public grounds over less than Belgique: 300m no special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required for private usage outside buildings across public grounds over more than 300m.
Page 18 Europe - Restrictions for Use of 5 GHz Frequencies in European Community Countries European Community Countries Austria Belgium, France, Switzerland/Liechtenstein Denmark, Finland, Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Sweden, UK Iceland, Spain O: allowed x: forbidden ❖ To remain in conformance with European spectrum usage laws for Wireless LAN operation, the above 2.4 GHz and 5 GHz channel limitations apply.
Page 19 Approved Countries/Regions for the Realtek This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Albania Austria Bangladesh Bosnia Cambodia China Croatia Denmark Egypt Finland...
Page 20 Approved Countries/Regions for the Realtek This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Albania Austria Bangladesh Bosnia Cambodia China Croatia Denmark Egypt Finland...
Page 21 UAE (United Arab Emirates) Uruguay Vietnam Approved Countries/Regions for the Realtek This equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Albania Australia Bahrain Bolivia...
Page 22: Bluetooth Wireless Technology Interoperability
Always use Bluetooth cards from TOSHIBA in order to enable wireless networks over two or more (up to a total of seven) TOSHIBA portable computers using these cards. Please contact TOSHIBA computer product support on Web site http://www.toshiba-europe.com/computers/tnt/ bluetooth.htm in Europe or pcsupport.toshiba.com in the United States for...
Page 23: Bluetooth Wireless Technology And Your Health
Approved Countries/Regions for use (Bluetooth technology) ® Bluetooth Card from Toshiba equipment is approved to the radio standard by the countries/regions in the following table. Do not use this equipment except in the countries/regions in the following table. Argentina Belgium...
Page 24: Regulatory Statements
The radiated output power of the Bluetooth Card from TOSHIBA is far below the FCC radio frequency exposure limits. Nevertheless, the Bluetooth Card from TOSHIBA shall be used in such a manner that the potential for human contact during normal operation is minimized.
Page 25: Optical Disc Drive Safety Instructions
You would also be exposed to laser light or other safety hazards, resulting in serious injury. Always contact an authorized Toshiba service provider, if any repair or adjustment is required. Location of the Required Label (Sample shown below. Location of the label and manufacturing information may...
Page 26 Copyright This guide is copyrighted by Toshiba America Information Systems, Inc. with all rights reserved. Under the copyright laws, this guide cannot be reproduced in any form without the prior written permission of Toshiba. No patent liability is assumed, however, with respect to the use of the information contained herein.
Page 27 Blu-ray Disc is a trademark of the BD Association. Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Toshiba is under license. Other trademarks and trade names are those of their respective owners.
Page 28: Table Of Contents
Contents Introduction... 35 This guide ...37 Safety icons ...38 Other icons used...38 Your computer’s features and specifications ...39 Other documentation ...39 Service options ...39 Chapter 1: Getting Started... 40 Selecting a place to work ...40 Setting up a work environment ...40 Keeping yourself comfortable ...41 Precautions...41 Important information on your computer’s...
Page 29 Turning on the power ...48 Setting up your software...48 Registering your computer with Toshiba ...49 Adding optional external devices...49 Adding memory (optional) ...49 Installing a memory module ...50 Removing a memory module...55 Checking total memory ...58 Recovering the Internal Storage Drive ...58 Recovering to out-of-box state (recommended recovery method)...60...
Page 30 Contents Turning off the computer ...82 Options for turning off the computer ...83 Using the Shut down command...85 Using and configuring Hibernation mode ...87 Using and configuring Sleep mode ...90 Closing the display panel ...93 Customizing your computer’s settings...93 Caring for your computer...93 Cleaning the computer ...93 Moving the computer...94 Using a computer lock ...94...
Page 31 Setting battery notifications ...119 Conserving battery power ...119 Power Plans...120 Using a hot key to set the Power Plan...121 Using the TOSHIBA eco power plan...122 Changing the main battery ...122 Removing the battery from the computer ...123 Inserting a charged battery ...124 Taking care of your battery ...125...
Page 32 Using an instant password...147 Using a supervisor password...148 Using a user password ...149 Deleting a user password...150 TOSHIBA Face Recognition Utility...151 TOSHIBA PC Diagnostic Tool Utility...152 TOSHIBA HDD Protection Utility ...153 Mouse Utility ...154 TOSHIBA Hardware Setup...155 TOSHIBA Zooming Utility...157...
Page 33 TOSHIBA eco Utility™ ...159 TOSHIBA Service Station ...160 TOSHIBA PC Health Monitor ...160 Chapter 6: If Something Goes Wrong ...162 Problems that are easy to fix ...162 Problems when you turn on the computer...163 The Windows working...165 Using Startup options to fix problems ...166 Internet problems ...167...
Page 34 Contents Appendix A: Hot Keys/TOSHIBA Cards...190 Hot Key Cards ...190 Using the Hot Key Cards ...191 Application Cards...192 Using the Application Cards...193 Card Case...193 Hot key functions ...194 Volume Mute ...194 Lock (Instant security) ...195 Power plan ...196 Sleep mode ...197 Hibernation mode ...198...
Page 35: Introduction
You can wake the computer from Sleep mode by pressing the power button. See the “Mobile Computing” section of the Toshiba User’s Guide for more information on using power management settings to...
Page 36 (RoHS), which restricts use of lead, cadmium, mercury, hexavalent chromium, PBB, and PBDE. Toshiba requires its computer component suppliers to meet RoHS requirements and verifies its suppliers’ commitment to meeting RoHS requirements by conducting component sampling inspections during the product design approval process.
Page 37: This Guide
Toshiba’s Web site at pcsupport.toshiba.com. While Toshiba has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.
Page 38: Safety Icons
Introduction Safety icons Safety icons This manual contains safety instructions that must be observed to avoid potential hazards that could result in personal injuries, damage to your equipment, or loss of data. These safety cautions have been classified according to the seriousness of the risk, and icons highlight these instructions as follows: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Page 39: Your Computer's Features And Specifications
To stay current on the most recent software and hardware options for your computer, and for other product information, be sure to regularly check the Toshiba Web site at pcsupport.toshiba.com. If you have a problem or need to contact Toshiba, see Goes Wrong” on page Introduction...
Page 40: Chapter 1: Getting Started
Chapter 1 Getting Started This chapter provides tips for using your computer effectively, summarizes how to connect components, and explains what to do the first time you use your computer. The “Instruction Manual for Safety and Comfort,” that is shipped with your computer, contains important safety information.
Page 41: Keeping Yourself Comfortable
Extreme heat, cold, or humidity. ❖ Liquids and corrosive chemicals. Keeping yourself comfortable The Toshiba Instruction Manual for Safety and Comfort, included with your computer, contains helpful information for setting up your work environment and tips for working comfortably throughout the day.
Page 42 Getting Started Selecting a place to work ❖ ❖ Read the “Avoid extended contact between computer base/palm rest and skin” section in the “Instruction Manual for Safety and Comfort” that is shipped with your computer. Never place a heavy object on the computer and be careful not to drop a heavy object onto the computer.
Page 43: Important Information On Your Computer's Cooling Fan
Important information on your computer’s cooling fan Your computer may have a CPU cooling fan that cools the CPU by drawing outside air into the computer. Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep mode).
Page 44: Connecting To A Power Source
TOSHIBA Battery Charger (that may have been provided with your computer), or use AC adaptors and battery chargers specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor or Battery Charger could cause fire or damage to the computer possibly resulting in serious injury.
Page 45 To connect AC power to the computer: Connect the power cord/cable to the AC adaptor. (Sample Illustration) Connecting the power cord/cable to the AC adaptor Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
Page 46: Charging The Main Battery
Getting Started Charging the main battery ❖ Glows white when the main battery is fully charged ❖ Is unlit when the main battery has discharged, the battery is not charging, or the AC adaptor is not plugged into the computer or AC outlet ❖...
Page 47: Using The Computer For The First Time
Using the computer for the first time The computer is now ready for you to turn it on and begin using it. Opening the display panel Facing the front of the computer, locate the center of the display panel. Gently raise the panel. Adjust the display to a comfortable viewing angle.
Page 48: Turning On The Power
Getting Started Using the computer for the first time Turning on the power To turn on the computer: Make sure any external devices (such as the AC adaptor, if you plan to use AC power rather than battery power) are properly connected and ready.
Page 49: Registering Your Computer With Toshiba
Product registration can be completed by either visiting the Toshiba Web site at http://www.register.toshiba.com, or by clicking Start, All Programs, My Toshiba, and then Toshiba Registration. Failure to complete Product Registration will not diminish Customer rights under the Toshiba standard limited Warranty.
Page 50: Installing A Memory Module
Getting Started Adding memory (optional) NOTE Before adding external devices or memory, Toshiba recommends setting up your software. See Installing a memory module Memory modules can be installed in the memory module slots on the base of the computer. You will need a small Phillips screwdriver for this procedure.
Page 51 If the computer is on, begin at step 1; otherwise, skip to step 3. Click Start. Start button (Sample Image) Shut down button Click the Shut down button in the lower-right corner of the Start menu. The computer closes all open programs, shuts down the operating system, and then turns off.
Page 52 Getting Started Adding memory (optional) Using a small Phillips screwdriver, loosen the captive screws that secure the memory module slot cover. (Sample Illustration) Removing the memory module slot cover Remove the memory module slot cover. Place the screws and the cover in a safe place so that you can retrieve them later.
Page 53 NOTE If your system has the memory modules stacked on top of one another, you must remove the top module first before removing/installing the bottom module. NOTE For this model, Slot A is the bottom slot. Slot B is the top slot. If only one memory module is to be installed, it must be installed in Slot A.
Page 54 Getting Started Adding memory (optional) Once the module’s connector is fully inserted into the socket, press downward on the top edge of the module to seat the module into the latches at the sides of the socket. These latches should “snap” into place securely with the corresponding cutouts in the side of the module.
Page 55: Removing A Memory Module
Turn the computer right side up. Make sure to remove the soft cloth from the work surface before restarting the computer. Always make sure your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep mode).
Page 56 Getting Started Adding memory (optional) Do not try to remove a memory module with the computer turned on. You can damage the computer and the memory module. Do not remove the memory module while the computer is in Sleep or Hibernation mode.
Page 57 Gently lift the memory module to a 30-degree angle and slide it out of the slot. (Sample Illustration) Removing the memory module Replace the memory module slot cover and secure it using the screws. Re-insert the main battery. For more information on inserting the main battery, see Turn the computer right side up.
Page 58: Checking Total Memory
Getting Started Recovering the Internal Storage Drive Reconnect the cables. Restart the computer. TECHNICAL NOTE: You must have at least one memory module installed for the computer to work. Checking total memory When you add or remove a memory module, you can check that the computer has recognized the change.
Page 59 AC adaptor. ❖ The Toshiba Recovery Wizard also provides the option of erasing your internal storage drive, without restoring the information on the drive. See more information.
Page 60: Recovering To Out-Of-Box State (Recommended Recovery Method)
Getting Started Recovering the Internal Storage Drive Recovering to out-of-box state (recommended recovery method) Recovering an internal storage drive to its out-of-box state deletes all partitions on the drive and all information stored in those partitions. Be sure to save your work to external media before executing the recovery.
Page 61 Recovering the Internal Storage Drive (Sample Image) Warning screen When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. (Sample Image) Selecting a Process screen The Recovery of Factory Default Software screen appears.
Page 62: Recovering To A Custom Size Partition
Getting Started Recovering the Internal Storage Drive (Sample Image) Recovery of Factory Default Software screen Click Next. A confirmation message displays reminding you that all data will be lost during the recovery process. Be sure to save your work to external media before proceeding (see your work”...
Page 63 Click Yes to continue. (Sample Image) Warning screen When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. Getting Started “Restoring from recovery...
Page 64 Getting Started Recovering the Internal Storage Drive (Sample Image) Selecting a Process screen The Recovery of Factory Default Software screen appears. Select Recover to a custom size partition. (Sample Image) Recovery of Factory Default Software screen Use the on-screen arrow buttons in The size of drive C: field to set the partition size.
Page 65: Recovering Without Changing The Internal Storage Drive Partitions
Click Next to begin the recovery. When the process is complete, a message displays indicating that the C: drive has been recovered. Press any key on the keyboard to restart the computer. Recovering without changing the internal storage drive partitions Recovering without changing the internal storage drive partitions deletes all information stored on the C: drive.
Page 66 Click Yes to continue. (Sample Image) Warning screen When the Toshiba Recovery Wizard opens and the Selecting a process screen displays, select Recovery of Factory Default Software and then click Next. (Sample Image) Selecting a Process screen...
Page 67: Creating Recovery Dvds/Media
The Recovery of Factory Default Software screen appears. Select Recover without changing the hard drive partitions. (Sample Image) Recovery of Factory Default Software screen Click Next. A confirmation message displays reminding you that all data on the C: drive will be lost during the recovery process. Be sure to save your work to external media before proceeding (see “Backing up your work”...
Page 68 Follow the procedure below to determine how much space you will need for storing your system’s recovery files. To create recovery DVDs/media: Click Start, All Programs, My Toshiba, and then Recovery Media Creator. The TOSHIBA Recovery Media Creator dialog box displays.
Page 69 Click the Create button in the TOSHIBA Recovery Media Creator utility dialog box. Follow the on-screen prompts to complete the copy process.
Page 70: Restoring From Recovery Dvds/Media
Getting Started Recovering the Internal Storage Drive Restoring from recovery DVDs/media The recovery process deletes information stored on the internal storage drive. Be sure to save your work to external media before executing the recovery (see NOTE During the internal storage drive recovery process it is strongly recommended that your computer be connected to an external power source via the AC adaptor.
Page 71 Click Yes to continue. When the Toshiba Recovery Wizard opens and the Selecting a Process screen displays, select Recovery of Factory Default Software and then click Next.
Page 72: Erasing The Internal Storage Drive
For more information, “Recovering the Internal Storage Drive” on page To delete all data and partitions from the internal storage drive: Access the Toshiba Recovery Wizard on your internal storage drive or on your recovery DVDs/media. ❖...
Page 73: Checking The Internal Storage Drive Operating Status
Checking the internal storage drive operating status (Sample Image) Erase the hard disk screen Click Next. A confirmation message displays reminding you that all data on the internal storage drive will be lost. Be sure you have saved your work to external media (see work”...
Page 74: Installing Drivers And Applications
Getting Started Using the TouchPad™ Installing drivers and applications The Toshiba Application Installer allows you to reinstall the drivers and applications that were originally bundled with your computer. To reinstall drivers and applications: Click Start, All Programs, My Toshiba, and then TOSHIBA Application Installer.
Page 75 Refer to the table below for specific instructions on performing each operation. NOTE The pointer is the icon (usually an arrow) that moves on the screen when you slide your finger across the TouchPad or move a mouse connected to your computer. Do the following: Move the on-screen Slide your finger across the TouchPad in the...
Page 76 To stop scrolling, lift your finger off of the TouchPad. To enable circular scrolling, click on the Mouse icon in the Optimize tab of Toshiba Assist. Click the Device Settings tab and then click on Settings. Double-click on and then double-click on Scrolling.
Page 77: Adjusting Touchpad™ Settings
Do the following: Zoom in/out To zoom in: ❖ To zoom out: ❖ Adjusting TouchPad™ settings While you are typing, the on-screen pointer may seem to move or jump around “by itself” to random locations on the screen. The on-screen pointer may also seem to automatically select text, click buttons, and activate other user interface elements.
Page 78: Disabling Or Enabling The Touchpad
TouchPad setting options vary by computer model. The TouchPad settings are accessible through the Mouse Properties option of the Windows Control Panel. For more information, please visit www.support.toshiba.com, and enter the phrase “Mouse pointer jumps around as you type” into the Search field. Disabling or enabling the TouchPad™...
Page 79: Selecting Video Cables
Selecting video cables To connect a device to the HDMI™ Out port, you must purchase an HDMI™ cable. Connecting an HDMI™-compatible television or display device To connect an HDMI™-compatible television or display device to the computer: ❖ Connect one end of an HDMI™ cable (not included with your computer) to the HDMI™...
Page 80: Directing The Display Output When You Turn On The Computer
Getting Started Using external display devices Directing the display output when you turn on the computer Once you have connected an external display device, you can choose to use the internal display only, the external device only, or both simultaneously. NOTE Some modes are only available with the appropriate device attached and turned on.
Page 81: Adjusting The Quality Of The External Display
Adjusting the quality of the external display To obtain the best picture quality from your television (or other video display device), you may need to adjust the video settings. See the video device documentation for additional configuration steps. Using an external keyboard If you prefer to use an external keyboard, you can attach one to your computer.
Page 82: Setting Up A Printer
Getting Started Turning off the computer To connect a printer to your computer: Connect the printer cable to the printer and then connect the other end to one of the computer’s USB ports. Plug the printer’s power cable into a live AC outlet. Setting up a printer NOTE Some printers require a specific installation process.
Page 83: Options For Turning Off The Computer
It is a good idea to turn off your computer when you are not using it for a while. If you are using the computer for the first time, leave the computer plugged into a power source (even though the computer is off) to fully charge the main battery.
Page 84 Getting Started Turning off the computer ❖ Restarting from Hibernation takes a little more time and consumes more main battery power than restarting from Sleep. ❖ When starting up again, the computer returns to the state in which you left it, including all open programs and files you were using.
Page 85: Using The Shut Down Command
Using the Shut down command The Shut down command completely shuts down the computer without saving your work or the current state of the computer. This command closes all open programs, shuts down the operating system, and then turns off your computer. To turn off your computer using the Shut down command: Click Start.
Page 86 Getting Started Turning off the computer Click Change plan settings under the power plan to be customized. The Edit Plan Settings window appears. (Sample Image) Edit Plan Settings screen Click Change advanced power settings. The Advanced settings tab of the Power Options window appears.
Page 87: Using And Configuring Hibernation Mode
NOTE These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power. ❖ Lid close action Set this option to Shut down if you want the computer to shut down when you close the display panel.
Page 88 Getting Started Turning off the computer Click Hibernate in the pop-up menu. The computer saves the state of all open programs and files, turns off the display, and then turns off. Configuring Hibernation mode options You can place the computer into Hibernation mode by either pressing the power button or closing the display panel.
Page 89 Double-click Power buttons and lid to display the actions that you can configure. (Sample Image) Advanced settings tab of Power Options screen Select Hibernate for the options you want. NOTE These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power.
Page 90: Using And Configuring Sleep Mode
Getting Started Turning off the computer Starting again from Hibernation mode To start up the computer from Hibernation mode, press the power button until the ON/OFF light glows white. The computer returns to the screen(s) you were using. If you put the computer in Hibernation mode by closing the display panel, you can start it again by opening the display panel.
Page 91 To use any of these methods, you first need to enable them using the Power Options feature. Click Start, Control Panel, System and Security, and then Power Options. The Power Options window appears. Click Change plan settings under the power plan to be customized.
Page 92 Getting Started Turning off the computer Double-click Power buttons and lid to display the actions that you can configure. (Sample Image) Advanced settings tab of Power Options screen Select Sleep for the options you want. NOTE These options can be set separately for how they operate while the computer is running on battery power or while connected to AC power.
Page 93: Closing The Display Panel
Starting again from Sleep mode To start up the computer from Sleep mode, press the power button until the ON/OFF light glows white. The computer returns to the screen(s) you were using. If you place the computer in Sleep mode by closing the display panel, you can start it again by opening the display panel.
Page 94: Moving The Computer
You may want to secure your computer to a heavy object such as your desk. The easiest way to do this is to purchase an optional computer lock cable. For more information on purchasing a cable lock, visit accessories.toshiba.com. (Sample Illustration) Computer lock cable To secure the computer: Wrap the cable through or around some part of a heavy object.
Page 95: Chapter 2: Learning The Basics
Chapter 2 Learning the Basics This chapter gives some computing tips and provides important information about basic features. Computing tips ❖ Save your work frequently. Your work stays in the computer’s temporary memory until you save it to the internal storage drive. If the network you are using goes down and you must restart your computer to reconnect, or your battery runs out of charge while you are working, you will lose all work since you last saved.
Page 96: Using The Keyboard
Learning the Basics Using the keyboard ❖ Back up your files to external media on a regular basis. Label the backup copies clearly and store them in a safe place. It is easy to put off backing up because it takes time. However, if your internal storage drive suddenly fails, you will lose all the data on it unless you have a separate backup copy.
Page 97: Character Keys
Character keys Typing with the character keys is very much like typing on a typewriter, except that: ❖ The space bar creates a space character instead of just passing over an area of the page. ❖ The lowercase letter l (el) and the number 1 are not interchangeable.
Page 98: Special Windows ® Keys
Learning the Basics Using the keyboard through programmed functions when pressed. Used in combination with the key, function keys marked with icons execute specific functions on the computer. For example, ON/OFF. For more information, see page 194. ® Special Windows keys (Sample Illustration) Special Windows Your computer’s keyboard has one key and one button that have...
Page 99: Starting A Program
Using the overlay to type numeric data The keys with the numbers on their right front are the numeric overlay keys. To turn the numeric overlay on, press The numeric overlay light glows when the numeric overlay is on. To disable the numeric overlay, hold down the again.
Page 100: Starting A Program From Windows Explorer
Learning the Basics Starting a program NOTE If you pause with your mouse on All Programs, it will open it up. You may need to scroll up or down to see the complete list. Click the program group, in this example, Accessories. The Accessories menu is displayed.
Page 101: Starting A Program Using The Search Programs And Files Field
In the right part of the window, double-click wordpad. The operating system opens WordPad. To close the program, click the Close button in the upper-right corner of the program’s window. Starting a program using the Search programs and files field This example uses the Start menu’s Search programs and files field to start WordPad: Click Start to display the Start menu.
Page 102 Learning the Basics Saving your work Saving files Click on the arrow in the upper-left corner of your Windows and then click Save. If you are working with a document that already has a file name, this is all you need to do. If you created a new document, your program displays a Save As dialog box.
Page 103: Printing Your Work
® Microsoft Word file. Creating your own extension is usually unwise, since the program is unlikely to recognize a strange extension and may refuse to handle your file correctly. TECHNICAL NOTE: By default, the Windows not show file extensions. For information on showing or hiding file extensions, see your Windows Printing your work Ensure the operating system is set up for your printer as described...
Page 104: Backing Up Your Work
Learning the Basics Backing up your work Specify the print parameters. For example, the range of pages and number of copies to print. Click Print. Backing up your work Back up all the files you create in case something happens to your computer.
Page 105: Using The Optical Disc Drive
TECHNICAL NOTE: When restoring files, the backup program prompts you if you try to overwrite a file that already exists on the internal storage drive. Make sure the backup version is the one you want before overwriting the existing file. Using the optical disc drive Optical storage is a popular medium for software, music, and video.
Page 106 Learning the Basics Using the optical disc drive ❖ Some Blu-ray Disc™ movies have online content that can be accessed from the disc. To view this content, your computer must be connected to the Internet. ❖ While viewing online content, your system may not view it in High Definition on an external monitor, even though your display setting is set to simultaneous.
Page 107: Optical Disc Drive Components
Optical disc drive components The optical disc drive is located on the side of the computer. Your optical disc drive may look like this: Drive in-use indicator light Eject button Manual eject hole (Sample Illustration) Optical disc drive Drive in-use indicator light—Indicates when the drive is in use. Eject button—Press to release the disc tray.
Page 108 Learning the Basics Using the optical disc drive Grasp the tray and pull it fully open. (Sample Illustration) Drive tray fully extended Hold the disc by its edges and check that it is free of dust. If the disc is dusty, clean it as described in discs”...
Page 109: Playing An Audio Cd
If you insert the disc incorrectly, it may jam the drive. If this happens, contact Toshiba support for assistance. Push the disc tray in by pressing gently on the center of the tray until it clicks into place.
Page 110: Recording Optical Media
Due to manufacturing and quality variations in third party optical media (e.g., CD or DVD) or optical media players/recorders, in certain cases, your Toshiba optical disc drive may not record on certain optical media that bear the applicable logo, or play back optical media recorded by other computers or optical media recorders.
Page 111: Removing A Disc With The Computer Off
Toshiba’s online resources Toshiba maintains a number of online sites to which you can connect. These sites provide information about Toshiba products, give help with technical questions and keep you up to date with future upgrades.
Page 112: Chapter 3: Mobile Computing
It has a number of other features that enhance its energy efficiency. Many of these energy-saving features have been preset by Toshiba. We recommend you leave these features active, allowing your computer to operate at its maximum energy efficiency, so that you can use it for longer periods while traveling.
Page 113: Battery Notice
This is normal for all batteries. To purchase a new battery pack, see the accessories information included with your computer or visit the Toshiba Web site at accessories.toshiba.com. Use only batteries designed to work with your Toshiba computer.
Page 114: Power Management
Never leave batteries in the battery charger for more than a week at a time. Doing so may reduce the potential charge of the battery. Always use the battery charger specified by Toshiba. You can order a Toshiba battery charger from Toshiba’s Web site at accessories.toshiba.com.
Page 115: Charging The Main Battery
Charging the main battery To charge the main battery while it is in your computer, plug the computer into a live electrical outlet. The battery charges whether the computer is on or off. TECHNICAL NOTE: The recharging of the battery cannot occur when your computer is using all of the power provided by the AC adaptor to run applications, features, and devices.
Page 116: Monitoring Main Battery Power
Mobile Computing Monitoring main battery power To recharge the RTC battery, plug the computer into a live electrical outlet and leave the computer powered on for 24 hours. NOTE It is seldom necessary to charge the RTC battery because it charges while the computer is on.
Page 117 HINT: Be careful not to confuse the battery light ( ON/OFF light ( When the ON/OFF light flashes amber, it indicates that the system is suspended (using the Windows Power button AC power light ON/OFF light (Sample Illustration) Power and battery light locations Mobile Computing Monitoring main battery power ®...
Page 118: Determining Remaining Battery Power
Mobile Computing Monitoring main battery power Determining remaining battery power NOTE Wait a few moments after turning on the computer before trying to monitor the remaining battery power. The computer needs this time to check the battery’s remaining capacity and perform its calculations.
Page 119: Setting Battery Notifications
Setting battery notifications You can set two notifications. Each notification can be set to alert you when a specified percentage of remaining battery power has been reached. You can also set the computer to enter Sleep mode or Hibernation mode or to completely power down when the notification goes off.
Page 120: Power Plans
Mobile Computing Monitoring main battery power ❖ How much you use the internal storage drive or other optional devices ❖ Where you are working, since operating time decreases at low temperatures There are various ways in which you can conserve power and extend the operating time of your battery: ❖...
Page 121: Using A Hot Key To Set The Power Plan
Select an appropriate plan for your work environment or create your own custom plan. Click Create a power plan in the left pane to set up a new plan. NOTE To edit a plan or to edit advanced settings, continue to the following steps.
Page 122: Using The Toshiba Eco Power Plan
For example, when this power plan is enabled, the brightness of the display is reduced and the interval before Sleep mode takes effect is shortened. To enable or disable the TOSHIBA eco power plan, see The TOSHIBA eco Utility™ monitors your power savings from using the eco power plan by tracking real-time power consumption and accumulated savings over time.
Page 123: Removing The Battery From The Computer
Removing the battery from the computer To remove the battery: Save your work. Turn off the computer or place it in Hibernation mode according to the instructions in Hibernation mode” on page Unplug and remove any cables connected to the computer, including the AC adaptor.
Page 124: Inserting A Charged Battery
Mobile Computing Changing the main battery If the battery is leaking or its case is cracked, put on protective gloves to handle it, and discard it immediately. Always dispose of used battery packs in compliance with all applicable laws and regulations.
Page 125: Taking Care Of Your Battery
Slide the battery release lock to the locked position. (Sample Illustration) Locking the battery release lock Turn the computer right side up. Reconnect any cables that were removed in step 3 of “Removing the battery from the computer” on page Restart the computer.
Page 126: Maintaining Your Battery
Mobile Computing Taking care of your battery ❖ To replace the main battery, use an identical battery that you can purchase through the Toshiba Web site at accessories.toshiba.com. ❖ A reverse polarity condition should be avoided with all batteries. The main battery is designed so that it cannot be installed in reverse polarity.
Page 127: Disposing Of Used Batteries
If you cannot find the information you need elsewhere, call Toshiba at: (800) 457-7777. In addition, Toshiba’s recycling initiatives include recycling programs, events and consumer promotions. For details, please visit www.laptops.toshiba.com/green.
Page 128: Traveling Tips
❖ Always travel with the computer in a carrying case. Toshiba offers a choice of carrying cases for the computer. They all provide plenty of extra space for manuals, power cords, and compact discs.
Page 129: Chapter 4: Exploring Your Computer's Features
Chapter 4 Exploring Your Computer’s Features In this chapter, you will explore some of the special features of your computer. Exploring the desktop The desktop is the launching pad for everything you can do in the ® Windows operating system. You can use its features to start programs, find documents, set up system components, and perform most other computing tasks.
Page 130: Finding Your Way Around The Desktop
Exploring Your Computer’s Features Exploring the desktop Finding your way around the desktop Your computer’s desktop includes several standard features: icons, Start button, taskbar, notification area, and background pattern. Icons Start button (Sample Image) Windows Icons An icon represents a folder, file, or program that can be quickly activated by double-clicking the icon.
Page 131 ❖ TECHNICAL NOTE: If you delete a large number of files or very large files from the internal storage drive, there may be insufficient space available in the Recycle Bin to hold these files. In this case, Windows delete the file(s) or cancel the deletion. ❖...
Page 132: Setting Up For Communications
Exploring Your Computer’s Features Setting up for communications Taskbar Each time you open a program, a button associated with that program appears on the taskbar. With some programs, a button appears on the taskbar for each document or window you open. You can use these buttons to quickly switch between the programs or windows.
Page 133: Connecting Your Computer To A Network
The computer connects to the Internet. Exploring Your Computer’s Features Setting up for communications . For more information see ® networking problems, see 178. ® , ask them for help when connecting to their “Hot Keys/TOSHIBA Cards” on “Wireless ® access. If your will...
Page 134: Connecting A Modem To A Telephone Line
Exploring Your Computer’s Features Setting up for communications Connecting a modem to a telephone line (Available on certain models.) Your computer may come with a built-in modem that can be connected to a standard voice-grade telephone line. The modem allows you to: ❖...
Page 135: Exploring Audio Features
Exploring audio features You can use your computer to record sounds using the computer’s internal microphone (available on certain models) or an optional external microphone. You can listen to sound files or audio CDs using the built-in speakers, headphones, or external speakers. Recording sounds You may record sounds using the computer’s internal microphone (available on certain models) or by connecting an optional external...
Page 136: Using The Web Camera
The Web Camera software, by default, should already be running. The Web Camera indicator light glows when the Web Camera is active. For more information on the software, click Start, All Programs, TOSHIBA, Utilities, and then Web Camera Application Help.
Page 137: Using The Memory Card Reader
Using the Memory card reader (Available on certain models.) The Memory card reader supports the use of Memory Stick Memory Stick PRO™, Memory Stick PRO Duo™, Memory Stick Duo™, Secure Digital™ (SD™), or MMC media. These media can be used with a variety of digital products: digital music players, cellular phones, PDAs, digital cameras, digital video camcorders, etc.
Page 138: Removing Memory Media
Exploring Your Computer’s Features Using the Memory card reader When inserting memory media, do not touch the metal contacts. You could expose the storage area to static electricity, which can destroy data. Removing memory media Prepare the card for removal by clicking on the Show hidden icons button ( ), if necessary, in the notification area and then selecting the Safely Remove Hardware and Eject Media icon.
Page 139: Using The Esata/Usb Combo Port
Exploring Your Computer’s Features Using the eSATA/USB combo port Using the eSATA/USB combo port (Available on certain models.) Your computer includes an eSATA/USB combo port, which can be used with both eSATA (external Serial Advanced Technology Attachment) devices and USB devices. The eSATA interface supports fast data transfer rates, which is especially useful for transferring and storing large files such as digital photo, music or video files.
Page 140: Chapter 5: Utilities
❖ TOSHIBA Assist ❖ TOSHIBA Application Installer ❖ Supervisor password ❖ User password ❖ TOSHIBA Face Recognition Utility ❖ TOSHIBA PC Diagnostic Tool Utility ❖ TOSHIBA HDD Protection Utility ❖ Mouse Utility ❖ TOSHIBA Hardware Setup ❖ TOSHIBA Zooming Utility...
Page 141: Toshiba Assist
❖ TOSHIBA PC Health Monitor TOSHIBA Assist The TOSHIBA Assist provides quick access to computer functions and allows you to customize a range of computer settings. To access TOSHIBA Assist, click Start, All Programs, TOSHIBA, Utilities, and then TOSHIBA Assist.
Page 142: Connect
Utilities TOSHIBA Assist Connect The feature available in this category is: ❖ Bluetooth (Sample Image) TOSHIBA Assist window – Connect tab ® Settings...
Page 143: Secure
Secure The features available in this category are: ❖ Supervisor password ❖ User password (Sample Image) TOSHIBA Assist window – Secure tab Utilities TOSHIBA Assist...
Page 144: Protect & Fix
Utilities TOSHIBA Assist Protect & Fix The features available in this category are: ❖ TOSHIBA PC Diagnostic Tool Utility ❖ TOSHIBA HDD Protection Utility (Sample Image) TOSHIBA Assist window – Protect & Fix tab...
Page 145: Optimize
The features available in this category are: ❖ Mouse Utility ❖ TOSHIBA Hardware Setup ❖ TOSHIBA Zooming Utility ❖ TOSHIBA Accessibility ❖ TOSHIBA Face Recognition Utility ❖ TOSHIBA eco Utility™ (Sample Image) TOSHIBA Assist window – Optimize tab Utilities TOSHIBA Assist (Hardware Settings)
Page 146: Toshiba Application Installer
Utilities TOSHIBA Application Installer TOSHIBA Application Installer The TOSHIBA Application Installer allows you to reinstall the drivers and applications that were originally bundled with your computer. To reinstall drivers and applications: Click Start, All Programs, My Toshiba, and then TOSHIBA Application Installer.
Page 147: Setting Passwords
When you set a password, you must enter the password before you can work on your computer again. TOSHIBA supports several types of passwords on your computer: ❖ An instant password—Secures your open programs and files when leaving the computer temporarily.
Page 148: Using A Supervisor Password
TOSHIBA is not responsible for any losses that may occur to you, your organization or others as a result of the inability to access your computer.
Page 149: Using A User Password
TOSHIBA is not responsible for any losses that may occur to you, your organization or others as a result of the inability to access your computer.
Page 150: Deleting A User Password
Utilities Setting passwords To register a password for the power-on password functions: Click Start, All Programs, TOSHIBA, Utilities, and then TOSHIBA Assist. The TOSHIBA Assist window appears. On the left side, click the Secure tab. Click the User Password icon.
Page 151: Toshiba Face Recognition Utility
TOSHIBA does not guarantee that the face recognition utility will accurately screen out unauthorized users at all times. TOSHIBA is not liable for any failure or damage that might arise out of the use of the face recognition software or utility.
Page 152: Toshiba Pc Diagnostic Tool Utility
Refer to the online Help documentation within the application for additional help. NOTE The TOSHIBA PC Diagnostic Tool utility may show tests for features you do not have. This is normal and does not indicate a problem. To use the TOSHIBA PC Diagnostic Tool utility:...
Page 153: Toshiba Hdd Protection Utility
TOSHIBA HDD Protection Utility The TOSHIBA HDD Protection Utility controls your computer’s hard disk drive (HDD) protection feature, which parks the HDD whenever motion is detected on the computer. Using this utility, you can enable or disable hard disk drive (HDD) protection, and set the motion detector’s sensitivity level for AC power and battery...
Page 154: Mouse Utility
The settings you can change are divided into these categories: ❖ Buttons ❖ Pointers ❖ Pointer Options ❖ Wheel ❖ Hardware ❖ Device Settings You may see additional categories depending on your particular pointing device. Adjust the settings as desired, then click OK. TOSHIBA Assist.
Page 155: Toshiba Hardware Setup
To access it: ❖ Click Start, All Programs, TOSHIBA, Utilities, and then HWSetup, or click the TOSHIBA Hardware Settings icon in the Optimize tab of The TOSHIBA HWSetup screen appears. (Sample Image) TOSHIBA HWSetup screen – General tab options The TOSHIBA HWSetup screen may have the following tabs: ❖...
Page 156 Utilities TOSHIBA Hardware Setup ❖ Display—Allows you to change various default settings for the built-in display NOTE When the computer restarts, it remembers the last configuration. If data does not appear on the display you are using after starting in Sleep mode, press display output when you turn on the computer”...
Page 157: Toshiba Zooming Utility
Acrobat ❖ Icons on the desktop To access the TOSHIBA Zooming Utility: Click Start, All Programs, TOSHIBA, Utilities, and then Zooming Utility. The TOSHIBA Zooming Utility Properties screen appears. (Sample Image) TOSHIBA Zooming Utility Properties screen Select the desired option(s).
Page 158: Toshiba Accessibility
Utilities TOSHIBA Accessibility TOSHIBA Accessibility The TOSHIBA Accessibility utility allows you to use the create a hot key combination with one of the function keys without pressing the two keys simultaneously as is usually required. Using Accessibility lets you make the press it once, release it, and then press a function key to activate the hot key function.
Page 159: Toshiba Eco Utility
The TOSHIBA eco Utility™ monitors your power savings from using the eco power plan by tracking real-time power consumption and accumulated savings over time. To access the TOSHIBA eco Utility™, do one of the following: ❖ Click Start, All Programs, TOSHIBA, Utilities, and then TOSHIBA eco Utility.
Page 160: Toshiba Service Station
This information is used to identify and provide a notification of system conditions that may affect the performance of your TOSHIBA computer. It may also be used to help diagnose problems should the computer require service by TOSHIBA or TOSHIBA's authorized service providers.
Page 161 Utilities TOSHIBA PC Health Monitor You may disable the TOSHIBA PC Health Monitor at any time by ® uninstalling the software via the Windows Control Panel. Doing so will automatically delete all collected information from the internal storage drive. The TOSHIBA PC Health Monitor software does not extend or modify TOSHIBA's obligations under its standard limited warranty in any way.
Page 162: Chapter 6: If Something Goes Wrong
This chapter aims to help you solve many problems by yourself. It covers the problems you are most likely to encounter. If all else fails, contact Toshiba. You will find information on Toshiba’s support services at the end of this chapter.
Page 163: Problems When You Turn On The Computer
Click the Applications tab. If a program has stopped responding, the words “not responding” appear beside its name in the list. Select the program you want to close, then click End Task. Closing the failed program should allow you to continue working.
Page 164 If Something Goes Wrong Problems when you turn on the computer The computer displays the Recovery – Windows did not shut down successfully To continue, select Start Windows normally. This can happen if the computer was put into Sleep mode and the battery has discharged.
Page 165: The Windows
The output specifications of the AC adaptor must match the input specifications of the computer. If the specifications do not match, locate and use the AC adaptor that shipped with your computer. If the specifications do match, contact Toshiba. See page 186. ®...
Page 166: Using Startup Options To Fix Problems
If Something Goes Wrong The Windows ❖ The operating system responds differently from the normal routine. ❖ The screen does not look right. Unless a hardware device has failed, problems usually occur when you change the system in some way such as installing a new program or adding a device.
Page 167: Internet Problems
Click one of the options listed in the window and then follow the on-screen instructions. You can connect to Support Online by clicking the Ask button and then clicking Microsoft Customer Support or by going to Toshiba support at pcsupport.toshiba.com. If Something Goes Wrong ®...
Page 168: Fixing A Problem With Device Manager
If Something Goes Wrong Fixing a problem with Device Manager Fixing a problem with Device Manager Device Manager provides a way to check and change the configuration of a device. Changing the default settings using Device Manager can cause other conflicts that make one or more devices unusable.
Page 169: Memory Problems
Memory problems Incorrectly connected or faulty memory modules may cause errors that seem to be hardware or even software related. It is worthwhile checking for these first: Click Start, and then click the Shut down button in the lower-right corner of the Start menu. The computer shuts down completely.
Page 170 After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all batteries. To purchase a new battery pack, see your accessories information included with your computer, or visit the Toshiba Web site at accessories.toshiba.com.
Page 171: Keyboard Problems
Keyboard problems If, when you type, strange things happen or nothing happens, the problem may be related to the keyboard itself. The keyboard produces unexpected characters. A keypad overlay may be on. If the numlock light or cursor control overlay light is on, press overlay light, or If the problem occurs when both the keypad overlays are off, make sure the software you are using is not remapping the keyboard.
Page 172 If Something Goes Wrong Display problems If you are using an external monitor: ❖ Check that the monitor is turned on. ❖ Check that the monitor’s power cord/cable is firmly plugged into a working power outlet. ❖ Check that the cable connecting the external monitor to the computer is firmly attached.
Page 173: Disk Or Storage Drive Problems
Small bright dots appear on your TFT display when you turn on your computer. Small bright dots may appear on your screen display when you turn on your computer. Your display contains an extremely large number of thin-film transistors (TFT) and is manufactured using high-precision technology.
Page 174: Optical Disc Drive Problems
If Something Goes Wrong Optical disc drive problems You can choose one or both options: ❖ Automatically fix file system errors ❖ Scan for and attempt recovery of bad sectors Click Start. Error-checking tests and repairs the storage drive. Your hard disk seems very slow. If you have been using your computer for a long time, your files may have become fragmented.
Page 175 For more information regarding supported optical media formats, refer to the complete detail specifications for your computer at pcsupport.toshiba.com. If the problem is with an optical data disc, refer to the software’s documentation and check that the hardware configuration meets the program’s needs.
Page 176 If Something Goes Wrong Optical disc drive problems While viewing a Blu-ray Disc™ movie the sound is not coming from the computer's speakers. You can change the destination of the audio signal in Sound properties in the Control Panel. NOTE Blu-ray Disc™...
Page 177: Sound System Problems
Sound system problems No sound is coming from the computer’s speakers. Adjust the volume control. Try pressing Fn + Esc Check that the volume control on the computer is turned up. If you are using external headphones or speakers, check that they are securely connected to your computer.
Page 178: Modem Problems
The other system may be busy or off line. Try making a test transmission to someone else. For more information regarding your system’s V.92 modem, visit the Toshiba Web site at pcsupport.toshiba.com. Wireless networking problems NOTE This section provides general troubleshooting tips for networking...
Page 179 SSID assigned to the ® Control Panel's Device Manager to verify ® adapter is recognized by the Windows “Hot Keys/TOSHIBA Cards” on in the Search programs and files field. and press Enter ® ®...
Page 180: Dvd And Bd Operating Problems
“Checking device properties” on page on using Device Manager to view the optical disc drive properties. Check the Toshiba Web site for new information on optical disc drives and their operation. operating system wireless management utility ®...
Page 181: Develop Good Computing Habits
A blank screen appears while watching a DVD-ROM or BD-ROM movie or title. Change the setting for when to turn off the display using the following steps: Click Start, Control Panel, System and Security, and then Power Options. Click Choose when to turn off the display in the left pane. To turn off the display, select Never in the drop-down lists.
Page 182: Data And System Configuration Backup In The Windows Operating System
If Something Goes Wrong Develop good computing habits If you have installed your own programs, you should back up these programs as well as your data files. If something goes wrong that requires you to reformat your internal storage drive and start again, reloading all your programs and data files from a backup source will save time.
Page 183 In the left pane, click System protection. The System Protection tab of the System Properties window appears. Click Create... In the input field, enter a name that is descriptive enough to be easily understood in the future, such as “Before installing Brand X Accounting app.”...
Page 184 An external hard drive is recommended in case the internal storage drive fails. No additional software is required. Most of the optical disc drives built into recent Toshiba portable computer models can write to (or ‘burn’) as well as read from optical discs.
Page 185 then be able to easily restore the Windows the state it was in prior to the installation, undoing any changes that the installation process introduced. ❖ Back up your critical data (see entire computer with the Windows® operating system” on page 184).
Page 186: If You Need Further Assistance
For the detailed specifications for your computer, visit pcsupport.toshiba.com. Click Product Support, search for your model, and then click Detailed Specs. Contacting Toshiba If you still need help and suspect that the problem is hardware-related, Toshiba offers a variety of resources to help you.
Page 187: Other Toshiba Internet Web Sites
Toshiba’s Technical Support Web site For technical support, or to stay current on the most recent software and hardware options for your computer, and for other product information, be sure to regularly check the Toshiba Web site at pcsupport.toshiba.com Toshiba voice contact Before calling Toshiba, make sure you have: ❖...
Page 188: Toshiba's Worldwide Offices
Germany Japan Toshiba Corporation, PCO-IO 1-1, Shibaura 1-Chome Minato-Ku, Tokyo, 105-8001 Japan Mexico Toshiba de México S.A. de C.V. Sierra Candela No.111, 6to. Piso Col. Lomas de Chapultepec. CP 11000 Mexico, DF. United Kingdom Toshiba Information Systems (U.K) Ltd. Toshiba Court...
Page 189 United States Toshiba America Information Systems, Inc. 9740 Irvine Boulevard Irvine, California 92618 United States For more information on additional Toshiba worldwide locations, please visit: www.toshiba.co.jp/index.htm. If Something Goes Wrong Toshiba’s worldwide offices The Rest of Europe Toshiba Europe (I.E.) GmbH...
Page 190: Appendix A: Hot Keys/Toshiba Cards
Appendix A Hot Keys/TOSHIBA Cards Hot keys and TOSHIBA Cards provide a quick way to modify selected system functions and to launch applications. There are two types of TOSHIBA Cards: Hot Key Cards and Application Cards. Hot Key Cards The Hot Key Cards are used to set or modify the following system functions: ❖...
Page 191: Using The Hot Key Cards
To use the Hot Key Cards: Press and hold the The TOSHIBA Cards appear along the top of the screen. (Sample Image) Hot Key Card display Select the desired option. The selected Card is displayed full-size with its available options below it.
Page 192: Application Cards
TOSHIBA Zooming Utility For more information, refer to Zooming Utility” on page Disc Creator Utility This Application Card launches the TOSHIBA Disc Creator Utility. TOSHIBA Hardware Setup Utility For more information, refer to Hardware Setup” on page “TOSHIBA Assist”...
Page 193: Using The Application Cards
Using the Application Cards To launch an application using the Application Cards: Press and hold the The TOSHIBA Cards display at the top of the screen. (Sample Image) TOSHIBA Card display Click the “stacked” card on the far right of the display. The Application Cards are hidden under this card.
Page 194: Hot Key Functions
Hot keys have a legend on the key indicating the option or feature the key controls. Volume Mute This TOSHIBA Card or hot key enables/disables volume mute on your computer. When volume mute is enabled, no sound will come from the speakers or headphones.
Page 195: Lock (Instant Security)
Lock (Instant security) This TOSHIBA Card or hot key blanks the display. Selecting this Card or pressing the hot key displays the following options: Fn + (Sample Image) Security options ❖ ❖ Fn + F1 hot key function activates instant security. The user logon screen will appear and a user with a valid account will need to log back on to gain access to the computer.
Page 196: Power Plan
Hot Keys/TOSHIBA Cards Hot key functions Power plan This TOSHIBA Card or hot key displays the power plans and cycles through the power plans. The properties of each power plan, and the power plans that are displayed by this function, are set in the Power Options window.
Page 197: Sleep Mode
Sleep mode This TOSHIBA Card or hot key places the computer into Sleep mode. For more information about Sleep mode, please see and configuring Sleep mode” on page Selecting this Card or pressing the hot key displays the following options:...
Page 198: Hibernation Mode
Hot Keys/TOSHIBA Cards Hot key functions Hibernation mode This TOSHIBA Card or hot key places the computer into Hibernation mode. If Hibernation mode is disabled, this hot key will not respond. For more information on Hibernation mode, see “Using and configuring Hibernation mode” on page...
Page 199: Output (Display Switch)
Output (Display switch) This TOSHIBA Card or hot key cycles through the power-on display options (only the first option is available when you do not have an external monitor attached) (the last option is available only if you are in Extended Display Mode).
Page 200: Display Brightness
Built-in Display and TV). In extended desktop mode, the image is split into two sides, one side per display device. To swap sides, select Swap Image Display. Display brightness This TOSHIBA Card decreases or increases the screen brightness. This hot key decreases the screen brightness. Fn + This hot key increases the screen brightness.
Page 201: Disabling Or Enabling Wireless Devices
Disabling or enabling wireless devices This TOSHIBA Card or hot key enables/disables the optional wireless devices installed in your computer. The wireless modes are: ❖ ❖ Fn + ❖ ❖ Selecting this Card or pressing the hot key displays the...
Page 202: Disabling Or Enabling The Touchpad
Hot Keys/TOSHIBA Cards Hot key functions Disabling or enabling the TouchPad™ This TOSHIBA Card or hot key enables/disables the TouchPad™. For more information on using the TouchPad, see the TouchPad™” on page Selecting this Card or pressing the hot key displays the...
Page 203: Zoom (Display Resolution)
Hot Keys/TOSHIBA Cards Hot key functions Zoom (Display resolution) This TOSHIBA Card or hot key switches screen resolution. Selecting this Card or pressing the hot key displays the following options: Fn + [Space bar] (Sample Image) Screen resolution options Cycle through the screen resolutions, then select the desired...
Page 204: Cursor Control Overlay
Hot Keys/TOSHIBA Cards Hot key functions Cursor control overlay This TOSHIBA Card or hot key turns the cursor control overlay on and off. Selecting this Card or pressing the hot key displays the following options: Fn + (Sample Image) Cursor control overlay...
Page 205: Keyboard Hot Key Functions
Keyboard hot key functions Fn + This hot key turns the scroll lock feature on and off. This hot key turns the TOSHIBA Zooming Utility to Fn + zoom out. This hot key turns the TOSHIBA Zooming Utility to Fn + zoom in.
Page 206: Appendix B: Power Cord/Cable Connectors
Appendix B Power Cord/Cable Connectors Your computer ships with the correct power supply for the country of purchase. This appendix shows the shapes of the typical AC power cord/cable connectors for various parts of the world. UL approved United Kingdom BS approved Australia AS approved...
Page 207: Glossary
Glossary TECHNICAL NOTE: Some features defined in this glossary may not be available on your computer. Acronyms The following acronyms may appear in this user’s guide. BIOS BD-ROM CD-ROM CD-RW CMOS COM1 COM2 Alternating Current Basic Input/Output System Blu-ray Disc Read-Only Memory bits per second Compact Disc Compact Disc Read-Only Memory...
Page 208 Glossary DIMM DVD-ROM Digital Versatile (or Video) Disc Read-Only Memory EPROM eSATA HDMI HDMI-CEC HTML IEEE MIDI PCMCIA Dual Inline Memory Module Disk Operating System Dots Per Inch Digital Versatile (or Video) Disc Erasable Programmable Read-Only Memory external Serial Advanced Technology Attachment File Allocation Table Federal Communications Commission gigabyte...
Page 209 SDRAM Terms The following terms may appear in this user’s guide. active-matrix display—A liquid crystal display (LCD) made from an array of liquid crystal cells using active-matrix technology. Also known as a “TFT display,” in its simplest form there is one thin film transistor (TFT) for each cell.
Page 210 Glossary backup—A copy of a file, usually on a removable disk, kept in case the original file is lost or damaged. Basic Input/Output System (BIOS)—See BIOS. baud rate—The speed at which a communication device, such as a printer or modem, transmits information. Baud rate is the number of signal changes per second (not necessarily the same as bits per second).
Page 211 cache—A section of very fast memory in which frequently used information is duplicated for quick access. Accessing data from cache is faster than accessing it from the computer’s main memory. See also CPU cache, L1 cache, L2 cache. CD—An individual compact disc. See also CD-ROM. CD-ROM (Compact Disc Read-Only Memory)—A form of high- capacity storage that uses laser optics instead of magnetic means for reading data.
Page 212 Glossary CPU cache—A section of very fast memory residing between the CPU and the computer’s main memory that temporarily stores data and instructions the CPU will need to execute commands and programs. See also cache, L1 cache, L2 cache. cursor—An on-screen symbol (usually a flashing vertical line) that indicates the position where characters will appear when you enter data.
Page 213 document—Any file created with an application and, if saved to disk, given a name by which it can be retrieved. See also file. double-click—To press and release the pointing device’s primary button rapidly twice without moving the pointing device. In the Windows operating system, this refers to the pointing device’s left button, unless otherwise stated.
Page 214 Glossary file—A collection of related information, saved on disk with a unique name. A file may be a program, information used by a program, or a document. See also document. File Allocation Table (FAT)—The section of a storage drive that keeps track of the location of stored files.
Page 215 HDMI cables. See also HDMI. Hibernation—A feature of many Toshiba computers that saves to the internal storage drive the current state of your work, including all open files and programs, when you turn the computer off. When you turn on the computer again, your work is returned to the same state it was when the computer was turned off.
Page 216 Glossary LAN (Local Area Network)—A group of computers or other devices dispersed over a relatively limited area and connected by a communications link that enables any device to interact with any other on the network. LED (Light Emitting Diode)—A solid state lamp (SSL) that uses light- emitting diodes (LEDs) as the source of light, which offers long life and high efficiency output.
Page 217 motherboard—The computer’s main circuit board that contains the processor, memory, and other primary components. MS-DOS prompt—See system prompt. multi-function drive—A DVD drive that can read and write to CD and DVD media. multimedia—A combination of two or more media, such as sound, animation, and video in a computer program or presentation.
Page 218 Glossary password—A unique string of characters entered by a user to verify his or her identity to the computer or the network. PC Card—A credit-card-sized expansion card designed to increase the capabilities of computers. PC Cards provide functions such as modem, fax/modem, hard disk drive, network adapter, sound card, or SCSI adapter.
Page 219 Random Access Memory—See RAM. Read-Only Memory—See ROM. reboot—See boot, restart. removable disk—A disk that can be removed from a disk drive. A Flash drive is one example of a removable disk. resolution—A measure of the sharpness of the images that can be produced by a printer or displayed on a screen.
Page 220 Glossary shortcut—See keyboard shortcut. Sleep—A feature of some Windows to turn off the computer without exiting your open applications and to continue from where you left off when you turn the computer on again. software—See program. Compare hardware. solid state drive —A data storage device that utilizes solid-state memory as opposed to a hard disk (see also hard disk).
Page 221 Web—See World Wide Web. ® Wi-Fi —A registered trademark term of the Wi-Fi Alliance that stands for Wireless Fidelity, and is another term for the communication protocol to permit an Ethernet connection using wireless communication components. World Wide Web (www)—The worldwide network of Web sites linked together over the Internet.
Page 222: Index
Index AC adaptor 44 AC power 114 AC power light 44 accessing network 133 adding memory check total memory 58 memory (optional) 49 optional external devices 49 adequate ventilation cooling fan 43 adjusting TouchPad™ settings 77 Application Cards 192 audio features 135 backing up files 96 battery battery life 113...
Page 223 112 safety precautions 125 setting notifications 119 battery indicator light 117 BIOS Setup see TOSHIBA Hardware Setup Blu-ray Disc™ using 105 button eject, optical disc drive 107 power 48 Shut down 51 start 131 Call2Recycle™...
Page 224 Index display devices external 78 display output settings 80 display panel opening 47 display, external adjusting 81 disposal information 27 disposing of used batteries 127 caring for discs 111 removing with computer off 111 removing with computer on 110 DVD BD player troubleshooting 180 DVDs using 105...
Page 225 desktop 130 moving to desktop 130 recycle bin 130 safety 38 installation memory module 50 installing a charged battery 124 battery 122 memory modules 49 mouse 81 Instruction Manual for Safety and Comfort 40 internal storage drive recovery 58 jack RJ-11 134 keyboard Alt keys 97...
Page 226 Connect to the Internet 133 connecting your computer 133 networking wireless 132 notification area 132 ON/OFF indicator light 117 online resources Toshiba 111 optical disc Auto-Run feature 109 caring for 111 handling 108 inserting 107 playing optical media 109 positioning 108...
Page 227 USB-compatible 81 printing a file 103 problem solving modem not receiving or transmitting 178 Startup options 166 program, starting 99 program, starting from Start menu 99 projector connecting 79 real-time clock (RTC) battery 113 recording sounds 135 recovery checking internal storage drive operating status 73 creating recovery DVDs/media erasing internal storage drive 72...
Page 228 TOSHIBA Assist 141 Connect tab 142 Optimize tab 145 Protect & Fix tab 144 Secure tab 143 TOSHIBA eco power plan 122 TOSHIBA eco Utility™ 159 TOSHIBA Face Recognition Utility TOSHIBA Hardware Setup 155 TOSHIBA HDD Protection Utility TOSHIBA PC Diagnostic Tool Utility...
Page 229 121 Memory card reader 137 optical disc drive 105 Shut down command 85 Sleep mode 90 TOSHIBA eco power plan 122 TouchPad™ 74 Web Camera 136 using the keyboard 96 using the overlay for cursor control 99...
Page 230 Index Windows® operating system desktop 129 troubleshooting 165 Windows® Start menu starting a program 99 wireless networking 132 troubleshooting 178 wizards Connect to the Internet 133...

This manual is also suitable for:

L630-st2g01 L630-bt2n22 L630-bt2n15 L630-st2n01 L630-st2n02 L630-st2n03 ... Show all

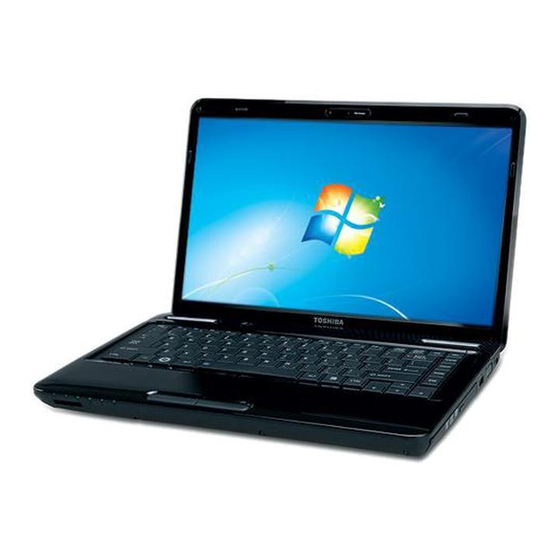

Toshiba L630-BT2N13 User Manual

Chapter 1: Getting Started

Chapter 2: Learning the Basics

Chapter 3: Mobile Computing

Chapter 4: Exploring Your Computer's Features

Chapter 5: Utilities

Chapter 6: If Something Goes Wrong

Appendix A: Hot Keys/Toshiba Cards

Appendix B: Power Cord/Cable Connectors

Quick Links

Related Manuals for Toshiba L630-BT2N13

Summary of Contents for Toshiba L630-BT2N13
