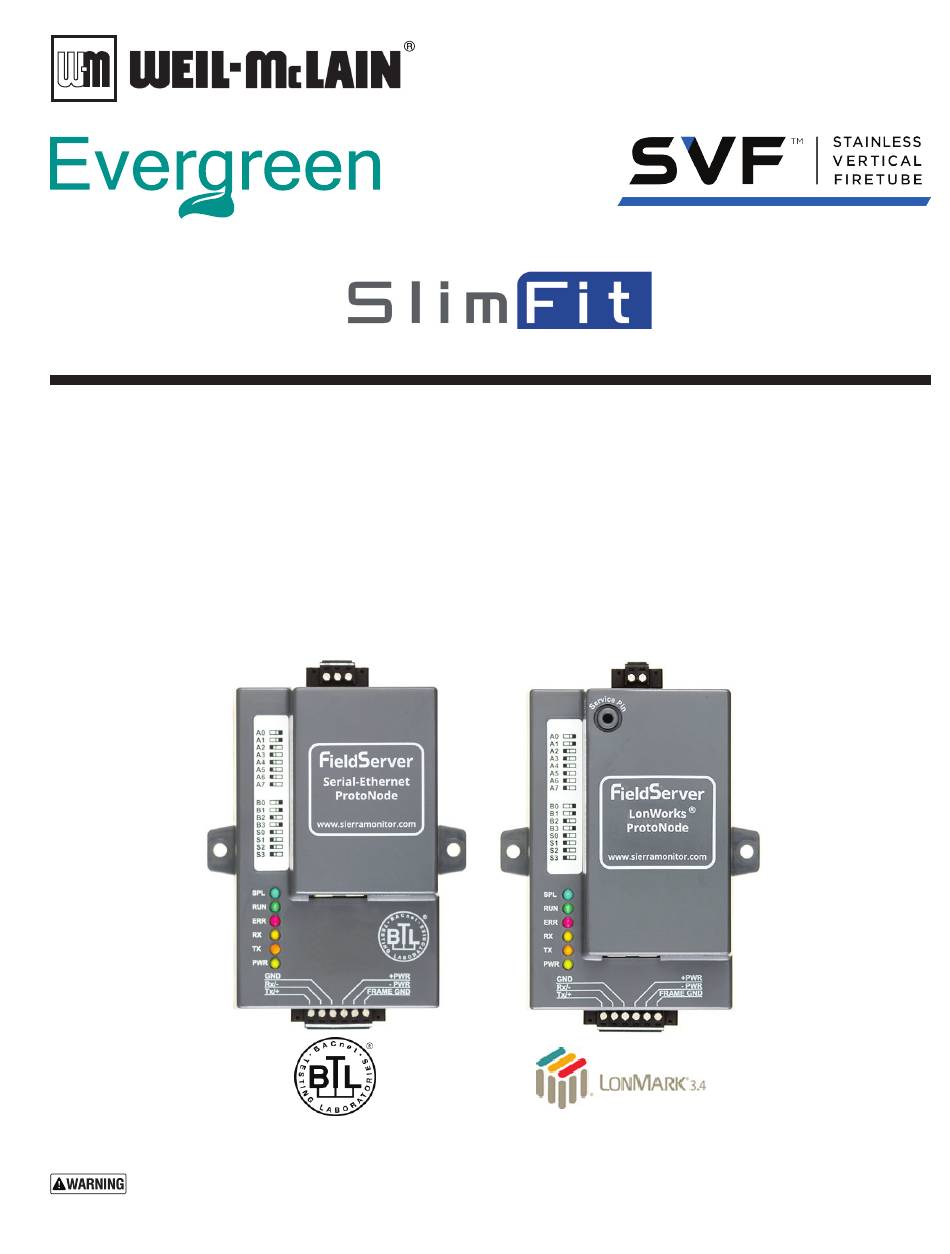

ProtoNode Quick Guide Set-up
For Interfacing Evergreen / SlimFit / SVF boilers to Building Automation
Systems:
BACnet MS/TP, BACnet/IP, Modbus TCP/IP, Metasys N2 and LonWorks
This quick set-up guide must only be used by a qualified heating installer/service technician. Read all instructions, including this
instruction and all other information shipped with the boiler, before installing. Perform steps in the order given. Failure to comply
could result in severe personal injury, death or substantial property damage.
®

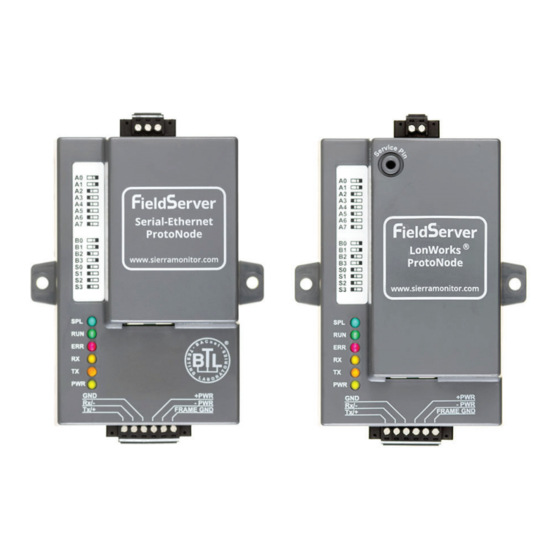

ProtoNode FPC-N34
550 - 2000
ProtoNode FPC-N35
750 - 1100 / 1500 - 3000
®
Part Number 550-100-175/1020
Advertisement
Related Manuals for Weil-McLain ProtoNode FPC-N34
Summary of Contents for Weil-McLain ProtoNode FPC-N34
- Page 1 For Interfacing Evergreen / SlimFit / SVF boilers to Building Automation Systems: BACnet MS/TP, BACnet/IP, Modbus TCP/IP, Metasys N2 and LonWorks ProtoNode FPC-N34 ProtoNode FPC-N35 This quick set-up guide must only be used by a qualified heating installer/service technician. Read all instructions, including this instruction and all other information shipped with the boiler, before installing.
- Page 2 ProtoNode Quick Guide Set-up Contents Evergreen 70 - 155 boilers � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Evergreen 220 - 399 boilers �...
- Page 3 ProtoNode Quick Guide Set-up Installation Notes The Weil-McLain Evergreen, Slimfit Series 2 & 3, and SVF boilers all use the Unity 1.0 control. There are two paths that need to be satisfied for the successful integration of the Weil-McLain Evergreen, Slimfit or SVF boiler with your building management system (BMS), using the ProtoNode controller.
-
