DentalEZ StarDental Star Simplicity FX Instruction Manual

DO NOT USE FOR ORAL SURGERY
BEFORE OPERATING THE HANDPIECE, CAREFULLY READ AND FOLLOW ALL OF THESE INSTRUCTIONS. SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE AND OBSERVE ALL WARNINGS AND CAUTIONS.
Indications for Use
The Star® Simplicity FX and SW High-Speed Handpieces are used by trained dental professionals for a variety of
procedures including but not limited to caries and amalgam removal, restorative work and crown preparations.
Any serious incident occurring from the use of this device should be reported to StarDental immediately. If
NOTICE
incident occurred in a EU Member State the Competent Authority must be notifi ed.
Contents
• Specifi cations • Safety Rules • Troubleshooting
• Handpiece Installation • Cleaning & Lubricating • Turbine Replacement
• Handpiece Operation • Sterilization • Replacement Part Numbers
Specifi cations

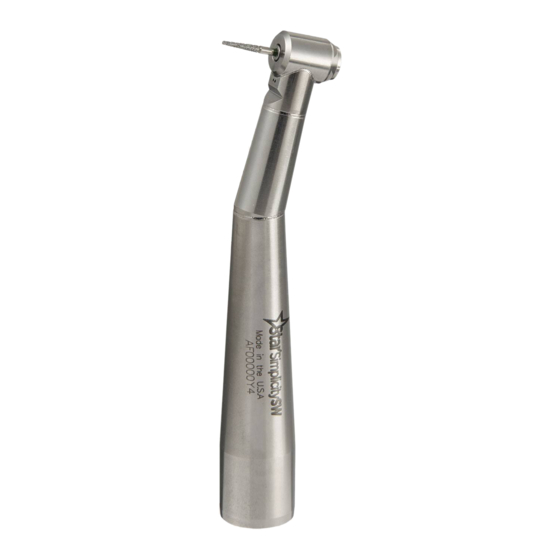

Star® Simplicity FX is a conventional non-swivel High-Speed handpiece. Star® Simplicity SW High-Speed Handpiece is
designed to fi t a StarDental ® 360° quick disconnect swivel. The Star® Simplicity SW connects to both StarDental
or standard 4-Line ISO fi ber optic (F.O.) tubing.
Star® Simplicity
FX
Type: High speed with a replaceable autochuck turbine
Operating Air Pressure: 30 to 32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 4-line fi xed ISO confi guration
Power: 10 watts
Weight: 43g
Star® Simplicity SW
Type: High speed with a swivel and replaceable autochuck turbine (Swivel sold sep a rate ly.)
Operating Air Pressure: 30 to 32 psi
Air Consumption: 1.9 SCFM @ 30 psi
No Load Speed: 400,000 rpm
Connection: 360° quick-disconnect non fi ber optic swivel with 2/3 line or 4-Line ISO confi guration
Power: 12 watts
135°C
Weight: 47g
Sterilizable up to 135°C
Handpiece Installation
Note: Filter air and water supplies, recommended fi ltration: 25 microns. Soften and deionize water. Be sure fi lters operate
effi ciently.
Star® Simplicity FX Star® Simplicity
1. Slide tubing coupler until the end of the ISO connector is exposed;
hold in hand as shown with smaller fi ngers securing the tubing.
2. Align handpiece tubes into the ISO connector holes.
3. While applying slight pressure to hold handpiece tubes in the
connector holes, slide coupler forward and engage threads. Continue
threading coupler clockwise until hand tight against the handpiece.
Star® Simplicity SW Star® Simplicity
1. Grasp the swivel in front of the bearing assembly between the thumb
and index fi nger as shown.
2. Slide tubing coupler until the end of the tubing connector is
exposed; hold in hand as shown with fi ngers securing the tubing.
3. Align and insert swivel tubes into the tubing connector holes.
4. While applying slight pressure to hold fi ttings in the connector holes,
slide coupler forward and engage threads. Continue threading
coupler clockwise until hand tight against the swivel.
5. Using the wrench as shown, tighten the swivel to the tubing coupler until snug. Be sure to turn the tubing coupler, not the
swivel. DO NOT OVER TIGHTEN.
Wrench
6. Connect handpiece to swivel until it clicks.
Note: This joint loosens over time, resulting in a loss of power. Check for tightness periodically.
Handpiece Operation
Air and Water Adjustment
1. Air Pressure –
Note: To prevent premature damage to the turbine, do not exceed 34 psi when using a HiFlo swivel.
Using air pressure gauge StarDental Part #262591, for 4-Line tubing and handpieces, if a gauge is available, set
pressure to:
30-32 psi – for the Star® Simplicity FX
30-32 psi – for the Star® Simplicity SW
If a gauge is not available, set pressure at delivery head allowing 1 psi pressure loss for every foot of tubing.
(See Specifi cations for recommended operational pressure.)
For example, if you are using the Star® Simplicity FX that you want to operate at 32 psi and you are using either 5 feet
or 12 feet of tubing, then the
pressure should be set at the delivery head to compensate for the air pressure losses.
2. Water Pressure – Adjust water volume at the delivery head to obtain a satisfactory spray mist.
Autochuck Turbine - Star® Simplicity FX and Star® Simplicity SW:
• Warranty
CAUTION Use burs with an overall length of less than 24mm and a shank length of at least 7.3mm.
Use standard length concentric diamond and carbide burs with .0628" (1.6mm) nominal
diameter friction grip shanks designed for high speed handpieces. Every StarDental
Diamond Bur meets specifi cations below for recommended lengths. Contact your dealer
for a complete list of StarDental Diamond Burs. StarDental autochuck turbines have
the following bur requirements:
2/3 Line
Use only burs with hardened, tempered steel shanks or carbide shanks. Every
StarDental Bur maintains required hardness. Before use, verify concentric rotation
by operating handpiece outside the oral cavity in a safe place.
Note: Do not use burs that produce excessive noise or do not run concentrically.
Do not use burs that are modifi ed, eccentrically designed, or have bent or 'soft'
(non-heat treated) shanks.
Autochuck Bur Changing System
1. Insert bur into autochuck until resistance is felt.
2. Depress autochuck end cap button and continue to feed-in bur until it clicks and stops.
3. Release end cap button. Now, apply light inward force to the dental bur. This will
help set the chucking mechanism for initial start up. (Always tug on bur after it has
been installed to confi rm that it is secured).
1. To remove, grasp handpiece fi rmly so your thumb touches the end cap and push
until a slight 'click' is noticed.
2. Pull bur straight out.
3. Release end cap.
Never depress the autochuck end cap button or rest the end cap against any part of the oral anatomy during
CAUTION
handpiece operation. Depressing the end cap while a bur is rotating can activate the chuck mechanism and result
in end cap heat-up and/or loss of bur retention.
SAFETY
INSTRUCTIONS
FX
ISO 4-Line Connector
Always insert the bur full length of the chuck. If you attempt to extend it from the chuck, the bur may dislodge during use and cause injury to you
Tubing
or your patient.
Coupler
Replace the turbine when the handpiece fails to achieve full speed and/or increases sharply in noise level. This is an indication
of a failing turbine. A failing turbine will reduce the effi ciency of the handpiece and may result in end cap heat up. See "Turbine
Replacement".
Tubing
1. Always tug on bur after chuck is loaded to confi rm that the bur is secured.
2. Before use, verify concentric rotation by operating the handpiece outside the oral cavity in a safe place. Do not use burs
SW that do not run concentrically or produce excessive noise.
ISO 4-Line 3. Never operate handpiece without a bur installed.
4-Line (F.O.) Swivel
Connector
Tubing
4. Always use burs with an overall length of less than 24 mm. The shank length must be at least 7.3 mm. This includes most
Coupler
short shank burs.
5. When using handpieces with autochuck turbine - never depress end cap while bur is rotating.
6. Use only recommended burs to prevent damage to handpiece turbine and/or chuck and in some cases to prevent burs
Bearing
from improper or incorrect placement. An improperly clamped bur may dislodge during use, causing injury to you or
Assembly
your patient. A sudden high-pitched sound or increased vibration while handpiece is operating alerts the operator to
Tubing
the possibility that the chuck is not clamped suffi ciently to retain the bur or a bent bur is inserted.
Turn tubing coupler
while holding swivel
in place
Tubing Coupler
ISO B (4-Line) Type Swivels
5 feet tubing 32 psi + 5 psi = 37 psi
or 12 feet tubing 32 psi + 12 psi = 44 psi
Autochuck Bur Changing System
OVERALL LENGTH
Minimum
7.3 mm
Shank Length
WARNING
CAUTION
Lubricating
The Star® Simplicity FX and SW Handpieces contain a turbine with ceramic bearings that are lubricated and sealed to keep the dirt
out, therefore, never clean ultrasonically or immerse in solvent that would dilute the lubricant. Lubrication of the turbine is required
daily and prior to sterilization. DentaLube II is required to ensure extended life of the Star® Simplicity Handpieces.
For maximum turbine life do not exceed recommended pressure.
Note: Lubricate handpiece daily. Use only DentaLube II, StarDental Part #262539.
1. Disconnect handpiece.
2. Assemble the conical red tip applicator, StarDental Part #202954, into the DentaLube II bottle cap.
3. Find drive air tube at rear of handpiece and place two drops of DentaLube II.
(See illustrations for more detail).
4. With bur in place connect handpiece to tubing, operate for 20 seconds to expel excess lubricant.
Note: Never operate handpiece without bur in place.
Star® Simplicity SW
Applicator
Tip
Drive Air
Drive Air Tube
Cleaning, Sterilization and Lubricating
It is the responsibility of the user to use only FDA compliant sterilizing equipment and accessories that are capable of
CAUTION
meeting the manufacturers recommendations below.
Use steam sterilization exclusively for complete sterility.
CAUTION
Do not exceed 135°C
To prevent damage to the bur, use an autoclavable bur block.
Do not use:
• dry heat sterilizer • cold sterilizers • ultrasonic cleaners • chemical disinfectors • immersion techniques
• surgical milk • surface wipes • hand soaps
• sterilizer bags containing disinfectants
Limits On Reprocessing:
Repeated processing has minimal effect on this handpiece. End of life is normally determined by wear and
damage due to use.
Instructions
Clean and sterilize handpieces and burs as soon as practical before fi rst use and after each patient.
WARNING
Maximum
Containment and It is recommended that handpieces are reprocessed as soon as is reasonably practical following use.
24.0 mm transportation:
Preparation for cleaning: Remove handpiece from swivel. No further disassembly is required.
Cleaning - Automated:
Washer-disinfectors are not recommended.
Cleaning - Manual: Cleaning the Autochuck (Star® Simplicity FX and SW):
PLEASE NOTE: to ensure that your High-Speed chuck continues to be in optimum working condition, clean
once a week with Junk-Out High-Speed Chuck Cleaner Kit P/N 263790:
Shake well before use
-Install brush to handle. See diagram at right.
-Use one new brush per cleaning application.
-Do not reuse brushes.
-Remove bur from chuck.
-Dip brush into bottle.
-Remove excess cleaner from the brush.
-Insert brush into bur end of turbine.
-Clean gently by rotating and inserting the brush in and out of the
turbine.
-Repeat process if necessary.
Reseal cap on bottle immediately after use to reduce evapora-
tion.
Cleaning Burs
NOTE: Burs Must Be Cleaned and Sterilized Before First Use and After
Each Patient.
Cleaning Diamond Burs:
- After each use, clean the diamond bur by running it against a wet diamond cleaning stone.
To mechanically clean, the diamond bur should be held in a solution of either enzymatic presoak or water.
- Rinse the bur thoroughly and allow it to dry.
- Sterilize – See Sterilization
Cleaning the Swivel
1. Disconnect handpiece from swivel; disconnect swivel from tubing by rotating coupler in the opposite direction as
shown in Handpiece Installation. Depress foot control; verify water exits tubing.
2. Connect swivel to tubing by following steps in Handpiece Installation. Depress foot control; if almost no water exits
front of swivel, clean as follows.
3. Remove swivel and fi nd water tube on front face of swivel. See illustration.
4. Insert cleaning wire, StarDental
blockage.
5. Remove wire and apply a blast of air into water tube with syringe air.
Cleaning the Mating Parts of the Swivel
To optimize operation of the swivel disconnect mechanism, swab all internal
surfaces of handpiece with a cotton swab soaked in isopropyl alcohol until
clean. Dry using syringe air.
Clean area from bearing/spring assembly at rear of swivel using isopropyl
alcohol and a toothbrush. Dry using syringe air.
Bearing/
Spring
Assy.
Clean
Star® Simplicity FX
Drive Air
Coolant Air
Water
• detergents • surface sprays
2
1
3
® Part #256719, into water tube. Move wire back and forth to loosen debris at
4-line HiFlo
F.O. Swivel
Water Tube
Internal Surfaces
