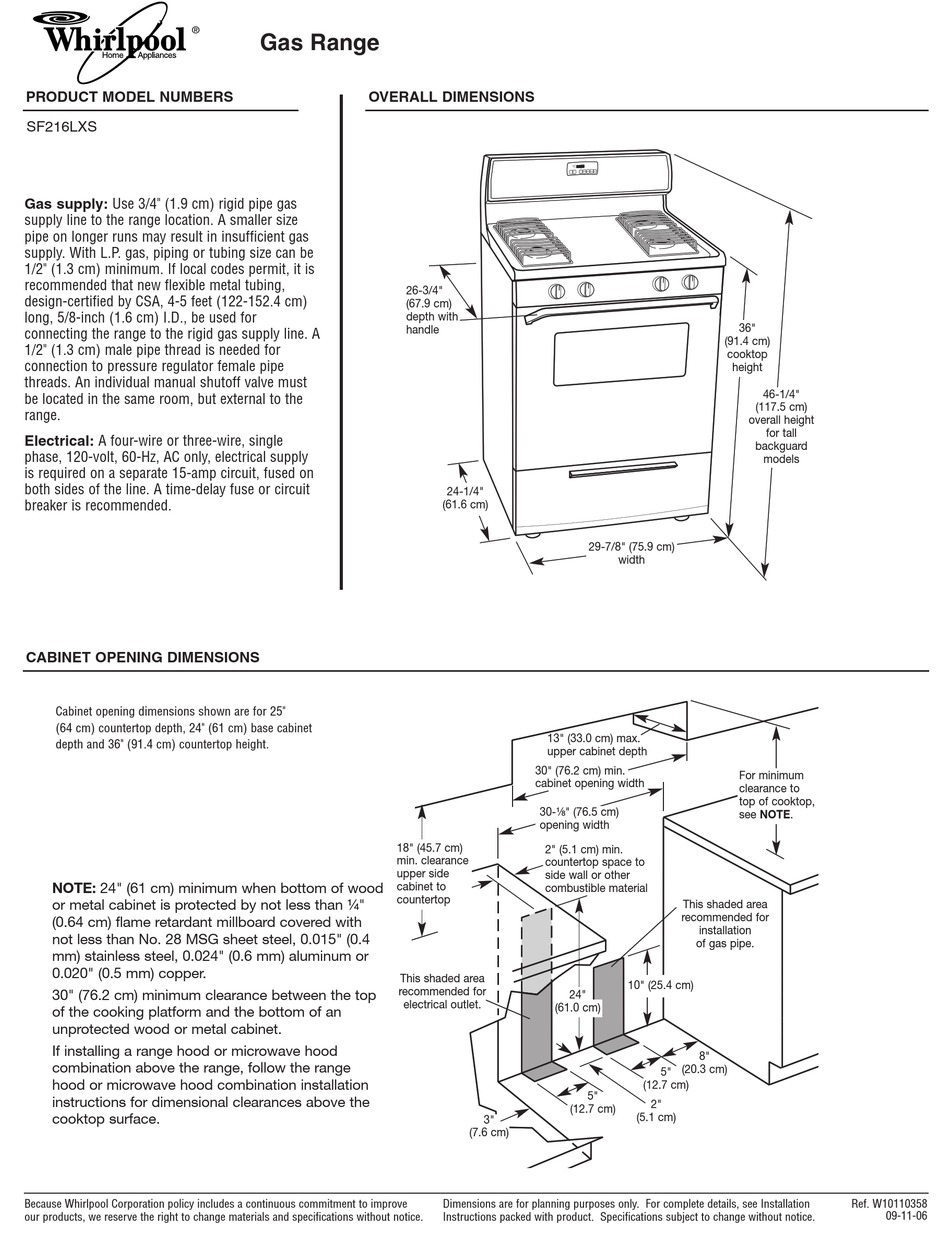

Whirlpool  SF216LXSQ Product Dimensions

®
PRODUCT MODEL NUMBERS
SF216LXS
Gas supply: Use 3/4" (1.9 cm) rigid pipe gas
supply line to the range location. A smaller size
pipe on longer runs may result in insufficient gas
supply. With L.P. gas, piping or tubing size can be
1/2" (1.3 cm) minimum. If local codes permit, it is
recommended that new flexible metal tubing,
design-certified by CSA, 4-5 feet (122-152.4 cm)
long, 5/8-inch (1.6 cm) I.D., be used for
connecting the range to the rigid gas supply line. A
1/2" (1.3 cm) male pipe thread is needed for
connection to pressure regulator female pipe
threads. An individual manual shutoff valve must
be located in the same room, but external to the
range.
Electrical: A four-wire or three-wire, single
phase, 120-volt, 60-Hz, AC only, electrical supply
is required on a separate 15-amp circuit, fused on
both sides of the line. A time-delay fuse or circuit
breaker is recommended.
CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown are for 25"
(64 cm) countertop depth, 24" (61 cm) base cabinet
depth and 36" (91.4 cm) countertop height.
NOTE: 24" (61 cm) minimum when bottom of wood
or metal cabinet is protected by not less than
(0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015" (0.4
mm) stainless steel, 0.024" (0.6 mm) aluminum or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top
of the cooking platform and the bottom of an
unprotected wood or metal cabinet.
If installing a range hood or microwave hood
combination above the range, follow the range
hood or microwave hood combination installation
instructions for dimensional clearances above the
cooktop surface.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Gas Range
OVERALL DIMENSIONS
26-3/4"
(67.9 cm)
depth with
handle
18" (45.7 cm)
min. clearance
upper side
cabinet to
countertop
"
This shaded area
recommended for
electrical outlet.
24-1/4"
(61.6 cm)
29-7/8" (75.9 cm)
29-7/8" width
width
13" (33.0 cm) max.
upper cabinet depth
30" (76.2 cm) min.
cabinet opening width
30- " (76.5 cm)
opening width
2" (5.1 cm) min.
countertop space to
side wall or other
combustible material
24"
(61.0 cm)
5"
(12.7 cm)
3"
(7.6 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
36"
(91.4 cm)
cooktop
height
46-1/4"
(117.5 cm)
overall height
for tall
backguard
models
For minimum
clearance to
top of cooktop,
see NOTE.
This shaded area
recommended for
installation
of gas pipe.
10" (25.4 cm)
8"
(20.3 cm)
5"
(12.7 cm)
2"
(5.1 cm)
Ref. W10110358
09-11-06
