Agri-Fab 45-0566 Owner's Manual

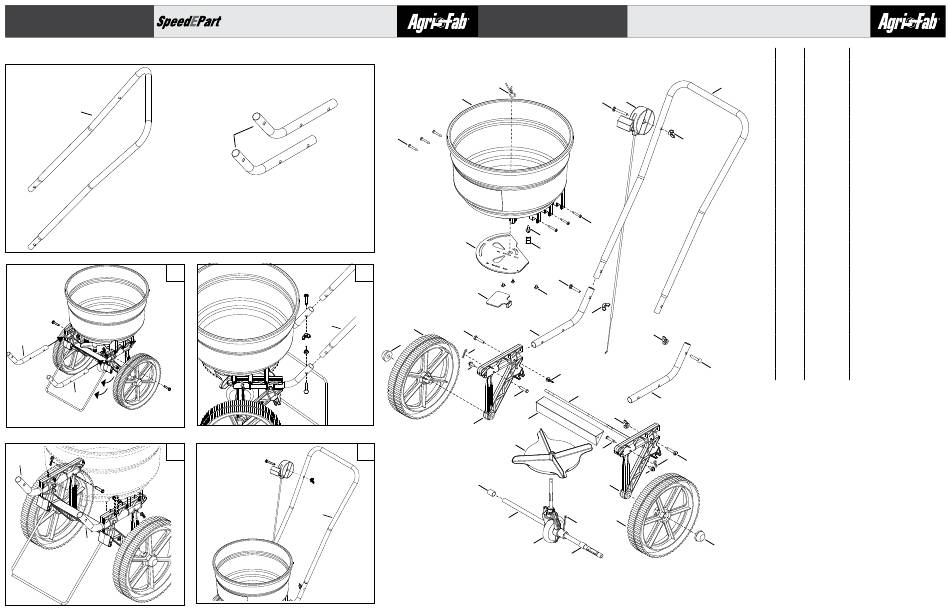

45-0566
50 LB PUSH SPREADER
A
2-9
1
B
B
2
B
B
the fastest way to purchase parts www.speedepart.com
B
14
2-80
3
A
11
4
A
45-0566
50 LB PUSH SPREADER
17
1
20
2
19
23
3
15
12
27
21
26
24
20
6
25
5
4
9
18
13
16
8
18
Problem?
Call 1-800-448-9282
ref
1
2
7
3
10
22
4
5
6
7
24
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
24
23
24
24
25
26
27
23
21
24
25
26
27
20
4
12
11
qty Part no descriPtion
1 2-3 HOPPER, 50 LB. ROUND
1 2-4 GATE, HOPPER 50 LB.
1 2-5 DOOR SLIDE
2 2-6 LEG
1 2-7 BRACE, FRAME
1 2-8 WIREFORM, KICKSTAND
1 2-9 TUBE, HANDLE
1 6-3 ASS'Y, GEARBOX
1 45504 IMPELLER
1 2-11 CONTROL, CABLE ASS'Y
2 44663 NUT, 1/2 PUSH
2 48001 WHEEL
1 2-14 AXLE, 1/2" OD
6 4-2 SCREW, 10-16 X 1.25
3 4-3 SCREW, #8 X .375 PMT #8
1 43501 PIN, COTTER 9/64 X 1-1/2
1 48934 HAIRPIN, AGITATOR
2 45705 SPACER
1 41196 CLAMP, 7/32
4 41622 SCREW, HEX 1/4-14 X .625
2 2-80 TUBE, LOWER FRAME
1 45165 BOLT, CARR .25-20 X 2
2 46000 BOLT, CARR .25-20 X 1.5
5 47141 NUT, WING 1/4-20
2 48365 PIN, CLEVIS 1/4 X 1.11
2 HA3090 PIN, HAIR COTTER 1-1/8
2 1509-90 BOLT, HEX 1/4-20 X 1-1/4
1 3-24 Owner's Manual
FORM NO. 3-24 01/06/2021
