Installation
Install the Application first before connecting the Digital Photo Frame to a PC.

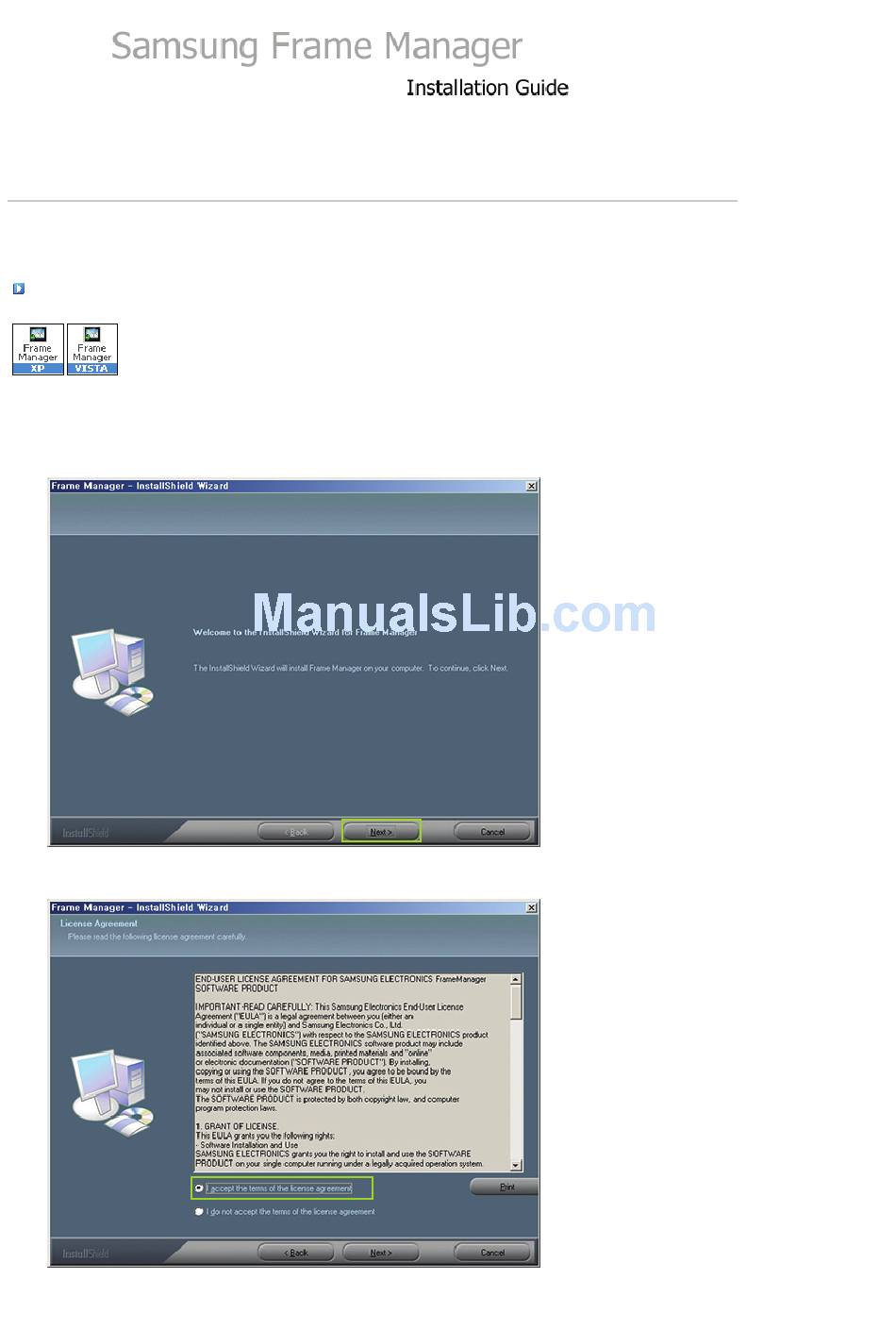

To Install the Frame Manager Software and USB Secondary Display -
1. Click the Frame Manager icon to run the setup file.
2. Click Next.
3. Select I agree to the terms of this license agreement and click Next.
4. Click Next.
Installation
|
|
Installing USB driver
|

Advertisement

Table of Contents
loading

Related Manuals for Samsung SPF83V

Summary of Contents for Samsung SPF83V

  • Page 1 To Install the Frame Manager Software and USB Secondary Display - 1. Click the Frame Manager icon to run the setup file. 2. Click Next. 3. Select I agree to the terms of this license agreement and click Next. 4. Click Next. Installation...
  • Page 2 5. Click Install. 6. Click Finish to restart your computer. The installation is completed.

  • Page 3: Installation

    Now Switch on the device (Samsung Digital Photo Player) and connect the USB cable (provided in the box with the unit) to the PC. 1. Connect the larger "standard USB" connector to the USB port of the PC. Connect the smaller "mini-USB" connector to the "PC" connector of the Samsung Digital Photo Fame.
  • Page 4 2. Select "No, not this time" button. 3. Click on "Next" button. 4. Click on "Next" button.
  • Page 5 6. Select "Search for the best driver in these locations" option. Check "Include this location in the search:" Now click on "Browse" button to select the directory where the Frame Manger software is installed. (Refer to Frame Manager Installation step 3).
  • Page 6 8. Press "Continue Anyway" button. 9. Press "Finish" button.
  • Page 7 10. Now the system is ready to be used.

  • Page 8: Windows Xp

    How To Use Digital Photo Frame As Mini-Monitor If USB cable is not connected and Digital Photo Frame is switched on, it starts working as a Photo Album. To use the Samsung Digital Photo Frame device as a secondary USB Monitor, first install the frame Manger on the Windows XP computer.
  • Page 9 Select Mass-Storage option by clicking the button. Use Left/ Right (button 5 and button 6 in above figure) button on device for selection and by pressing ENTER button (button 8 in above figure) on device. A dialog box (Window Default) will appear and you can open the folder.

  • Page 10: Brightness Control

    The [ ] icon is displayed on the Tray when FrameRatingService is active. If you select this icon, the Photo Frame connected to the PC is displayed in the list. Select the Photo Frame from the list to directly connect to the Samsung Photo Frame Web Configuration website.
  • Page 11 [ ] icon is displayed on the Tray when FrameRatingService is active. If you select this icon, the Photo Frame connected to the PC displays on the list. Select the Photo Frame on the list so you can directly connect Samsung Photo Frame Web Configuration web site.
  • Page 12 Do not operate or switch of Digital Photo Frame Device during UPDATE operation Remove Memory Card or CF card, USB stick, if inserted into device before running UPDATE. All the files required for the update must be available on the PC Browse to the folder containing these files after PROCEED - Click Right Mouse Button on the Frame Manager Tray Icon.
