Summary of Contents for Life Fitness SMSS-CORE

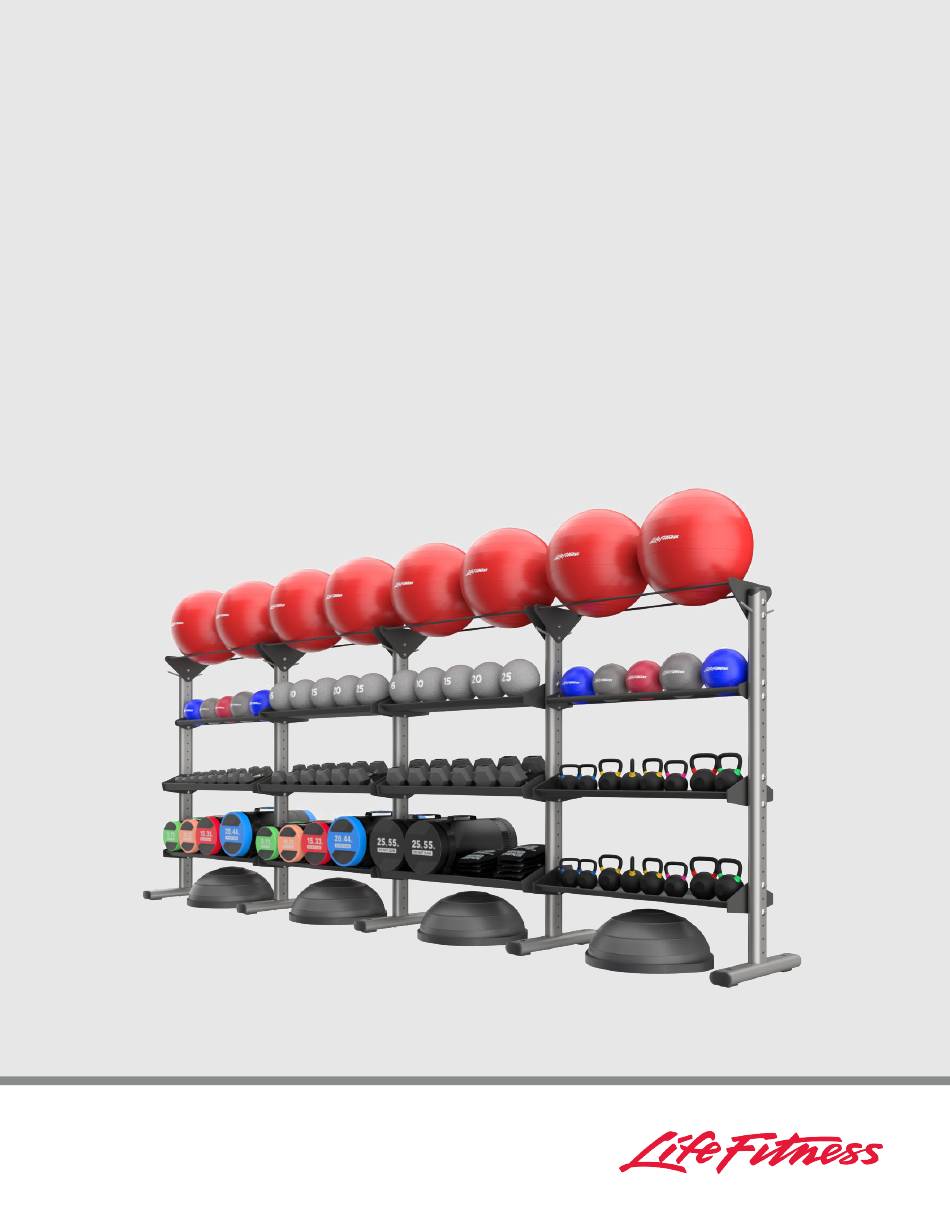

- Page 1 Signature Modular Storage System SMSS-CORE, SMSS-ADD, SMSS-SIDE Owner's Manual/Assembly Instructions 1016566-0001 REV AA...
- Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
- Page 4 User and Service Documents Link https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the link above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2020, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Safety Information
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness Family of Brands equipment, use only replacement parts supplied by Life Fitness Family of Brands. -
Page 7: Product Labels
Contact Customer Support Services to replace any worn or damaged labels. Product Labels General Warning Serial Number Label Locations Item Description General Warning Label Serial Number Label Page 5 of 27... -
Page 8: Assembly
2. Assembly Components / Options Item Description Frame Shelf Components / Options Accessory Shelf Dual Rail Shelf Dumbbell Storage Shelf Dual BOSU Plus Shelf Stability Ball Shelf ViPR / Roller Shelf ViPR / Roller Shelf with Mat Storage Side Foot Side Storage Options Accessory Storage Dual Rail Storage... -
Page 9: Hardware List
Hardware List Item Description M10 X 85mm Bolt (included with side foot kit only) M10 X 80mm Bolt Retainer 1/4" Spacer Socket Nut M10 Washer M10 X 25mm Bolt 7/16" Hole Plug End Cap Page 7 of 27... -
Page 10: Tools Required
Tools Required Item Description Qty. 1/2" Wrench 3/4" Wrench 17mm Wrench 3mm Hex Wrench 7mm Hex Wrench #2 Phillips Screwdriver Rubber Mallet Bolt to Floor Guide section for required anchoring tools. Page 8 of 27... -
Page 11: Assembly Guidelines
Assembly Guidelines When installing two options side by side: • 1/4" spacers not required if options share same mounting holes. When installing Power Block and Dumbbell Storage: • Select one of three 15 degree positions. When installing the Mat Holder: •... - Page 12 Shelf and Side Option Clearances • Ensure shelves and side options have minimum spacing requirements, by counting bolt holes between the top bolt of the lower shelf and the bottom bolt of the shelf above it, using the bottom shelf as a reference for the key above. •...
- Page 13 Side Storage Compatibility Shaded sections of the side storage positions, #1 being bottom and #5 being top, signify the shelf option with its accessories. *Optional Workout Board can be fitted into the #3 position. NOTE: Side Foot included when Accessory or Dual Rail side storage options are selected at any position. Storage Locations Below illustration breaks down the five shelf and side storage locations.
-
Page 14: Assembly Procedure
Assembly Procedure Install Shelf Option Beginning at base: Loosely install Shelf Option and hardware. Item Description Qty. M10 X 80mm Bolt Retainer 1/4" Spacer Socket Nut Shelf Option Page 12 of 27... - Page 15 Install Side Option Install Side Storage Option (if equipped): 1. Loosely install Side Option and hardware. Item Description Qty. M10 X 80mm Bolt Retainer 1/4" Spacer Socket Nut Side Storage Option 2. For Foam Roller option: Orientate bracket for Left or Right placement. 3.
- Page 16 4. For Workout Board: Install Workout Board frame. Item Description Qty. M10 X 80mm Bolt Retainer 1/4" Spacer Socket Nut Workout Board Frame End Cap 5. For Workout Board: Install Workout Board to frame. Item Description Qty. Workout Board M10 Washer M10 X 25mm Bolt 6.
- Page 17 Side Foot Option Beginning at base: 1. Use below chart and table for Side Storage's lowest mounting locations with Side Foot option. Lowest possible side storage positions with side foot Group Side Storage Frame Holes Accessory Storage (shown) 1 and 3 BOSU Left Storage BOSU Right Storage 2 and 3...
- Page 18 Final Assembly Follow these steps to complete assembly. 1. Tighten all hardware: Torque hardware to 18-20 ft-lbs (24.4-27.1 Nm). 2. Anchor unit to floor - RECOMMENDED: Refer to Bolt to Floor Guide in this manual for further details. Item Description Qty.
-
Page 19: Product Information
Weights and Dimensions Weight Dimensions D x W x H Uprights Pounds Kilograms Inches Centimeter SMSS-CORE (two uprights) 76.72 34.79 27.32 x 53.5 x 72.7 69.39 x 135.89 x 184.66 SMSS-ADD (one upright) 38.37 17.40 27.32 x 4.5 x 72.7 69.39 x 11.43 x 184.66... -
Page 20: Footprint And Live Area
Footprint and Live Area Option Footprint Live Area Dual Rail + 29" (73.6 cm) + 29" (73.6 cm) Accessory + 28.5" (72.4 cm) + 28.5" (72.4 cm) BOSU + 24" (60.9 cm) + 24" (60.9 cm) Stability Ball + 23.8" (60.5 cm) + 23.8"... -
Page 21: Maintenance Procedures
4. Maintenance Procedures Maintenance Schedule ACTION DAILY WEEKLY MONTHLY AS NEEDED Frames INSPECT Paint Hardware Frame • Frames with a standard, non-abrasive, wax finish. Inspect • Hardware. Check for loosening. Tighten as required. • Frames. Inspect for wear and damage. •... -
Page 22: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 23: Warranty Coverage
Warranty Coverage NOTE: There is no warranty coverage for labor on Strength Products. Item 10 Years 5 Years 1 Year 90 Days Frame Hardware / Mechanical Items Not Specified Page 21 of 27... -
Page 24: Bolt To Floor Guide Introduction
6. Bolt to Floor Guide Introduction Life Fitness designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over. -
Page 25: Anchor Types
Pullout Force Life Fitness specifies Hilti ™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. -
Page 26: Tools Required
Selected Anchor Design Resistance in Tension * KH-EZ ¼” x 4” 830 lb HUS-H 6MM x 120MM 3.3 kN KH-EZ 3/8” x 4” 1535 lb KH-EZ 3/8” x 5” 1535 lb HUS-H 8MM x 120MM 3.3 kN HUS-H 8MM x 150MM 3.3 kN HSL-3 M 8/40 2000 lb... - Page 27 Dynamic HSL-3 8/40 Anchor Procedure 1. Place unit into position to be mounted. 2. Wearing protective glasses, drill down into flooring perpendicularly to the required depth, ensuring that the foot thickness is being accounted for; refer to Anchor Selection and Foot Dimensions Section. 3.
- Page 28 Dynamic HST Safety Stud Anchor Procedure 1. Place unit into position to be mounted and cycle unit to set stance. 2. If necessary, cut HST Safety Stud Anchor to length before installation, leaving enough length to ensure proper concrete embedment (see Anchor Section for embedment depth required) and proper tightening torque (44 Foot- Pounds/60Nm).
-
Page 29: Foot Dimensions
Foot Dimensions Use below image to determine foot specifications. Page 27 of 27...
