Alpine DVR-F200 Owner's Manual
  1. Manuals
  2. Brands
  3. Alpine Manuals
  4. Dash Cameras
  5. DVR-F200
  6. Owner's manual

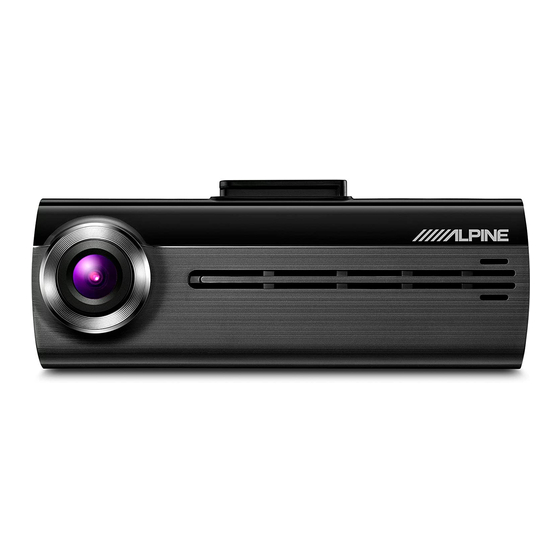

Alpine DVR-F200 Owner's Manual

Wifi dash cam
Hide thumbs
Table of Contents

Advertisement

Quick Links

PHONES
0 (800) 800 130
(050) 462 0 130
(063) 462 0 130
(067) 462 0 130
CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories |
CAR AUDIO — Car audio speakers • Amplifiers • Subwoofers • Processors • Crossovers • Headphones • Accessories | TRIP COMPUTERS — Universal computers • Model computers • Accessories |
GPS NAVIGATORS — Portable GPS • Built-in GPS • GPS modules • GPS trackers • Antennas for GPS navigators • Accessories | VIDEO — DVR • TV sets and monitors • Car TV tuners • Cameras • Videomodules
• Transcoders • Car TV antennas • Accessories | SECURITY SYSTEMS — Car alarms • Bike alarms • Mechanical blockers • Immobilizers • Sensors • Accessories | OPTIC AND LIGHT — Xenon • Bixenon • Lamps
• LED • Stroboscopes • Optic and Headlights • Washers • Light, rain sensors • Accessories | PARKTRONICS AND MIRRORS — Rear parktronics • Front parktronics • Combined parktronics • Rear-view mirrors
• Accessories | HEATING AND COOLING — Seat heaters • Mirrors heaters • Screen-wipers heaters • Engine heaters • Auto-refrigerators • Air conditioning units • Accessories | TUNING — Vibro-isolation
• Noise-isolation • Tint films • Accessories | ACCESSORIES — Radar-detectors • Handsfree, Bluetooth • Windowlifters • Compressors • Beeps, loudspeakers • Measuring instruments • Cleaners • Carsits
• Miscellaneous | MOUNTING — Installation kits • Upholstery • Grilles • Tubes • Cable and wire • Tools • Miscellaneous | POWER — Batteries • Converters • Start-charging equipment • Capacitors
• Accessories | MARINE AUDIO AND ELECTRONICS — Marine receivers • Marine audio speakers • Marine subwoofers • Marine amplifiers • Accessories | CAR CARE PRODUCTS — Additives • Washer fluid •
Care accessories • Car polish • Flavors • Adhesives and sealants | LIQUID AND OIL — Motor oil • Transmission oil • Brake fluid • Antifreeze • Technical lubricant
In store "130" you can find and buy almost all necessary goods for your auto in
Kyiv and other cities, delivery by ground and postal services. Our experienced
consultants will provide you with exhaustive information and help you to chose
the very particular thing. We are waiting for you at the address
https://130.c om.ua
Internet store of
autogoods
SKYPE
km-130

Advertisement

Table of Contents
loading

Related Manuals for Alpine DVR-F200

Summary of Contents for Alpine DVR-F200

  • Page 1 Internet store of PHONES SKYPE 0 (800) 800 130 autogoods km-130 (050) 462 0 130 (063) 462 0 130 (067) 462 0 130 CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories | CAR AUDIO —...
  • Page 2 FOR CAR USE ONLY/ POUR APPLICATION AUTOMOBILE UNIQUEMENT/ NUR FÜR AUTOMOBIL GEBRAUCH/ PARA USO EN AUTOMÓVILES/ SOLO PER L’UTILIZZO IN AUTOMOBILE/ ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ WIFI DASH CAM DVR-F200 • OWNER’S MANUAL • MANUAL DE OPERACIÓN Please read before using this equipment.
  • Page 3 Alpine Electronics is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.

  • Page 4: Table Of Contents

    Contents Safety information 5. Using the PC viewer 5.1 System requirements 1. Product overview 5.2 PC viewer for Windows 1.1 Included items 5.2.1 Installing the PC viewer (for Windows) 1.1.1 Standard items 5.2.2 PC viewer screen layout (for Windows) 26 1.1.2 Accessories (sold separately) 5.2.3 Playing recorded videos on the PC viewer 1.2 Part names...
  • Page 5 6.4 Setting road safety features 6.4.1 Setting the safety cameras 6.4.2 Setting the mobile zone alert 6.5 Configuring the system settings 6.5.1 Setting the display language 6.5.2 Adjusting the system volume 6.5.3 Setting the time zone 6.5.4 Setting the daylight saving time 6.5.5 Setting the speed unit 6.5.6 Setting the speed stamp 7.

  • Page 6: Safety Information

    Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note"...
  • Page 7 Doing so may result in electrical fire or electrocution. • Use only genuine accessories from Alpine Electronics or an authorized Alpine Electronics dealer. Alpine Electronics does not guarantee compatibility and normal operation of third-party accessories.
  • Page 8 • Alpine Electronics is NOT responsible for the loss of any recorded video during operation. • Although the device was designed to withstand high-impact car collisions, Alpine Electronics does not guarantee the recording of accidents when the device is damaged as a result of the accident.

  • Page 9: Product Overview

    1. Product overview 1.1 Included items Ensure that all the items are included when you open the product box. 1.1.1 Standard items Front camera (main unit) Mount Car charger Adhesive cable holder MicroSD memory card Quick start guide / External GPS receiver Hardwiring cable with adapter User guide...

  • Page 10: Part Names

    Product overview 1.2 Part names 1.2.1 Front camera (main unit) - front view Mount connector Used to connect the mount. DC-IN power port Used to connect the power cable. GPS port Used to connect the external GPS receiver (optional). V-IN input port Used to connect the rear camera (optional).

  • Page 11: Front Camera (Main Unit) - Rear View

    Product overview 1.2.2 Front camera (main unit) - rear view REC button • Short Press: Starts manual recording • Press and hold for 3 seconds: Audio recording ON/OFF • Press and hold for 5 seconds: Memory card format Wi-Fi button Wi-Fi LED Press to connect the product to a Indicates the Wi-Fi...

  • Page 12: Removing And Inserting The Memory Card

    • Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly. • Use only authentic memory cards from Alpine Electronics. Alpine Electronics does not guarantee compatibility and normal operation of third-party memory cards.

  • Page 13: Installing The Product

    2. Installing the product 2.1 Installing the front camera (main unit) Follow the instructions to properly install the product. 2.1.1 Selecting an installation location Select an installation location that can record the entire view in front of the vehicle without obstructing the driver’s vision.
  • Page 14 Installing the product Remove the protective film from the adhesive mount, and then press the mount to the installation location. Remove the product from the mount and push the mount against the windshield to ensure that the mount is firmly fixed. Align the product to the mount, and then slide it into the locking position until you hear a click.

  • Page 15: Connecting The Power Cable

    The location and specifications of the power socket may differ by vehicle make and model. • Use the authentic Alpine Electronics cigar socket power cable (optional). If you use another manufacturer's cable, the product may be damaged or electrical fire or electrocution may result due to the voltage difference.

  • Page 16: Installing The Rear Camera (Optional)

    Installing the product 2.2 Installing the rear camera (optional) Refer to the following instructions to properly install the rear camera. 2.2.1 Selecting an installation location Select a location on the rear windshield where there is no defrost grid wire and the camera can record the entire rear view.

  • Page 17: Securing The Rear Camera

    Installing the product 2.2.2 Securing the rear camera Refer to the following instructions to secure the product to the installation location. After determining the installation location, wipe the installation surface of the windshield with a dry cloth. Check the installation location before you secure the rear camera to the rear windshield. After securing the rear camera to the windshield, it is hard to remove the camera or change the installation location due to the strong adhesive.

  • Page 18: Connecting The Rear Camera Cable

    Installing the product 2.2.3 Connecting the rear camera cable Power off the product and connect the rear camera cable to the front camera (main unit). Connect one end of the rear camera cable to the front camera’s V-IN port. Connect the other end of the rear camera cable to the rear camera's connection port.

  • Page 19: Using Recording Features

    3. Using recording features 3.1 Turning the product on or off The product is turned on automatically and continuous recording starts when you turn on the ACC or start the engine. Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).

  • Page 20: Using The Continuous Recording Feature

    Using recording features 3.3 Using the continuous recording feature Connect the power cable to the product’s DC-IN power port and then turn on the vehicle’s electrical accessories or start the engine. The status LED and the voice guide are turned on, and the continuous recording starts.

  • Page 21: Using Parking Mode

    Using recording features 3.5 Using parking mode When the product is connected to the vehicle via the hardwiring cable (optional), the operating mode is switched to parking mode with the voice guide after the engine or electrical accessories are turned off. •...

  • Page 22: Using The Mobile Viewer

    4. Using the mobile viewer You can view and manage recorded videos and configure various product features on your smartphone. One of the following environments is required to use the THINKWARE CLOUD application: • Android 4.4 (KitKat) or higher • iOS 8.0 or higher 4.1 Connect the product to a smartphone 4.1.1 Connecting the product to an Android device On your Android device, open the Play Store, and download and install THINKWARE CLOUD.

  • Page 23: Connecting The Product To An Ios Device

    From the THINKWARE CLOUD, tap Next. The Wi-Fi Settings screen will appear. From the network list, select the Wi-Fi network starting with "Alpine." Enter "123456789" in the Password field, and tap Join. The product is connected to your iOS device via Wi-Fi.

  • Page 24: Mobile Viewer Screen Layout

    Fi network or add a new information. network. Displays the connection status of the product. View main menu. DVR-F200 does not support View more menus for setting the this menu. account, downloading the latest firmware, or safety cameras data. Autogoods “130”...

  • Page 25: Playing Recorded Videos On The Mobile Viewer

    Using the mobile viewer 4.3 Playing recorded videos on the mobile viewer Follow the instructions to play recorded videos. The recording and the Advanced Driver Assistance System (ADAS) features of the product are disabled while checking the video file list or playing a video on the mobile viewer. On your smartphone, run the Thinkware Cloud application and connect the product to the smartphone.

  • Page 26: Using The Pc Viewer

    Insert the memory card into a memory card reader connected to your PC. Run the installation file, and complete the installation according to the instructions given in the installation wizard. After the installation is complete, there will be a shortcut icon to ALPINE DASH CAM PC Viewer. Autogoods “130”...

  • Page 27: Pc Viewer Screen Layout (For Windows)

    PC viewer. screen. Tap the Back button ( Minimize, expand, or close to return to the previous screen. the software. Visit the Alpine Electronics website. Open a file, or save a video with a different name. Displays the GPS...

  • Page 28: Playing Recorded Videos On The Pc Viewer (For Windows)

    Using the PC viewer 5.2.3 Playing recorded videos on the PC viewer (for Windows) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into a memory card reader connected to your PC. Double-click the shortcut to the PC viewer ( ) to open the program.

  • Page 29: Video Control Menu Overview (For Windows)

    Using the PC viewer 5.2.4 Video control menu overview (for Windows) The following provides brief information about the PC viewer's video control menu. ➐ ➑ ➒ ➓ ➊ ➋ ➌ ➍ ➎ ➏ Number Item Description Play the previous file Play the previous file in the currently selected folder.

  • Page 30: Pc Viewer For Mac

    5.3 PC viewer for Mac 5.3.1 Installing the PC viewer (for Mac) You can download the latest PC viewer software from the Alpine Electronics website (https://support. alpine-europe.com/). The PC viewer installation file is stored in the root folder of the memory card that is provided with the product.

  • Page 31: Pc Viewer Screen Layout (For Mac)

    Print the current Set the language for the videos. scene. PC viewer. Visit the Alpine Electronics website. Displays the current rear video. Displays the current front video. Right-click this pane to display the current video in full screen.

  • Page 32: Playing Recorded Videos On The Pc Viewer (For Mac)

    Using the PC viewer 5.3.3 Playing recorded videos on the PC viewer (for Mac) Follow the instructions to play recorded videos. Turn off the product and remove the memory card. Insert the memory card into your Mac using a SD card reader or SD card adapter provided. Open the PC viewer.

  • Page 33: Video Control Menu Overview (For Mac)

    Using the PC viewer 5.3.4 Video control menu overview (for Mac) The following provides brief information about the PC viewer's video control menu. ➊ ➋ ➌ ➍ ➎ ➏ ➐ ➑ ➒ ➓  Number Item Description Play/Pause Play or pause the selected video file. ➊...

  • Page 34: Settings

    6. Settings You can set the product features according to your needs to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer. The product will stop recording while configuring settings on the mobile viewer. 6.1 Managing the memory card 6.1.1 Partitioning the memory card You can partition the memory card to adjust the storage space for different types of video recordings.

  • Page 35: Setting The Camera

    Settings 6.2 Setting the camera You can adjust the brightness of the front and rear view or reverse left and right of the rear view. 6.2.1 Setting the brightness of the front camera You can set the brightness of the front view recording. Refer to the following instructions to set the brightness.

  • Page 36: Setting Recording Features

    Settings 6.3 Setting recording features You can set and adjust various features for recording, including the detection sensitivity for recording when the product detects an impact during continuous recording. 6.3.1 Setting the continuous impact detection sensitivity You can set the detection sensitivity for recording when an impact is detected while driving. When you set the sensitivity, you must consider the road conditions, traffic situation, and your driving style.

  • Page 37: Setting The Motion Detection Sensitivity

    Settings 6.3.4 Setting the motion detection sensitivity The Motion detection feature records a video when a moving object is detected near your vehicle. Refer to the following instructions to set the motion detection sensitivity. From the mobile viewer, tap Dash Cam Settings Record Settings.

  • Page 38: Setting The Battery Protection Feature

    Settings 6.3.6 Setting the battery protection feature You can set to use the battery protection feature. Follow the instructions to activate the feature. From the mobile viewer, tap Dash Cam Settings Record Settings. > From Battery Protection, select Enabled or Disabled. The new setting is applied automatically. 6.3.7 Setting the battery cutoff voltage feature You can set the voltage limit to stop recording at when using the Low Voltage Off feature.

  • Page 39: Setting Road Safety Features

    Settings 6.4 Setting road safety features You can activate or deactivate a safety camera alert system. 6.4.1 Setting the safety cameras When the vehicle approaches or passes the speed limit zone, the safety camera alert system will collect GPS signals and safety camera data. Refer to the following instructions to enable or disable this feature. From the mobile viewer, tap Dash Cam Settings Road Safety Settings.

  • Page 40: Adjusting The System Volume

    Settings 6.5.2 Adjusting the system volume This menu allows you to adjust the voice guidance volume. Follow the instructions to adjust the volume. From the mobile viewer, tap Dash Cam Settings System Settings. > From Volume, select 0, 1, 2, or 3. The new setting is applied automatically. If you select 0, the voice guidance will be disabled.

  • Page 41: Setting The Speed Unit

    Settings 6.5.5 Setting the speed unit Follow the instructions to set the speed unit. From the mobile viewer, tap Dash Cam Settings System Settings. > From Speed Unit, select km/h or mph. 6.5.6 Setting the speed stamp Follow the instructions to turn on or off the speed stamp feature. From the mobile viewer, tap Dash Cam Settings System Settings.

  • Page 42: Accessing The Product Information

    7. Accessing the product information New users may benefit from the basic product information that can be accessed from the Menu screen. 7.1 Viewing the product information From the mobile viewer, tap Dash Cam Info to view product information. The following product information will be displayed on the screen.

  • Page 43: Upgrading The Firmware

    Follow the instructions to upgrade the firmware. On your PC, open a web browser and go to https://support.alpine-europe.com/. Select the product and download the latest firmware upgrade file.

  • Page 44: Troubleshooting

    • Turn off the power, remove the memory card, and then check to ensure that the recognized. contacts in the memory card slot are not damaged. • Ensure that the memory card is an authentic product distributed by Alpine Electronics. Alpine Electronics does not guarantee compatibility and normal operation of third-party memory cards.

  • Page 45: Specifications

    To see the product specifications, refer to the following table. Item Specification Remarks Model name DVR-F200 Dimensions / Weight 98.5 x 34 x 22 mm / 54 g - UHS-1: 16 GB, 32 GB, 64 GB, 128GB Memory microSD memory card...
  • Page 46 Specifications Item Specification Remarks Operating temperature 14 – 140℉ / -10 – 60℃ Storage temperature -4 – 158℉ / -20 – 70℃ Connection Interface 1 x V-IN port Autogoods “130”...
  • Page 47 Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. Alpine Electronics is not responsible for any loss, such as data loss.
  • Page 48 Specifications Hereby, Alpine Electronics (Europe) declares that the radio equipment type DVR-F800PRO, DVR-F200 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www. alpine.com/e/research/doc/ Information on Disposal of Old Electrical and Electronic Equipment and Battery (applicable for countries that have adopted separate waste collection systems) If you want to dispose this product, do not mix it with general household waste.
  • Page 49 Ohmstraße 4, Tokyo 145-0067, JAPAN 85716 Unterschleißheim, Germany Phone: 03-5499-4531 Phone 089-32 42 640 ALPINE ELECTRONICS OF U.K. LTD. ALPINE ITALIA S.p.A. Alpine House Viale Cristoforo Colombo, 8 Fletchamstead Highway, Coventry CV4 9TW, U.K. 20090 Trezzano sul Naviglio MI, Italy www.alpine.co.uk...

Table of Contents
