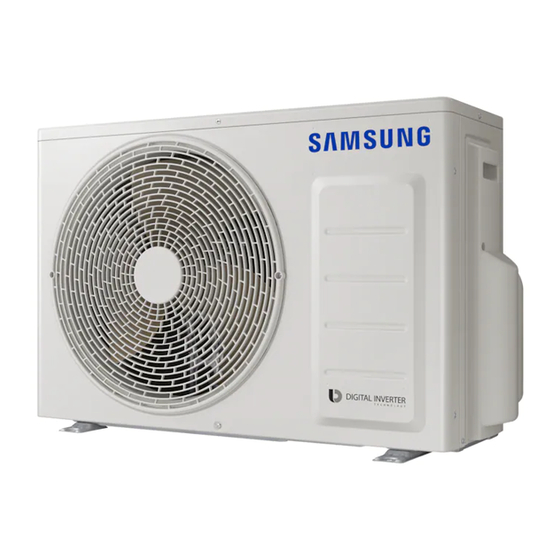

Samsung AVMKH035EA0 Owner's Instructions Manual
System air conditioner
Hide thumbs
Also See for AVMKH035EA0:
- Service manual (430 pages) ,
- Technical manual (282 pages) ,
- Manual de instrucciones (16 pages)
Table of Contents
Advertisement
Quick Links
E S F I P D G R DB98-05142A(5)
OWNER'S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D'UTILISATION
ISTRUZIONI PER L'USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
àçëíêìäñàü èéãúáéÇÄíÖãü
Heat pump
AVMKH020CA0(1,2,4)
AVMKH032CA0(1,2,4)
AVMKH040CA0(1,2,4)
AVMKH020EA(B)0(1,2,4)
AVMKH026EA(B)0(1,2,4)
AVMKH035EA(B)0(1,2,4)
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
Sistema Aria Condizionata
Sistema Ar Condicionado
Klimaanlage System
ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓ̉ˈËÓÌÂ
Cooling only
AVMKC020CA0(1,2,4)
AVMKC032CA0(1,2,4)
AVMKC040CA0(1,2,4)
AVMKC020EA(B)0(1,2,4)
AVMKC026EA(B)0(1,2,4)
AVMKC035EA(B)0(1,2,4)
Advertisement
Table of Contents
Related Manuals for Samsung AVMKH035EA0
Summary of Contents for Samsung AVMKH035EA0
- Page 1 Climatiseur numérique multifonctionnel ëËÒÚÂÏÌ˚È ÇÓÁ‰Û¯Ì˚È äÓ̉ˈËÓÌ E S F I P D G R DB98-05142A(5) OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG àçëíêìäñàü èéãúáéÇÄíÖãü Heat pump AVMKH020CA0(1,2,4) AVMKH032CA0(1,2,4) AVMKH040CA0(1,2,4) AVMKH020EA(B)0(1,2,4) AVMKH026EA(B)0(1,2,4) AVMKH035EA(B)0(1,2,4) System Air Conditioner Aire acondicionado sistemático Sistema Aria Condizionata Sistema Ar Condicionado...
-
Page 2: Safety Precautions
WARNING URING OPERATION ISPOSING OF THE UNIT THERS Register your product at www.samsung.com/global/register Risk of electric shock. Can cause injury or death. remote electric power supplies before servicing, installing or cleaning. This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. -
Page 3: Table Of Contents
Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........2 View of the Unit . -
Page 4: View Of The Unit
View of the Unit The figures are shown in this instruction may differ from yours depending on the model. Indoor Unit Remote control sensor - Heat Pump Models : On/Off indicator(Green) & Removing frost indicator(Red) - Cooling Only Models : On/Off indicator Air flow blade Air inlet... -
Page 5: Outdoor Unit
Outdoor Unit TYPE A Outdoor Unit TYPE C Air outlet Connection valve Outdoor Unit TYPE E Air outlet Connection valve If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp. -
Page 6: Wireless Remote Controller-Buttons And Display
Wireless Remote Controller-Buttons and Display The wireless remote controller is an optional accessory. To use the wireless remote controller, refer to an appropriate manual. Operating mode Temperature setting Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator After cleaning the air filter, press the filter reset button. -
Page 7: Wired Remote Controller-Buttons And Display
Wired Remote Controller-Buttons and Display The wired remote controller is an optional accessory and it is installed on the wall. To use the wired remote controller, refer to an appropriate manual. Removing frost indicator (Except Cooling Only Models) Communication error indicator On Timer setting Off Timer setting Test indicator... -
Page 8: Centralized Controller
Centralized Controller The centralized controller is an optional accessory and it is installed on the wall. To use the centralized controller, refer to an appropriate manual. Front View The operating lamp comes on even when only one air conditioner connected to the centralized controller is operating. Side View Operating Mode Switch Choose the appropriate operating mode with the Operating Mode Switch... -
Page 9: Function Controller
Function Controller The function controller is an optional accessory and it is installed on the wall. The function controller is an additional controller which is used with the centralized controller. To use the function controller, refer to an appropriate manual. Removing frost indicator (Except Cooling Only Models) Communication error indicator... -
Page 10: Operating Recommendations
Operating Recommendations Here are a few recommendations that you should follow when operating your air conditioner. Topic Recommendation Heating The heat pump function of the air conditioner absorbs heat performances from outside air and brings it indoors. As the temperature of the outside air drops, the heating performance of air conditioner will decrease. -
Page 11: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges, within which the air conditioner can be used. If the air conditioner is used at... High temperature Low temperature High humidity levels Mode Outdoor Temperature Indoor Temperature Heating -15°C to 24°C approx. -
Page 12: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner Wired Remote Controller Wireless Remote Controller To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning your air conditioner, ensure that you have switched off the electric circuit breaker used for the unit. -
Page 13: Bio-Pure Filter Installation (Optional)
Bio-Pure Filter Installation (Optional) The air conditioner can be fitted with a Bio-Pure or deodorizing filter to remove minute dust particles or odours. The service life of the filter is approximately three months depending on the time during which the air conditioner is used. Remove the vinyl packing from the filter. -
Page 14: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save your time and expense of an unnecessary call. Problem The air conditioner does not operate at all Wired Remote Controller The air conditioner does not operate with the remote controller Wired Remote Controller... -
Page 15: Technical Specifications
Technical Specifications Model AVMKH020CA0(1,2,4) AVMKH032CA0(1,2,4) AVMKH040CA0(1,2,4) AVMKC020CA0(1,2,4) AVMKC032CA0(1,2,4) AVMKC040CA0(1,2,4) AVMKH020EA(B)0(1,2,4) AVMKH026EA(B)0(1,2,4) AVMKH035EA(B)0(1,2,4) AVMKC020EA(B)0(1,2,4) AVMKC026EA(B)0(1,2,4) AVMKC035EA(B)0(1,2,4) Power Supply 1Ø, 208-230V~, 60Hz 1Ø, 220-240V~, 50Hz... - Page 16 THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR: DIESE KLIMAANLAGE IST FABRIZIERT VON: ùíéí äéçÑàñàéçÖê àáÉéíéÇãÖç îàêåéâ: ELECTRONICS...
