WF1702AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1700AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1602AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1600AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1702AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1700AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1602AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1600AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)

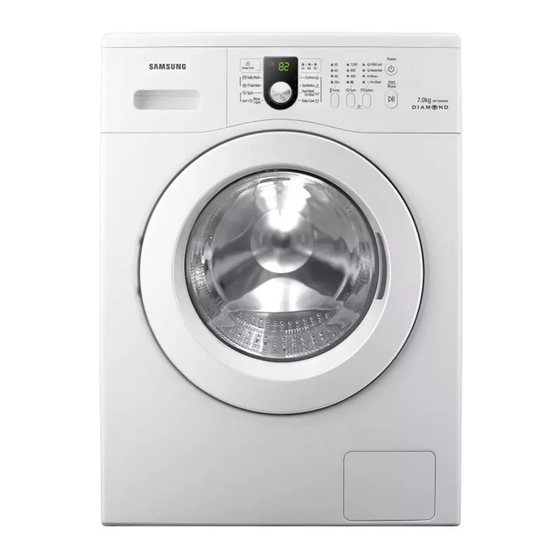

Washing Machine
This manual is made with 100% recycled paper.
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
WF1702NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1700NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1602NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1600NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1702NM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1700NM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1602NM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
WF1600NM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)

Advertisement

loading

Summary of Contents for Samsung WF1602NHWG/YLE

  • Page 1 WF1602AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1600AH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1702AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1700AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1602AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1600AM(A/C/D/F/G/H/R/S/T/V/W/Z)(G) Washing Machine This manual is made with 100% recycled paper. imagine Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register WF1702NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1700NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1602NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1600NH(A/C/D/F/G/H/R/S/T/V/W/Z)(G) WF1702NM(A/C/D/F/G/H/R/S/T/V/W/Z)(G)
  • Page 2 Samsung washing machine has all the features to turn a mundane chore into a pleasure. Your Samsung washing machine includes wash programs that adds protection to the clothing of children with sensitive skin.
  • Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
  • Page 4: Safety Information

    Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features.
  • Page 5 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Page 6 safety information The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220-240V/50Hz/15A wall socket or higher and use the socket for this appliance only.
  • Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.
  • Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
  • Page 9 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
  • Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
  • Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry.
  • Page 12 contents SETTING UP YOUR WASHING WASHING A LOAD OF LAUNDRY CLEANING AND MAINTAINING YOUR WASHING MACHINE TROUBLESHOOTING AND INFORMATION CODES CALIBRATING YOUR WASHING CYCLE CHART 12_ contents Checking the parts MACHINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature...
  • Page 13 Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. The number of bolt hole covers depends on the model (3~5 covers).
  • Page 14 setting up your washing machine To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.
  • Page 15 Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.
  • Page 16 setting up your washing machine STEP 2 Before installing the washing machine, you must remove the five shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. 2. Hold the bolt with the spanner and pull it through the wide section of the hole.
  • Page 17: Connecting The Water Supply Hose

    STEP 3 When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the leveling feet in and out as necessary by hand.
  • Page 18 setting up your washing machine Connecting the water supply hose (selected models) 1. Remove the adaptor from the water supply hose. 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.
  • Page 19 6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury.
  • Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.
  • Page 21: Washing A Load Of Laundry

    With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).
  • Page 22 washing a load of laundry DIGITAL GRAPHIC DISPLAY CYCLE SELECTOR 22_ washing a load of laundry Displays the remaining wash cycle time, all cycle information, and error messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”...
  • Page 23 Press this button repeatedly to cycle through the available Delay End options (from 3 hours to 19 hours in one hour increments). DELAY END The hour displayed indicates the time when the wash cycle will be SELECTION BUTTON finished. Press this button repeatedly to cycle through the available water TEMPERATURE SELECTION BUTTON All Lamps Turn Off: Cold water...
  • Page 24 washing a load of laundry The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Spin( ) and Option( 3 seconds.
  • Page 25 Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap.
  • Page 26 washing a load of laundry You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power( 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfilling it. 5.
  • Page 27 Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type If the laundry is unbalanced, the spin efficiency may be degraded. efficiency may be degraded.
  • Page 28 washing a load of laundry The type of detergent you should use is based on the type of fabric (cotton, synthetics, items, Hand Wash For Wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area.
  • Page 29 cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. 1. Unplug the washing machine from the power supply. 2. Open the filter cover using a coin or a key. 3.
  • Page 30 cleaning and maintaining your washing machine 1. Press the release lever on the inside of the detergent drawer and pull the drawer out. 2. Remove the liquid detergent divider from the detergent drawer 3. Wash all parts under running water. 4.
  • Page 31 We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous page.) Before cleaning the debris filter, make sure to unplug the power cord. 1.
  • Page 32 cleaning and maintaining your washing machine You should clean the water hose mesh filter at least once a year, or when the error message of “4E” is displayed: 1. Turn off the water supply to the washing machine. 2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out due to the air pressure in the hose, cover the hose with a cloth.
  • Page 33 PROBLEM SOLUTION If the problem persists, contact your local Samsung Customer Service. Make sure your washing machine is plugged in. Make sure the door is firmly closed. Make sure the water source tap(s) are turned on.
  • Page 34: Information Codes

    Customer Service. CODE SYMBOL cE/3E For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer. calibrating your washing machine Samsung washing machine detects the laundry weight automatically.
  • Page 35: Cycle Chart

    cycle chart ( user option) Max load(kg) PROGRAM WF1702 WF1602 WF1700 WF1600 1. A cycle with a prewash takes approx. 15 minutes longer. 2. The cycle duration data has been measured under the conditions specified in Standard IEC 60456 / EN 60456.
  • Page 36 appendix The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems.
  • Page 37 TYPE DIMENSION WATER PRESSURE WATER VCLUME NET WEIGHT WASH AND SPIN CAPACITY POWER CONSUMPTION WASH AND HEATING SPIN The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement. FRONT LOADING WASHER WF1702 / WF1700 W600mm X D550mm X H850mm 50 kPa ~ 800 kPa...
  • Page 38 appendix TYPE DIMENSION WATER PRESSURE WATER VCLUME NET WEIGHT WASH AND SPIN CAPACITY POWER CONSUMPTION WASH AND HEATING The appearance and specifications of the product are subject to change without prior notice for purposes of product enhancement. 38_ appendix W600mm X D450mm X H850mm WF1602 MODEL 220 V...
  • Page 39 10010 1200 Cotton 60 ºC and 40 ºC + Intensive dB (A) re 1 pW dB (A) re 1 pW Height Width Depth 3) 50-800 220-240 2000-2400 Samsung Electronics Co., Ltd. WF1700 1.23 0.89 0.69 0.95 10010 1000 appendix _39...
  • Page 40 0.95 L/yr 8580 1200 Cotton 60 ºC and 40 ºC + Intensive dB (A) re 1 pW dB (A) re 1 pW Height Width Depth 3) 2000-2400 Samsung Electronics Co., Ltd. WF1600 1.06 0.79 0.65 0.95 8580 1000 50-800 220-240...
  • Page 41 memo...
  • Page 42 memo...
  • Page 43 memo...
  • Page 44 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
