Honeywell Hometronic HRD 20 Operation

Hide thumbs

Advertisement

Quick Links

Download this manual
Remote Control
HRD 20
Operation

Advertisement

loading

Related Manuals for Honeywell Hometronic HRD 20

Summary of Contents for Honeywell Hometronic HRD 20

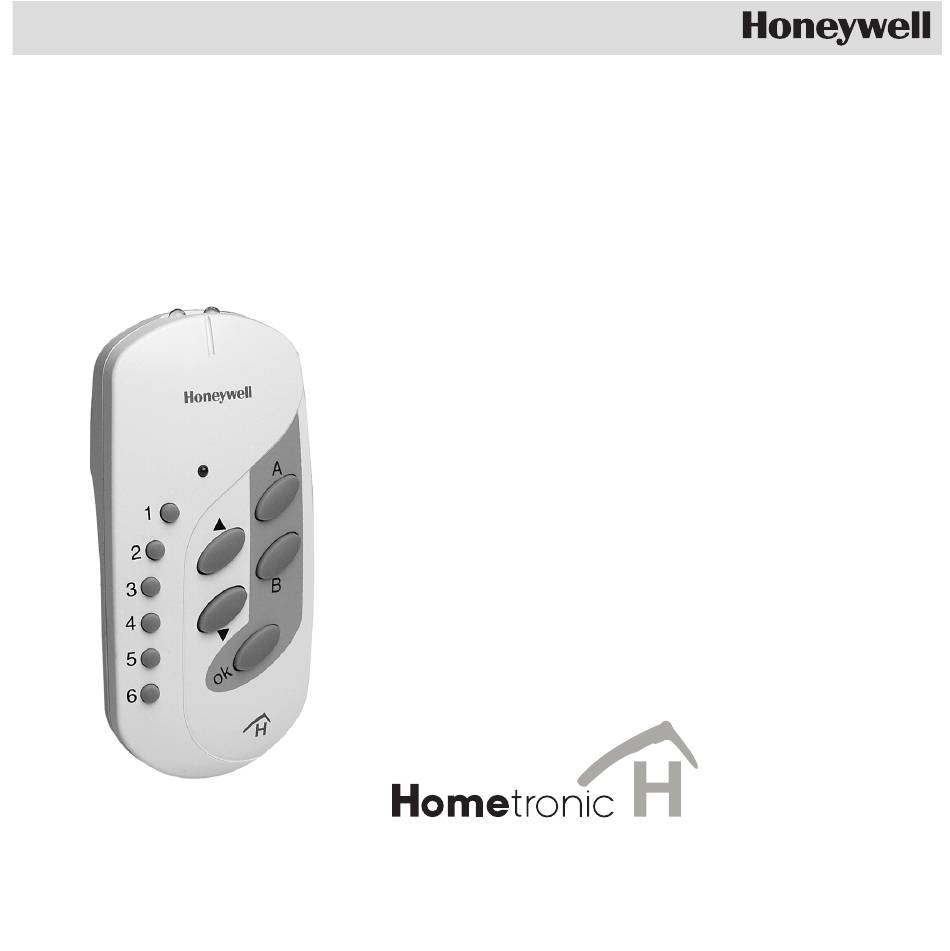

  • Page 1 Remote Control HRD 20 Operation...
  • Page 3 Overview Overview For your information Technical terms are identified by an * and are explained in the glossary (page 18). Application With the Hometronic* HRD 20 remote control you can: • Switch devices on and off or dim lights • Control shutters/awnings •...

  • Page 4: Table Of Contents

    Overview Contents Overview Assigning buttons Controlling the Hometronic with the remote control Activating the child-proofing Replacing the batteries Glossary Technical data Help with problems u rl rt y fw a...

  • Page 5: Overview

    Overview Front and rear „ LED* green/red … Battery compartment ‡ Assignment lable (enclosed) Buttons Buttons 1 ... 6 Selection buttons for lamps, devices, shutters, heating, etc. Buttons A, B Selection buttons for Lifestyles Confirmation button Control buttons ▼ ▲...

  • Page 6: Assigning Buttons

    Assigning buttons Assigning buttons 1. Notating the button assignment Decide which Hometronic component is to be controlled by which ► button. Note the assignment on the enclosed table label. ► 2. Change to the "Installation" submenu If the Hometronic is in manual mode*, press the button for ►...
  • Page 7 Assigning buttons Press the dial button. ► LIFESTYLE TIME PROGRAMS The following text is displayed: DISPLAY SETTINGS Select "Settings" and press the dial ► INSTALLATION button. DE-INSTALLATION SENSOR FUNCTION The following text is displayed: SUMMER TIME 3. Activating the Teach-in mode at the Hometronic Manager The new Hometronic components first have to be assigned to the Hometronic Manager before they can be taken into operation.
  • Page 8 Assigning buttons Select "Devices/Light" and press the dial ► CEILING LIGHT button. MODULE-2 MODULE-3 The names of the dimmers/switches MODULE-4 are displayed, for example: If " " is displayed after a module name, this module has already been assigned to the Hometronic Manager. The process of assigning or changing module names is described in the operating instructions of the Hometronic Manager.
  • Page 9 Assigning buttons 4. Assigning buttons Press button 1 of the remote control until the LED flashes red-green. ► The remote control is ready for the Teach-in for 15 seconds. Move the front of the remote ► control across the lit-up LED of the Hometronic Manager.
  • Page 10 Assigning buttons Successful Teach-in The Teach-in is successful when the LED of the remote control shines green (for approx. 5 seconds). The kitchen lamp can now be controlled with button 1 (refer to the chapter: "Controlling the Hometronic with the remote control"). Enter the button assignment in the assignment table.
  • Page 11 Assigning buttons Assigning further buttons Select the component in accordance with your table (Step 1). ► Switch to the "Installation" submenu (Step 2). ► Activate the Teach-in for the desired component or the Lifestyle ► (Step 3). Assign the button of the remote control (Step 4). ►...

  • Page 12: Controlling The Hometronic With The Remote Control

    Controlling the Hometronic with the remote control Controlling the Hometronic with the remote control After the buttons have been assigned you use the remote control to control the Hometronic. Observe the following principle: In order to select a component or a Lifestyle, press one of the selection buttons 1-6, A or B: The LED lights up green.
  • Page 13 Controlling the Hometronic with the remote control Controlling the ceiling lamp button 1 n Switching the ceiling lamp on or off Press button 1. ► The LED lights up green. Press the ▲ button briefly. ► The LED flashes. The ceiling lamp is switched on. ▼...
  • Page 14 Controlling the Hometronic with the remote control Controlling the shutters button 2 Opening and closing the shutters completely Press button 2. ► The LED lights up green. ▼ Press the button briefly. ► The shutter closes completely. Press the ▲ button briefly. ►...
  • Page 15 Controlling the Hometronic with the remote control Raising and lowering the setpoint temperature button 3 Note: The setpoint temperature cannot be adjusted smoothly. The temperature jump* is preset to 2 °C at the Hometronic Manager. Example If the setpoint temperature amounts 20 °C, it can be lowered or raised to 18 or 22 °C.
  • Page 16 Controlling the Hometronic with the remote control Establishing the setpoint temperature The setpoint temperature of a room is controlled in automatic mode by the Hometronic Manager. If you want to return to this setpoint temperature: Press button 3. ► Press OK. ►...
  • Page 17 Controlling the Hometronic with the remote control Remote control without the Hometronic Manager You can control components with the Hometronic remote control even if you have not installed a Hometronic Manager (exception: radiator and storey controller). The buttons can have the following assignments: •...

  • Page 18: Activating The Child-Proofing

    Activating the child-proofing Activating the child-proofing The remote control can be disabled by means of a simple button combination. Disabling the remote control ▲ ▼ Press the buttons and OK simultaneously. ► The remote control is disabled. Check whether it is disabled by pressing any button. ►...

  • Page 19: Replacing The Batteries

    Replacing the batteries Replacing the batteries Replace the batteries as soon as the LED of the remote control shows red or does not light up when a selection button is pressed (exception: remote control is disabled, the LED flashes red). Replacing the batteries Open the battery compartment at the bottom of the remote control.

  • Page 20: Glossary

    Temperature specification for Manager heating control (not the room temperature) Hometronic Temperature jump House automation system of Honeywell Interval in which the setpoint temperature is changed. Preset Hometronic Manager to 2 °C at the Hometronic Central control unit of Manager (parameter name:...

  • Page 21: Technical Data

    Technical data Technical data Average durability of the Approx. 2 years (alkali) batteries Approx. ¾ years (rechargeable) 0...8 °C (Works setting Remote offset range at the Hometronic Manager: 2 °C) Operating temperature 0...50 °C Storage temperature –20...+70 °C Degree of protection IP 20 Maximum humidity 95 %...

  • Page 22: Help With Problems

    Help with problems Help with problems No reaction of the Cause Remedy component/display Change the batteries LED does not light up or Batteries empty or ► (see page 17). lights up red when a button is pressed LED flashes red when Remote control Enable the remote ►...
  • Page 24 Honeywell AG Böblinger Straße 17 D – 71101 Schönaich Telephone (+49) 7031 637-300 This company is certificated to Radio frequency registration: A, B, CH, D, DK, E, F, FIN, IT, LUX, N, NL, UK: The right is reserved to make modifications. This document is definitive for the enclosed product and replaces all previous publications.
