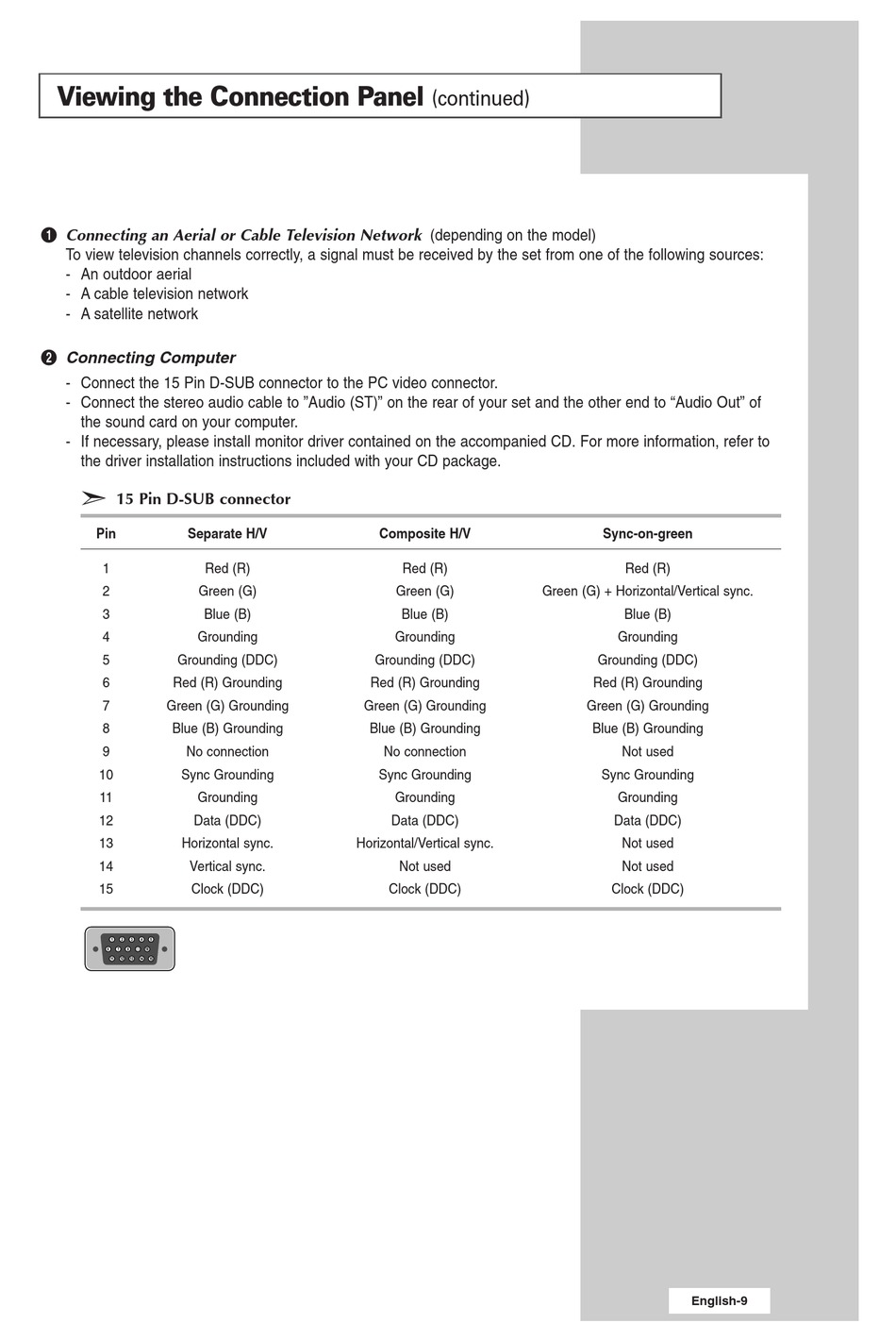

Viewing the Connection Panel
ΠConnecting an Aerial or Cable Television Network (depending on the model)
To view television channels correctly, a signal must be received by the set from one of the following sources:
- An outdoor aerial
- A cable television network
- A satellite network
´ Connecting Computer
- Connect the 15 Pin D-SUB connector to the PC video connector.
- Connect the stereo audio cable to "Audio (ST)" on the rear of your set and the other end to "Audio Out" of
the sound card on your computer.
- If necessary, please install monitor driver contained on the accompanied CD. For more information, refer to
the driver installation instructions included with your CD package.
➣
15 Pin D-SUB connector
Pin Separate H/V
1 Red (R)
2 Green (G)
3 Blue (B)
4 Grounding
5 Grounding (DDC)
6 Red (R) Grounding
7 Green (G) Grounding
8 Blue (B) Grounding
9 No connection
10 Sync Grounding
11 Grounding
12 Data (DDC)
13 Horizontal sync.
14 Vertical sync.
15 Clock (DDC)
(continued)
Composite H/V
Red (R)
Green (G)
Blue (B)
Grounding
Grounding (DDC)
Red (R) Grounding
Green (G) Grounding
Blue (B) Grounding
No connection
Sync Grounding
Grounding
Data (DDC)
Horizontal/Vertical sync.
Not used
Clock (DDC)
Sync-on-green
Red (R)
Green (G) + Horizontal/Vertical sync.
Blue (B)
Grounding
Grounding (DDC)
Red (R) Grounding
Green (G) Grounding
Blue (B) Grounding
Not used
Sync Grounding
Grounding
Data (DDC)
Not used
Not used
Clock (DDC)
English-9
