Page 1 X10+/X15+/X30 3.0 Notices No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein;...
Page 2: Important Safety Information
Important Safety Information Safety Instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.
Page 3: Care During Use
Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries.
Page 4: Laser Safety
Laser Safety All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard.
Page 5: Regulatory Compliance Statements
Regulatory Compliance Statements Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.
Page 6 In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated.
Page 7: United States Of America
United States of America Unintentional Emitter per FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 8: Fcc Part
The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.
Page 9 If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
Page 10 Canada Unintentional Emitter per ICES-003 This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté...
Page 11 Telecommunications per DOC notice (for products fitted with an IC-compliant modem) The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’...
Page 12: European Union
European Union The following information is only applicable to systems labeled with the CE mark European Directives This Information Technology Equipment has been tested and found to comply with the following European directives: • EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/ EEC as per –...
Page 13 European States qualified under wireless approvals: Austria, Belgium, Denmark, Finland, France (with frequency Germany, Greece, Ireland, Italy, Luxembourg, The restrictions), Netherlands, Portugal, Spain, Sweden and the United Kingdom. Accept EU Iceland, Liechtenstein, Norway and Switzerland European States with restrictions on use: In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless LAN.
Page 14: Using Your Documentation
Using Your Documentation Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user’s manual can help you get the most from your computer. Manual Documentation Conventions Information Icons Four icons and their associated messages appear in this manual.
Page 15: Touchpad Conventions
CD-ROM Device Naming Convention In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD.
Page 16: Introducing Your Computer

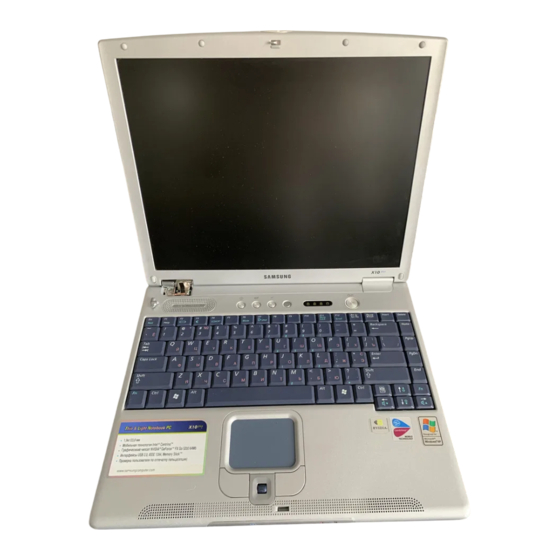

Getting Started Introducing Your Computer This User's Guide provides information for following models: X10 Plus, X15 Plus, and X30. Some photographs in this document are based on X15 Plus model. The photographs may be somewhat different in shape and colour from your computer depending on the model.
Page 17: Right View
About fingerprint sensor Fingerprint sensor is an option. Models without fingerprint sensor are provided with scroll wheels. For detailed instructions on using the fingerprint sensor, refer to the separate fingerprint sensor manual. Right View Microphone Jack Headphone Jack Left View Fan Vent Modem Port (p45)
Page 18: Back View
Mini-PCI Compartment Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Wireless LAN module(optional) is installed in the mini PCI compartment. Battery (p91) Battery Latches...
Page 19 X15 Plus Model Front View Scroll Wheel Speaker Memory Stick Slot (option, p39) 6 Users Manual LCD Latch Status Indicators (p22) Hot Keys (p20) Power Button Keyboard (p14) Touchpad (p17) Touchpad Buttons Speaker Status Indicators (p22)
Page 20 Right View Headphone Jack Microphone Jack Left View Fan Vent Modem Port (p45) CD Drive (option, p29) USB Port (2.0) LAN Port Monitor (p46) Port S/PDIF Port (p34) USB Port (2.0) 1394 Port PCMCIA Slot (p37) Getting Started 7...
Page 21 Mini-PCI Compartment* Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Wireless LAN module(optional) is installed in the mini PCI compartment. 8 Users Manual...
Page 22 X30 Model Front View LCD Panel Hot Keys (p20) Scroll Wheel / Fingerprint Sensor (Optional) Speaker Memory Stick Slot (option, p39) About fingerprint sensor Fingerprint sensor is an option. Models without fingerprint sensor are provided with scroll wheels. For detailed instructions on using the fingerprint sensor, refer to the separate fingerprint sensor manual.
Page 23 Right View Headphone Jack USB Ports (2.0) Microphone Jack CD-RW/DVD-ROM or DVD-Multi Drive (p29) Left View Monitor USB Port (2.0) Port 1394 Port Fan Vent Modem Port LAN Port PCMCIA Card Slot (p45) (p46) (p37) 10 Users Manual...
Page 24 Mini-PCI Compartment Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Wireless LAN/Bluetooth module(optional) is installed in the mini PCI compartment. Security Lock Port (p96)
Page 25: Turning The Computer On And Off
Turning the Computer On and Off To turn on the computer 1. Insert the battery and connect the AC adapter according to the Installation Guide. 2. Slide the LCD latch to the right and open the LCD panel. 3. Press the power button. To turn off the computer 1.
Page 26 If the computer does not turn off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged. If <Ctrl>+<Alt>+<Delete> keys do not operate either, press the power button for more than 4 seconds to turn off the computer.
Page 27: Using The Keyboard
Using the Keyboard Your computer has an 88/89-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard. Function Embedded Numeric Keypad Windows Although the layout of the keys on your computer’s keyboard is different from that on a desktop computer’s keyboard, the keyboard feels like a full-sized keyboard when you use it.
Page 28: Using The Numeric Keypad
The keys on the keyboard can be grouped into the following categories: • Full-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions. •...
Page 29: Using Special Function Keys
Using Special Function Keys The function key activates special functions when it is pressed in combination with another keys. Table 2 shows the special key combinations. <Fn> Key Key Name Combinations <Esc/Rest> Rest <F2/ > Gauge <F4/ LCD/CRT> LCD/CRT <F6/ Mute> Mute <F7/ S/PDIF>...
Page 30: Using The Touchpad
Using the Touchpad In Windows, you always see a small graphical image on the screen that indicates the location where you can take the next action. This image is called a pointer, and is usually displayed in arrow shape ( ) or ‘I’...
Page 31 You can perform various actions with your touchpad as described below. Action Move Click Double-Click Right-Click Drag 18 Users Manual Function Process Move the pointer Place your finger on the touchpad and slide your finger to a destination. Select an object, open a menu, or Place the pointer over an object, execute a button then press left touchpad button...
Page 32 Action Function Scroll Display upper/lower/left/right part of the content within a window (Applicable to certain programs only) Make sure to use your finger to move the pointer with the touchpad. Do not use any sharpened tool because it may damage your touchpad. Scroll Wheel Use If the scroll wheel does not function properly, install the touchpad driver provided on the system software CD.
Page 33: What Is Bluetooth
Hot Keys Icon Name Internet Button E-Mail Button User 1 Button WLAN/Bluetooth User 2 Button Using Wireless LAN/Bluetooth Button Loading or unloading wireless LAN/Bluetooth driver takes about 5 seconds. Therefore, if you turn wireless LAN/Bluetooth on/off using the wireless LAN/ Bluetooth button, the button does not work for 5 seconds.
Page 34 Changing the Hot Key Setting You can change the program that will be launched when you press a hot key. As default, Windows Calculator is configured to launch when you press the User 1 button. You can set the program by completing the following procedure. 1.
Page 35: Reading The Status Indicators
Reading the Status Indicators Location of status indicators may differ depending on the model. (p3) Name Num Lock Caps Lock Scroll Lock Battery Power 22 Users Manual Function Turns on when the numeric keypad is activated. Turns on when the user has set the option for typing letters in upper case. Turns on when it is set to scroll the screen up and down while the cursor position does not change in some applications.
Page 36: Adjusting Lcd Brightness
Adjusting LCD Brightness There are 8 levels of LCD brightness (1: Dimmest ~ 8: Brightest). Press <Fn>+< > or <Fn>+< brightness. When changed, the current LCD brightness is displayed on the top left corner of the LCD screen for a few seconds. Whenever you turn the system on or change the power source the brightness level changes according to the settings.
Page 37: Adjusting The Volume
Adjusting the Volume To adjust using keyboard Press <Fn>+< To adjust using volume control program Click the Volume icon( level. For advanced volume control options, double-click the Volume icon ( the volume level in the volume control program. 24 Users Manual >...
Page 38: Introducing Windows
Introducing Windows Understanding the Desktop The desktop is the working area on the computer. It consists of the large workspace and a taskbar at the bottom. Shortcut Icons Start Menu Start Button Start Button Taskbar Recycle Bin Language Bar Taskbar System Tray with Clock Opens the Start menu.
Page 39: Understanding The Start Menu
Understanding the Start Menu The Start menu includes everything that is required to start Windows. From the Start menu it is possible to run a program, open a file, assign system users with Control Panel, receive support by clicking Help and Support, and search desired items from the computer or Internet by clicking Search.
Page 40: Understanding A Window
Understanding a Window A window is the basic component in working with the computer. The My Computer window, which is a window for the computer's hard drive, will be used as an example here to show the basic composition of a window. Click Start >...
Page 41: Help And Support Center
Help and Support Center Help and Support Center provides references and troubleshooting information regarding computer use. Click Start > Help and Support. Windows XP Tour You can tour elementary functions provided by Windows XP. Click Start > Tour Windows XP. Or click Start >...
Page 42: Using The Computer
Using the Computer Using the CD Drive You have one of following drives installed in your computer. CD-ROM drive CD-RW drive DVD-ROM drive CD-RW/DVD-ROM Combo drive DVD Multi Drive Only CD-RW/DVD-ROM Combo, DVD-Multi drive is provided in X10 Plus and X30 models.(Optional) To insert a CD 1.
Page 43 To eject a CD 1. Stop any process that accesses the CD drive and ensure the CD access LED is turned off. 2. Press the eject button on right side of the CD drive. 3. When the tray slides out, remove the CD from the tray. 4.
Page 44 To use the Windows Media Player The Windows Media Player allows you to play audio and video files from the computer or the Internet. To launch the Windows Media Player, click Start > All Programs > Accessories > Entertainment > Windows Media Player. Features Playback Control Area To play a video CD...
Page 45 To write data on a CD You can copy data to a blank CD or create an audio CD. An additional CD writing program is supplied on an additional CD. 1. Insert a blank CD into the CD drive. 2. In the [CD Drive] dialog box, select Open Writable CD Folder and click OK. The CD drive window appears.
Page 46 For more information on writing CDs Click Start > Help and Support. Type “CD copy” in the search field, and click the Search icon ( For more information on creating an audio CD Run the Windows Media Player program, click the Help > Help Topics. Click Using Windows Media Player >...
Page 47 Enjoying Home Theater (S/PDIF Port) Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drive. It provides 3D surround sound and vivid screen. What is a home theater system? Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and a digital amp which provides a high-resolution screen (MPEG2) and 3D surround sound (Dolby 5.1 or DTS).
Page 48 Step 1. Connect 5.1 channel speaker system to your computer 1. Connect an amplifier to the S/PDIF port on your computer. 2. Connect speakers to the amplifier. (Refer to the speaker system’s manual.) 3. To watch through a TV, connect the TV, and change the display device to the TV in the Display Properties.
Page 49 Step 3. Enable S/PDIF in the DVD program To use 5.1 channel speakers, you need to install the Power DVD program from the System Software CD provided with your computer, then change the settings as per the following. 1. Run Power DVD program and click the Settings icon ( 2.
Page 50: Using The Pcmcia Card Slot
Using the PCMCIA Card Slot Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16/32 bit, type I or II PCMCIA card types. The PCMCIA card slot does not support a ZV card or a PCMCIA III card. To insert a PCMCIA card Before using the PCMCIA slot, remove the slot protector.
Page 51: To Remove A Pcmcia Card
To remove a PCMCIA card 1. Double-click Safely Removes Hardware icon ( ) on the taskbar. 2. On the [Safely Remove Hardware] dialog box, select the appropriate PCMCIA card and click Stop. 3. When [Stop a Hardware Device] dialog box appears, click OK. 4.
Page 52 Using the Memory Stick Slot (Optional) Memory Stick is popular as a removable storage device similar to a floppy diskette. It is widely used for many digital products like digital cameras, PDAs, etc. Users can easily install a memory stick to save and remove data on it. Restrictions for using a Memory Stick/Memory Stick Pro Memory Sticks and Memory Sticks Pro (256MB ~ 1GB, about 1 MB/s data rate) can only be used as data saving devices.
Page 53 To Re-install the Memory Stick (Card) Driver The Memory Stick (Card) needs to be removed prior to installing the driver. If the driver is installed when the Memory Stick (Card) is installed, remove the Memory Stick (Card), then select Start > Control Panel > System > Hardware tab >...
Page 54: Using Easybox
Use EasyBox program to make use of Windows' complicated function easily and conveniently. Learn about EasyBox Double-click the EasyBox( (Or select Start > All Programs > Samsung > EasyBox > EasyBox.) • System: System management features are available, including disk defragmenter, removing unnecessary files/folders, computer scheduling and system recovery.
Page 55: Configuring Firewall
The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet. 1. Click Start > All Programs > Samsung > EasyBox > EasyBox. 2. Click Security from the top menu bar. 3. Select Windows Firewall Settings from the Security menu on the left.
Page 56: Using Samsung Smart Screen
If you select OK, the program is automatically launched when you start your computer. 2. Samsung Smart Screen appears. When you run the program for the first time, water drop image is displayed.
Page 57: Using Samsung Theme
Using Samsung Theme Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect). Double-click the Samsung Theme ( (Or select Start > All Programs > Samsung Software > Samsung Theme >...
Page 58: Connecting To The Internet
Connecting to the Internet Connecting with a Modem Before Start: • Prepare a telephone line that is not digital. • Contact an internet service provider (ISP) for instructions on how to connect to and disconnect from the Internet. 1. Connect a telephone line to the computer’s modem port. 2.
Page 59 Connecting Through a Wired LAN 1. Connect a LAN cable to the computer’s LAN port. 2. Click Start > Control Panel. 3. Click Network and Internet Connections in the [Control Panel] window. 4. Click Network Connections in the [Network and Internet Connections] window. 5.
Page 60 6. On the General tab, select “Internet Protocol(TCP/IP)” and click Properties. 7. To use DHCP: On the General tab, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK. To use a static IP: On the General tab, select “Use the following IP address” and fill in the IP address, Subnet mask, Default gateway, Preferred DNS server, and Alternative DNS server fields.
Page 61: Using Samsung Network Manager
1. Connect LAN cable to the computer's LAN port. 2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager. 3. When you are using DHCP, available IP's are displayed in the status dialog box.
Page 62 To change network places You can change network places as below. 1. Connect LAN cable to the computer's LAN port, and double-click Samsung Network Manager icon on the desktop. If you used static IP in previous place, previous static IP is displayed in the status dialog box.
Page 63 2. Click Change, select a place icon then click Change. 3. On "Do you want to change the location setting?" dialog box, click Ok. 4. When the network place is changed, corresponding place icon is displayed in color and full dialog box appears. In the right area of full dialog box, network setting is displayed.
Page 64 Connecting Through a Wireless LAN (Option) A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices. Using the wireless network connections between the systems, you can use normal network functions such as sharing of files, folders and printers.
Page 65: Connecting To An Access Point (Ap)
What is an Access Point (AP)? An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP. 2) Computer-to-computer (ad hoc) This is also called a peer-to-peer network.
Page 66 2. Select an AP (E.g. Test) to connect to and click Connect. When the network key dialog box appears, enter the network key and click Connect. When a network key is not defined for a selected AP, click on Link to display the warning message box.
Page 67 Connecting to computer-to-computer networks ad hoc) In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 68 2. Click Change the order of Preferred Networks. 3. On the Wireless Network tab, click Advanced. 4. Clear 'Automatically connect to non-default network' check box, if it is selected. Select 'Computer-to-computer (ad hoc) networks only', and click Close. 5. In the Wireless Networks tab, click Add. Connecting to the Internet 55...
Page 69 6. Enter the network name (e.g. samsung), and unselect 'The key is provided for me automatically'. Enter the encryption key in the Network key field, and click OK. To prevent a network connection from an unauthorized user, it would be better to configure a network key (encryption key).
Page 70 7. Check that the configured network name (e.g. samsung) is in the ’Preferred networks’ item, and click OK. Now your wireless network setup has been completed. Step 2. Connecting to the configured computer 1. Right-click on the Wireless Network Connection ( select View Available Wireless Networks.
Page 71 2. Select the wireless network name (e.g. samsung) specified in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 54, and click Connect. 3. Enter a cryptographic key in the network key box and click Connect. If the network key is not configured in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)”...
Page 72 Checking the connection status Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed. Connecting to the Internet 59...
Page 73: Wireless Network Setup Using The Wireless Lan Setup Program
Wireless Network Setup Using the Wireless LAN Setup Program You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately. To use wireless network connection, complete the following procedures. • Step1. Install the wireless LAN configuration program (PROSet). •...
Page 74: Security Settings
To connect to an Access Point: To connect to an access point or existing computer-to-computer (Ad Hoc) network, refer to the following procedures. (To create a new computer-to-computer network, refer to the following "To create computer-to-computer (Ad Hoc) network" section.) 1.
Page 75 Network name (SSID) is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.
Page 76 3. Configure password setting to be used for computer-to-computer network connection in the Security Settings window. To connect to an access point, enter the network authentication, data encryption (WEP), key index, and password configured in the access point. It is recommended to configure data encryption for security purposes when creating a computer-to-computer network connection profile.
Page 77: Using Network Services
Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Using computer-to-computer wireless networks, you can access the Internet through a computer that is connected to the Internet even if your computer is not directly connected to the Internet.
Page 78 Step 1. Configuring Sharing 1. Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2. Click 'If you understand the security risks but want to share files without running the wizard, click here'. It has the same security effect as that of the 'Network Setup Wizard'.
Page 79: Sharing Printers
Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1. Click Start > My Computer. Under Other Places, click My Network Places in your computer.
Page 80 Step 1. Configuring Printer Sharing 1. From the computer connected to the printer, click Start > Printers and Faxes. 2. Right-click the printer you want to share, and click Sharing. 3. Select 'Share this printer', enter a share name for the shared printer, and click OK. 4.
Page 81 5. Select 'Browse for a printer', and click Next. 6. Select the workgroup or computer, select the desired printer, and click Next. If you cannot find the desired printer, try again after a while. 7. Read the warning about a shared printer, and click Yes to install the shared printer. 8.
Page 82 Sharing an Internet connection through a wireless network By connecting your computer to another computer, which is connected to the Internet over a wired connection, through a wireless network (Peer-to- Peer), you can access the Internet from your computer. To share an Internet connection, the computers should be connected to a computer-to-computer (peer-to-peer) wireless network.
Page 83 If the computer is connected to the Internet through a wired LAN, select 'Local Area Connection'. 3. On the Advanced tab, select 'Allow other network users to connect through this computer's Internet connection', and click OK. Step 2. Checking the Shared Internet Connection. When the Internet connection sharing configuration has been completed, the network icon in the Network Connections window is displayed as follows: Click Start >...
Page 84: Using Bluetooth (Optional)
Using Bluetooth (Optional) Bluetooth is an industry standard for local area wireless data exchange between devices. To use Bluetooth, both of the two Bluetooth devices must be accessible through a wireless connection. Bluetooth enables you to do the following tasks. •...
Page 85: Installing The Bluetooth Software
Installing the Bluetooth Software To use Bluetooth, you have to install the driver and the Bluetooth Manager program. 1. Insert the system software CD in the CD drive on the right side of the computer, and select Install Bluetooth Software. 2.
Page 86: Connecting With Other Devices
Connecting with Other Devices This section describes the common steps when using Bluetooth. Read this section first before reading any other instructions. A Bluetooth connection consists of a client requesting a connection, and a server approving the connection. When you establish a Bluetooth connection, you need to enter a PIN (Personal Identification Number) code in both the client and the server, and the server has to approve the transmission for actual data transmission.
Page 87: Transferring Files And Folders
4. The same window appears on the client, enter the same password as on the server, and click OK. Now a connection between the client and the server has been established. Step 2. Approving a Transmission 1. When a notification window requesting access privilege appears in the Bluetooth icon on the taskbar of the server, click the notification window.
Page 88: Connecting With A Hid
Connecting with a HID You can connect and use an HID (Human Interface Device) with Bluetooth capability such as a keyboard, a mouse, or a joystick on your computer. 1. Configure the HID so it can be searched. For more information refer to the HID user manual.
Page 89: Synchronizing Personal Information
Synchronizing Personal Information You can synchronize personal information saved in the PIMS of your computer such as e-mail, a phonebook, a schedule, or memo with another Bluetooth device. What is PIMS? PIMS (Personal Information Management System) is software that manages personal information such as e-mail, schedules, etc.
Page 90: Customizing Your Computer
Customizing Your Computer Using System Setup The System Setup (BIOS) program enables you to configure your computer hardware and set security and power-savings options. The settings you choose are stored in battery-maintained CMOS memory that saves the information even when the computer’s power is turned off.
Page 91: Starting System Setup
Starting System Setup To start System Setup, turn on your computer and then press <F2> and hold until the System Setup screen appears. Menu Main Advanced Security Boot Exit To open the menu you need to use, use the left or right arrow keys to select the menu name.
Page 92: Changing Booting Priority
Changing Booting Priority You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to configure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.
Page 93: Setting The User Password
Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center. 1. Select the Security menu in the System Setup. To enter System Setup, see “Starting System Setup” on page 78.
Page 94: Deactivating The Password
Activating the Booting Password Before activating the booting password, the supervisor password must have been configured. Set the Password on boot option to [Enabled]. From now on, system booting will not proceed without the password. Deactivating the Password 1. On the password to delete, press <Enter>. (e.g. supervisor password) 2.
Page 95 Configuring Resolution and Colour Depth Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Colour quality is determined by the number of bits used to represent a pixel on the screen. High colour quality displays more number of colours on your screen.
Page 96 For XGA models, configuring the screen resolution to 1024x768, and the colour quality to Highest (32 bit) is recommended. For SXGA+ models, configuring the screen resolution to 1400x1050, and the colour quality to Highest (32 bit) is recommended. For UXGA models, configuring the screen resolution to 1600x1200, and the colour quality to Highest (32 bit) is recommended.
Page 97: Using External Display Devices
Using External Display Devices Using external display devices such as monitors, projectors, TVs, etc allows you to view screen images alternatively or simultaneously on each device. Additionally, you can extend the screen onto two display devices to use a larger workspace. Using external display devices is especially useful when you are giving a presentation or watching a movie through your TV.
Page 98: Using Dual View To View Extended Screen
Using Dual View to View Extended Screen You can expand the screen into two display devices and work conveniently in separate workspaces. In Dual View mode, you can select the screen resolution and colour quality for each display device, as if there were two separate graphics cards. 1.
Page 99 secondary display device is indicated as '2'. Now you can view the screen through two monitors. When using Dual View, only the LCD can be configured as the primary display device. If the screen of the secondary display device is displayed at 640x480 pixels, with 256 colours, change the settings to the desired screen resolution and colour quality in the [Display Properties] dialog box.
Page 100: System Management
System Management Using Power Management Options Your computer includes Power Management options that can help the battery charge last longer and extend the life of the battery. Power-management options will slow down or shut off system components when the components are not being used. Power management may slow down system performance.
Page 101 88 Users Manual By default, the power scheme is configured to SAMSUNG mode. SAMSUNG mode extends the battery life and optimizes the Intel Speedstep function. Since the CPU power consumption is automatically...
Page 102 If You Reinstall Windows: You should re-establish hibernate in power options by opening Options Properties window and click on the Hibernate tab then click “Enable Hibernation”. Frequent Interruptions: If you experience frequent interruptions, you might also consider putting your computer into automatic hibernation after a specified number of minutes using the power management options.
Page 103 Advanced Power Management Schemes This section discusses the advanced power management schemes. There are two buttons that you can use to manually conserve power. To enter the power management window complete the following: 1. Click Start > Control Panel > Performance and Maintenance. 2.
Page 104: Using The Battery
Using the Battery Please refer to the following instructions when running the computer on battery power without connecting the AC power. Please read the instructions on the battery before use. Please refer to the system operation environment (p130) of this manual and operate and store the battery at room temperature.
Page 105: Monitoring The Battery Charge
4. To install the battery again, slide the battery into the system as below. The battery latches move inward, and fix the battery automatically. For X10 plus model, slide the left battery latch to the right to fix the battery. Using the bridge battery (Only for X30 model) Your computer has a bridge battery, which supplies power for a short time even when there is no battery installed.
Page 106: Battery Calibration
Using the battery The battery has an expendable supply, so when you use it for a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of the initial time, we recommend that you purchase a new battery to use. Battery Warning You will hear an alarm when the remaining battery charge is under 10%.
Page 107: Upgrading Memory
Upgrading Memory This computer has a 128 MB or 256 MB memory module. There is a socket in which one additional memory module can be installed. Removing the memory module Before removing/replacing the memory module, turn the system off completely. Do not replace the memory module when the system is in Standby/Hibernate mode.
Page 108: Adding A Memory Module
Adding a memory module 1. Align the new memory module connectors accordingly and slide it into the slot at ° a 30 angle. Ensure the notch on the memory module corresponds with the notch on the socke. 2. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, gently push the memory down while pressing the memory module tabs outward.
Page 109: Using The Security Lock Port
Using the Security Lock Port The security lock is a device used to physically 'fix' the system when using it in a public place. The locking device needs to be purchased separately. The shape and methods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.
Page 110: Tips For Using Your Computer
Do not try to disassemble your computer. Opening the system chassis or removing the hard disk drive voids your warranty. Only an authorised Samsung service center can replace or add any parts inside the chassis. • Follow all the instructions and cautions in your computer user documentation.
Page 111: Handling Spills
LCD screen cleaner. Do not use water, window cleaner, acetone, aromatic solvent, or dry, rough towels to clean it. Some liquids damage the polarized LCD screen. If your screen is damaged, contact your local authorized Samsung service center for a replacement. 98 Users Manual...
Page 112: Storing The Computer For Long Periods
Storing the Computer for Long Periods If you will not be using the computer for a long period of time (a month or more), you should discharge the battery completely then remove the battery from the computer. This extends the life of the battery. System Management 99...
Page 113: Troubleshooting
Recovery CD to reinstall OS and System Software CD to reinstall the corrupt device drivers. System Recovery Precaution: Before you start restoring your windows operating system insure you backup all data on your hard drive. Samsung is NOT responsible for any data loss. 100 Users Manual...
Page 114: Questions And Answers
Questions and Answers This section provides information on possible problems, solutions and other references for system use. Windows Related Q1 The system does not shutdown properly. When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off.
Page 115: Display Related
Display Related Q1 The LCD screen is blank. Adjust the LCD screen brightness. Use the <Fn>+< Q2 The screen saver disturbs screen viewing during Media Player or video file operation. Under the Media Player Options, in Player > Enable Screen Saver During Use, uncheck the box and restart the player.
Page 116 This may happen when you have configured the display in such a way that the screen is displayed to both the LCD and CRT screens simultaneously. To avoid this, configure the screen as either LCD or CRT. (See ”Using External Display Devices”...
Page 117: Modem Related
Modem Related Q1 I cannot hear the modem sound. Check that the telephone line is properly connected to the modem. Check that the modem driver is installed properly. Click Start > Control Panel > Performance and Maintenance > System. Select Hardware tab > Device Manager > Modems in the System Properties window, and check if there is a yellow exclamation mark on the installed modem icon.
Page 118 - Using an AT command As an initialization command, use the command, ATX3. Otherwise, enter the ATX3 command manually before making a call. It can correct this problem by skipping the dial tone check step. - Configuring the Modem through the Control Panel Click Start >...
Page 119 In the Modems tab, select the installed modem, and click Properties. In the Power Management tab of the Modem Properties window, select the "This device activates the computer in power saving mode" check box, and click OK. The above setting enables the modem to turn on the system and receive a fax when in power saving mode.
Page 120: Wired Lan Related
Wired LAN Related Q1 <Wake On LAN> function <Wake On LAN> is a function that activates the system in rest mode when a signal (such as ping or magic packet commands) arrives from network (wired LAN). To use <Wake On LAN> function: Click Start >...
Page 121: Wireless Lan Related
Wireless LAN Related Refer to ”Connecting Through a Wireless LAN (Option)” (p 51) for the basic uses of a wireless LAN. Q1 The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer. This is due to an incorrect configuration, or a configuration error.
Page 122 Q3 I cannot share an Internet connection. It may require some time to synchronize the computers to share an Internet connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer.
Page 123 - Verify whether the AP's firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.) Verify whether the AP has been properly connected to the network. Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer.
Page 124 disable the [View Available Wireless Networks] window supported by WZC service. Exit the wireless LAN related program then check whether the window is enabled. Initialize the device driver. Click Start > Control Panel > Performance and Maintenance > System > Hardware tab >...
Page 125 Q7 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot search the access point. It may happen occasionally when you are using a computer-to-computer (Ad Hoc) network connection. Even if you cannot find some access points, the computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to view the latest search result.
Page 126 Check the properties of the AP in the wireless network settings. If the ’Use IEEE 802.1x authentication in this network’ option is selected, deselect the option on the Authentication tab. For more detailed information about authentication server, ask your network administrator.
Page 127 The AEGIS Protocol is a security authentication protocol that is automatically installed when PROSet is installed and does not affect the operation of other programs. 114 Users Manual...
Page 128: Games And Programs Related
Games and Programs Related Q1 3D game is not executed, or some functions are not working. Change the graphic setting of the game to '2D' or 'Software Renderer', then execute the program again. Q2 I launched a game right after installing it, and the game is not executed. This problem may occur when the game is not compatible with Windows XP.
Page 129 Q6 While running a game, <Fn>+<F4 / LCD/CRT> keys may not work or screen may not be displayed properly when the keys are pressed. While running Direct3D game, display device configuration keys do not work to maintain the system stability. Since display device control varies depending on the type of display devices in some games, the screen may not displayed properly.
Page 130 Q11 The screen may not be displayed properly in some games. In some games including Harry Potter and Sorcerer's Stone and Harry Potter and the Chamber of Secrets, the screen may not displayed properly when you set the screen resolution to 1024x768 and color quality to 32 bits. Play these games in screen resolution - 1024x768 and color quality - 16 bits.
Page 131: Security Center
Security Center Q1 To change the popup window display settings when connected to the Internet. In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security. To display most of the popup windows when connected to the Internet: Click on Internet Options in Start >...
Page 132 Q3 When you see a Windows Security Alert icon ( of the task bar. With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet.
Page 133 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.
Page 134: Restoring The System
Restoring the System This description is only for models running Window XP. The System Restore function allows you to restore your computer to an earlier copy (called restore point), and restores the settings if a problem occurs.The System Restore function is provided by Windows XP to enable the resolution of various problems without reinstalling Windows XP completely.
Page 135: Returning Your Computer To An Earlier Restore Point
2. Select "Create a restore point", and click Next. 3. In the Restore point description box, type a name to identify the restore point, and than click Create. A restore point has been created. Returning your computer to an earlier restore point The procedures to return your computer to an earlier restore point when a problem has occurred are described below.
Page 136: Undoing The Last Restoration
3. Select the desired restore date from the calendar restoration and select the desired restore point from the list, and then click Next. The date of the restore point is displayed in bold font. 4. Confirm the selected restore point and click Next. System Restore shuts down Windows, and starts the restoration processes.
Page 137: Reinstalling Software
Reinstalling Software If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and program using the system software CD. This computer is optimized for Microsoft Windows XP, therefore driver other than the ones included in the System Software CD are not provided.
Page 138: Installing Drivers And Programs
Installing drivers and programs 1. Click Standard Installation in the main window of the System Software CD. (Standard Installation is recommended) 2. The system is scanned to display the drivers and programs that need to be installed. 3. Click OK. The drivers and programs are automatically installed as factory defaults.
Page 139: Reinstalling Windows Xp
Reinstalling Window may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data. Samsung Electronics is not liable in the case of data loss, please consult your warranty statement for clarification.
Page 140 • Standard installation: You can change the settings for partitioning, the installation folder, etc. during the Windows installation. However, reinstalling Windows may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data.
Page 141 7. When the Regional and Language Options window appears, click Next. 8. When a window that requires your name and organization pops up, enter your name and the organization and click Next. In the Windows XP Professional edition, an additional window that requires the computer name and the administrator password appears.
Page 142 If You Cannot Run Windows If you cannot run Windows, you have to boot the system with the system recovery CD, and reinstall Windows. If you boot the system from the system recovery CD, you can install Windows only with the user installation option. You cannot install with the standard installation option.
Page 143: System Specification
Specifications System Specification The following is the basic hardware specification for the purchased product. Variations may exist depending on the model type. X10 Plus Model Item Specification Intel Pentium M 1.4~1.7GHz / Dothan Cache memory 1MB(Pentium M)/2MB(Dothan) Main memory 128/256/512/1024 MB DDR SDRAM, 2 DDR socket Main Chipset Odem+ / ICH4M Hard disk drive (HDD) 2.5’’, UltraDMA 100, S.M.A.R.T 9.5mmH...
Page 144: X15 Plus Model
X15 Plus Model Item Specification Intel Pentium M 1.3~1.7GHz / Dothan Cache memory 1MB(Pentium M)/2MB(Dothan) Main memory 128/256/512/1024 MB DDR SDRAM, 2 DDR socket Main Chipset Odem+ / ICH4M Hard disk drive (HDD) 2.5’’, UltraDMA 100, S.M.A.R.T 9.5mmH CD Drive CD-ROM drive, CD-RW drive, DVD-ROM drive, CD-RW/DVD-ROM Combo drive, DVD-Multi Drive Graphics...
Page 145 X30 Model Item Specification Intel Pentium M 1.3~1.7GHz / Dothan Cache memory 1MB(Pentium M)/2MB(Dothan) Main memory 128/256/512/1024 MB DDR SDRAM, 2 DDR socket Main Chipset Odem+ / ICH4M Hard disk drive (HDD) 2.5’’, UltraDMA 100, S.M.A.R.T 9.5mmH CD Drive CD-RW/DVD-ROM Combo, DVD-Multi drive Graphics Nvidia GeForce FX Go 5200, Memory : 64MB 1280 x 800 pixels (Wide XGA) / 1680 x 1050 pixels (Wide SXGA+)
Page 146: Product Specification
(KB826942) or PROSet may be required depending on the network settings. For driver update, visit www.samsung.com and for information on the PROSet installation, refer to ”Wireless Network Setup Using the Wireless LAN Setup Program” (p 60). For more information, ask your network administrator.
Page 147: Channel Allocation
Regulatory Notice for Channel Use in France The number of channels that can be used for wireless LAN differs from country to country. In France however, use only 4 channels (channel 10, 11, 12, 13) when using wireless networks. • Standard: IEEE 802.11b •...
Page 148 Radio Specifications RF Band Support Channels Device Standard Output Power Transmission Method Transmission Rate (Mbps) * Antenna Type * The transmission rate may differ from the actual transmission rate. ** 11g mode is supported only when the device is connected with an IEEE802.11g device (e.g. IEEE802.11g compatible Access Point).
Page 149 Abbreviations A ..Amperes AC ..Alternating current ACPI ..Advanced Configuration and Power management Interface APM ..Advanced Power Management ATA.
Page 150 ISA ..Industry Standard Architecture KB ..Kilobytes kg ..Kilograms LAN..Local-area network lb..
Page 151 Glossary AC adapter The AC (or alternating current) adapter regulates current coming into your computer from the wall outlet. The current at the wall outlet is alternating current and needs to be changed by the adapter to DC (direct current) before your computer can use it for power.
Page 152 CardBus CardBus technology enables the computer to use 32-bit PC Cards. Hardware in the computer and the Windows operating system provide support for the 32-bit cards. The voltage of 32-bit cards (3.3 volts) is lower than that of 16-bit cards (5 volts).
Page 153: Hard Drive
Hard drive Also called fixed disk. A hard drive is connected to the computer and can be installed or removed. Data written to a hard drive remains until it is overwritten or corrupted. The 2.5-inch hard drive in your computer was designed for use in a notebook computer.
Page 154 PC Card PC Card stands for personal computer card. The Personal Computer Memory Card International Association (PCMCIA) defines the standards used to develop all PC Cards. PC Card types include: modems, Ethernet adapters, SCSI adapters, ATA cards, and memory cards. PC slot The PC slot is the hardware slot in the computer where the PC Card is placed.
Page 155 Shadow RAM A write-protected area of RAM that contains a copy of the BIOS. As the computer boots, the BIOS is copied from its permanent location in ROM to RAM. The BIOS can be executed much faster in RAM than in ROM. The BIOS remains in shadow RAM until you turn off the computer.
Page 156: Using Windows 2000
Using Windows 2000 Samsung notebook provides Windows XP or 2000 as operating system depending on the product model. Because the use of Windows XP is similar to Windows 2000, the same User Guide (Online Manual) is used regardless of operating system installed on your notebook.
Page 157 Introducing Windows Descriptions presented in ”Introducing Windows” (p 25) are applicable only to Windows XP. For Windows 2000, location of menus, shape of icons and some uses may differ from those of Windows XP. To Playback Audio or Video CD Just insert your audio or video CD into your CD drive.
Page 158: Getting Started
SAMSUNG X10+/X15+/X30 BA68-02535A30 040901 Chapter 1 Chapter 1 Getting Started This chapter provides basic information for using this computer. System overview and methods for general use are provided.
Page 159: Introducing The Computer
Introducing The Computer X10 Plus Model ■ Front View LCD Panel Hot Keys Keyboard Scroll Wheel/Fingerprint Sensor(Optional) Speaker (L) Memory Stick Slot (Optional) About fingerprint sensor Fingerprint sensor is an option. Models with fingerprint sensor are provided without scroll wheels. For detailed instruction on using fingerprint sensor, refer to the separate fingerprint sensor manual.
Page 160: Right View
■ Right View Microphone Jack CD-RW/DVD-ROM Combo Headphone Jack or DVD-Multi Drive(Optional) ■ Left View Fan Vents LAN Port Modem Port Monitor Port USB Port(2.0) 1394 Port (4Pin) USB Port(2.0) PCMCIA Card Slot Chapter 1. Getting Started...
Page 161: Rear View
■ Rear View TV Output Port DC-In Port (S-Video) S/PDIF Port ■ Bottom View HDD Compartment The removal of the HDD is not allowed. To replace the HDD, please contact your ser- vice center. The Mini PCI compartment is used for the installation of the optional wire- less LAN module.
Page 162 X15 Plus Model ■ Front View LCD Latch LCD Panel Status Indicators Hot Keys Power Button Keyboard Touchpad Touchpad Button Scroll Wheel Speaker (L) Speaker (R) Status Indicators Memory Stick Slot Chapter 1. Getting Started...
Page 163 ■ Right View Headphone Jack ■ Left View Fan Vents Manual Microphone Jack USB Port(2.0) CD Drive (Optional, refer to P. 3-2.) LAN Port USB Port (2.0) Modem Port Monitor Port S/PDIF Jack 1394 Port (4Pin) PCMCIA Card Slot...
Page 164 ■ Rear View DC-In Port TV Output Port (S-Video) ■ Bottom View Battery Latch HDD Compartment Mini PCI Compartment The removal of the HDD is not allowed. To replace the HDD, please contact your service center. The Mini PCI compartment is used for the installation of the optional wireless LAN module.
Page 165 X30 Model ■ Front View LCD Panel Hot Keys Speaker (L) About fingerprint sensor Fingerprint sensor is an option. Models with fingerprint sensor are provided without scroll wheels. For detailed instruction on using fingerprint sensor, refer to the separate fingerprint sensor manual. Manual LCD Latch Memory Stick Slot...
Page 166 ■ Right View CD-RW/DVD-ROM Combo or DVD-Multi Drive(Optional) Headphone Jack Microphone Jack ■ Left View Fan Vent Monitor Port Modem Port LAN Port USB Ports (2.0) USB Port (2.0) PCMCIA Card Slot 1394 Port (4 Pin) Chapter 1. Getting Started...
Page 167 ■ Rear View TV-Out Port (S-Video) S/PDIF Port DC Jack ■ Bottom View Hard Disk Compartment Manual 1-10 Battery Battery Latch Mini-PCI Compartment The removal of the HDD is not allowed. To replace the HDD, please contact your service center. Wireless LAN/Bluetooth module(optional) is installed in the mini PCI compartment.
Page 168 Turning the Computer On and Off Turning On 1. Insert the battery and connect the power according to the supplied Installation Guide. 2. Lift up the LCD panel and open it to a comfortable angle. 3. Press and then release the power button to turn the system on. Turning Off 1.
Page 169: Changing Users
Creating and Changing User Accounts Multiple users can be registered in a single system so that each user may use their own customized working environment. Procedures to register and change user accounts are provided below. ■ Registering a new user 1.
Page 170 Touchpad Movement of the pointer (arrow) on the screen will correspond to movement made with a finger on the touchpad. Scrool Wheel Touchpad Buttons Two buttons below the touchpad provide iden- Do Scroll Functions In tical functions to buttons of a mouse. Windows ■...
Page 171: Using The Touchpad Scroll Function
■ Drag (Move / Select) Click and hold the left touchpad button over the point you wish to drag, and drag your finger to the desired location while holding down the touchpad button. ■ Scroll Function You can move up and down a window using the scroll wheel. ■...
Page 172: Using The Keyboard
Using the Keyboard Function Keys <Fn> Key ■ Special Function Keys : Key Com- binations Name Rest Powers the computer down into suspended mode. To escape sus- pended mode, press power button. Gauge Used to check the power supply and the battery charge. 1.
Page 173 Key Com- binations Manual 1-16 Function Name Num Lock Enables the numeric keypad. Scroll Lock Scrolls the screen up and down while the cursor position remains fixed in some applications. Volume Up Increases the audio volume. Volume Decreases the audio volume. Down Brightness Turns the LCD screen brighter.
Page 174 Hot Keys Internet key : Runs Internet Explorer. E-mail key : Runs the Internet e-mail client program (Example: Outlook Express). User 1 button : Used to specify frequently used programs. To specify a program as a frequently used program, follow these steps: WLAN/Bluetooth or User 2 Button : Turns on and off the wireless LAN/Bluetooth function for the models with wireless LAN/Bluetooth...
Page 175: Status Indicators
Status Indicators Icon Manual 1-18 (LED : Light Emitting Diode) Location of status indicators may differ depending on the model. Name Functions Num Lock Turns on when the numeric keypad is activated. Caps Lock This light is on when the user has set the option for typing letters in upper case.
Page 176: Adjusting The Lcd Brightness
Adjusting the LCD Brightness There are 8 levels of LCD brightness (1:Dimmest ~ 8:Brightest). Press <Fn>+< > or <Fn>+< > keys from the keyboard to adjust LCD bright- ness. When changed, the current LCD brightness is displayed on the top left corner of the LCD screen for a few seconds.
Page 177: Adjusting The Volume
Adjusting the Volume Using the Keyboard Press <Fn>+< > or <Fn>+< > keys on the keyboard to adjust the audio volume. Using the Volume Control Program On the taskbar, click the Volume ( ) icon, and adjust the slide bars. For advanced volume control options, double-click the Volume ( icon, and adjust the settings in the [Master Volume] dialog box.
Page 178: Proper Seating Posture During Computer Use
Proper Seating Posture During Computer Use The proper seating posture during computer use is provided here. Maintaining proper posture during computer use enhances performance and prevents physical bodily harm. If necessary, use a footrest to raise the level of your knees and ease the pressure on the thighs.
Page 179 Manual 1-22...
Page 180: Introducing Windows
Chapter 2 Chapter 2 Introducing Windows This chapter provides basic information on using the computer’s main operating system Windows.
Page 181: Windows Xp Basics
SAMSUNG P10 Windows XP Basics Windows is the computer’s main operating system, which needs to be familiarized with in order for efficiently computer use. Windows XP Tour A tour of the elementary functions provided by Windows XP. Click Start > Tour Windows XP.
Page 182 Understanding the Desktop The Desktop is the working area on the computer. It consists of the large workspace, which is more or less the entire the screen and a Taskbar at the bottom. Desktop Icons You can directly launch a program. Start Menu Start Button Start Button...
Page 183 Understanding the Start Menu The Start Menu includes everything that is required to start Windows. From the Start Menu it is possible to run a program, open a file, assign system users with the Control Panel, receive support by clicking Help and Support, and search desired items from computer or Internet by clicking Search.
Page 184 Understanding a Window A window is the basic component in working with the computer. The My Computer window, which is a window for the computer’s hard drive, will be used as an exam- ple here to show the basic composition of a window. Click Start >...
Page 185 Help and Support Center Help and Support Center provides references and troubleshooting information regarding computer use. Click Start > Help and Support. Related help information appears when a search keyword is entered. Help Topics Troubleshooting Information Manual Displays Help Index Connect to Support Center.
Page 186: Document Operations
Document Operations To create documents, WordPad or NotePad, which is included in Windows, or a separate specialized word processor program can be used, such as MS Word. Instructions for creating documents using WordPad is provided here. ■ Creating a New Document 1.
Page 187: Opening A Document
■ Opening a Document 1. Click Start > All programs > Accessories > WordPad. 2. Select File From the Menu, and click Open. 3. Click on the Look in field and specify the folder in which the file is saved. 4.
Page 188: Using The Computer
Chapter 3 Chapter 3 Using The Computer This chapter investigates various different functions of the computer and provides information on using the related application programs for them.
Page 189: Using The Cd-Rom Drive
Using the CD-ROM Drive This computer has one of the following CD drives. - CD-ROM Drive - CD-RW Drive - DVD-ROM Drive - CD-RW/DVD-ROM Combo Drive - DVD-Multi Drive Only CD-RW/DVD-ROM Combo, DVD-Multi drive is provided in To Run a CD 1.
Page 190: Using The Windows Media Player
Using the Windows Media Player The Windows Media Player enables the user to configure and play video and audio files from the computer or the Internet. Click Start > Windows Media Player. Or click Start > All Programs > Accessories > Entertainment > Windows Media Player.
Page 191: To Play An Audio Cd
To Play an Audio CD 1. Insert an audio CD into the CD drive, and a list of all available players is displayed automatically. 2. Select Windows Media Player, and click OK to play the audio CD. To Play a Video CD 1.
Page 192: To Write Data In Cd
To Write Data in CD You can copy data to a blank CD or create an audio CD. 1. Insert a blank CD into the CD-RW drive. 2. Click Open Writable CD Folder and click OK. The CD-ROM drive window appears automatically.
Page 193 5. When the CD Write Wizard appears, enter the CD label, and click Next. The data will begin copying. 6. When copying is completed, a message ‘completed’ will appear and the CD-ROM drive will open automatically. For more information on copying CDs Click Start >...
Page 194: To Enjoy Home Theater
To Enjoy Home Theater Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drive. It provides 3D surround sound and vivid screen. Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D sur- rounding sound (Dolby 5.1 or DTS).
Page 195 ■ Step 2. Configuring the digital sound output on the computer Press <Fn>+< The S/PDIF setting also can be changed in the Sound and Audio Device properties. (Click Start > Control Panel > Sounds, speech, and Audio Devices > Sounds and Audio Devices.) However, <Fn>+< ■...
Page 196: Working With Pcmcia Cards
Working with PCMCIA Cards Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16 / 32 bit, type I or II PCMCIA card types. Before using the PCMCIA slot, remove the slot protector. Push the eject button of the PCMCIA card slot once to pop it out.
Page 197 Using the Memory Stick Slot In recent, Memory Stick is popular as a removable storage device like floppy diskette. It is widely used for many digital products like digital camera, PDA, etc. Users can easily install Memory Stick to save and remove data in it.
Page 198: Using Easybox
Learn about EasyBox Double-click the EasyBox( ) icon on the desktop. (Or select Start > All Programs > Samsung > EasyBox > EasyBox.) System : System management features are available, including disk defrag- menter, removing unnecessary files/folders, computer scheduling and system recovery.
Page 199 The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet. 1. Click Start > All Programs > Samsung > EasyBox > EasyBox. 2. Click Security from the top menu bar. 3. Select Windows Firewall Settings from the Security menu on the left.
Page 200 1. Click Start > All Programs > Samsung > Samsung Smart Screen. When you launch Samsung Smart Screen for the first time, a dialog box asking whether to register the program as a start program or not appears. If you select OK, the program is automatically launched when you start your computer.
Page 201 Manual 3-14...
Page 202: Connecting To The Internet
Chapter 4 Chapter 4 Connecting to the Internet This chapter provides instructions on connecting to the Internet.
Page 203 Connecting to the Internet The following options show many ways to connect to the Internet. An appropriate option should be selected depending on the user’s work- ing environment and the user’s system specifications. Option 1 Connecting using a modem and a telephone line. Option 2 Connecting using a High-speed communication Option 3 Connecting using a wired LAN Option 4 Connecting using a wireless LAN...
Page 204: Connecting To The Internet Using A Modem
Connecting to the Internet Using a Modem 1. Connect the telephone line to the modem port. Do not use a digital telephone line. 2. To connect the modem to the Internet, and use e-mail, you have to apply to an Internet Service Provider (ISP) for an Internet service.
Page 205: Configuring The Network Environment Settings For Wired Lan Connections
Configuring the Network Environment Settings for Wired LAN Connections A wired LAN environment is an environment where you can connect to the Internet using the company’s LAN or with a broadband modem. 1. Connect the network (LAN) cable to the LAN port of the system. 2.
Page 206 7. In the “This connection uses the following items” field, select Internet Protocol (TCP/IP), and click Properties. In the above screen, necessary network components can be added by clicking the Install button. 8. Enter the system’s IP and DNS server addresses on the General tab of the [Internet Protocol (TCP/IP) Properties] window.
Page 207 1. Connect LAN cable to the computer’s LAN port. 2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager. 3. When you are using DHCP, available IP’s are displayed in the status dialog box.
Page 208 To change network places You can change network places as below. 1. Connect LAN cable to the computer’s LAN port, and double-click Samsung Network Manager icon on the desktop. If you used static IP in previous place, previous static IP is displayed in the status dialog box.
Page 209: Using Both Dhcp And Static Ip Simultaneously
Using Both DHCP and Static IP Simultaneously. When you are alternatively using networks with either DHCP or static IP addressing, you can use alternative settings that enable simultaneous configurations of DHCP and static IP to use both of the network connections without reconfiguring. This function is provided only when your operating system is Windows XP.
Page 210: Access Point
Configuring the Network Environment Settings for Wireless LAN Network A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices. When a computer-to-computer network has been constructed, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 211: Connecting To An Access Point
Connecting to an Access Point This section describes how to connect to an AP. You can use the network when you are connected to an AP. 1. Right-click on the Wireless Network Connection ( and select View Available Wireless Networks. 2.
Page 212 Connecting to computer-to-computer networks (peer-to-peer or ad hoc) In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 213 Select ‘Computer-to-computer (ad hoc) networks only’, and click Close. 5. In the Wireless Networks tab, click Add. 6. Enter the network name (e.g. samsung), and unselect ‘The key is provided for me automatically’. Enter the encryption key in the Network key field, and click OK.
Page 214 7. Check that the configured network name (e.g. samsung) is in the ‘Preferred net- works item’, and click OK. Now your wireless network setup has been completed. Chapter 4. Connecting to the Internet 4-13...
Page 215 1. Right-click on the Wireless Network Connection ( and select View Available Wireless Networks. 2. Select the wireless network name (e.g. samsung) specified in “Connecting to computer-to-computer networks (peer-to-peer or ad hoc)”, and click Connect. 3. Enter a cryptographic key in the network key box and click Connect.
Page 216 Wireless Network Setup Using the Wireless LAN Setup Program You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately. To use wireless network connection, complete the following procedures. ▶ Step1. Install the wireless LAN configuration program (PROSet). Step2.
Page 217 1. Click Scan in the Networks tab. 2. Select the name of desired access point or computer-to-computer network to con- nect from the searched available networks list, and click Connect. 3. Select “Yes, create a profile for this Network.”, and click OK. 4.
Page 218 Network name (SSID) is a name that a wireless adapter uses for identifying con- nection. Enter the name of a computer-to-computer network (e.g. samsung) or the name of the access point to connect to. The network name identifies cases. (capi- tal and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.
Page 219 Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Using computer-to-computer wireless networks, you can access the Internet through a computer that is connected to the Internet even if your computer is not directly connected to the Internet.
Page 220 ■ Step 1. Configuring Sharing 1. Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2. Click ‘IF you understand the security risks but want to share files without running the wizard, click here’. It has the same security effect as that of the ‘Network Setup Wizard’.
Page 221 ■ Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1. Click Start > My Computer. Under Other Places, click My Network Places in your computer.
Page 222 Sharing Printers This section describes how to share a printer between computers connected to a net- work. To share a printer, complete the following procedures: Step 1. Configure printer sharing in the computer connected to the printer. Step 2. Add and use the shared printer in other computers on the network. ■...
Page 223 4. In the Printers and Faxes window, you will find the printer icon has been changed to another icon on a hand. ■ Step 2. Adding and Using a Shared Printer 1. From a different computer that wants to use the shared printer, click Start > Printers and Faxes.
Page 224 7. Read the warning about a shared printer, and click Yes to install the shared printer. 8. Select Yes for ‘Do you want to use this printer as a default printer?’, and click Next. 9. Click Finish. 10. When the printer sharing configuration has been completed, the shared printer appears in the Printers and Faxes window.
Page 225: Wireless Network
Sharing an Internet connection through a wireless network By connecting your computer to another computer, which is connected to the Internet over a wired connection, through a wireless network (Peer-to- Peer), you can access the Internet from your computer. To share an Internet connection, complete the following procedures: Step 1.
Page 226 3. In the Advanced tab, select ‘Allow other network users to connect through this computer’s Internet connection’, and click OK. ■ Step 2. Checking the Shared Internet Connection When the Internet connection sharing configuration has been completed, the net- work icon in the Network Connections window is displayed as follows: Click Start >...
Page 227: Using Bluetooth
Using Bluetooth Bluetooth is an industry standard for local area wireless data exchange between devices. To use Bluetooth, both of the two Bluetooth devices must be accessible through a wireless connection. Bluetooth enables you to do the following tasks. Transferring files and folders (p4-29) Connecting with a HID (p4-30) Synchronizing personal information (p4-31) Connecting to a network...
Page 228 Computers on the network can access the Internet through the shared Internet The name you enter is used to represent the device when connecting with another device. While installing the drive, a warning message box may appear, telling you that there is no Microsoft logo.
Page 229 Connecting with Other Devices This section describes the common steps when using Bluetooth. Read this section first before reading any other instructions. A Bluetooth connection consists of a client requesting a connection, and a server approving the connection. When you establish a Bluetooth connection, you need to enter a PIN (Personal Identification Number) code in both the client and the server, and the server has to approve the transmission for actual data transmission.
Page 230 ■ Step 2. Approving a Transmission 1. When a notification window requesting access privilege appears in the Bluetooth icon on the taskbar of the server, click the notification window. 2. In the [Approve Bluetooth File Transmission Access] dialog box, click OK. Now you can transfer data over the network.
Page 231 Connecting with a HID You can connect and use an HID (Human Interface Device) with Bluetooth capability such as a keyboard, a mouse, or a joystick on your computer. 1. Configure the HID to connect in search status. For more information refer to the HID user manual.
Page 232 Synchronizing Personal Information You can synchronize personal information saved in the PIMS of your computer such as e-mail, a phonebook, a schedule, or memo with another Bluetooth device. What is PIMS? PIMS (Personal Information Management System) is software that manages per- sonal information such as e-mail, schedules, etc.
Page 233 Manual 4-32...
Page 234: System Management
Chapter 5 Chapter 5 System Management This chapter provides information on efficient computer management.
Page 235: Managing Power
CPU power consumption is automatically optimized to conserve power when the computer is operating on battery power, an application may be executed slower than when it is operating on AC power.To use SAMSUNG mode after reinstalling Windows, install the PowerCFG program using the system software CD.
Page 236: Using The Power Button
■ Using the Power button You can configure the function of the power button. Click Start > Control Panel > Performance and Maintenance > Power Options and select the Advanced tab. When the Power button is configured to put the system into Power-Saving Mode, man- ually shutting down the computer requires the Power button to be pressed and held for more than 4 seconds.
Page 237 Using the Battery Please refer to the following instructions when running the computer on battery power without connecting the AC power. This computer uses smart rechargeable Lithium-Ion (Li-Ion) battery. Please read the instructions on the battery before use. Please refer to the system operation environment (Page A-2) of this manual and oper- ate and store the battery at room temperature.
Page 238: Checking The Battery Charge Status
Checking the Battery Charge Status You can check the battery charge status using one of the following two methods: Method 1 : Pressing the <Fn>+< > key combination displays the remaining battery charge. ● Power supply status (Power Source) When operating on battery power When operating on AC power ●...
Page 239: Increasing Battery Life
Increasing Battery Life ■ Adjust LCD Brightness <Fn> + < ■ Use Power Saving Mode This function reduces power consumption when the system is not being used for a prolonged period of time. ■ Use Battery Calibration When the battery is in continuous use without being completely charged or dis- charged, there may be a difference between the displayed battery charge and the actual battery charge, owing to the inherent characteristics of the battery.
Page 240 Upgrading Memory This computer has a 128 MB or 256 MB memory module. There is a socket in which one additional memory module can be installed. Before replacing the memory module, turn the system off completely. Do not replace the memory module when the system is in Rest Mode. 1.
Page 241 3. Align the new memory module connectors accordingly and slide it into the slot at a 30˚ angle. 4. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, push the module while pressing the memory mod- ule tabs outward.
Page 242: Using The Security Lock
Using the Security Lock The security lock is a device used to physically ‘fix’ the system when using it in a pub- lic place. The locking device needs to be purchased separately. The shape and meth- ods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.
Page 243: Traveling With The Computer
Traveling with the Computer When traveling, keep the system and the AC adapter disconnected. Otherwise, it may affect the functions of the system. Make sure that the system is not pressed by a book or heavy objects. The LCD may get damaged. When traveling by plane, use a bag designed for notebook PCs and hand-carry the computer.
Page 244: Customizing Your Computer
Chapter 6 Chapter 6 Customizing your computer This chapter provides information how to use the system setup, customizinig screen settings.
Page 245: To Enter System Setup
Using System Setup System Setup is a utility that enables the computer environment to be changed to suit the user. System Setup is used when changing the system password, booting priority, or when adding new devices. Please use extra care when configuring System Setup, as it may cause serious system error.
Page 246: System Setup Menus
System Setup Menus Menu Items Description Main Configures the basic system environment Advanced Configures OS and major chipset options of the system Security Configures system security options Boot Configures booting options Exit Exits System Setup For more information on System Setup menus or options, please refer to Help on the right side of the screen.
Page 247: Configuring The Password
By configuring a supervisor password, you can restrict system access to autho- rized users only. Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center. 1. Select the Security menu in the System Setup. (To enter into System Setup, see Page 6-2.) 2.
Page 248 ■ Setting the User Password You can configure user passwords so that other users can use the system. Before activating a user password, a supervisor password must have been config- ured. Users can start the system with their user password, but cannot enter into the System Setup.
Page 249 Changing Booting Priority You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to con- figure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.
Page 250: Configuring Resolution And Color Depth
Configuring Resolution and Color Depth Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen.
Page 251 Using External Display Devices Using external display devices such as a monitor, projector, TV, etc allows you to view screen images alternatively or simultaneously on each device. Additionally, you can extend the screen onto two display devices to use a larger workspace.Using external display devices is especially useful when you are giving a presentation or watching a movie through your TV.
Page 252 3. Click the monitor ‘2’ icon, select the ‘Extend my Windows desktop onto this monitor’ check box, and then click Apply. 4. When you have completed this, click OK on the left of the Troubleshoot button. The primary display device (the LCD) is indicated as ‘1’, and the secondary dis- play device is indicated as ‘2’.
Page 253 ■ Deactivating Dual View Mode Click the monitor ‘2’ icon, clear the ‘Extend my Windows desktop onto this monitor’ check box, and then click Apply. Manual 6-10 To move a window between display devices in Dual View mode Click the title bar of the window in the primary display device (1, the LCD), and drag it to the secondary display device (2).
Page 254: Checking For Viruses
Checking for Viruses The Norton AntiVirus software is provided as the virus inspection program. When you first run Norton AntiVirus, the Norton AntiVirus Configuration window pops up. If you complete the configuration and your computer connect to network, you can download and install the latest updates via the network. When the live update is done, virus scanning starts automatically.
Page 255 Manual 6-12...
Page 256: Recovering The Computer
Chapter 7 Chapter 7 Recovering the Computer This chapter provides recovery procedures using the System Recovery CD when the computer is not operating properly.
Page 257 Restoring the System The System Restore function allows you to restore your computer to an earli- er copy (called restore point), and restores the settings if a problem occurs. The System Restore function is provided by Windows XP to enable the reso- lution of various problems without reinstalling Windows XP completely.
Page 258 ■ Returning your computer to an earlier restore point The procedures to return your computer to an earlier restore point when a problem has occurred are described below. 1. Start > All Programs > Accessories > System Tools > System Restore. 2.
Page 259 Reinstalling Software If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and pro- gram using the system software CD. This computer is optimized for Microsoft Windows XP. Therefore, Windows drivers other than the ones included in the System Software CD are not provided.
Page 260 ■ Installing drivers and programs 1. Click Standard Installation in the main window of the System Software CD. (Standard Installation is recommended) 2. The system is scanned to display the drivers and programs that need to be installed. 3. Click OK. The drivers and programs are automatically installed as factory defaults.
Page 261 Reinstalling Window may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data. Samsung Electronics is not liable in the case of data loss, please consult your warranty statement for clarification.
Page 262 Quick Installation : This re-installs Windows with the user data and the system configuration intact. The user data in the already existing Windows folders may be preserved as the existing Windows folders are overwritten. 3. The description for the standard installation appears. Click Yes. The installation starts, and the system will be restarted after a while.
Page 263 ■ If You Cannot Run Windows If you cannot run Windows, you have to boot the system with the system recovery CD, and reinstall Windows. If you boot the system from the system recovery CD, you can install Windows only with the user installation option. You cannot install with the standard installation option.
Page 264 Q&A This section provides information on possible problems, solutions and other references for system use. Windows Related Q1The system does not shutdown properly. A When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off.
Page 265 Display Related Q1 The LCD screen is blank. A Adjust the LCD screen brightness. Use the <Fn> + < Q2 The screen saver disturbs screen viewing during Media Player or video file operation. A Under the Media Player Options, in Player > Enable Screen Saver During Use, uncheck the box and restart the player.
Page 266 Q7 Execution of a DOS command such as DIR causes the desktop to momentarily appear as a broken image when using the system in 2-byte character language DOS mode. A This may happen when you have configured the display in such a way that the screen is displayed to both the LCD and CRT screens simultaneously.
Page 267 Modem Related Q1 I cannot hear the modem sound. A1 Check that the telephone line is properly connected to the modem. A2 Check that the modem driver is installed properly. 1. Click Start > Control Panel > Performance and Maintenance > System.
Page 268 Otherwise, enter the ATX3 command manually before making a call. It can correct this problem by skipping the dial tone check step. Configuring the Modem through the Control Panel. 1. Click Start > Control Panel > Network and Internet Connections 2.
Page 269 Wired LAN Related Q <Wake On LAN> Function A <Wake On LAN> is a function that activates the system in rest mode when a sig- nal (such as ping or magic packet commands) arrives from network(wired LAN). To use <Wake On LAN> function 1.
Page 270 Wireless LAN Related Refer to “Configuring the Network Environment Settings for Wireless LAN Network (WLAN)” (P.4-9) for the basic uses of a wireless LAN. Q1 The Wireless LAN device is operating properly, but I cannot con- nect to the Internet or to another computer. This is due to an inappropriate configuration.
Page 271 Q3 I cannot share an Internet connection. A1 It may require some time to synchronize the computers to share an Internet con- nection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer. A2 Check if the connection between the network adapters is configured to bridge.
Page 272 A4 Verify whether the AP is operating properly. When the AP is not operating normally, turn off the AP and after a short while turn it on again. Verify whether the AP’s firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.) A5 Verify whether the AP has been properly connected to the network.
Page 273 Q5 In the Windows XP ‘Available wireless networks’ window, the Wireless Network Connection is displayed as ‘Not Available’. A1 When there is a Wireless LAN button, ensure that the Wireless LAN button is turned on. (Refer to ”Hot Keys” (P. 1-17)) A2 Check if there is additional program for a wireless LAN connection installed.
Page 274 Q6 When connecting to a computer-to-computer (Ad Hoc) network, I cannot connect to another computer connected to the same com- puter-to-computer network. A1 Make sure that the security settings and network name of the computer-to-com- puter (Ad Hoc) network is correct. A2 Check the TCP/IP properties of the computers to be connected through the com- puter-to-computer (Ad Hoc) network.
Page 275 Q10 The wireless LAN does not operate properly when there are other products operating in the 2.4GHz band. A1 Since IEEE 802.11b and IEEE 802.11g equipment uses a common frequency or the ISM band, channel interference may occur when a wireless video transceiver or a microwave oven is being used.
Page 276 A4 For a model with an installed 11b card, check the wireless LAN driver version installed on your computer. (Click Start > Control Panel > System > Hardware tab > Device Manager. Under Network adapters, right-click PRO/Wireless LAN 2100 3B Mini PCI Adapter item and click Properties > Driver tab then check the driver version.) When a driver of version 1.1.5.0 or lower is installed, remove the security patch (Q815485) if it is installed.
Page 277: Game/Program Related
Game/Program Related Q1 3D game is not executed, or some functions are not working. A Change the graphic setting of the game to ‘2D’ or ‘Software Renderer’, then exe- cute the program again. Q2 I launched a game right after installing it, and the game is not executed.
Page 278 Q6 While running a game, <Fn>+<F4 / LCD/CRT> keys may not work or screen may not be displayed properly when the keys are pressed. A While running Direct3D game, display device configuration keys do not work to maintain the system stability. Since display device control varies depending on the type of display devices in some games, the screen may not displayed proper- ly.
Page 279 Q11 The screen may not be displayed properly in some games. A In some games including Harry Potter and Sorcerer’s Stone and Harry Potter and the Chamber of Secrets, the screen may not displayed properly when you set the screen resolution to 1024x768 and color quality to 32 bits. Play these games in screen resolution - 1024x768 and color quality - 16 bits.
Page 280 Security Center Q1 To change the popup window display settings when connected to the Internet. In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security. A1 To display most of the popup windows when connected to the Internet: 1.
Page 281 Q3 When you see a Windows Security Alert icon appear on the right part of the task bar. With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet.
Page 282 A5 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.
Page 283 Manual 7-28...
Page 284 Appendix Appendix Appendix System specifications, software types and safety instructions are provided here.
Page 285: System Specifications
System Specifications The following is the basic hardware specification for the purchased product. Variations may exist depending on the model type. X10 plus Model Item Cache Memory Main Memory Main Chipset Hard disk drive (HDD) CD Drive Graphics Sound Network Interface PCMCIA Slot Fingerprint Sensor Memory Stick Slot...
Page 286 X15 plus Model Item Specifications Intel Pentium M 1.3~1.7GHz / Dothan Cache Memory 1MB(Pentium M)/2MB(Dothan) Main Memory 128/256/512/1024 MB DDR SDRAM, 2 DDR socket Main Chipset Odem+ / ICH4M Hard disk drive (HDD) 2.5”, UltraDMA 100, S.M.A.R.T 9.5mmH CD Drive CD-ROM drive, CD-RW drive, DVD-ROM drive, CD-RW/DVD-ROM Combo drive, DVD-Multi drive Graphics...
Page 287 X30 Model Item Cache Memory Main Memory Main Chipset Hard disk drive (HDD) CD Drive Graphics Sound Network Interface PCMCIA Slot Fingerprint Sensor Memory Stick Slot Ports Options Dimensions (mm) LCD Panel Size Weight Battery Operation Environment Operation Voltage Frequency Input/Output Power Output Voltage * Please refer to the product catalog or consult your product provider for availability when purchasing optional...
Page 288: Wireless Lan Specifications
Wireless LAN Specifications Intel(R) PRO/Wireless LAN 2100 3B Mini PCI Adapter Item Physical Dimensions Specifications operation temperature and humidity Power Saving Mode Power Receiving Mode Specification Transmission Mode Power Compatibility Operating System Network Specifications Media Access Protocol Security ■ RF Specifications R-F Frequency Band 2.4GHz (ISM band) Support Channels...
Page 289 Intel(R) PRO/Wireless 2200BG Network Connection Item Physical Specifications Power Specification Network Specifications * This piece of equipment supports the Wi-Fi wireless LAN security standard, WPA (Wi-Fi Protected Access) and CCX (Cisco Compatible eXtensions). To connect to a wireless network consisting of the WPA and CCX certificates, Windows patch (KB826942) or PROSet may be required depending on the network settings.
Page 290: Registered Trademarks
Copyright Samsung Co., Ltd. owns the copyright to this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronically, mechanically, or through audio, without the consent of Samsung Co., Ltd. The information in this document is subject to change without prior notice.
Page 291: Safety Instructions
Safety Instructions Instructions for Setup ● Set up the system on a stable work surface. If the system is dropped it may be damaged or it may inflict injuries on the user. ● Do not use loose power outlets or damaged power cables. There is a danger of electric shocks or fires.
Page 292 Instructions for careful handling ● Handle with care so as not to damage the data in the hard disk. - Since the hard disk is fragile and sensitive to external conditions, it may be damaged from temperature changes or impact during operation.
Page 293 ● Use only authorized parts and do not disassemble, repair or modify the computer unless at an authorized dealer. Use authorized service centers as the system may be damaged. ● Do not touch the power strip with wet hands. There is a danger of electric shock. ●...
Page 294: Samsung Notebook Computer Global Warranty
SAMSUNG Notebook Computer Global Warranty 1. What is Global Warranty System (GWS) ? Warranty Repair Service will be provided by Samsung Electronics Co., Ltd as required during Warranty period. 2. What is process ? The GWS service only applies to the regions mentioned below.

This manual is also suitable for:

Nx30prt003 X10 plus X15 plus

Samsung NX30 User Manual

Quick Links

Related Manuals for Samsung NX30

Summary of Contents for Samsung NX30

This manual is also suitable for:

Table of Contents
