SkyLink PS2-MT User Manual

User Manual
Motion Sensor
PS2-MT
4. Program the PS2-MT with M series Main Console 4. Program the PS2-MT with M series Main Console
Maximum 4 sensors in one zone. Programming a fifth Maximum 4 sensors in one zone. Programming a fifth
sensor will displace the first sensor. sensor will displace the first sensor.
Learn
Button
1. Press the learn 2.
button on the back
of the M-Series
Main Console for 3
seconds until the
Zone 1 light is
flashing.
'SET' Button
3. Open the PS2-MT 4.
battery door and
press the 'SET'
button.
1. Safety Information 1. Safety Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
WARNING:
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's
authority to operate the equipment.
CE - DECLARATION OF CONFORMITY:
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 301489-1, EN301489-3,
EN300220-1, EN300220-2 and EN60950-1. This equipment
conforms to the essential requirement of the 1999/5/EC
R&TTE Directive.
2. Package Contents 2. Package Contents

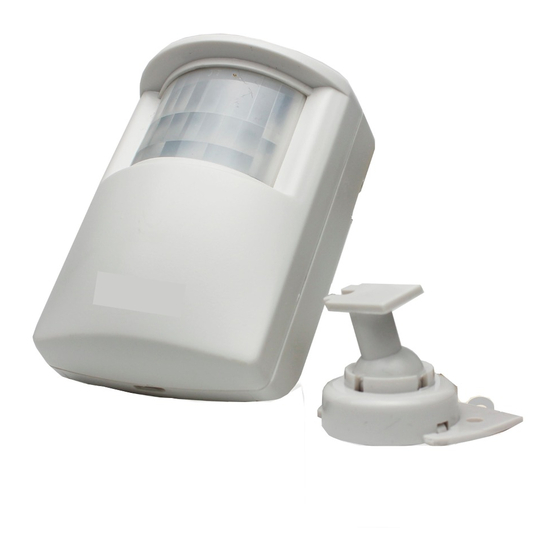

Motion Sensor
PS2-MT
5. Program the PS2-MT with SkylinkNet Internet Hub 5. Program the PS2-MT with SkylinkNet Internet Hub
Must use the SkylinkNet App to program the PS2-MT with the SkylinkNet Internet Hub.
Zone
LED
Zone 1 is selected.
Press the learn button
to select the zone you
1. Go to "More" and
want to program the
tap on "System
sensor.
Once the PS2-MT is
programmed, the Main
Console will beep once
and the corresponding
5. Tap on "Motion
zone LED will be off.
Sensor."
3. Insert Battery in the Motion Sensor 3. Insert Battery in the Motion Sensor
1.
2.
3.
Ball Head Mounting
Joint Accessories
2. Tap on "Setup
Wizard."
6. Name your Sensor,
location and tap
"Continue."
Requires 2 x AAA
alkaline batteries.
NOT INCLUDED.
Unscrew the compartment
door and slide down to
open.
Insert battery inside the
compartment.
Leave compartment
door open until all
programming sections
are completed.
Slide back and screw
compartment door to
close.
3. Tap on "Add Device." 4. Tap on "Sensors."
7. Tap on "Learn Now" and follow the
video to activate the sensor.
