Summary of Contents for Samsung DVD-E232
-

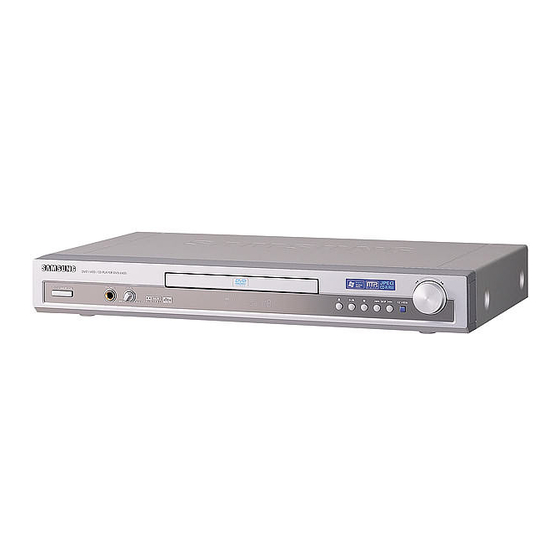

Page 1: Dvd Player
DVD PLAYER LECTEUR DVD DVD-SPELER DVD-E232 DVD-E234 DVD-E235 DVD-E335 DVD-E435 AK68-00141G... -
Page 2: Precautions Precautions
Precautions 1. Setting up Ensure that the mains supply in your house complies with that indicated on the identification sticker located at the back of your play. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10cm). Make sure the ventilation slots are not covered. -
Page 3: Table Of Contents
Before You Start Accessories Remote Control Remote Control (AA Size) User’s Manual If remote doesn’t operate Install Batteries in the Remote Open the battery cover on the back of • Check the polarity + - of the the remote. batteries (Dry-Cell) Insert two AA batteries. -
Page 4: General Features
General Features Excellent Sound Digital Photo Viewer (JPEG) Dolby Digital, a technology developed by You can view the Digital Photos on your TV. Dolby Laboratories provides crystal clear sound reproduction. Repeat You can repeat a song or movie simply by Screen pressing the REPEAT button. -
Page 5: Description-Front Panel
Description-Front Panel DVD-E232 DVD-E234 DVD-E235 DVD-E335/DVD-E435 Front Panel Controls 1. STANDBY/ON • When the unit is first plugged in, the indicator lights. When STANDBY/ON is pressed on again, the light goes out and the player is turned on. 2. HEADPHONE JACK •... -
Page 6: Display Indicators
Display Indicators Front Panel Display 1. Disc type indicators 2. Play / Pause / Forward play 3. Displays various messages concerning operations such as PLAY, STOP, LOAD ... no DISC : No disc loaded. OPEN : The disc tray is open. LOAD : Player is loading disc information. - Page 7 Description-Rear Panel DVD-E232/DVD-E234/DVD-E235 DVD-E335 S-VIDEO VIDEO OUT SELECT SCART 1. DIGITAL AUDIO OUT JACKS • Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital, receiver. Use to connect to an A/V Amplifier that contains a Dolby Digital, MPEG-2 or DTS decoder. 2.
-
Page 8: Tour Of The Remote Control
Tour of the Remote Control DVD-E232/DVD-E234/DVD-E235/DVD-E335 DVD Function Buttons 1. DVD POWER Button • Turns the power on or off. 2. NUMBER Buttons 3. STEP Button • Advances play one frame at a time. 4. I.REPLAY Button • This function is used to replay the previous 10 seconds of the movie from the current position. - Page 9 Tour of the Remote Control DVD-E435 DVD Function Buttons 1. DVD POWER Button • Turns the power on or off. 2. ZOOM Button • Enlarges the DVD picture. 3. NUMBER Buttons 4. MENU Button • Brings up the DVD player’s setup menu. 5.
-
Page 10: Choosing A Connection
Choosing a Connection The following show examples of connections commonly used to connect the DVD player with a TV and other components. Before Connecting the DVD Player • Always turn off the DVD player, TV, and other components before you connect or disconnect any cables. -
Page 11: Playing A Disc
Playing a Disc Before Play • Turn on your TV and press the TV/VIDEO button to select the video mode. • Turn on your Audio System and select AUX, CD or DVD. After plugging in the player, the first time you press the DVD POWER button, this screen comes up : If you want to select the language, press a NUMBER button. -
Page 12: Using The Search & Skip Functions
Using the Search & Skip Functions During play, you can search quickly through a chapter or track or use the skip function to jump to the next selection. Searching through a Chapter or Track DVD-E232/DVD-E234/DVD-E235/DVD-E335 : Press the remote and press again to search at a faster speed on the DVD, VCD, CD. DVD-E435 : Turn the shuttle dial of remote control during disc play. -
Page 13: Using The Disc And Title Menu
Using the Disc and Title Menu Using the Disc Menu During the playback of a DVD disc, press the MENU button on the remote. Select Disc Menu using the UP/DOWN buttons, then press the RIGHT or ENTER button. Using the Title Menu During the playback of a DVD disc, Press the MENU button on the remote. -
Page 14: Repeat Play
Repeat Play Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc. When playing a DVD Press the REPEAT button on the remote. Repeat screen appears. Select Chapter, Title or A-B using the LEFT/RIGHT buttons. * REPEAT A-B •... -
Page 15: Slow Repeat Play
Adjusting the Aspect Ratio (EZ View) If you are using a 4:3 TV For 16:9 aspect ratio discs • 4:3 Letter Box Displays the content of the DVD title in 16:9 aspect ratio. The black bars will appear at the top and bottom of the screen. •... -
Page 16: Selecting The Audio Language
Selecting the Audio Language You can select a desired language quickly and easily with the AUDIO button. Using the AUDIO button Press the AUDIO button. Use the LEFT/RIGHT buttons to select the desired language on a DVD. - The audio languages are represented by abbreviations. Use the LEFT/RIGHT buttons to select Stereo, LEFT or RIGHT. -
Page 17: Changing The Camera Angle
Changing the Camera Angle When a DVD contains multiple angles of a particular scene, you can select the Angle function. Using the ANGLE button Press the ANGLE button to see if an ANGLE ) mark is present at the upper left hand corner of the screen. -
Page 18: Using The Bookmark Function
Using the Bookmark Function This feature lets you bookmark sections of a DVD or VCD (MENU OFF mode) so you can quickly find them at a later time. Using the Bookmark Function (DVD/VCD) During play, press the BOOKMARK button on the remote. -
Page 19: Mp3/Wma Play
MP3/WMA Play When an MP3/WMA Disc is inserted into the DVD player, the first song file of the first folder plays. • If more than two file extensions are present, select the media of your choice by pressing UP/DOWN, then the press ENTER button. -
Page 20: Program Play & Random Play
Program Play & Random Play Program Play (CD/MP3/WMA) Press the MODE button. Use the LEFT/RIGHT buttons to select PROGRAM. Press the ENTER button. Use the UP/DOWN/LEFT/RIGHT buttons to select the first track to add to the program. Press the ENTER button. The selection numbers appear in the Program Order box. -
Page 21: Using The Setup Menu
Picture CD Playback CD-R JPEG Discs • Only files with the ".jpg" and ".JPG" extensions can be played. • If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played. -
Page 22: Setting Up The Language Features
Setting Up the Language Features If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie. Using the Player Menu Language With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button. -
Page 23: Setting Up The Audio Options
Setting Up the Audio Options With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button. Select Audio Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. Use the UP/DOWN buttons to select the desired item. -
Page 24: Setting Up The Display Options
Setting Up the Display Options With the unit in Stop mode, press the MENU button. Select Setup using UP/DOWN buttons, then RIGHT or ENTER button. Select Display Setup using UP/DOWN buttons, then press the RIGHT or ENTER button. Use the UP/DOWN buttons to select the desired item. -
Page 25: Setting Up The Parental Control
Point the DVD’s remote at the TV. While holding the TV POWER button down, enter the code for your brand. e.g) Setting up in LEVEL6. e.g) For SAMSUNG 4 TVs RATING LEVEL TING LEVEL Level 8 Adult While holding down the TV POWER button,... -
Page 26: Troubleshooting
Audio Output *S/N Ratio *Dynamic Range *Total Harmonic Distortion • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. Specifications AC 230V, 50 Hz AC110-240V, 50/60 Hz (DVD-E435 only) 12 W 2.4 Kg... - Page 27 Saı eucaristouvme gia thn empistosuvnh pou deivxate sthn SAMSUNG me thn agorav authvı thı suskeuhvı. To proi>ovn autov thı SAMSUNG eivnai egguhmevno gia perivodo dwvdeka (12) mhnwvn apov thn pragmatikhv hmeromhniva agoravı tou gia antallaktikav kai ergatikav. Sthn perivptwsh pou qa creiasteiv episkeuhv, to proi>ovn autov thı SAMSUNG qa prevpei na staleiv sto exousiodothmevno service.
- Page 28 és ha a terméken a sorozatszám sértetlen. 2. Samsung kötelezettsége a javításra, vagy - választása szerint - a termék illetve a hibás alkatrész kicserélésére korlátozódik. 3. A garanciális javításokat hivatalos Samsung kereskedôknek vagy hivatalos szolgáltató...
