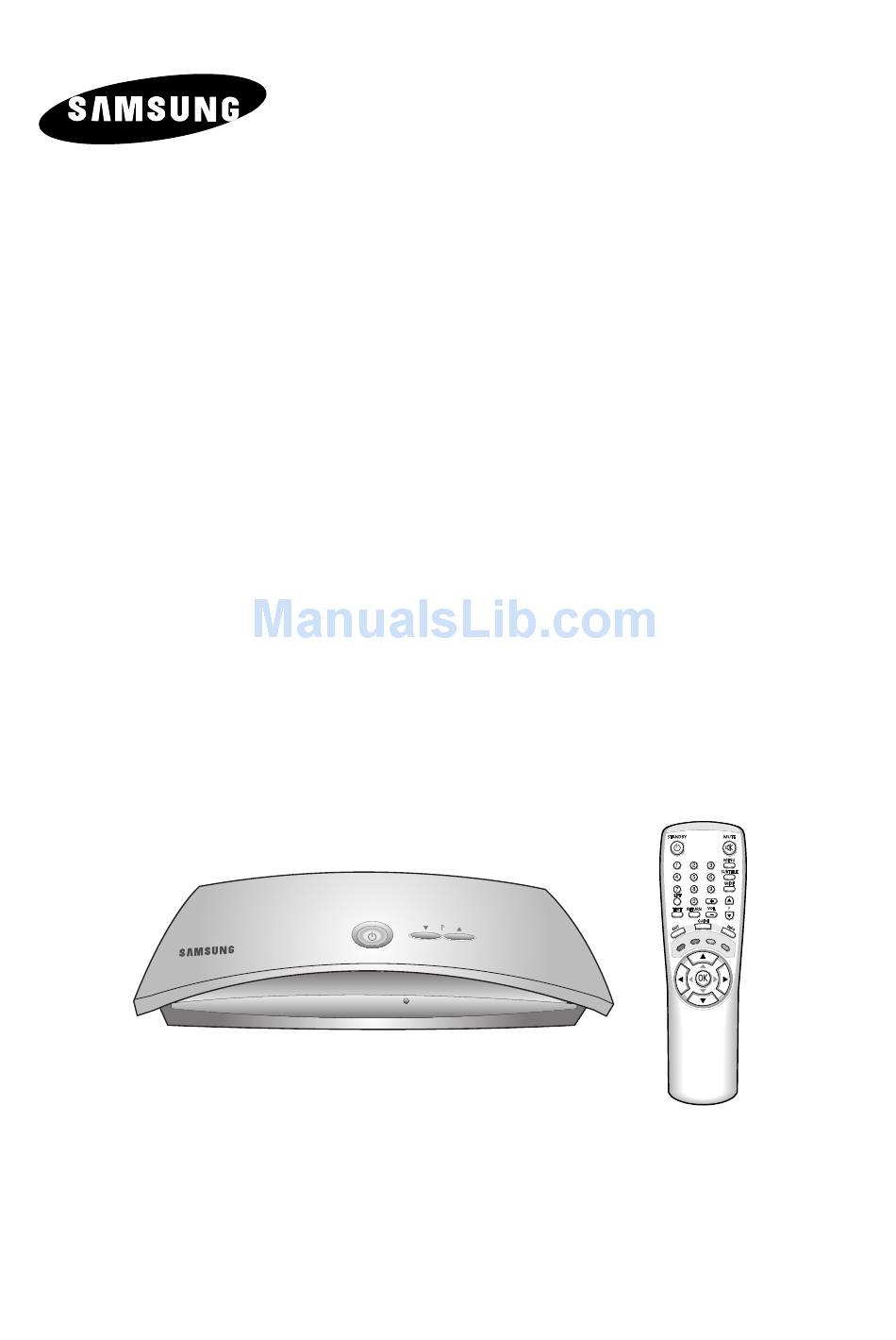

- Page 1 DIGITAL TERRESTRIAL RECEIVER SIR-U200i Owner’s Instructions Before operating the unit, please read this manual thoroughly, and retain for future reference.
-
Page 2: Safety Instructions
Safety Instructions This Set Top Box (STB) has been manufactured to satisfy international safety standards. Please read the following recommended safety precautions carefully. For more information regarding installation, operation and safety of the STB, please contact the technical help desk at 0870-242-0303 or dttvsupport@seri.co.uk N Do not place the STB on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. -
Page 3: Table Of Contents
OREWORD Safety Instructions ... Caution ... ONNECTING AND REPARING Viewing your Set Top Box... Connecting the Aerial ... Connecting the Set Top Box to a TV and a VCR ... Becoming Familiar with the Remote Control ... Inserting the Batteries in the Remote Control ... Switching On and Off... -
Page 4: Viewing Your Set Top Box
Viewing your Set Top Box Front Panel Stand by Switches between operation and standby mode. Indicator The indicator light flickers when your STB is receiving a signal from your remote control. - Red; In standby. - Green: Running. - Amber: Initialising. Rear Panel a) RF-IN Connects to your TV aerial cable. -
Page 5: Connecting The Aerial
Connecting the Aerial To view digital TV channels correctly, a signal must be received by the STB from one of the following sources: N An outdoor aerial N An indoor aerial (not recommended) Connect the aerial input cable to the 75Ω coaxial socket on the rear of the STB. -
Page 6: Becoming Familiar With The Remote Control
Becoming Familiar with the Remote Control The remote control is used mainly to: N Change channels and adjust the various settings N Use the Electronic Programme Guide (EPG) N Set up the STB using the on-screen menu system The following table presents frequently used buttons and their functions. “Refer to the illustration on opposite page to find where they are on the remote control.”... -
Page 7: Inserting The Batteries In The Remote Control
Inserting the Batteries in the Remote Control You must insert or replace the batteries in the remote control when you: N Purchase the STB N Find that the remote control is no longer operating correctly Remove the cover on the rear of the remote control by pressing the symbol downwards and then pulling firmly to remove it. -
Page 8: Switching On And Off
Switching On and Off Front of the STB Placing in Standby Mode English-8 The mains lead is attached to the rear of the STB. ☛ If you have purchased this STB in the United Kingdom, refer to page 27 for further instructions on plug wiring. Plug the mains lead into an appropriate power socket. -
Page 9: Storing Channels Automatically
Storing Channels Automatically When the STB is powered on for the first time it will automatically perform a channel scan operation. If the STB is in Standby mode, press the STANDBY ( ) button on the remote control. Result: The UPDATE CHANNEL LIST dialog is displayed. The progress bar shows how much of the scan is complete. -
Page 10: Previewing The On-Screen Menu System
Previewing the On-Screen Menu System To help you navigate around the on-screen menu system and adjust the various settings available, refer to the following illustration. © Guide © Preference © Feature © Channel © System English-10 Press the “MENU” button. ©... -
Page 11: Viewing The Demonstration
Viewing the Demonstration To become familiar with the various menus provided by your STB, you can view the demonstration mode. Press the MENU button. Result: The main menu is displayed. Press the L or M button to select Feature, and press the √ or OK button. -
Page 12: Programme Information
Programme Information While viewing a channel, additional information about the current programme may be displayed. Viewing Channel Lists You can display a list of all channels or your favourite channels. English-12 While viewing a programme, press the INFO button. Result: The programme information is displayed. -
Page 13: Checking The Signal Information
Checking the Signal Information You can get information about the signal status. Press the MENU button. Result: The main menu is displayed. Press the L or M button to select System, and press the √ or OK button. Press the L or M button to select Signal Information, and press the OK button. -
Page 14: Editing Your Favourite Channels
Editing Your Favourite Channels You can edit your favourite channels using the four colour buttons. N Add N Move English-14 Press the MENU button. Result: The main menu is displayed. Press the L or M button to select Channel, and press the √ or OK button. -
Page 15: Selecting Channel Lists
Editing Your Favourite Channels N Renumber In the Edit Favourite Channels menu, select the channel to be assigned a new number using the L or M button. Press the Yellow button. Result: The channel number is highlighted. ➢ You can revert to the previous channel number pressing the Yellow button again, or Cancel. -
Page 16: Viewing Epg (Electronic Programme Guide) Information
Viewing EPG (Electronic Programme Guide) Information You can display EPG information at any time while watching digital programmes. English-16 ➣ The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as result of the information broadcast on a given channel. - Page 17 Viewing EPG (Electronic Programme Guide) Information Display the Now & Next Guide and the Full Guide Display the Favourites and the All Channels list View Categories Exit the guide Watch a programme in the EPG list View programme information ➣ N Information such as the channel number, programme title and running time, status bar, and brief summary of the highlighted programme will be displayed in the top...
-
Page 18: Viewing All Channels And Favourite Channels
Viewing All Channels and Favourite Channels In the EPG menu, you can display all channels or favourite channels. English-18 Press the MENU button. Result: The main menu is displayed. Press the L or M button to select Guide, and press the √ or OK button. -
Page 19: Selecting Category Colours
Selecting Category Colours You can change the colours for Categories. Press the MENU button. Result: The main menu is displayed. Press the L or M button to select Guide, and press the √ or OK button. Select your required guide (Now & Next Guide or Full Guide) using the L or M button, and press the OK button. -
Page 20: Using The Preferences
Using the Preferences You can use various settings to suit your personal preferences. English-20 N Changing the TV Screen Format N Using the Zoom Mode N Selecting a Video Output N Selecting an Audio Output N Adjusting the Translucency Level Press the MENU button. -
Page 21: I Selecting The Preferred Language (Subtitle Or Audio)
Selecting the Preferred Language (Subtitle or Audio) You can change the default value for subtitle and audio languages. Press the MENU button. Result: The main menu is displayed. Press the L or M button to select Feature, and press the √ or OK button. -
Page 22: Viewing Product Information
Viewing Product Information You can view your product information. For service or repair please contact a Samsung approved dealer. English-22 Press the MENU button. Result: The main menu is displayed. Press the L or M button to select System, and press the √ or OK button. -
Page 23: Upgrading The Software
Upgrading the Software To keep your product up-to-date with new Digital Television features then software upgrades are periodically broadcast as part of the normal Television signal. The STB will automatically detect these signals and display the software upgrade banner. Your are given the option to install the upgrade into the STB. -
Page 24: I Resetting
Resetting You can reset the values stored in the STB to the factory default values. English-24 ➣ The Reset operation deletes all channel information and user preferences returning all values to their default factory state. Press the MENU button. Result: The main menu is displayed. -
Page 25: Problems And Solutions
Problems and Solutions Before contacting Samsung after-sales service, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of the STB and contact your local dealer. Problems No display LED on the front panel;... -
Page 26: Technical Specifications
Technical Specifications Signal Reception UHF Channel Demodulation Video/Audio Decoding Video Decoding Bit rate Resolution Format Audio Decoding Sound Mode Power Supply Mains Power consumption Standby consumption Connections RF input (for aerial) connector RF output connector TV SCART VCR SCART Service Port Miscellaneous Dimensions Weight... -
Page 27: Wiring The Mains Power Supply Plug (Uk Only)
