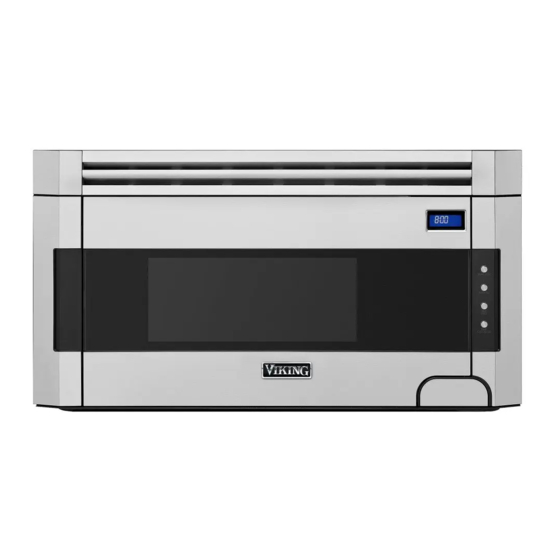

Viking RVMH330 Installation Manual

IMPORTANT–Please Read and Follow!
• Please read all instructions thoroughly before installing the Built-In Microwave Hood. Two people are
recommended to install this product.
• If a new electrical outlet is required, its installation should be completed by a qualified electrician before the
Built-In Microwave Hood is installed. See ELECTRICAL GROUNDING INSTRUCTIONS on page 2.
Unpacking and Examining
Your Oven
Open the bottom of the carton, bend the carton flaps
back and tilt the oven over to rest on plastic foam pad.
Lift carton off oven and remove all packing materials,
Wall and Top Cabinet Template, Turntable, and Turntable
Suppor t. SAVE THE CARTON AS IT MAY MAKE
INSTALLATION EASIER.
• Remove the feature sticker from the outside of the
door, if there is one.
• DO NOT REMOVE THE WAVEGUIDE COVER, which
is located on the right side wall of the oven cavity.
Check to see that there is a Wall Template and Top
Cabinet Template. Read enclosures and SAVE the Use
and Care manual.
Check the oven for any damage, such as misaligned or
bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents
inside the cavity or on the door. If there is any damage,
do not operate the oven and contact your dealer or
AUTHORIZED SERVICER.
Installation Guide

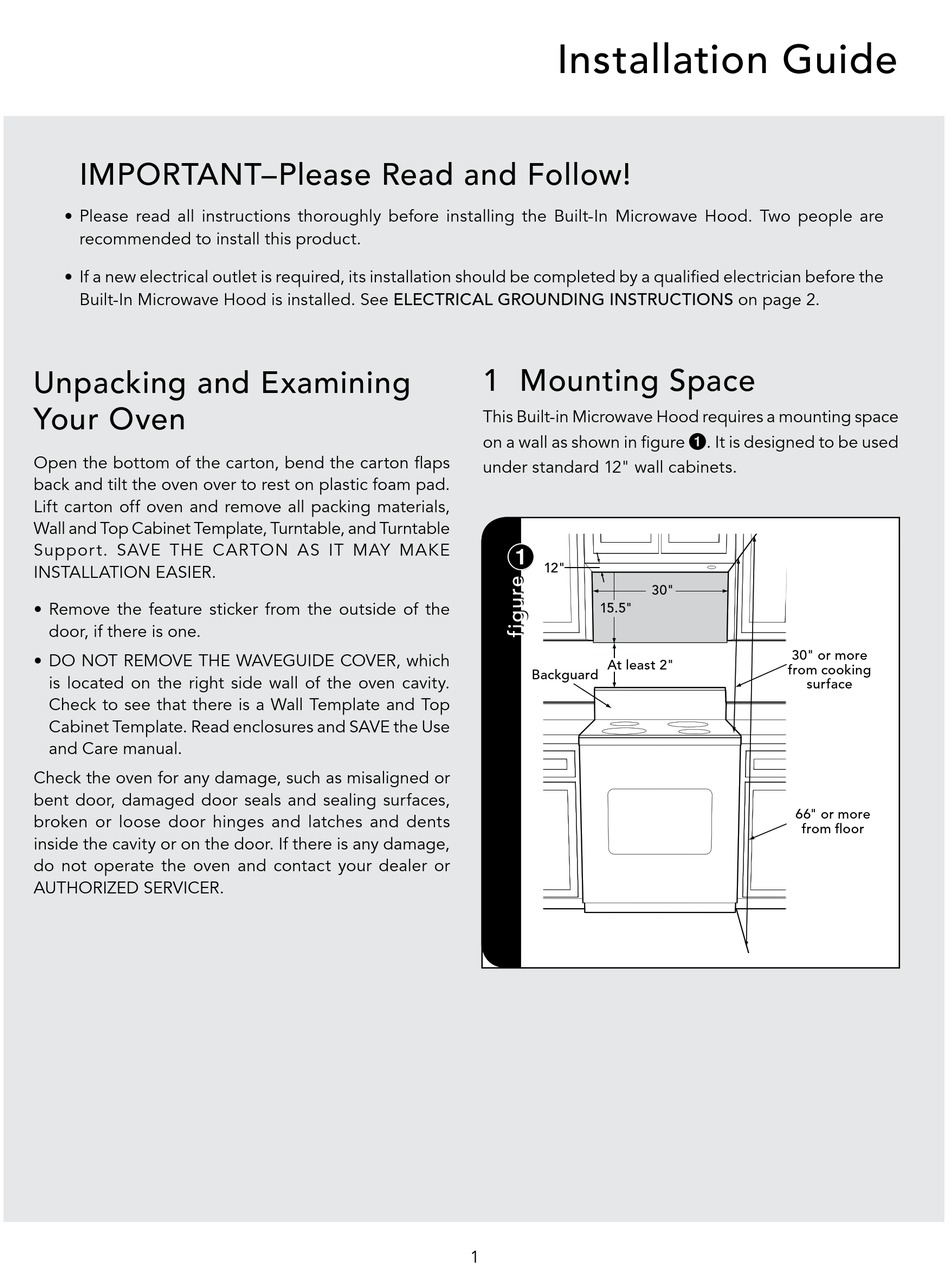

1 Mounting Space
This Built-in Microwave Hood requires a mounting space
on a wall as shown in figure 1. It is designed to be used
under standard 12" wall cabinets.
1
12"
15.5"
At least 2"
Backguard
1
30"
30" or more
from cooking
surface
66" or more
from floor
