- Page 2 / mETAL dr-03 hI-HATS / METAL The DR-03 Hi-Hats / Metal is the third module in the DR series dedicated to analog drum synthesis. It is designed to synthesize hi-hats and metal percussion like cowbells or cymbals and even FX. Three different voices are available at the same time Closed Hi-hat, Open Hi-hat and Metal plus a Hihat mixed output .

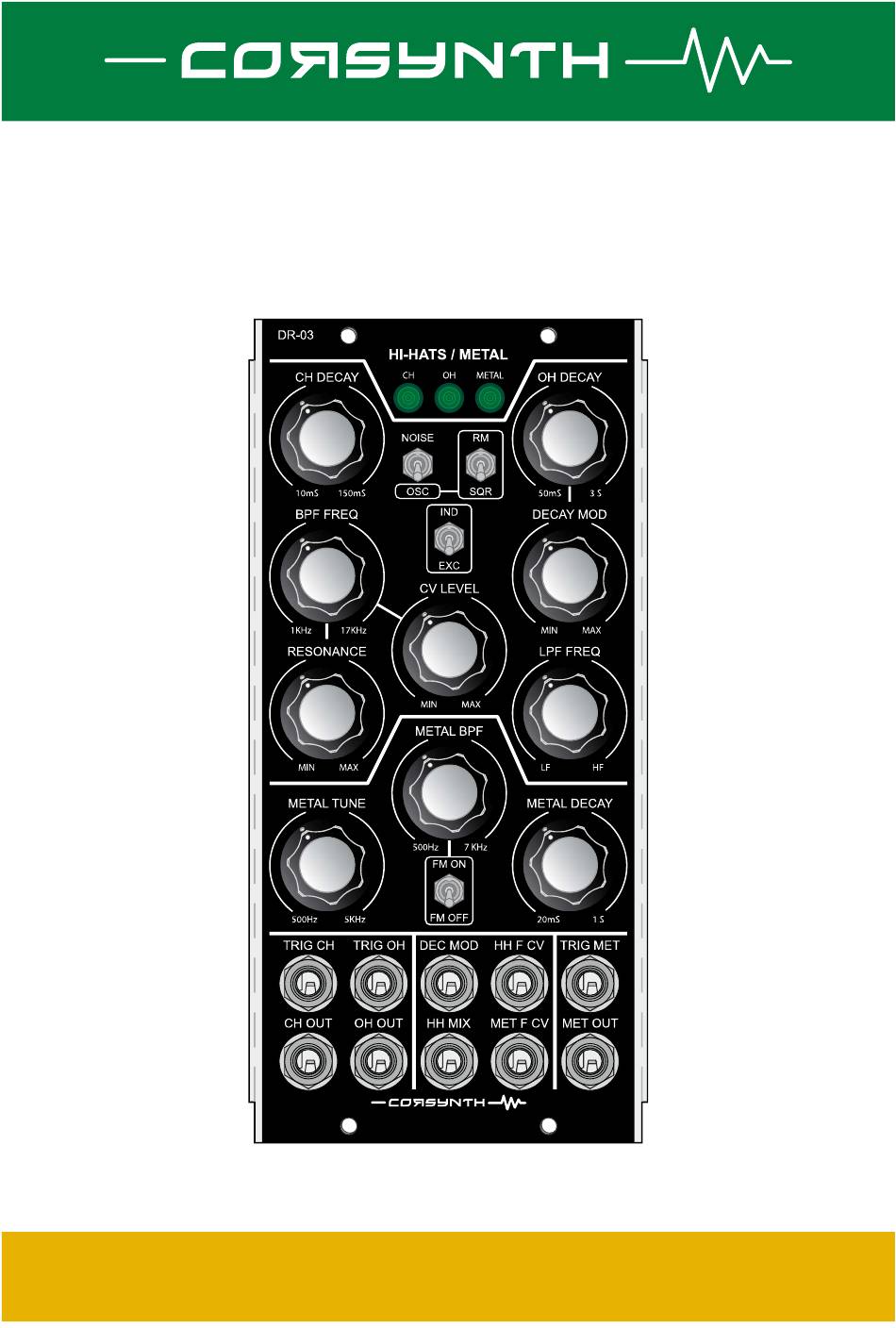

- Page 3 / METAL DR-03 Hi-Hats / Metal Front Panel Open Hi-Hat Closed Hi-Hat Output LED Output LED Metal Output LED Closed Hi-Hat Decay time Open Hi-Hat Decay time Hi-Hat source Noise oscillator Open Hi-Hat mode trigger mode Open Hi-Hat Decay...
- Page 4 / METAL DR-03 HIHATS / METAL BLOCK DIAGRAM HIHATS BLOCK DIAGRAM ∑ ∑ LEVEL CUTOFF RESONANCE CUTOFF CH OUT TRIG CH ENVELOPE ( AD ) ∑ HH MIX DECAY EXC / IND OH OUT TRIG OH ENVELOPE ( AD )
- Page 5 / METAL METAL BLOCK DIAGRAM M F CV CH OUT ENVELOPE ( AD ) FM ON / OFF CUTOFF METAL TUNE TRIG MET DECAY AUDIO SIGNAL NAME FUNCTION BLOCK NAME XOR GATE OUTPUT CONTROL SIGNAL ∑ NAME POTENTIOMETER...
-
Page 6: Control Description
/ METAL CONTROL DESCRIPTION Hi-Hat Controls CH DECAY CH DECAY This knob sets decay time of the closed hit-hat. It goes from 10ms up to 150ms. 10mS 150mS OH DECAY OH DECAY This knob sets the base decay time of the open hit-hat. It goes from 50ms up to 3s. - Page 7 / METAL BPF FREQ BPF FREQ This potentiometer sets the Hihat bandpass lter cutoff frequency. 1KHz 17KHz CV LEVEL CV LEVEL This potentiometer sets amount of external modulation that affects the Hihat bandpass lter cutoff frequency. RESONANCE RESONANCE This potentiometer sets amount of resonance to the Hihat bandpass lter.
- Page 8 / METAL Metal Controls METAL TUNE METAL TUNE The Metal sound is composed by two ring modulated oscillators. The rst oscillator has a xed frequency. The frequency of the second oscillator is controlled by this knob. It goes from 500Hz to 5Khz...
- Page 9 / METAL CH OUT CH OUT Closed Hi-Hat output. TRIG OH TRIG OH Open Hi-Hat trigger input. Any signal with a positive voltage higher that 3.5V can be used. OH OUT OH OUT Open Hi-Hat output. DEC MOD DEC MOD Open Hi-Hat decay modulation input.
- Page 10 / METAL MET F CV MET F CV Metal Band Pass Filter frequency CV input. TRIG MET TRIG MET Metal trigger input. Any signal with a positive voltage higher that 3.5V can be used. MET OUT MET OUT Metal output.
-
Page 11: Technical Data
/ METAL Trimmers and power connectors IMPORTANT !!!! This module has two power connectors (MU and MOTM). BPF HH initial Only one is needed to power the frequency module. (MU or MOTM). Never connect both at the same time. -
