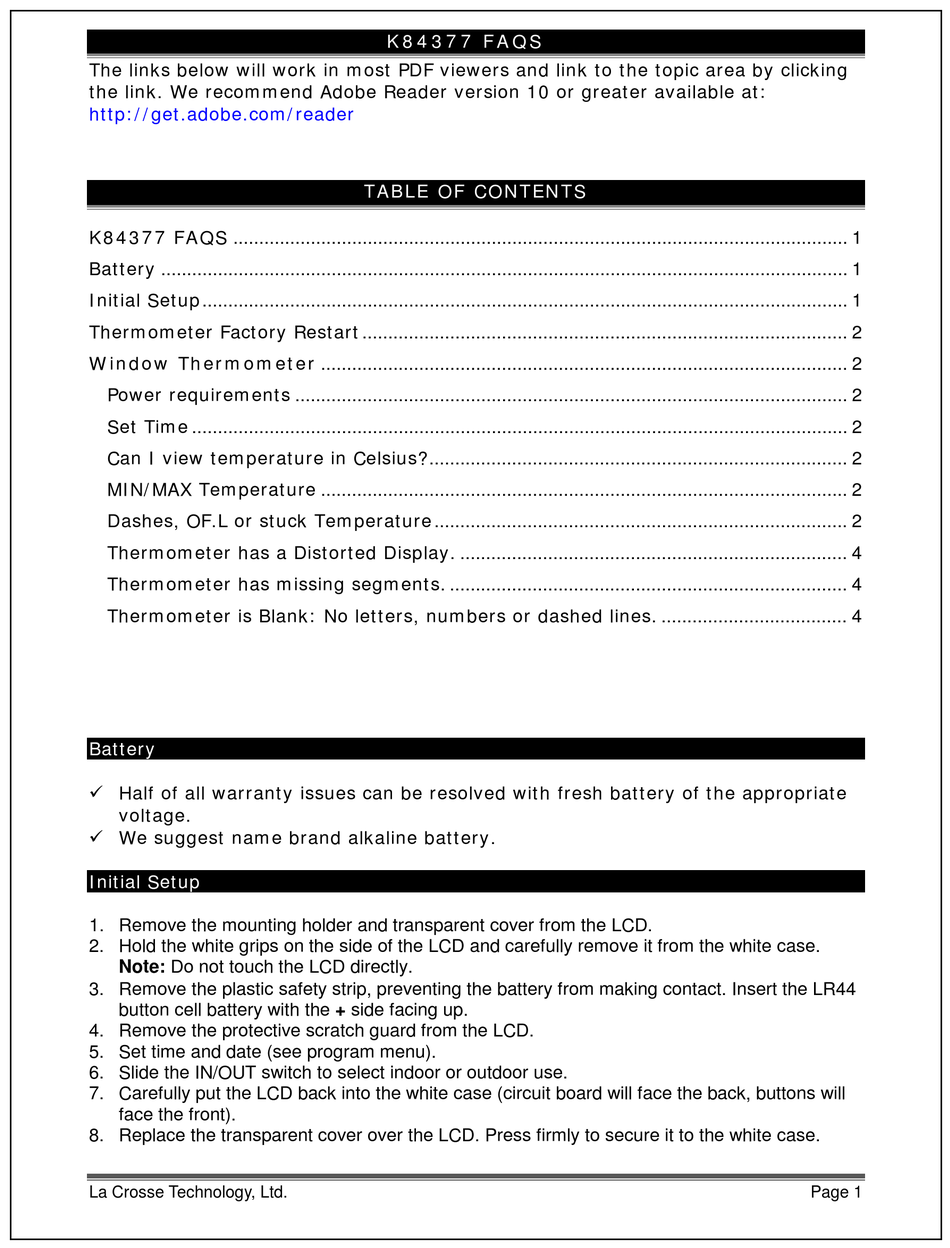

La Crosse Technology K84377 Faqs

The links below will work in most PDF viewers and link to the topic area by clicking
the link. We recommend Adobe Reader version 10 or greater available at:
http://get.adobe.com/reader
K84377 FAQS ....................................................................................................................... 1
Battery ..................................................................................................................................... 1
Initial Setup ............................................................................................................................. 1
Thermometer Factory Restart .............................................................................................. 2
Window Thermometer ...................................................................................................... 2
Power requirements ........................................................................................................... 2
Set Time ............................................................................................................................... 2
Can I view temperature in Celsius? ................................................................................. 2
MIN/MAX Temperature ...................................................................................................... 2
Dashes, OF.L or stuck Temperature ................................................................................ 2
Thermometer has a Distorted Display. ........................................................................... 4
Thermometer has missing segments. ............................................................................. 4
Thermometer is Blank: No letters, numbers or dashed lines. .................................... 4
Battery
 Half of all warranty issues can be resolved with fresh battery of the appropriate
voltage.
 We suggest name brand alkaline battery.
Initial Setup
1. Remove the mounting holder and transparent cover from the LCD.
2. Hold the white grips on the side of the LCD and carefully remove it from the white case.
Note: Do not touch the LCD directly.
3. Remove the plastic safety strip, preventing the battery from making contact. Insert the LR44
button cell battery with the + side facing up.
4. Remove the protective scratch guard from the LCD.
5. Set time and date (see program menu).
6. Slide the IN/OUT switch to select indoor or outdoor use.
7. Carefully put the LCD back into the white case (circuit board will face the back, buttons will
face the front).
8. Replace the transparent cover over the LCD. Press firmly to secure it to the white case.
La Crosse Technology, Ltd.
K84377 FAQS
TABLE OF CONTENTS
Page 1
