Installing the UMTS module

To install the UMTS module, proceed as follows:
► Insert the UMTS module, contacts first, into the bay. Take care not to trap the antenna cables.
► Carefully push the UMTS module downwards.
► Pull the protective tubes carefully away from the antenna contacts.
► Secure the UMTS module with the enclosed screws.
Before connecting the antenna cables, you must first remove the protective tubes from the
!
cables.
To prevent damage to the antenna contacts, connect the antenna cables carefully to the
!
corresponding ports.

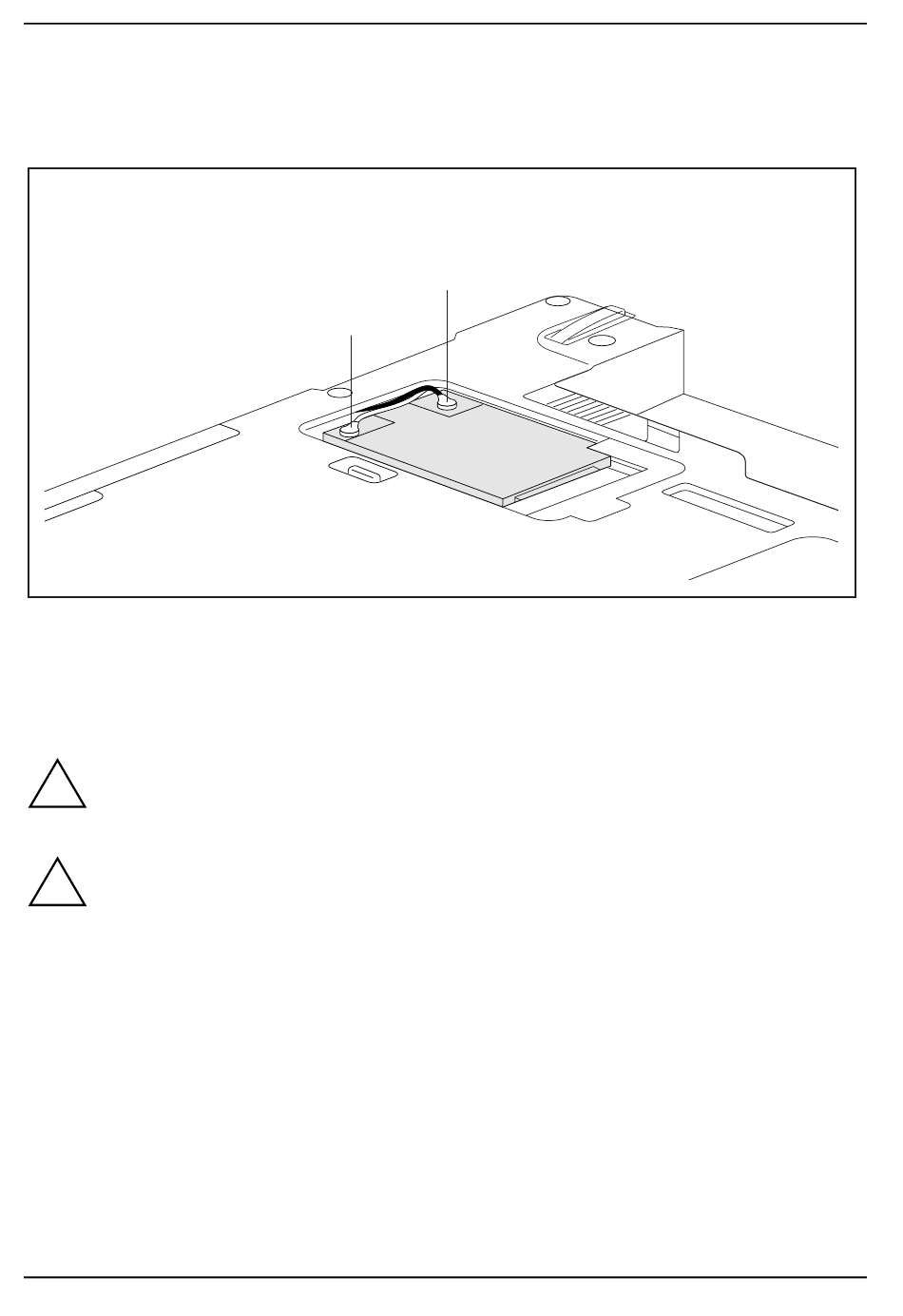

Ensure correct connection of the antenna cables:
● Connect the orange antenna (2) to the AUX port
● Connect the yellow antenna (1) to the MAIN port
► Fasten the two antenna cables.
► To fit the cover again, stow the cables carefully in the recess of the UMTS module bay, as
shown.
► Place the cover over the bay and tighten the screws.
34
Installing the UMTS module in LIFEBOOK P771
2
1
