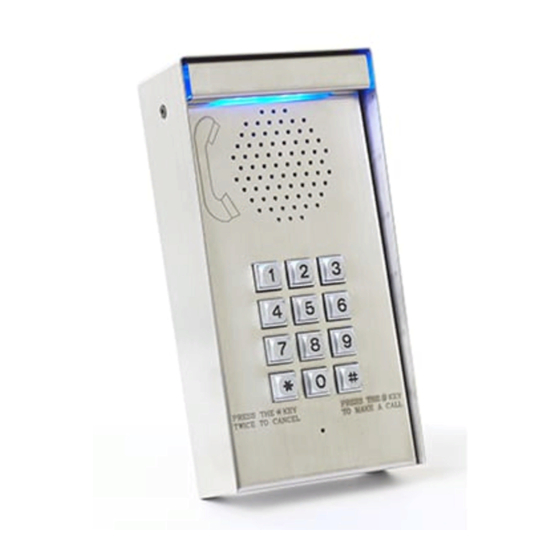

ECA MCI-3000V1 Quick Start Manual

Multi Channel GSM Intercom with Access Control
INSTALLATION INSRACTIONS
1. Important !
It is a must to read the instructions before installing and programming the unit.
2. The SIM Card
You can use any GSM SIM card which is not locked including Nest-G. Insert the SIM card into your phone and
make sue that you can make a call. The SIM card must be cleared from any phone numbers prior to use with the
unit. YOU MUST call the mobile phone network you are registered with, and cancel the Message Bank and
the answering service on this SIM card.
unit.
N o t e !
Make sure that you insert or remove the SIM card only when the unit is disconnected from the Power.
You must not cut the antenna's cable or shorten it.
You must use 12V Dc or AC to power up the unit. No polarty required.
Steps of installation:
1. Insert the SIM card.
2. Connect the GSM antenna. Do not cut or shorten the antenna's cable.
3. Do not install or stick the antenna on to any metal surface or posts. Stick the antenna as hight as possible to
any brick wall or wooden fence or post.
4. Use 12V Dc or Ac to power the system on terminals PWN1 and PWN2 – no polarity required.
5. Connect the relay's output Com. and N.O. to any control panel's Push Button input to trigger the gate to
open or to the electric latch of a pedestrian gate for the system to be able to open the pedestrian gate.
6. Program the system as required according to the manual.
General information:
On standby, when the # key is pressed, the system will announce:
•
Please press the unit number followed by the # key
"
After which, the visitor will press 1 # for house number one or 23 # for house number twenty three
etc...etc. Then, the system will dial the first number of the house unit which was entered, for the
number of rings as was programmed in the system. If there was no answer or in case line was busy,
the system should dial the second and third number accordingly. If there was no answer to any of the
three numbers in the system, then will announce:
"Your call was not answered, please try later" and then the system will go to standby mode.
The unit can be programmed with all the phone numbers and features via the front keypad with out
•
the need of a SIM card.
Note ! Insert or remove the SIM card ONLY after the power to the unit was turned OFF.
•
The system will always make a "long Beep" in REST (when power is applied)
•
In program mode, the unit will automatically hang up and exit program mode if there was no response
•
within 1 minute during programming.
During the programming mode, an invalid command will be indicated by two short beeps.
•
The system will activate the out put (according to the function chosen) when a correct four digit pin code
•
is entered. No need to press the # key after entering the 4-dgit pin code.
• Pressing the * button twice will cancel the last command or the call made and enter the system to
stand by mode.
• The owners can open the gate while they talk to the visitor by pressing on the Hash key (#) on their
phone.
Make sure the power is OFF
".
Model: MCI-3000V1
and insert the SIM card in to the
